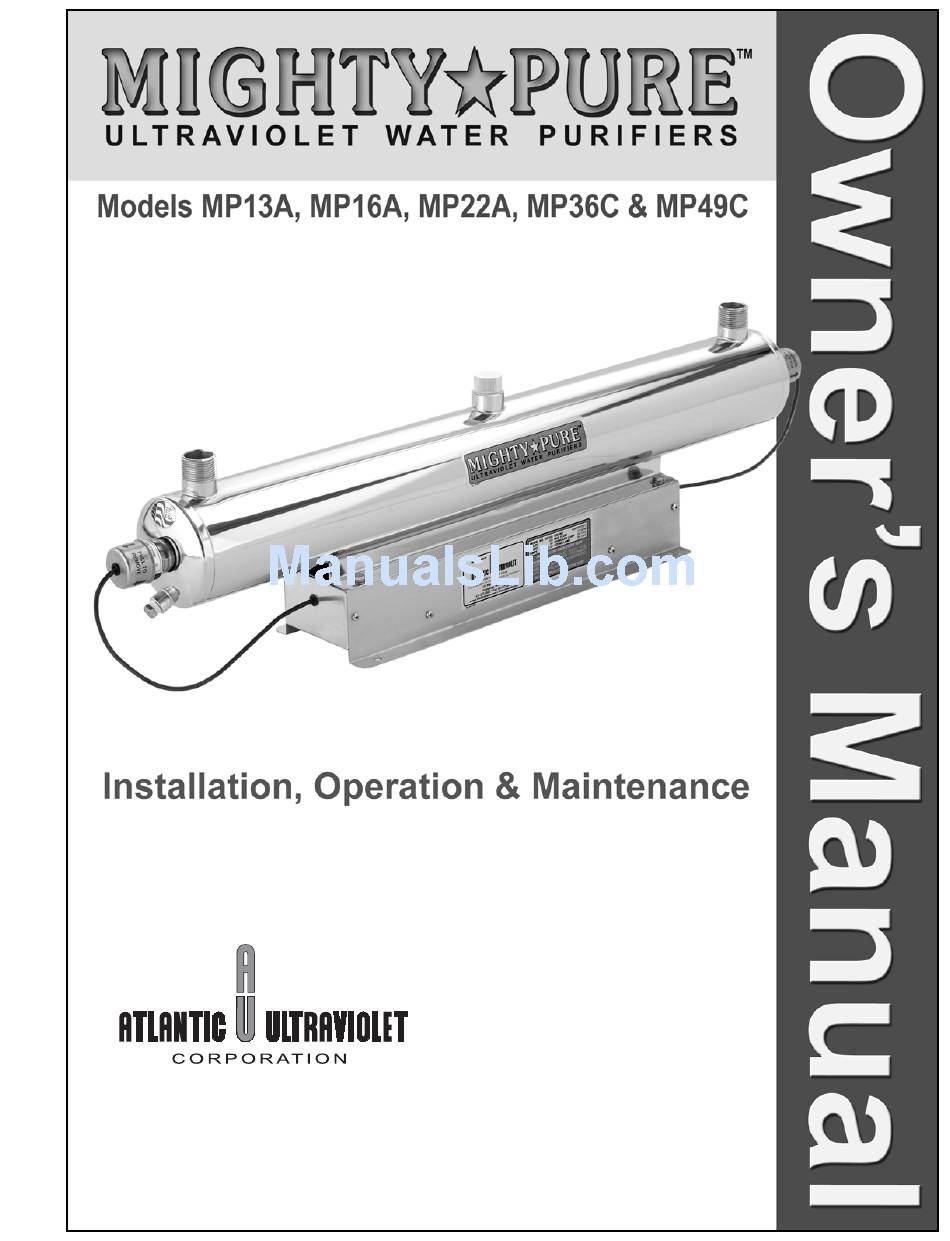

- Page 1 375 Marcus Boulevard Hauppauge, NY 11788 • • 631.273.0500 Fax: 631.273.0771 • e-mail: info@ultraviolet.com Extensive Product Information Available at: www.ultraviolet.com Document No. 98 -1123E1 • Revised February 2007 • © 1994-2007 Atlantic Ultraviolet Corporation...
-
Page 2: Table Of Contents
ATENT NOTICE These instructions generally describe the installation, operation and maintenance of the Mighty Pure™ line of water purifiers, Models MP13A, MP16A, MP22A, MP36C and MP49C. Questions that are not specifically answered by these instructions should be directed to the Factory. -
Page 3: Safety Warnings
SAFETY WARNINGS • All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit. • The following conventions are used to indicate and classify precautions in this manual and on product safety labeling. Failure to observe precautions could result in injury to people or damage to property. This is the safety alert symbol. -
Page 4: Product Application
PRODUCT APPLICATION ONSTRUCTION • The water purifier is designed to mount horizontally. • A drain port on the chamber aids in draining of the purifier. • The water purifier chamber is passivated and electropolished type 316 Stainless Steel. • The ballast housing is a combination of Stainless Steel Type 304 and Aluminum Alloy. •... -
Page 5: Installation
The water purifier should be located after all other water devices, such as De-ionizers, Water Softeners, Carbon Filters, Pre-Filters, Reverse Osmosis, Pressure Tanks, and Pumps. This reduces the chance of the purified water being re-contaminated by bacteria in any of these units. IMENSIONAL Model: MP13A 6" 13" MP16A "... -
Page 6: Nstallation
1. Remove water purifier from shipping carton. Inspect water purifier, power cord and plug for damage. Do not operate if there is any damage to the purifier, power cord or plug. Models MP13A through MP22A are shipped with the lamps already installed, while the MP36C and MP49C lamps are packed separately. -
Page 7: Recommended Options
ECOMMENDED PTIONS 1 . Guardian™ Ultraviolet Monitor: Visually indicates the level of germicidal ultraviolet energy that penetrates the quartz sleeve and the water within the water purifier. The ultraviolet monitor is capable of operating an optional audio alarm and/or solenoid valve. The ultraviolet monitor will detect reduction of ultraviolet levels due to: •... -
Page 8: Maintenance
MAINTENANCE The water purifier is designed to operate with a minimal amount of maintenance, providing the water quality does not exceed maximum concentration levels, see “Water Quality” in the “Product Application” section. Ordinary mainte- nance consists of; • Lamp replacement is recommended every 10,000 hours of operation, approximately 12 months of continuous service. •... -
Page 9: Lamp Installation Or Replacement
NSTALLATION OR EPLACEMENT Step 2 - Remove End-Cap Step 4 & 5 - Remove Sockets Disconnect power to water purifier. Remove both easy-off end caps by pulling each cap off static gland nut. Slide each end cap along the wire away from the socket. -
Page 10: Q Uartz Leeve
UARTZ LEEVE LEANING OR Step 4 - Remove Gland Nuts Disconnect power to water purifier. Shut off water supply to water purifier via inlet and outlet shut off valves. Drain chamber by removing drain plug. Once the chamber is completely drained, remove any old sealing tape from the threads of the drain plug, rewrap with 1/2"... -
Page 11: Isposal Of Mercury Added Lamp
• On Mighty Pure™ Models MP13A, MP16A, and MP22A, the ballast housing is mounted to the purifier chamber using four (4) No. 8 x 3/8" long screws. Using a Phillips cross point screwdriver, carefully remove the four (4) screws, from along the sides of the ballast housing, and set aside. Separate the housing from the chamber. -
Page 12: Optional Guardian ™ Ultraviolet Monitor Sensor Probe Cleaning
™ ™ U PTIONAL UARDIAN If after cleaning the quartz sleeve, there is no significant improvement in the ultraviolet intensity, as shown on the intensity meter, it may be necessary to clean the Ultraviolet Monitor's sensor probe. The sensor probe body mounts in a fitting, located in the center of the disinfection chamber, and protrudes into the chamber. -
Page 13: Troubleshooting
TROUBLESHOOTING CAUTION: Always disconnect power to the water purifier, before performing any service. IMPORTANT: This unit is to be serviced ONLY by qualified, and appropriately licensed, personnel. Problem Purifier not operating. Water leaking into/from purifier. Poor purifier performance AND/OR Low UV intensity (As indicated on Optional Guardian™... -
Page 14: Technical Specifications
Thermal Optimizer: 220V 50Hz, 220V 60Hz, 12V, or 24V DC units are also available. Consult Factory for specific voltage requirements. Total power consumption, including ballast loss. Table 4 - Technical Specifications MP13A MP16A MP22A " m NPT " m NPT "... -
Page 15: Optional Accessories
Unless otherwise specified PVC flow control valves are supplied. All PVC and Stainless Steel flow control valves are male NPT. Consult Factory for other flow control valves. Table 5 - Optional Accessories Available for: MP13A through MP49C MP13A through MP49C MP13A through MP49C MP13A through MP49C... -
Page 16: Replacement Parts
REPLACEMENT PARTS Mighty Pure ™ ™ Models MP13A, MP16A & MP22A Figure 6 - Exploded View MP13A, MP16A & MP22A... - Page 17 Table 6 - Replacement Parts MP13A, MP16A & MP22A ITEM DESCRIPTION Easy-Off End Cap Rubber O-ring, Static Gland Lamp Spacer Lead Wire & Socket Lamp Static Gland Nut Teflon ® Washer Rubber O-ring, Quartz Sleeve Quartz Sleeve Sight Port Plug...
-
Page 18: Mighty Pure™ Models Mp36C, & Mp49C
REPLACEMENT PARTS Mighty Pure ™ ™ Models MP36C & MP49C Figure 7 - Exploded View MP36C & MP49C... - Page 19 Table 7 - Replacement Parts MP36C & MP49C ITEM DESCRIPTION Easy-Off End Cap Rubber O-ring, Static Gland Lamp Spacer Lead Wire & Socket Lamp Static Gland Nut ® Teflon Washer Rubber O-ring, Quartz Sleeve Quartz Sleeve Sight Port Plug Chamber Drain Plug "...
-
Page 20: User Assistance
USER ASSISTANCE Atlantic Ultraviolet Corporation makes every effort to ensure that the Mighty Pure™ Ultraviolet Water Purifiers are products of superior quality and workmanship. This manual describes the installa- tion, operation and maintenance of the Mighty Pure™ Ultraviolet Water Purifiers. Please fill out and return the Owner Registration card immediately.
