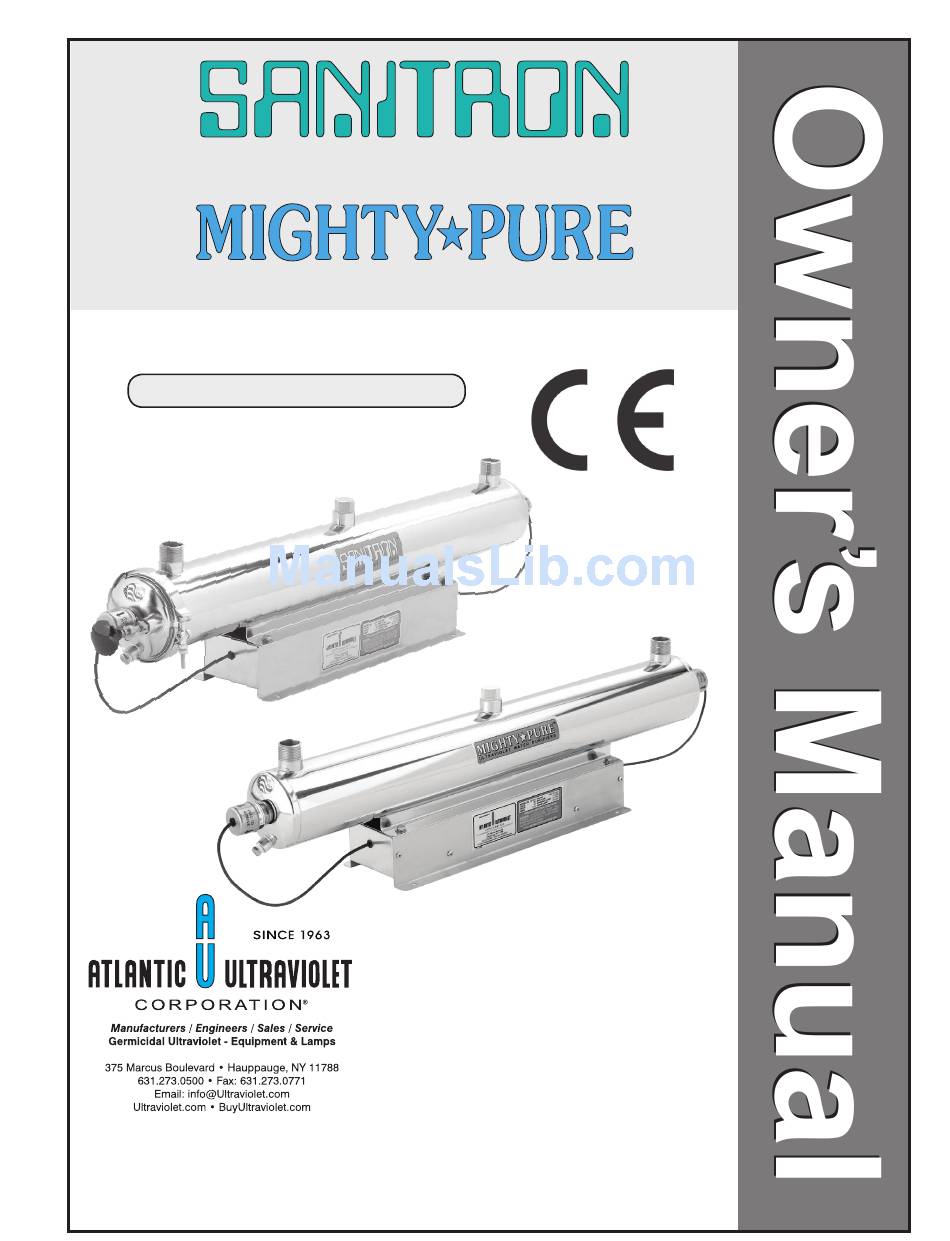

ULTRAVIOLET WATER PURIFIERS
ULTRAVIOLET WATER PURIFIERS
Models Sanitron S37C & Mighty Pure MP36C
Designed for CE Compliance
Extensive Product Information Available at:
ultraviolet.com
buyultraviolet.com
Document No. 98-1382B3 • May 2017 • ©2017 Atlantic Ultraviolet Corporation
Installation,
Operation
& Maintenance
Read and Follow All
Safety Instructions.
Save These Instructions.
• MADE IN THE USA
®
®
®
Advertisement
Table of Contents
Related Manuals for Atlantic Ultraviolet Mighty Pure MP36C
Summary of Contents for Atlantic Ultraviolet Mighty Pure MP36C
- Page 1 Designed for CE Compliance Installation, Operation & Maintenance Read and Follow All Safety Instructions. Extensive Product Information Available at: Save These Instructions. ultraviolet.com buyultraviolet.com Document No. 98-1382B3 • May 2017 • ©2017 Atlantic Ultraviolet Corporation • MADE IN THE USA ®...
-
Page 2: Table Of Contents
MP36C and SANITRON ® Model S37C. Questions that are not specifically answered by these instructions should be directed to the Factory. Atlantic Ultraviolet Corporation takes all possible precautions when packaging equipment to prevent ® damage. Carefully inspect and report all damage upon receipt of product. Do not install damaged equipment. -
Page 3: Safety Warnings
SAFETY WARNINGS • All personnel should be alerted to the potential hazards indicated by the product safety labeling on this unit. • The following conventions are used to indicate and classify precautions in this manual and on product safety labeling. Failure to observe precautions could result in injury to people or damage to property. -
Page 4: Product Application
PRODUCT APPLICATION onstruCtion • These units have been designed to be CE compliant. These units have been tested to and comply with the requirements of the Electromagnetic Compatibility Directive and the Machinery Directive. The Declaration of Conformity lists the European Norm (EN) standards to which these units were tested, to demonstrate conformity. -
Page 5: Installation
INSTALLATION oCation The water purifier is intended for indoor use only. The water purifier is designed to mount horizontally. The water purifier should be protected from the elements and from temperatures below freezing. The ambient temperature, in the area surrounding the water purifier, should be between 35 F and 100 Electrical power supplied to the water purifier MUST match power requirements listed on the water purifier. -
Page 6: I Nstallation
nstallation IN ORDER TO PERFORM THIS TASK, BE SURE TO WEAR THE FOLLOWING SAFETY EQUIPMENT: SAFETY GOGGLES OR A FACE SHIELD, AS WELL AS GLOVES Remove water purifier from shipping carton. Inspect water purifier, power cord and plug for damage. Do not operate if there is any damage to the purifier, power cord or plug. -
Page 7: R Ecommended O Ptions
* Use of this option is recommended by U.S. Public Health Service “Criteria for Acceptability of an Ultraviolet Disinfection Unit.” Originally issued April, 1966. NOTE: The recommended options above are available from Atlantic Ultraviolet Corporation or a distributor of their ®... -
Page 8: Maintenance
MAINTENANCE The water purifier is designed to operate with a minimal amount of maintenance, providing the water quality does not exceed maximum concentration levels, see “Water Quality” in the “Product Application” section. Ordinary maintenance consists of: • Lamp replacement is recommended every 10,000 hours of operation, approximately 12 months of continuous service. •... -
Page 9: L Amp I Nstallation Or R Eplacement
Figure 3 - Lamp Replacement (SANITRON s37C s ® oDel hoWn Step 2 - Remove End -Cap Step 3 - Withdraw Lamp Step 4 & 5 - Remove Sockets Step 6 - Remove Lamp nstallation or ePlaCement IN ORDER TO PERFORM THIS TASK, BE SURE TO WEAR THE FOLLOWING SAFETY EQUIPMENT: SAFETY GOGGLES OR A FACE SHIELD, AS WELL AS GLOVES Disconnect power to water purifier. -
Page 10: M Odel S37C)
(SANITRON s37C only) ® oDel uartz leeve leaning using iPer eChanism Figure 4 - Quartz Sleeve Cleaning Step 1 - Lift wiper clip up Step 2 - Gently pull wiper knob out Step 3 - Push wiper back in Routine cleaning of the quartz sleeve is easily accomplished, using the dual action wiper mechanism. Lift wiper clip up and away from wiper rod. -
Page 11: Q Uartz S Leeve I Nstallation Or R Eplacement
uartz leeve nstallation or ePlaCement Figure 5 - Quartz Sleeve Installation or Replacement (SANITRON s37C s ® oDel hoWn Step 4 - Remove Gland Nuts Step 5 - Remove Washer & O-Ring Step 6 - Remove Quartz Sleeve IN ORDER TO PERFORM THIS TASK, BE SURE TO WEAR THE FOLLOWING SAFETY EQUIPMENT: SAFETY GOGGLES OR A FACE SHIELD, AS WELL AS GLOVES Disconnect power to water purifier. -
Page 12: R Eplacement Of B Roken Q Uartz S Leeve (Mighty«Pure ® M Odel Mp36C)
mP36C) «P ® ePlaCement of roken uartz leeve ighty oDel IN ORDER TO PERFORM THIS TASK, BE SURE TO WEAR THE FOLLOWING SAFETY EQUIPMENT: SAFETY GOGGLES OR A FACE SHIELD, AS WELL AS GLOVES Broken Quartz is SHARP. It is recommended that protective goggles and gloves are worn when handling. -
Page 13: Eplacement Of Roken Uartz Leeve (Sanitron Odel S37C)
(sanitron s37C) ® ePlaCement of roken uartz leeve oDel Figure 6 - Quartz Sleeve IN ORDER TO PERFORM THIS TASK, BE SURE TO WEAR THE FOLLOWING SAFETY EQUIPMENT: SAFETY GOGGLES OR A FACE SHIELD, AS WELL AS GLOVES Broken Quartz is SHARP. It is recommended that protective goggles and gloves are worn when handling. Disconnect power to water purifier. -
Page 14: Leaning Of Ptional Guardian Ltraviolet Onitor Ensor Robe
11. Center the quartz sleeve in the chamber, making sure the quartz sleeve protrudes an equal distance past each threaded gland fitting, of the chamber. 12. Re-install O-Rings, Teflon washers, and static gland nuts. Be sure O-Rings are placed on quartz sleeve before Teflon ®... -
Page 15: Troubleshooting
11. Reposition Ultraviolet Monitor on probe body and tighten set screws. 12. Restore power to the water purifier and ultraviolet monitor. If after the cleaning of the quartz rod, there is still no significant improvement in the ultraviolet intensity, as shown on the intensity meter, proceed to the “Troubleshooting” section. TROUBLESHOOTING Always disconnect power to the water purifier before performing any service or maintenance. -
Page 16: Technical Specifications
TECHNICAL SPECIFICATIONS Table 3 - Technical Specifications Model No: MP36C S37C Flow Rate (GPM): Inlet\Outlet Size: 1”m NPT 1”m NPT Ambient Temperature: 35° F - 100° F 35° F - 100° F Max Operating Pressure: 100 PSI 100 PSI Voltage: j 120V 120V Amps:... -
Page 17: Replacement Parts
mP36C «P ® ighty oDel Figure 9 - Exploded View MP36C... - Page 18 Table 4 - Replacement Parts MP36C MP36C Item No. Description Quantity Part Number End Cap 25-1499A1 EASY-OFF™ O-Ring, Static Gland 00-1108B Lead Wire & Socket 05-1218A2-R Steadfast™ 05-1343-R ® Lamp STER-L-RAY Static Gland Nut 25-1492D Promate™ Teflon Washer 25-1235A ® O-Ring, Quartz Sleeve 00-1238A Quartz Sleeve...
-
Page 19: Sanitron M Odel S37C
sanitron s37C ® oDel Figure 10 - Exploded View S37C... - Page 20 Table 5 - Replacement Parts S37C S37C Item No. Description Quantity Part Number End Cap 25-1499A1 EASY-OFF™ O-Ring, Static Gland 00-1108B Lamp Spacer 25-0209A Steadfast™ Lead Wire & Socket 05-1218A2-R Steadfast™ Lamp 05-1343-R ® STER-L-RAY Static Gland Nut 25-1492D Promate™ 25-1235A Teflon ®...
-
Page 23: Maintenance Notes
MAINTENANCE NOTES... -
Page 24: User Assistance / Product Registration
Under no circumstances shall the Atlantic Ultraviolet Corporation be liable for any incidental, consequential or special damages, ®...
