1. Technical description
1.1. General description.
SFG64F1 is a 6-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard.
Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 4 ports of the switch. The UP LINK
(5 and SFP) ports is used for connection of another network device via of fiber optic (shall be used GBIC SFP port).
The LEDs at the front panel indicate the operation status (description in the table below).
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a
separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access
point or router.
SFG64F1WP 6-port PoE switch for 4 IP cameras without power supply
UP LINK, TP )
UP LINK, SFP )
SFG64F1WP
v1.0
Edition: 2 from 14.07.2022
Supercedes edition: 1 from 17.06.2021
Features:
Additional mounting elements
LED indication
warranty – 2 years from production date

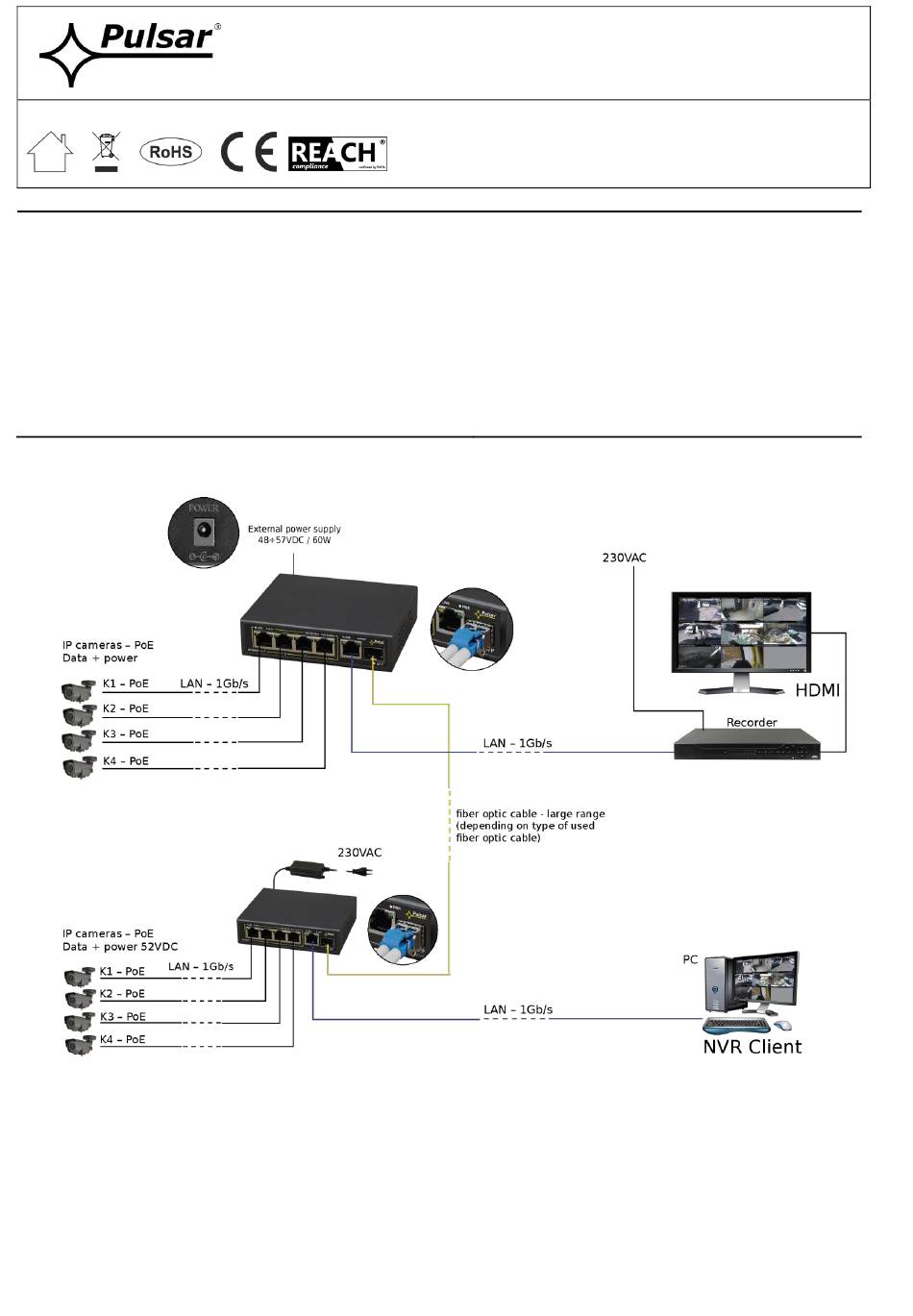

Example of use.
1
PL
EN
