Switch 10 ports
8 PoE ports 10/100Mb/s, (1÷8 ports) (data and power
supply)
1 port 10/100/1000 Mb/s (G1/TP port) (UpLink)
2 ports 10/100/1000Mb/s SFP (porty G1/SFP, G2/SFP)
15,4W for each PoE port, supports devices complaint
with the IEEE802.3af standard
Supports auto-learning and auto-aging of MAC
addresses (1K size)
LED indication
1. Technical description.
1.1. General description.

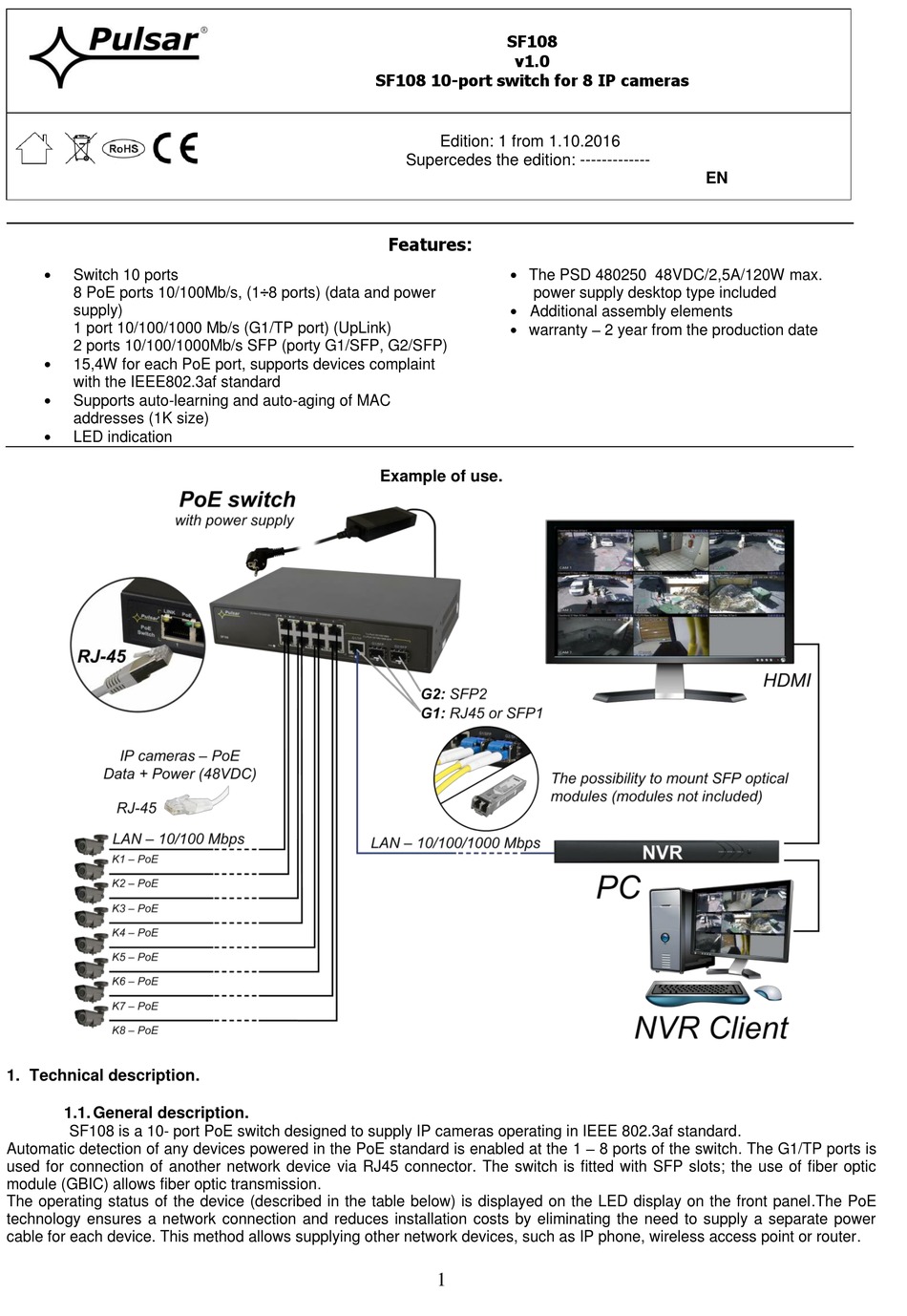

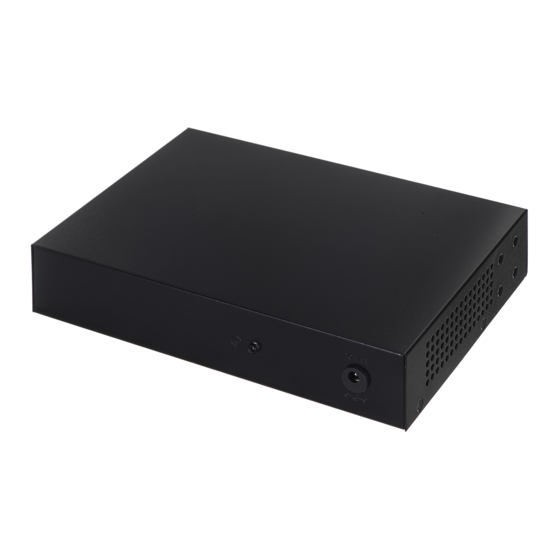

SF108 is a 10- port PoE switch designed to supply IP cameras operating in IEEE 802.3af standard.
Automatic detection of any devices powered in the PoE standard is enabled at the 1 – 8 ports of the switch. The G1/TP ports is
used for connection of another network device via RJ45 connector. The switch is fitted with SFP slots; the use of fiber optic
module (GBIC) allows fiber optic transmission.
The operating status of the device (described in the table below) is displayed on the LED display on the front panel.The PoE
technology ensures a network connection and reduces installation costs by eliminating the need to supply a separate power
cable for each device. This method allows supplying other network devices, such as IP phone, wireless access point or router.
SF108
v1.0
SF108 10-port switch for 8 IP cameras
Edition: 1 from 1.10.2016
Supercedes the edition: -------------
Features
:
The PSD 480250 48VDC/2,5A/120W max.
power supply desktop type included
Additional assembly elements
warranty – 2 year from the production date
Example of use.
1
EN
