Pulsar SFG64F1 Manual

Port switch for 4 ip cameras

Advertisement

Quick Links

6 ports switch
4 PoE ports 10/100/1000Mb/s (data transfer and power
supply)
1 port 10/100/1000Mb/s (
1 port 10/100/1000Mb/s (
30 W for each PoE port, supports devices complaint
with the IEEE802.3af/at (PoE+) standard
Supports auto-learning and auto-aging of MAC
addresses (2K size)
1. Technical description
1.1. General description.
SFG64F1 is a 6-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard. Automatic
detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 4 ports of the switch. The UP LINK (5 and
SFP) ports is used for connection of another network device via of fiber optic (shall be used GBIC SFP port). The LEDs at the
front panel indicate the operation status (description in the table below).
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a
separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access
point or router.
SFG64F1 port switch for 4 IP cameras
Features:
UP LINK, TP )
UP LINK, SFP )

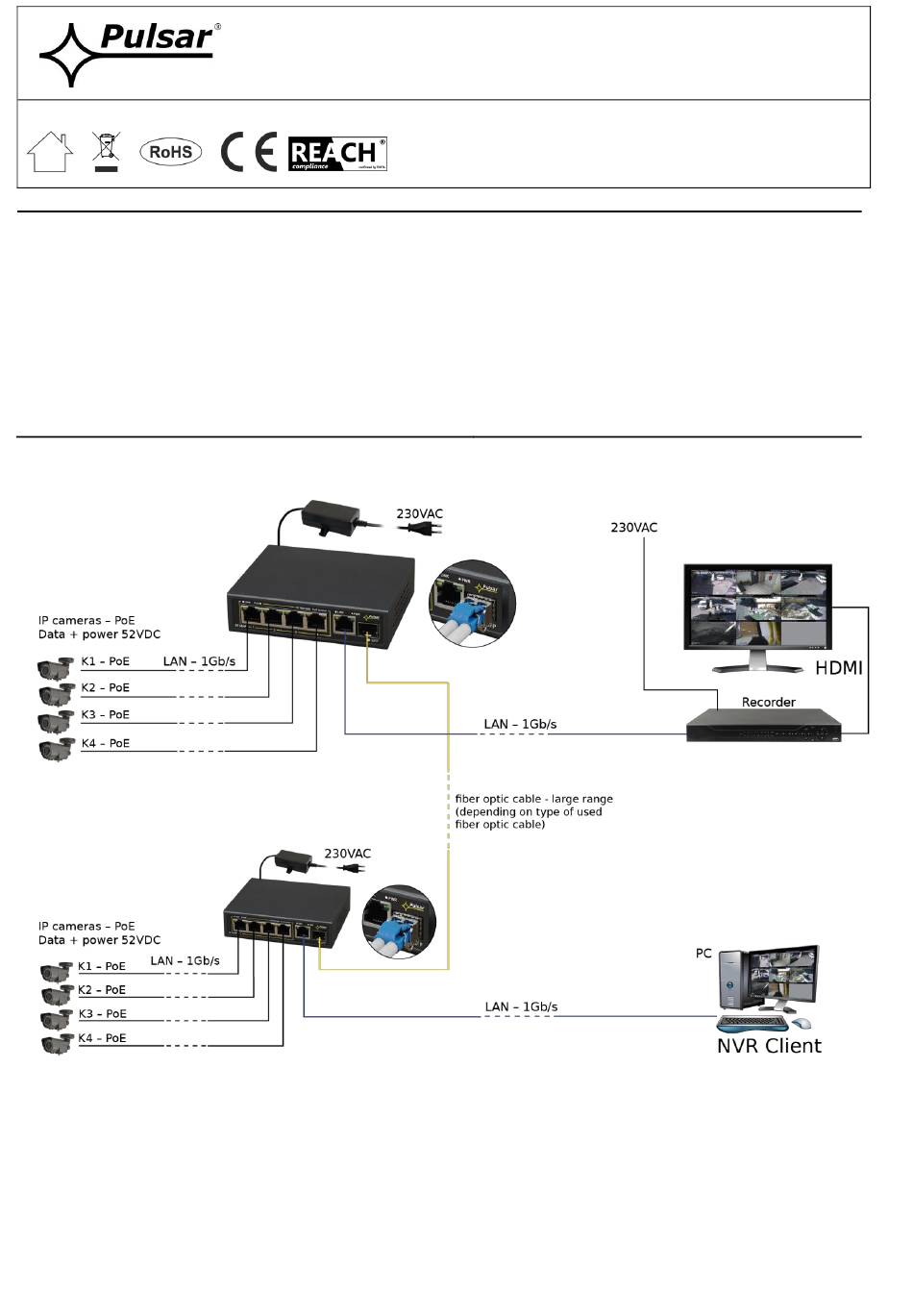

Example of use.
SFG64F1
v1.0
Edition: 1 from 17.01.2020
Supercedes the edition: -----------
Built-in switch mode power supply
PSD520115 52 V DC/1,15 A/60 W
Additional mounting elements
LED indication
warranty – 2 year from the production date
1
PL
EN
