Switch 16 ports
16 PoE ports 10/100Mb/s, (1÷16 ports) (data and
power supply)
2 ports 10/100/1000 Mb/s (G1/TP, G2/TP2 port)
2 ports 10/100/1000Mb/s SFP (porty G1/SFP, G2/SFP)
15,4W for each PoE port, supports devices complaint
with the IEEE802.3af standard
Supports auto-learning and auto-aging of MAC
addresses (1K size)
LED indication
1. Technical description.
1.1. General description.

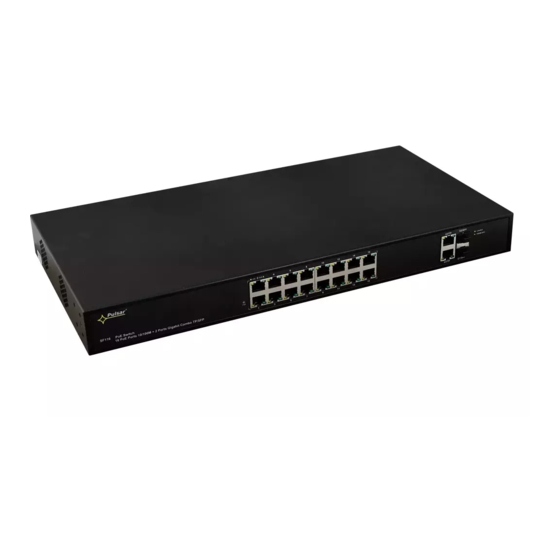

SF116 is a 16- port PoE switch designed to supply IP cameras operating in IEEE 802.3af standard.
Automatic detection of any devices powered in the PoE standard is enabled at the 1 – 16 ports of the switch. The G1/TP, G2/TP
ports is used for connection of another network device via RJ45 connector. The switch is fitted with SFP slots; the use of fiber
optic module (GBIC) allows fiber optic transmission.
The operating status of the device (described in the table below) is displayed on the LED display on the front panel.
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a separate
power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access point or
router.
SF116
v1.0
SF116 16-port switch for 16 IP cameras
Edition: 1 from 1.10.2016
Supercedes the edition: -------------
Features
:
Enclosure in Rack 19" 1U cabinets
Additional assembly elements
warranty – 2 year from the production date
Example of use.
1
EN
Advertisement
Related Manuals for Pulsar SF116
Summary of Contents for Pulsar SF116
- Page 1 1.1. General description. SF116 is a 16- port PoE switch designed to supply IP cameras operating in IEEE 802.3af standard. Automatic detection of any devices powered in the PoE standard is enabled at the 1 – 16 ports of the switch. The G1/TP, G2/TP ports is used for connection of another network device via RJ45 connector.
- Page 2 1.2. Block diagram. Fig. 1. Block diagram. 1.3. Description of components and connectors. Table 1. (see Fig. 2) Element no. Description (Fig . 2) 16 x PoE port (1÷16) 2 x UPLINK port (G1/TP, G2/TP) 2 x UPLINK port (G1/SFP, G2/SFP) LED lights: power supply and LAN connection status Power socket AC 230V Fig.
- Page 3 1.4. Technical parameters (table 2.) Table 2. 16 x PoE (10/100Mb/s) (RJ-45) 2 x UPLINK (10/100/1000Mb/s) (RJ-45) Ports 2 x UPLINK (10/100/1000Mb/s) (SFP) with connection speed auto-negotiation and MDI/MDIX Auto Cross) IEEE 802.3af (1÷16 ports), 48VDC / 15,4W at each port * PoE power supply Used pairs 4/5 (+), 7/8 (-) Protocols, Standards...
- Page 4 Connection schemes 3. Operation indication (see table 3) Table 3. Operation indication OPTICAL INDICATION OF THE SWITCH's POWER SUPPLY YELLOW LED LIGHT (Power) OFF – no power supply of the switch Indication of the switch's power ON – power supply on, normal operation supply OPTICAL INDICATION AT THE PoE PORTS (1÷8) YELLOW LED LIGHT (LINK/ACT)
-
Page 5: Weee Label
GENERAL WARRANTY CONDITIONS 1. Pulsar (manufacturer) grants a two-year quality warranty for the equipment, starting from the production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (selected by the manufacturer) if the malfunction is due to the manufacturer.
