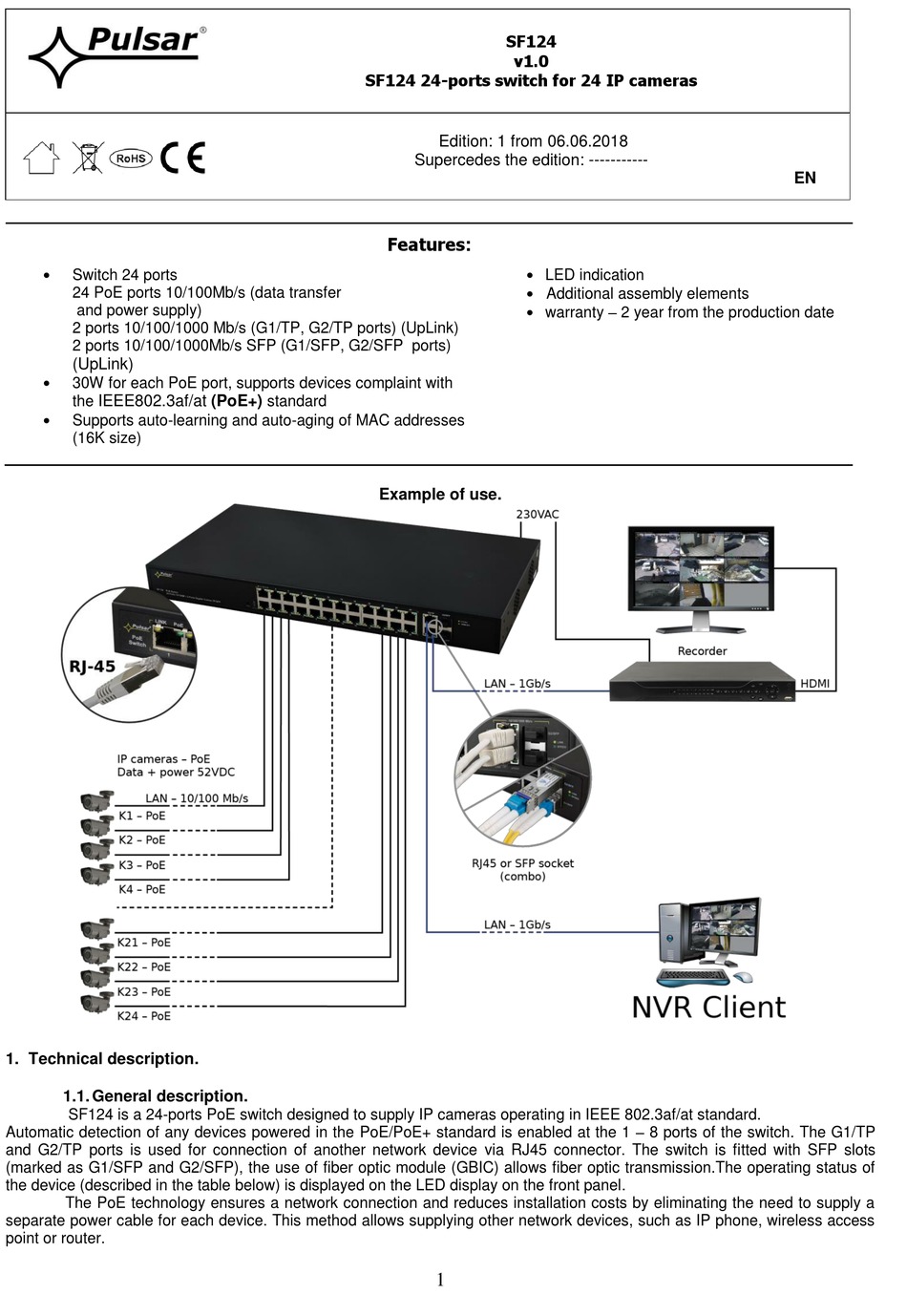

Pulsar SF124 Installation Manual


Switch 24 ports
24 PoE ports 10/100Mb/s (data transfer
and power supply)
2 ports 10/100/1000 Mb/s (G1/TP, G2/TP ports) (UpLink)
2 ports 10/100/1000Mb/s SFP (G1/SFP, G2/SFP ports)
(UpLink)

30W for each PoE port, supports devices complaint with
IEEE802.3af/at (PoE+) standard
the

Supports auto-learning and auto-aging of MAC addresses
(16K size)
1. Technical description.
1.1. General description.

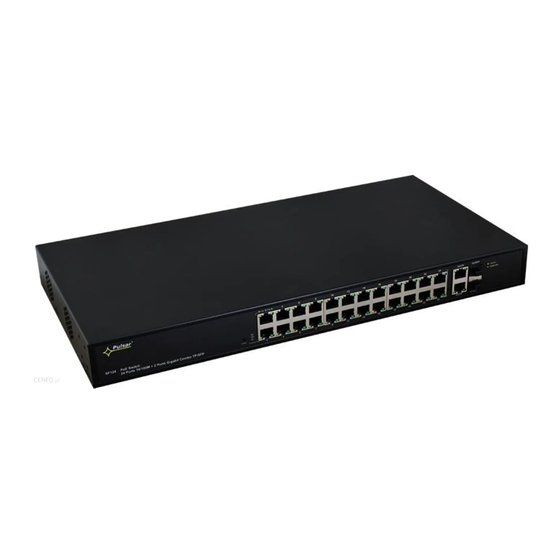

SF124 is a 24-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard.
Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 8 ports of the switch. The G1/TP
and G2/TP ports is used for connection of another network device via RJ45 connector. The switch is fitted with SFP slots
(marked as G1/SFP and G2/SFP), the use of fiber optic module (GBIC) allows fiber optic transmission.The operating status of
the device (described in the table below) is displayed on the LED display on the front panel.
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a
separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access
point or router.
SF124
v1.0
SF124 24-ports switch for 24 IP cameras
Edition: 1 from 06.06.2018
Supercedes the edition: -----------
Features
:
 LED indication
 Additional assembly elements
 warranty – 2 year from the production date
Example of use.
1
EN
