Uninterruptible power supply PoE of 16 IP cameras
Switch 16 ports
16 PoE ports 10/100Mb/s, (1÷16 ports) (data and
power supply)
2 ports 10/100/1000Mb/s (ports G1/TP, G2/TP2)
2 ports 10/100/1000Mb/s SFP (port G1/SFP, G2/SFP)
30 W for each PoE port, supports devices complaint
with the IEEE802.3af/at (PoE+) standard
Approximate backup time: 2h
CONTENTS
3. LED indication of operating status
SF116-B
SF116-B 16-ports switch with buffer power supply
for 16 IP cameras
Edition: 5 from 30.01.2019
Supercedes the edition: 4 from 23.11.2018
Features
:

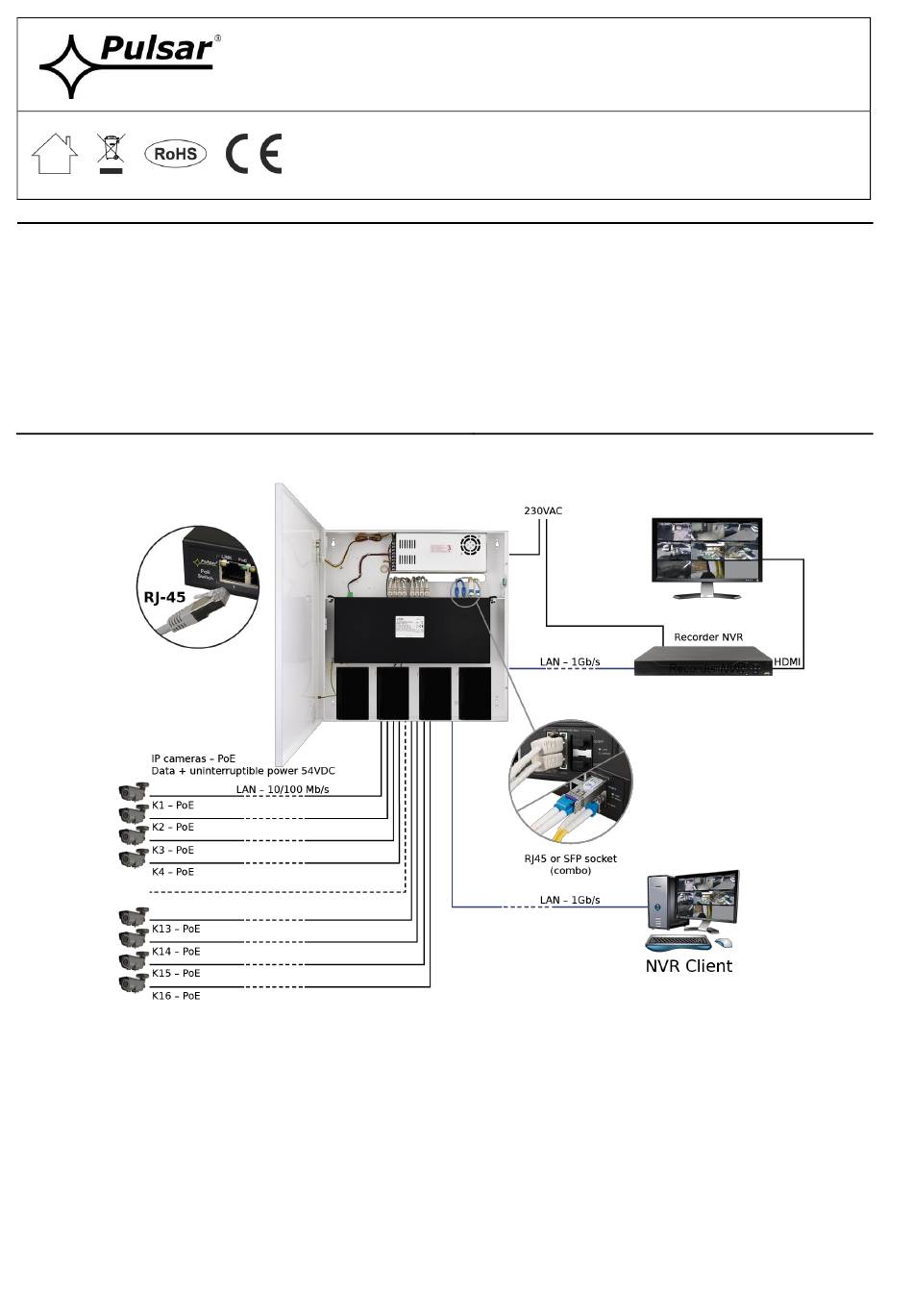

Example of use.
1
v1.2
 Supports auto-learning and auto-aging of MAC
addresses (16K size)
 LED indication
 Metal housing - color white RAL 9003, which
can accommodate four 7Ah/12V batteries
 warranty - 2 year from the production date
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF116-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pulsar SF116-B

Summary of Contents for Pulsar SF116-B

  • Page 1: Table Of Contents

    SF116-B v1.2 SF116-B 16-ports switch with buffer power supply for 16 IP cameras Edition: 5 from 30.01.2019 Supercedes the edition: 4 from 23.11.2018 Features   Supports auto-learning and auto-aging of MAC Uninterruptible power supply PoE of 16 IP cameras ...

  • Page 2: Technical Description

    1. Technical description. 1.1. General description. The SF116-B switch is designed for uninterruptible power supply of 16 IP cameras (PoE). The main elements of this system include: - 16 ports PoE switch - buffer power supply unit 54 V DC (PSB-3004850) which can accommodate four batteries connect in series (4x7 Ah/12 V) In case of power decay, a battery back-up is activated immediately.

  • Page 3: Description Of Components And Connectors

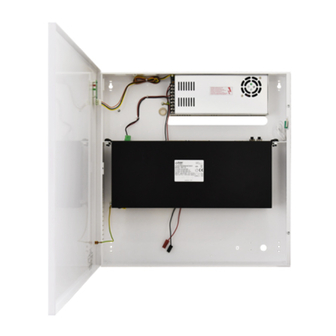

    1.3. Description of components and connectors. Fig. 2. The view switch'a. Table 1. (see Fig. 2) Element no. Description (Fig. 2) 16-ports switch PoE Switch mode buffer power supply unit 54 V DC PSB-3004850 L-N power supply connector 230 V, protective connector B+, B- : battery output +BAT red, -BAT black Space for four batteries (4x7 Ah/12 V)

  • Page 4: Technical Parameters

    Table 2. (see Fig. 3) Component No Description (Fig. 2) 16 x PoE ports (1÷16) [RJ45] 2 x UPLINK ports (G1/TP, G2/TP) [RJ45] 2 x UPLINK ports (G1/SFP, G2/SFP) [SFP] Yellow PWR LED indicating the supply voltage of the switch LEDs: PoE –...

  • Page 5: Installation

    Table 5. Mechanical parameters W=525, H=540, D+D =72+14 [+/- 2mm] Dimensions =530, H =545 [+/- 2mm] The dimensions of the battery 370x180x80 (WxHxD) compartment Gross/Net weight 10,1 / 11 kg Enclosure Steel plate, DC01 1,0mm color white RAL 9003 Closing Cheese head screw x 2 (at the front) Power supply of the cameras: RJ45 socket Connectors...
  • Page 6 The shock protection circuit shall be performed with a particular care, i.e. the yellow and green wire coat of the power cable shall stick of the terminal - marked with ‘ ‘ symbol on the PSU enclosure. Operation of the PSU without the properly made and fully operational shock protection circuit is UNACCEPTABLE! It can cause a device failure or an electric shock.

  • Page 7: Operation Indication Of The Switch

    – DC voltage in the output of the PSU  off – no DC voltage in the output of the PSU Installation example of the SF116-B with batteries (accumulators are not included) 4. Maintenance. Any and all maintenance operations may be performed following the disconnection of the PSU from the power supply network.
  • Page 8 CAUTION! The power supply unit is adapted for cooperation with the sealed lead-acid batteries (SLA). After the operation period they must not be thrown but recycled according to the applicable law. Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl,...
