10 ports optical switch:
8 SFP ports 10/100/1000Mb/s
2 ports 10/100/1000Mb/s RJ45
Supports auto-learning and auto-aging of MAC
addresses (8K size)
1. Technical description
1.1. General description.
SFG10F8 is 10-port optical switch designed for data transmission over Ethernet via fiber optics and UTP cables. Cat
5e. Switch has 8 SFP sockets (marked SFP1 ÷ SFP8), which after using SFP modules (GBICs) enable fiber optic transmission.
G1 and G2 ports are used to connect further network devices through RJ45 socket. The LEDs at the front panel indicate the
operation status (description in the table below).
Connectivity via fiber optics cables allows for fast and stable data transmission over long distances, resistant to
electromagnetic interference and adverse environmental conditions. It also enables easy expansion of network in future.
SFG10F8
v1.0

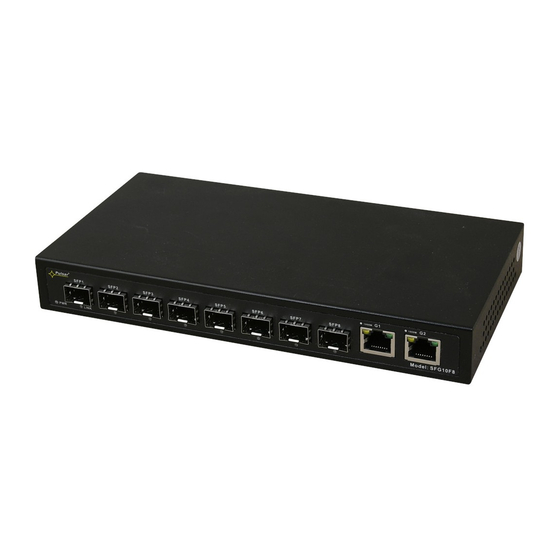

Optical switch SFG10F8 (8xSFP, 2xRJ45)
Edition: 1 from 17.01.2020
Supercedes the edition: -----------
Features:
Built-in switch mode power supply
PSD12020 12 V DC
Additional mounting elements
LED indication
warranty – 2 year from the production date

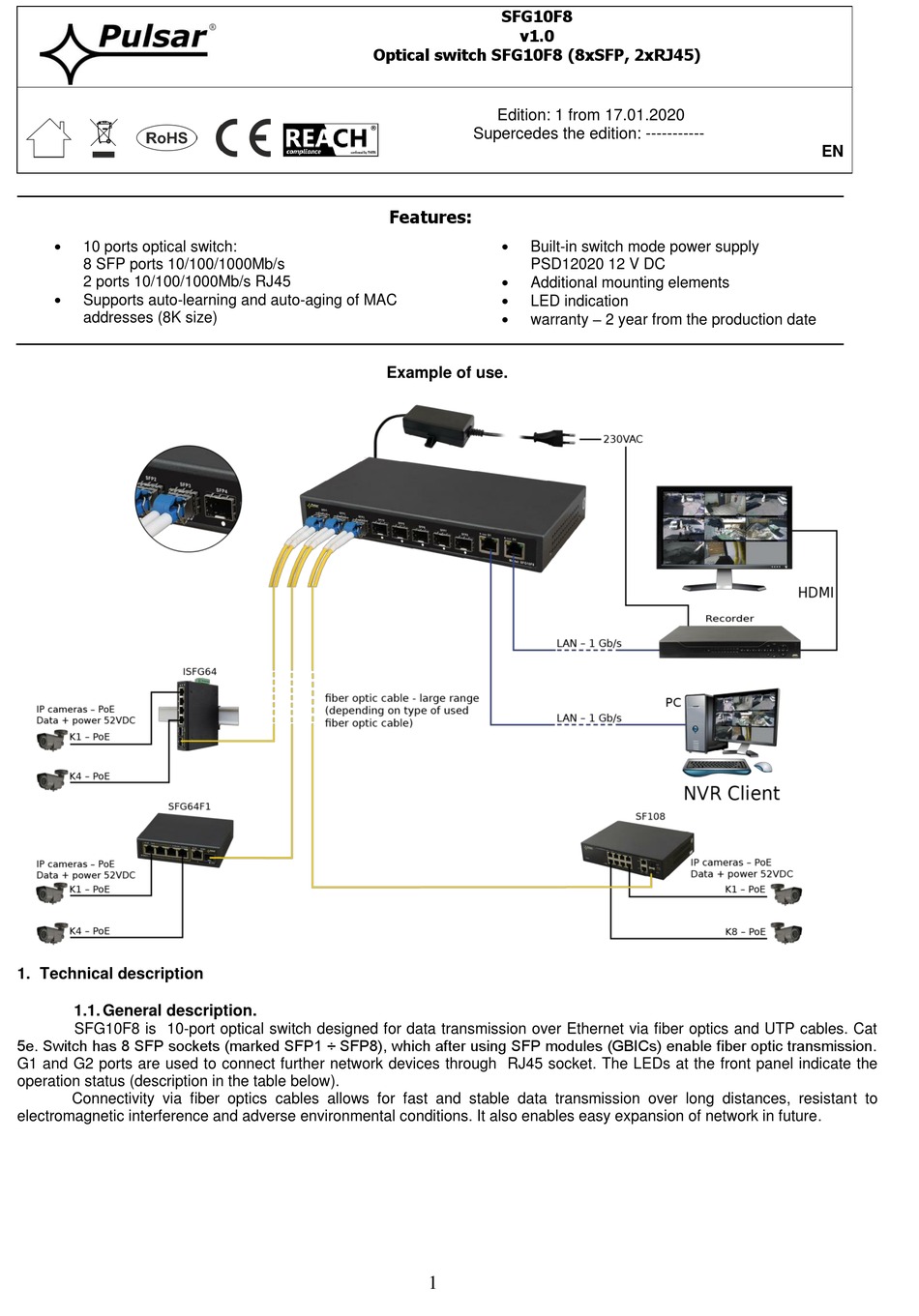

Example of use.
1
PL
EN
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pulsar SFG10F8
Summary of Contents for Pulsar SFG10F8
- Page 1 1.1. General description. SFG10F8 is 10-port optical switch designed for data transmission over Ethernet via fiber optics and UTP cables. Cat 5e. Switch has 8 SFP sockets (marked SFP1 ÷ SFP8), which after using SFP modules (GBICs) enable fiber optic transmission.
- Page 2 1.2 Block diagram. Fig. 1. Block diagram. 1.3. Description of components and connectors. Table 1. (see Fig.2) Element no. Description (Fig. 2) 2 x RJ45 ports 8 x SFP ports (1÷8) DC power supply socket Additional mounting elements Fig. 2. The enclosure view.
- Page 3 1.4. Technical parameters. Table 2. 10 10/100/1000Mb/s ports (8 x SFP + 2 x RJ45) Ports with connection speed auto-negotiation and MDI/MDIX Auto Cross Protocols, Standards IEEE802.3i, 802.3u, 802.3x CSMA/CD, TCP/IP Bandwidth 16Gbps Transmission method Store-and-Forward Switch power supply; Optical indication of operation Link/Act;...
- Page 4 Connection schemes. 3. Operation indication. Table 3. Operation indication OPTICAL INDICATION OF THE SWITCH's POWER SUPPLY GREEN LED LIGHT (Power) OFF – no power supply of the switch Indication of the switch's ON – power supply on, normal operation power supply OPTICAL INDICATION AT THE SFP PORTS (1÷8) GREEN LED LIGHT (SFP) OFF- no connection...
-
Page 5: Weee Label
Waste electrical and electronic equipment must not be disposed of with normal household waste. According to the European Union WEEE Directive, waste electrical and electronic equipment should be disposed of separately from normal household waste. Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 e-mail: biuro@pulsar.pl,...
