Cover

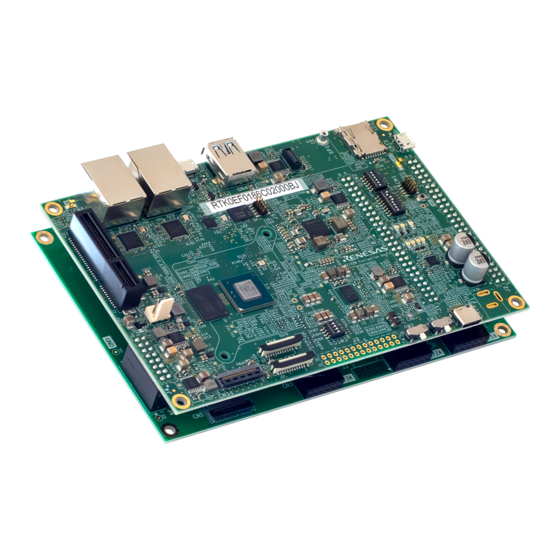

RZ/V2N Evaluation Board Kit
(Secure type)
All information contained in these materials, including products and product specifications,
represents information on the product at the time of publication and is subject to change by
Renesas Electronics Corp. without notice. Please review the latest information published by
Renesas Electronics Corp. through various means, including the Renesas Electronics Corp.
website (http://www.renesas.com).
www.renesas.com
Hardware Manual
Rev.1.10 Feb, 2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RZ/V2N and is the answer not in the manual?

Questions and answers

Related Manuals for Renesas RZ/V2N

Summary of Contents for Renesas RZ/V2N

  • Page 1 All information contained in these materials, including products and product specifications, represents information on the product at the time of publication and is subject to change by Renesas Electronics Corp. without notice. Please review the latest information published by Renesas Electronics Corp. through various means, including the Renesas Electronics Corp.

  • Page 2: Corporate Headquarters

    Renesas Electronics disclaims any and all liability for any damages or losses incurred by you or any third parties arising from the use of any Renesas Electronics product that is inconsistent with any Renesas Electronics data sheet, user’s manual or other Renesas Electronics document.
  • Page 3 Trademarks (continued) Examples of trademarks or registered trademarks used in the document of RZ/V2N: ® is a registered trademark of Arm Limited or its subsidiaries. ® MIPI is a registered trademark of MIPI Alliance, Inc. ® CSI-2 is a registered trademark of MIPI Alliance, Inc.

  • Page 4: Safety Matters

    SAFETY MATTERS SAFETY MATTERS Definitions of Symbols A variety of symbols are used in this document and on this product, to prevent the damage to harm and the property to you and other people beforehand by correctly using this product. This section, Safety Matters, presents these symbols and their meanings.
  • Page 5 WARNING Handling Related Warnings: Always check the jumper and switch settings before connecting a power source. An incorrect jumper or switch setting can lead to internal heat generation, rupture, ignition, or damage to this evaluation board itself or any connected equipment. If, during either the use or storage of this product, any abnormality in the product itself (including abnormal odors, heating, color changes, or changes to the shape of the product) are observed, disconnect the power supply immediately.
  • Page 6 CAUTION Handling: This product must be handled carefully. Do not cause a strong impact by dropping it, letting it fall, etc. Do not touch this product’s component pins with bare hands. Doing so may discharge static electricity that damages the Internal circuits. Eliminate static electricity before touching this product. When connecting or disconnecting cables to or from this product, hold the parts of the cable intended to be grasped (such as the plugs) and avoid putting stress on the cable.

  • Page 7: Table Of Contents

    Table of Contents Overview ........................9 Features ............................10 Block Configuration ......................... 11 Specifications ..........................13 1.3.1 V2NEVK Specifications ......................13 1.3.2 V2NEVK Power Supply Specifications ................14 1.3.3 V2NEVK Accessories ......................14 1.3.4 Outer Appearance ........................ 15 1.3.5 List of Pin Functions ......................16 Usage Notes ...........................
  • Page 8 4.16 HDMI Interface ..........................35 4.17 Audio Interface ..........................35 4.18 Pmod Connector ..........................36 Supplementary Note ....................38 Power Supply ICs of V2NEVK ......................38 Assembly of Heat-sink ........................38 Appendix A CPU Board Parts Layout ................39 REVISION HISTORY ......................41...

  • Page 9: Overview

    -based high-end RZ/V2N MPU from Renesas Electronics (RZ/V2N Evaluation Board kit (Secure type), hereafter V2NEVK). This manual describes the hardware functions of the V2NEVK. The V2NEVK consists of the RZ/V2N Evaluation Board (CPU board) and the RZ/V2H EVK Expansion Board (EXP board). Board Name Overview ●...

  • Page 10: Features

    RZ/V2N Evaluation Board Kit (Secure type) 1. Overview Features This V2NEVK includes the following features.  LPDDR4X: 64 Gb × 1  NOR flash: 512 Mb  MIPI ® ® CSI-2 connector: 2 ch.  Gigabit Ethernet interface connector: 2 ch.

  • Page 11: Block Configuration

    RZ/V2N Evaluation Board Kit (Secure type) 1. Overview Block Configuration RGMII Gigabit Ethernet PHY RZ/V2N S1.2V, S1.8V Gigabit Ethernet (Ch. 0) KSZ9131 Switching regulator DDR_VDDQLP_0.6V VDD4G_3p3 ETC_RESETN RJ-45 R9A09G056N48GBG ISL80015 PMIC_MPIO2 LPDDR4X-SDRAM 64Gbit LPDDR4X-3200 0.6 V / Max. 1.5 A...
  • Page 12 RZ/V2N Evaluation Board Kit (Secure type) 1. Overview D3.3V AUDIO AUX-OUT (P1) 3.5 mm Jack VDD1G_1p8 SSI3 Audio codec AUDIO HP-OUT (P2) DA7212 3.5 mm Jack GPIO connector I2C2 (J1) 50 (25×2) pin AUDIO MIC-IN (P3) (2.54 mm pitch) 3.5 mm Jack...

  • Page 13: Specifications

    RZ/V2N Evaluation Board Kit (Secure type) 1. Overview Specifications 1.3.1 V2NEVK Specifications Table 1.3-1 V2NEVK Specifications Item Specification R9A09G056N48GBG (RZ/V2N [GE3D, security, ISP]) Board size CPU board: 153 × 100 × 1.7 mm EXP board: 153 × 100 × 1.7 mm eMMC Sub Board: 24 ×...

  • Page 14: V2Nevk Power Supply Specifications

    RZ/V2N Evaluation Board Kit (Secure type) 1. Overview 1.3.2 V2NEVK Power Supply Specifications The exact power required for the V2NEVK depends on the application and peripheral devices. Table 1.3-2 shows the power allocations. This board is designed to be supplied by a USB power supply that complies with the USB Power Delivery standard of 60 W or more.

  • Page 15: Outer Appearance

    RZ/V2N Evaluation Board Kit (Secure type) 1. Overview 1.3.4 Outer Appearance RZ/V2N Evaluation Board RZ/V2N RZ/V2H EVK Expansion Board Figure 1.3-1 Outer Appearance of V2NEVK R12UZ0157EJ0110 Rev.1.10 Page 15 of 43 Feb 28, 2025...

  • Page 16: List Of Pin Functions

    RZ/V2N Evaluation Board Kit (Secure type) 1. Overview 1.3.5 List of Pin Functions Table 1.3-4 lists pin functions used in V2NEVK. Table 1.3-4 List of Pin Function Selection Used on the V2NEVK (1/3) Pin Location Pin Name Pin Function Description...
  • Page 17 RZ/V2N Evaluation Board Kit (Secure type) 1. Overview Table 1.3-4 List of Pin Function Selection Used on the V2NEVK (2/3) Pin Location Pin Name Pin Function Description AD11 RTS0N Pmod Type3/3A (UART) Connector on the EXP board AG10 Pmod Type6/6A (I2C) Connector on the EXP board...
  • Page 18 RZ/V2N Evaluation Board Kit (Secure type) 1. Overview Table 1.3-4 List of Pin Function Selection Used on the V2NEVK (3/3) Pin Location Pin Name Pin Function Description AF15 PA7/SD1CD/SSLC0 SD1 card detect (disconnected) on the CPU board and Pmod Type2/2A (SPI) Connector on the EXP board...

  • Page 19: Usage Notes

    Take sufficient care with setting up switches on the V2NEVK. Incorrect settings may lead to damage to devices. ● The RZ/V2N has the power-on and power-off sequences. With the V2NEVK, be sure to follow the precautions below. (1) When turning power on Be sure to check that the power slide switches SW2 and SW3 are turned off before connecting the USB Type-C cable to the Type-C connector (CN13).

  • Page 20: Operating Procedure

    RZ/V2N Evaluation Board Kit (Secure type) 2. Operating Procedure Operating Procedure Assembly The CPU board and the EXP board are connected by stacking with J1, J2 and J4. The MIPI DSI interface is connected with a dedicated FFC. For safety, attach the included rubber feet to the back of the EXP board.
  • Page 21 Install the microSD Sub Board or eMMC Sub Board using the following procedure: Insert the sub board over the stacking connector of CN15. Pay attention to the direction. Figure 2.1-3 Connect Sub Board to RZ/V2N Evaluation Board Use the included screw to fix. Figure 2.1-4...

  • Page 22: Mode Setting

    RZ/V2N Evaluation Board Kit (Secure type) 2. Operating Procedure Mode Setting The table below lists the settings of the DIP switch (DSW1 on the RZ/V2N Evaluation Board) and its functions. Table 2.2-1 DSW1 Connection Destinations and Functions Switch No. RZ/V2N Pin...

  • Page 23: Power Supply

    RZ/V2N Evaluation Board Kit (Secure type) 2. Operating Procedure The table below lists the settings of the DIP switch (DSW3 on the RZ/V2N Evaluation Board) and its functions. Table 2.2-4 DSW3 Functions Switch No. Signal Name Function I2C0_SCL OFF: MIPI CSI-2 (ch. 0) SCL signal pull-up OFF MIPI CSI-2 (ch.

  • Page 24: Layout

    Layout Parts Layout Figure 3.1-1 and Figure 3.1-2 show the parts layout diagrams of the RZ/V2N Evaluation Board, and Figure 3.1-3 shows the parts layout diagram of the RZ/V2H EVK Expansion Board. Figure 3.1-4 and Figure 3.1-5 each show a diagram of the sub board.
  • Page 25 RZ/V2N Evaluation Board Kit (Secure type) 3. Layout Figure 3.1-2 RZ/V2N Evaluation Board Layout Diagram (Solder Side) Figure 3.1-3 RZ/V2H EVK Expansion Board Parts Layout Diagram (Parts Side) R12UZ0157EJ0110 Rev.1.10 Page 25 of 43 Feb 28, 2025...
  • Page 26 RZ/V2N Evaluation Board Kit (Secure type) 3. Layout microSD slot Figure 3.1-4 microSD Sub Board eMMC Figure 3.1-5 eMMC Sub Board R12UZ0157EJ0110 Rev.1.10 Page 26 of 43 Feb 28, 2025...

  • Page 27: Lists Of Main Parts

    RZ/V2N Evaluation Board Kit (Secure type) 3. Layout Lists of Main Parts Table 3.2-1 and Table 3.2-2 list the main parts of the RZ/V2N Evaluation Board and RZ/V2H EVK Expansion Board, respectively. Table 3.2-1 RZ/V2N Evaluation Board Parts List Quantity...

  • Page 28: Interface Specifications

    RZ/V2N Evaluation Board Kit (Secure type) 4. Interface Specifications Interface Specifications This section describes the interface specifications of the V2NEVK. Reset When resetting the V2NEVK, control it by using the power control switches (SW2, SW3) and software. The V2NEVK has seven LEDs. Table 4.2-1 lists the colors and functions of these LEDs.

  • Page 29: Debug Serial Interface

    RZ/V2N Evaluation Board Kit (Secure type) 4. Interface Specifications Debug Serial Interface The debugging port (micro USB Type-B connector (CN12)) is connected to the SCIF interface of the RZ/V2N via the USB-UART conversion IC. This port is for use in debugging. Debugger Interface Connect the ICE to the Arm JTAG connector (CN1).

  • Page 30: Mipi Csi-2 Interface

    RZ/V2N Evaluation Board Kit (Secure type) 4. Interface Specifications MIPI CSI-2 Interface The CPU board of the V2NEVK has four MIPI CSI-2 interfaces. CAUTION This interface is different from the Raspberry Pi camera interface. When connecting the Raspberry Pi camera module, carefully confirm each signal connection.

  • Page 31: Mipi Dsi Interface

    MIPI DSI Interface The V2NEVK has a MIPI DSI interface. This interface is connected from the RZ/V2N on the CPU board to CN11 and is connected to CN5 on the EXP board with a dedicated FFC. The EXP board converts MIPI DSI to an HDMI signal and outputs it to the CN4 HDMI connector.

  • Page 32: Sd/Emmc Sub Board Connector

    The CPU board of the V2NEVK is equipped with an SD/eMMC Sub Board connector (CN15). This connector is connected to the RZ/V2N SD interface (SD0). The included microSD Sub Board or eMMC Sub Board can be stacked and used as a boot device.

  • Page 33: Pin Header

    RZ/V2N Evaluation Board Kit (Secure type) 4. Interface Specifications 4.13 Pin Header The CPU board of the V2NEVK has five pin headers. Their connection destinations are listed below. Table 4.13-1 GPIO CN (J1) (Stacking Connection to EXP Board) Pin No.
  • Page 34 RZ/V2N Evaluation Board Kit (Secure type) 4. Interface Specifications Table 4.13-2 GPIO CN (J2) (Stacking Connection to EXP Board) Pin No. V2NEVK Connection Destination Pin No. V2NEVK Destination RZ/V2N (P56) RZ/V2N (P86) RZ/V2N (P57) RZ/V2N (P87) RZ/V2N (P60) RZ/V2N (P90)

  • Page 35: Connector

    4.17 Audio Interface The EXP board of the V2NEVK has three audio connectors. Three audio 3.5 mm jacks (P1: AUX, P2: HP, P3: MIC) are connected to the RZ/V2N SSI interface via the audio codec IC. R12UZ0157EJ0110 Rev.1.10 Page 35 of 43...

  • Page 36: Pmod Connector

    RZ/V2N Evaluation Board Kit (Secure type) 4. Interface Specifications 4.18 Pmod Connector The EXP board of the V2NEVK has four Pmod connectors. The specifications are listed below. Table 4.18-1 Pmod Type 1A GPIO (CN1) Pin No. Pmod Pin Spec. V2NEVK Connection Destination...
  • Page 37 RZ/V2N Evaluation Board Kit (Secure type) 4. Interface Specifications Table 4.18-3 Pmod Type 3A UART (CN3) Pin No. Pmod Pin Spec. V2NEVK Connection Destination RZ/V2N (P52) via level shifter U6 RZ/V2N (P50) via level shifter U6 RZ/V2N (P51) via level shifter U6 RZ/V2N (P53) via level shifter U6 +3.3 V (D3.3V)

  • Page 38: Supplementary Note

    In consideration of the evaluation usage, the power supply ICs of the V2NEVK are selected with a margin. The power supply ICs that suit the user circuit are recommended. For inquiries about power supply ICs, contact a Renesas Electronics sales representative.

  • Page 39: Appendix Acpu Board Parts Layout

    RZ/V2N Evaluation Board Kit (Secure type) Appendix A CPU Board Parts Layout Appendix A CPU Board Parts Layout Appendix A.1 Parts Layout (Top) R12UZ0157EJ0110 Rev.1.10 Page 39 of 43 Feb 28, 2025...
  • Page 40 RZ/V2N Evaluation Board Kit (Secure type) Appendix A CPU Board Parts Layout Appendix A.2 Parts Layout (Bottom) R12UZ0157EJ0110 Rev.1.10 Page 40 of 43 Feb 28, 2025...

  • Page 41: Revision History

    16 to 18 1.3.5 List of Pin Functions, added 2. Operating Procedure Table 2.2-1 DSW1 Connection Destinations and Functions The RZ/V2N pin for switch No. 2, 3, modified 3. Layout Table 3.2-1 RZ/V2N Evaluation Board Parts List Part Symbol: U39, deleted R12UZ0157EJ0110 Rev.1.10...
  • Page 42 Colophon RZ/V2N Evaluation Board Kit (Secure type) Hardware Manual Publication Date: Rev.1.00 Nov 22, 2024 Rev.1.10 Feb 28, 2025 Published by: Renesas Electronics Corporation...
  • Page 43 Back Cover RZ/V2N Evaluation Board Kit (Secure type) R12UZ0157EJ0110...
