Renesas RZ/A2M Quick Start Manual

Quick Start
Reset Switch
Power LED
Debugger Header
Display Output
Board
NOTE: This Quick Start Guide covers installation of the e
where version 7.3.0 or later is required). An active internet connection is required for downloading the installer.
1. Installation
Do not connect the debugger module until the software support has been installed.
Internet access is required during the installation process.
1. Software for this Renesas Evaluation Board Kit is available for download from;
https://www.renesas.com/rza2mevb
2. After download the installer will run and display the Welcome dialog box. Follow the on-screen instructions to install
the IDE software, selecting the RZ device family when prompted. This process will take several minutes.
Note:
Windows™ 10 / 8.1 / 8 / 7 users may see "User Account Control" dialog box. If applicable, enter the administrator
password and click 'Yes'.
The Windows™ driver signing dialog box may be displayed. Please accept the driver to continue.
Users may see a Renesas trust certificate dialog box. If applicable select the checkbox to trust the certificate.

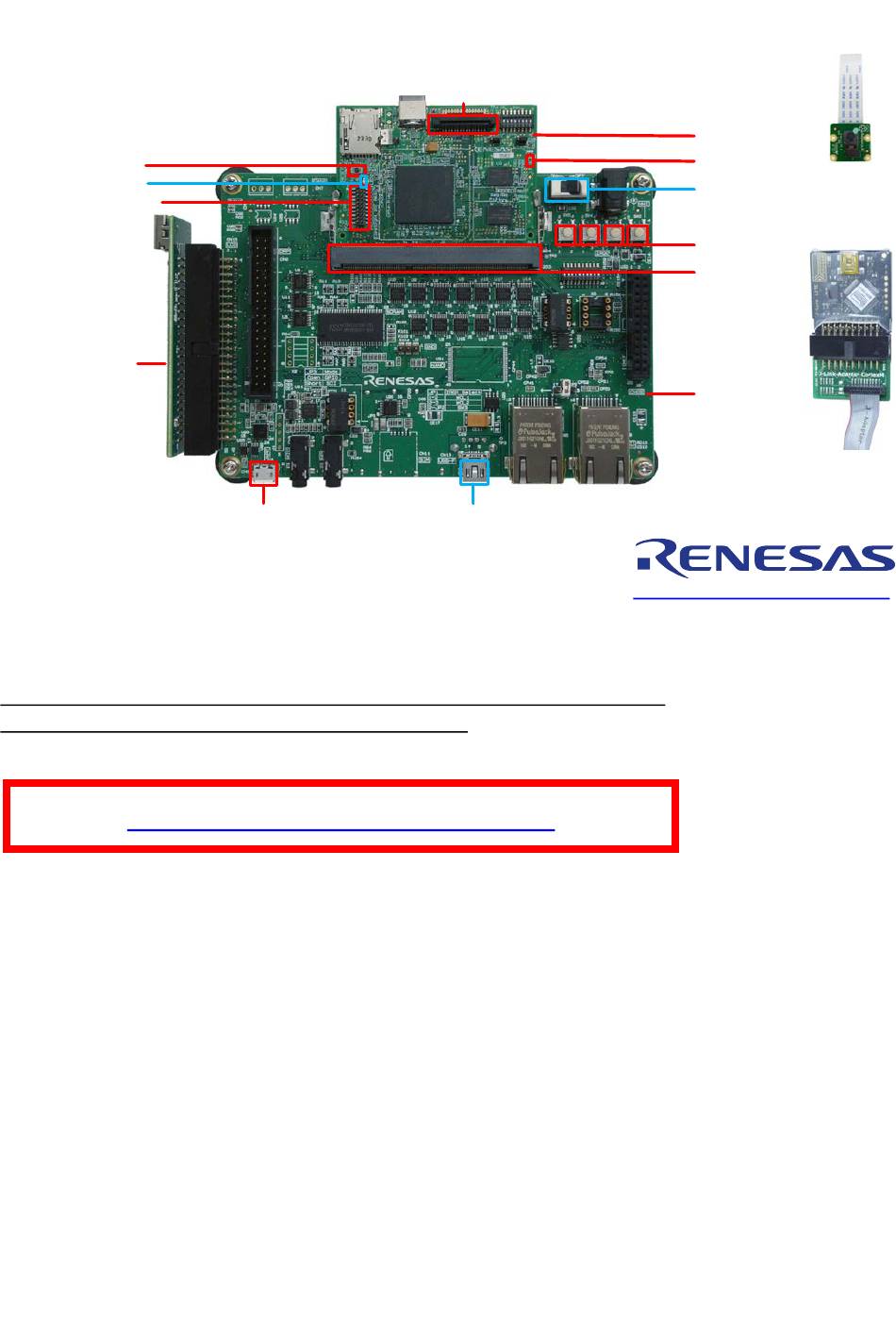

Renesas Evaluation Board Kit
for RZ/A2M
USB Serial
(Micro USB)
MIPI Camera
Header
USB Power
(Mini USB)
studio IDE (available from
2
CPU Board
User LED
Power Switch
User Switches
CPU Board
Socket
Sub Board
https://www.renesas.com/e2studio
MIPI 8MP
Camera Board
J-Link Lite
Debugger
