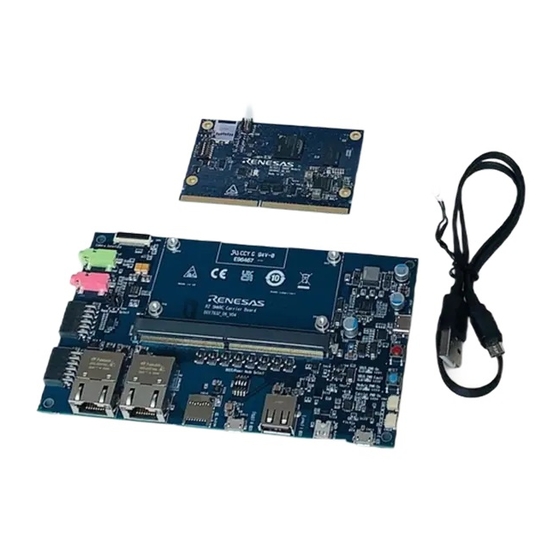

RZ/G2L Group and RZ/V2L SMARC EVK
Start-up Guide
Introduction
This document provides a guide to prepare RZ/G2L Group and RZ/V2L reference boards to boot up with the Board
Support Package of RZ/G2L Group and RZ/V2L Group. Especially, procedures to write the bootloaders to each board
are explained.
Bootloaders are written to the Flash ROM on the board using the Flash Writer tool provided by Renesas through the
minimonitor utility. This document explains the way to write these files using the Flash Writer.
Target Reference Board
RZ/G2L reference board
•
RZ/G2L Evaluation Board Kit PMIC version (smarc-rzg2l-pmic) (*1)
o
RZ/G2L SMARC Module Board (P/N: RTK9744L23C01000BE)
o
RZ SMARC Series Carrier Board (P/N: RTK97X4XXXB00000BE)
RZ/G2LC reference board
•
RZ/G2LC Evaluation Board Kit PMIC version (smarc-rzg2lc-pmic) (*2)
o
RZ/G2LC SMARC Module Board (P/N: RTK9744C22C01000BE)
o
RZ SMARC Series Carrier Board (P/N: RTK97X4XXXB00000BE)
RZ/G2UL reference board
•
RZ/G2UL Evaluation board Kit (smarc-rzg2ul) (*3)
o
RZ/G2UL SMARC Module Board (P/N: RTK9743U11C01000BE)
o
RZ SMARC Series Carrier Board (P/N: RTK97X4XXXB00000BE)
o
Parallel to HDMI Conversion board (This board is included with RTK9743U11C01000BE and is not
sold separately, so a part number does not exist.)
RZ/V2L reference board
•
RZ/V2L Evaluation Board Kit PMIC version (smarc-rzv2l-pmic) (*4)
o
RZ/V2L SMARC Module Board (P/N: RTK9754L23C01000BE)
o
RZ SMARC Series Carrier Board (P/N: RTK97X4XXXB00000BE)
"RZ/G2L Evaluation Board Kit PMIC" includes the RZ/G2L SMARC Module Board and the RZ SMARC
(*1)
Series Carrier Board.
"RZ/G2LC Evaluation Board Kit PMIC" includes the RZ/G2LC SMARC Module Board and the RZ SMARC
(*2)
Series Carrier Board.
"RZ/G2UL Evaluation board Kit" includes the RZ/G2UL SMARC Module Board and the RZ SMARC Series
(*3)
Carrier Board.
The "Evaluation board Kit for RZ/G2UL MPU" will be called "RZ/G2UL Evaluation Kit" in the next section.
(*4) "RZ/V2L Evaluation Board Kit PMIC" includes the RZ/V2L SMARC Module Board and the RZ SMARC Series
Carrier Board.
R01TU0338EJ0105 Rev.1.05
Feb. 28, 2022
R01TU0338EJ0105
Rev.1.05
Feb. 28, 2022
Page 1 of 26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RZ/G2L and is the answer not in the manual?

Questions and answers

Related Manuals for Renesas RZ/G2L

Summary of Contents for Renesas RZ/G2L

  • Page 1 Feb. 28, 2022 Introduction This document provides a guide to prepare RZ/G2L Group and RZ/V2L reference boards to boot up with the Board Support Package of RZ/G2L Group and RZ/V2L Group. Especially, procedures to write the bootloaders to each board are explained.
  • Page 2 RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide Target Software • RZ/G2L Group Board Support Package version 1.4 or later. (hereinafter referred to as “RZ/G2L BSP”) • RZ/V2L Linux Package V1.0.0 update1 or later. (hereinafter referred to as “RZ/V2L BSP”) R01TU0338EJ0105 Rev.1.05 Page 2 of 26 Feb.

  • Page 3: Table Of Contents

    Start-up Guide Contents Preparing Flash Writer ....................4 Preparing cross compiler ......................4 Building Flash Writer ........................4 Renesas SMARC Evaluation Board kit of RZ/G2L, RZ/G2LC, RZ/G2UL, and RZ/V2L 6 Preparation before startup ......................6 2.1.1 Preparation ..........................6 2.1.2 How to distinguish each board....................

  • Page 4: Preparing Flash Writer

    Flash Writer is built automatically when building BSP by bitbake command. Please refer to the Release Note of the RZ/G2L Group BSP and the RZ/V2L BSP to obtain a binary file of Flash Writer. If you need latest one, please get source code from the GitHub repository and build it according to the following instructions.
  • Page 5 RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide Please replace <board> to a proper option according to this table. Table 1. BOARD option Target board BOARD option Image to be generated smarc-rzg2l- RZG2L_SMARC_PMIC Flash_Writer_SCIF_RZG2L_SMARC_PMIC_DDR4_2GB_1PCS.mot pmic smarc-rzg2lc- RZG2LC_SMARC_PMIC Flash_Writer_SCIF_RZG2LC_SMARC_PMIC_DDR4_1GB_1PCS.mot pmic smarc-rzg2ul RZG2UL_SMARC Flash_Writer_SCIF_RZG2UL_SMARC_DDR4_1GB_1PCS.mot...

  • Page 6: Renesas Smarc Evaluation Board Kit Of Rz/G2L, Rz/G2Lc, Rz/G2Ul, And Rz/V2L

    RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide Renesas SMARC Evaluation Board kit of RZ/G2L, RZ/G2LC, RZ/G2UL, and RZ/V2L Preparation before startup 2.1.1 Preparation The following power supply environment is used in the evaluation. Hardware preparation: • USB Type-C cable “AK-A8485011” (manufactured by Anker) •...

  • Page 7: How To Distinguish Each Board

    2.1.2 How to distinguish each board The evaluation boards of RZ/G2L, RZ/G2LC, and RZ/V2L are the same Printed Circuit Board, so the differences between each board are described as follows to distinguish. The evaluation board of RZ/G2UL is different Printed Circuit Board compared with them.

  • Page 8: How To Replace The Smarc Module Board

    RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide 2.1.3 How to replace the SMARC Module Board Please be careful when replacing the board as follows. Remove the four screws. Note: The screw thread is a special shape, so be careful not to crush the screw thread.

  • Page 9: How To Set Boot Mode And Input Voltage

    Please set the SW11 settings as follows. • Pin no1 to no3 of the SW11 is used to control boot mode of RZ/G2L, RZ/G2LC, RZ/G2UL, and RZ/V2L. • Pin no4 of the SW11 is used to control the input voltage from power charger to 5V or 9V. Please use a 5V setting as initial setting.

  • Page 10: How To Set Sw1

    Please set the SW1 settings to follows. • The SW1-1 is used to select the JTAG debug mode or not. JTAG is not used to in the procedure for booting up RZ/G2L Group Board Support Package, so please set SW1-1 to normal operation mode. •...
  • Page 11 RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide SW1-2 SD/MMC selection Select eMMC memory Select microSD card The selection of microSD slot and eMMC on the SMARC module is exclusive SW1-3 Ether0/CAN0, CAN1, SSI1, RSPI1 selection CAN0, CAN1, PMOD0 Type-2A, PMOD Type-6 Ether0 R01TU0338EJ0105 Rev.1.05...

  • Page 12: How To Use Debug Serial (Console Ouput)

    RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide 2.1.6 How to use debug serial (console ouput) Please connect USB Type-microAB cable to CN14. Connect to PC CN14:USB Type-microAB Connector R01TU0338EJ0105 Rev.1.05 Page 12 of 26 Feb. 28, 2022...

  • Page 13: How To Connect The Parallel To Hdmi Conversion Board For Rz/G2Ul Evaluation Kit (Smarc-Rzg2Ul)

    RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide 2.1.7 How to connect the Parallel to HDMI Conversion board for RZ/G2UL Evaluation kit (smarc-rzg2ul) Please connect CN1 of the Parallel to HDMI Conversion board to CN5 via the 50mm FPC (228-000071-01).
  • Page 14 RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide A termination procedure of the 50mm FPC is follows. The top and bottom surfaces of the FPC are shown below. Bottom surface Top surface Lift up the actuator. Use thumb or index finger.

  • Page 15: Startup Procedure

    Startup Procedure Hereafter, RZ/V2L Evaluation Board Kit PMIC version picture is used as a representative. If you use Evaluation Board Kit of RZ/G2L, RZ/G2LC, and RZ/G2UL, you can use Connectors on same location as RZ/V2L Evaluation Board Kit PMIC version.

  • Page 16: Building Files To Write

    RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide 2.2.2 Building files to write The evaluation boards use the files in the Table 2 as the boot loaders. Please build them according to the Release Note and copy these files to a PC which runs serial terminal software.

  • Page 17: Settings

    RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide 2.2.3 Settings Connect between the board and a control PC by USB serial cable according to the Release Note. Bring up the terminal software and select the “File” > “New Connection” to set the connection on the software.
  • Page 18 RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide To set the board to SCIF Download mode, set the SW11 as below (please refer 2.1.2): SW11 After finished all settings, when pressed the reset button SW10, the messages below are displayed on the terminal.

  • Page 19: Booting Flash Writer

    RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide Booting Flash Writer Turn on the power of the board by pressing SW9. The messages below are shown on the terminal. SCIF Download mode (C) Renesas Electronics Corp. -- Load Program to SystemRAM --------------- please send ! Send an image of Flash Writer using terminal software after the message “please send !”...
  • Page 20 RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide Then, select the image to be send and click “Open” button. The image will be sent to the board via serial connection. After successfully downloading the binary, Flash Writer starts automatically and shows a message like below on the terminal.

  • Page 21: Writing Bootloader

    RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide Writing Bootloader “XLS2” command of Flash Writer is used to write binary files. This command receives binary data from the serial port and writes the data to a specified address of the Flash ROM with information where the data should be loaded on the address of the main memory.
  • Page 22 RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide Table 4. Addresses for each file RZ/G2L Evaluation Board Kit PMIC version File name Address to load to RAM Address to save to ROM bl2_bp-smarc-rzg2l_pmic.srec 0001_1E00 00000 fip-smarc-rzg2l_pmic.srec 0000_0000 1D200 RZ/G2LC Evaluation Board Kit PMIC version...

  • Page 23: Setting U-Boot

    RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide Setting U-boot To set the board to SPI Boot mode, set the SW11 as below: SW11 Note:- Set the SW1 on SoM module to eMMC mode. Please refer to the section 2.1.5.
  • Page 24 RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide In case booting from micro SD card on SMARC carrier board, set environment variables using the commands below. The commands below are for the RZ/V2L board. Please replace the file names in “bootcmd” according to the Release Note when you use other boards.
  • Page 25 RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide Website and Support Renesas Electronics Website http://www.renesas.com/ Inquiries http://www.renesas.com/contact/ All trademarks and registered trademarks are the property of their respective owners. R01TU0338EJ0105 Rev.1.05 Page 25 of 26 Feb. 28, 2022...

  • Page 26: Revision History

    RZ/G2L Group and RZ/V2L SMARC EVK Start-up Guide Revision History Description Rev. Date Page Summary 1.00 Apr. 09, 2021 First edition issued. 1.01 Jul. 15, 2021 No modification, keep version to keep consistent with other documents. Add description about “RZ/G2LC Evaluation Board Kit”...
