Renesas RZ/T2H Quick Start Manual

Quick Start Guide

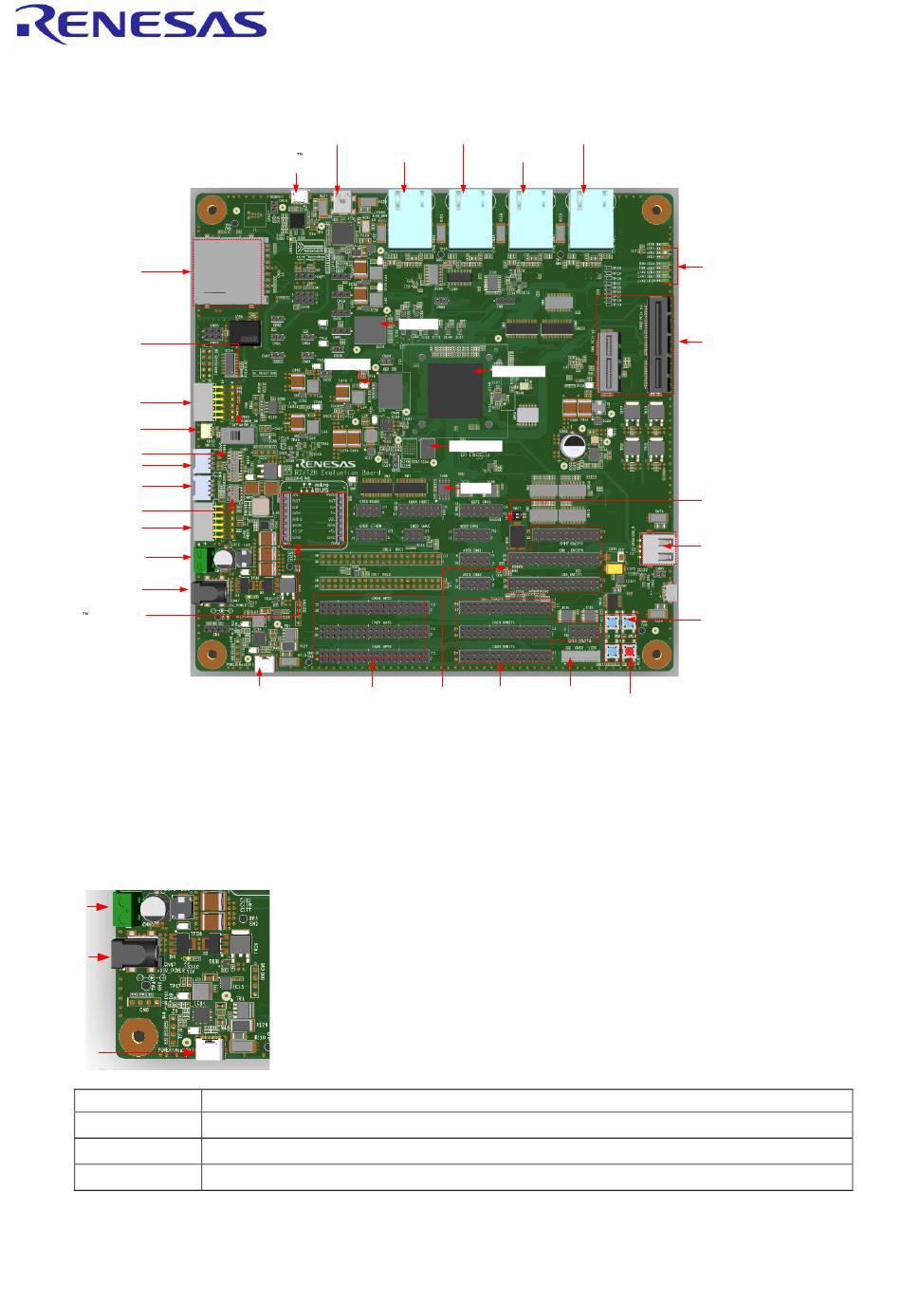

SD card slot
and
MicroSD card slot
(bottom side)
Power switch
PMOD2 (UART) connector
Qwiic
compatible connector
External debugger (MIPI-20)
connector
2
Grove (I C) connector
Grove (analog) connector
External debugger (MIPI-10)
connector
PMOD1 (SPI) connector
Terminal blocks
DC PWR IN
(15 V, adapter)
mikroBUS connectors
1. Connection
Supply power to the evaluation board. The sample code is written to the evaluation board at the time of shipment. When
the settings of switches are in their default states and power is supplied, a program that makes LED0 blink is executed.
1. Connect power to the evaluation board.
This board has a USB Type-C connector (CN46), power jack (CN47), and terminal block (CN90). You can supply
power to the evaluation board from any one of them.
CN90
CN47
CN46
Connector
CN46
CN47
CN90
*1: A USB Type-C cable (USB C to USB C) is included with the product. Prepare an AC adapter to supply the
USB voltage.
*2: Prepare an AC adapter.
*3: For supplying power, be sure to use a source that is capable of the stable supply of 24 V/3 A.
USB to serial port
USB connector
Ethernet (ETH0)
J-Link OB
connector
USB connector
LPDDR4
DC PWR IN Pin header
(15 V, USB Type-C) (GPT)
USB PD type-C (15-V/3-A DC)*
2.0-mm center-positive power jack, 15-V/3-A DC input*
5.08-mm-pitch 2-pin terminal block, 24-V/3-A DC input*
RZ/T2H Evaluation Board Kit
Ethernet (ETH1) Ethernet (ETH3)
connector
Ethernet (ETH2)
connector
eMMC
RZ/T2H
OctaFlash
QSPI
Pin header Pin header FPC connector
(ENCIF) (DSMIF) (HDMI)
Specifications and Supply Voltage
1
connector
EtherCAT LEDs
& user LEDs
PCIe connector
Potentiometer
USB HOST connector
and
USB function connector
(bottom side)
User switches
RESET switch
