RZ/T2H Group
32
RZ/T Series for Real-Time Control
RZ Family
64-Bit & 32-Bit Arm
All information contained in these materials, including products and product specifications,
represents information on the product at the time of publication and is subject to change by
Renesas Electronics Corp. without notice. Please review the latest information published by
Renesas Electronics Corp. through various means, including the Renesas Electronics Corp.
website (http://www.renesas.com).
www.renesas.com

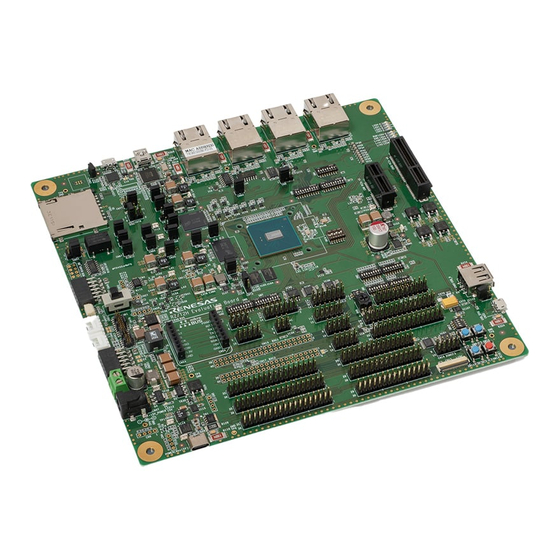

RZ/T2H Evaluation Board
-Based High-End MPUs
®
User's Manual
Rev.1.00 Jul 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RZ/T2H RZ/T Series and is the answer not in the manual?

Questions and answers

Related Manuals for Renesas RZ/T2H RZ/T Series

Summary of Contents for Renesas RZ/T2H RZ/T Series

  • Page 1 All information contained in these materials, including products and product specifications, represents information on the product at the time of publication and is subject to change by Renesas Electronics Corp. without notice. Please review the latest information published by Renesas Electronics Corp. through various means, including the Renesas Electronics Corp.

  • Page 2: Corporate Headquarters

    Renesas Electronics disclaims any and all liability for any damages or losses incurred by you or any third parties arising from the use of any Renesas Electronics product that is inconsistent with any Renesas Electronics data sheet, user’s manual or other Renesas Electronics document.
  • Page 3 Unit Products The following usage notes are applicable to all Microprocessing unit and Microcontroller unit products from Renesas. For detailed usage notes on the products covered by this document, refer to the relevant sections of the document as well as any technical updates that have been issued for the products.

  • Page 4: Proprietary Notice

    Renesas or its affiliates shall in no event be liable for any loss of profit, loss of data, loss of contract, loss of business, damage to reputation or goodwill, any...

  • Page 5: How To Use This Manual

    The following documents apply to the RZ/T2H Evaluation Board. Be sure to refer to the latest versions of these documents. The newest versions of the listed documents are available on the Renesas Electronics Web site. Document Type...

  • Page 6: List Of Abbreviations And Acronyms

    2. List of Abbreviations and Acronyms Abbreviation Full Form Analog-to-Digital Converter bits per second Controller Area Network Central Processing Unit Dual In-line Package Do Not Fit EEPROM Electronically Erasable Programmable Read Only Memory EtherCAT Slave Controller Electrostatic Discharge EtherCAT Ethernet for Control Automation Technology General PWM Timer C (IIC) Philips™...

  • Page 7: Table Of Contents

    Table of Contents 1. Overview ..........................9 Purpose ..............................9 Features ..............................9 Board Specifications ..........................10 2. Power Supply ........................13 Specifications of Power Supply ....................... 13 Methods for Turning the Power On and Off ..................... 13 Connectors for Current Measurement ..................... 14 3.
  • Page 8 7.14 CAN ................................96 7.15 RS485 Interface ............................97 7.16 USB ................................98 7.17 Ethernet System ............................99 7.18 PCIe ............................... 105 7.19 LCD Interface ............................111 7.20 Serial Host Interface ..........................114 7.21 Pin Headers ............................115 7.22 Test Pins ..............................134 8.

  • Page 9: Overview

    1. Overview Purpose This evaluation board (hereafter referred to as this board) is an evaluation tool for a Renesas microprocessor. This manual describes the technical elements of the hardware of this board in detail. The method for installing software and the debugging environment are explained in the quick start guide.

  • Page 10: Board Specifications

    RZ/T2H Evaluation Board User's Manual 1. Overview Board Specifications Table 1-1 and Table 1-2 list the board specifications. Table 1-1 Board Specifications (1) Item Specification Microprocessor Part No.: R9A09G077M44GBG* Package: 729-pin FCBGA On-chip memory: 2 Mbytes of RAM On-board memory OctaFlash: 512 Mbits QSPI serial flash memory: 128 Mbits C EEPROM: 16 Kbits...
  • Page 11 RZ/T2H Evaluation Board User's Manual 1. Overview LEDs For the power supply: (yellow) × 1 and (green) × 1 For the user: (green) × 6, (yellow) × 1, and (red) × 2 Among the above, (green) × 4 and (red) × 1 are also used for indicating the EtherCAT status.
  • Page 12 RZ/T2H Evaluation Board User's Manual 1. Overview Table 1-2 Board Specifications (2) Item Specification Connector*: 2.54-mm pitch, 3 pins × 1 (CN55) CAN transceiver × 1 RS485 Connector*: 10 pins × 1 (CN58) RS485 transceiver × 1 External RS485 expansion connector: 2.54-mm pitch, 8 pins × 1 (CN12) USB-to-serial conversion Connector: USB mini-B (CN34) interface...

  • Page 13: Power Supply

    Notes: 1. When supplying power through CN46, always use an AC adapter for USB supporting 15 V/3 A. 2. Though some of our boards, such as Renesas Starter Kit, require a 12-V or 5-V power supply, in the case of supplying power to this board through CN47, always use a 15-V/3-A power supply and do not connect a 12-V or 5-V power supply.

  • Page 14: Connectors For Current Measurement

    RZ/T2H Evaluation Board User's Manual 2. Power Supply Connectors for Current Measurement This board has connectors for measuring currents, and each current value can be measured by inserting an ammeter between pins 1-2 of the given connector. Table 2-2 is a list of the connectors for measuring currents. Table 2-2 List of Connectors for Current Measurement Connector Purpose...

  • Page 15: Board Layout

    RZ/T2H Evaluation Board User's Manual 3. Board Layout 3. Board Layout Component Layouts Figure 3-1 and Figure 3-2 show the component layouts on the top and on the soldered side of this board. Ethernet(ETH1) Ethernet(ETH3) USB to Serial Port Connector Connector USB Connector Ethernet(ETH2)
  • Page 16 RZ/T2H Evaluation Board User's Manual 3. Board Layout MicroSD card slot EEPROM： R1EX24016ASAS0I RTK9RZT2H0C00000BJ USB function connector Note: The serial number (3KA0162) is an example. Figure 3-2 Board Layout (Soldered Side) R20UT5405EJ0100 Rev.1.00 Page 16 of 144 Jul.01.24...

  • Page 17: Board Dimensions

    RZ/T2H Evaluation Board User's Manual 3. Board Layout Board Dimensions Figure 3-3 shows the board dimensions and positions of connectors on this board. The through-hole connectors of pin headers are placed on a 2.54-mm pitch grid. Figure 3-3 Board Dimensions (Unit: mm) Arrangement of Components For the arrangement of components on this board, refer to "11.

  • Page 18: Connections

    RZ/T2H Evaluation Board User's Manual 4. Connections 4. Connections Internal Connections of the Board Figure 4-1 shows the connections between components of this board and the RZ/T2H. Regulator 0.8-V power supply USB type-C Regulator OctaFlash CN46 (5 V -> 0.8 V) e.g., VDD08 (15 V ->...

  • Page 19: Connections In The Debugging Environment

    RZ/T2H Evaluation Board User's Manual 4. Connections Connections in the Debugging Environment Figure 4-2 shows the connection between this board, the emulator, and the host PC. Figure 4-3 shows the connection between this board and the host PC when J-Link™ OB on this board is used. USB cable (included in the debugger) User interface cable...

  • Page 20: List Of Rz/T2H Pin Functions

    RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions 5. List of RZ/T2H Pin Functions Table 5-1 to Table 5-27 are lists of the functions of RZ/T2H pins used on this board. Text in bold blue type the tables indicates the settings at the time of shipment of the board and the functions available with those settings.
  • Page 21 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions P16_4/IRQ11/GTETRGSB/ESC_LIN TXD5 TXD5 of USB-to-serial SW8-7: ON, KACT1/TXD5/SDA5/MOSI5/TST_O conversion SW8-8: OFF UT04/HDSL13_SMPL TXD5 TX for use with mikroBUS CN54-4 SW8-7: OFF, SW8-8: ON P17_0/IRQ12/GTIOC03_1B/SD1_D SD1_DATA1 Data DAT1 of SD1 CN16-8 ATA1/SI05#/HDSL13_MOSI1 P17_5/A7/DACK/GTADSM00_1/GT...
  • Page 22 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-2 List of RZ/T2H Pin Function Selections (2) Pin Name Pin Function Description Connector Remarks P10_3/IRQ2/RD#/MTCLKD/MTIOC2 RD# of external bus CN13-39 B/GTIOC04_3B/GTIOC10_3B/TXD0 GTIOC04_3B Input capture/output CN25-22 /SDA0/MOSI0/MDAT10/MDAT00/DI compare/PWM output pin SP_DATAR3/ENCIFOE04/DEE04/H DISP_DATAR3 Display data R3...
  • Page 23 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions P16_3/IRQ10/GTETRGSA/ESC_LIN P16_3/IRQ10 WAKE# of PCIe x1 connector CN8-B11 SW8-5: OFF, KACT0/RXD5/SCL5/MISO5/DUEI04 SW8-6: ON IRQ10 INT for use with PMOD2 CN49-7 /HDSL13_LINK RXD5 RX for use with mikroBUS CN54-3 RXD5 RXD5 of USB-to-serial SW8-5: ON, conversion...
  • Page 24 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-3 List of RZ/T2H Pin Function Selections (3) Pin Name Pin Function Description Connector Remarks P11_1/IRQ4/ESC_LEDRUN/TXD1/S TXD1 TXD for use with PMOD2 CN49-2 DA1/MOSI1/MDAT22/DUEI15/HDSL MDAT22 Data of DSMIF CN21-24 08_MISO2 P09_5/D14/MTIOC6D/GTIOC04_0B...
  • Page 25 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions P14_2/BS#/GTIOC06_0B/GTIOC09 BS# of external bus CN13-30 _0B/GTIOC05_3B/RXD4/SCL4/MIS RXD4 RXD4 of RS485 CN12-4 O4/SD0_WP/DISP_DATAG2/ENCIF DISP_DATAG2 Display data G2 CN15-31 CK00/SCKE00/HDSL11_SEL1 ENCIFCK00 Clock of ENCIF CN2-3 P14_5/TEND/POE8#/GTIOC06_2A/ TEND End of DMA transfer CN13-40 GTIOC09_2A/GTIOC06_3B/CMTW DISP_DATAG5...
  • Page 26 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions P26_4/ETH1_REFCLK/RMII1_REF ETH1_REFCLK REFCLK of Ethernet port 1 P26_5/IRQ12/CANTX0/ENCIFCK01 IRQ12 Interrupt of Ethernet port 1 /SCKE01/HDSL04_CLK1 P27_7/IRQ4/GTIOC08_0A/ETHSW_ GTIOC08_0A Input capture/output CN26-27 TDMAOUT0/SPI_RSPCK1/DUEI05/ compare/PWM output pin HDSL05_CLK1 ETHSW_TDMA TDMA timer output from CN20-4 OUT0 ETHSW...
  • Page 27 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-4 List of RZ/T2H Pin Function Selections (4) Pin Name Pin Function Description Connector Remarks P11_3/IRQ6/CTS1#/MDAT30/SI15#/ CTS1# CTS for use with PMOD2 CN49-1 HDSL09_LINK MDAT30 Data of DSMIF CN18-8 P09_4/D13/MTIOC6B/GTIOC04_0A Data D13 of external bus...
  • Page 28 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions P18_3/IRQ0/A11/GTADSM03_1/RT Address A11 of external bus CN13-25 CAT1HZ/ETH1_COL/GMAC1_MDI DISP_DATAB4 Display data B4 CN15-21 O/RXD1/SCL1/MISO1/CANTX0/SD 1_IOVS/MDAT10/DISP_DATAB4/H DSL14_CLK2 P19_0/GTIOC07_0A/DUEI09/HDSL GTIOC07_0A Input capture/output CN26-15 15_SMPL compare/PWM output pin P18_0/IRQ7/A8/TEND/GTADSM02_ Address A8 of external bus CN13-19 SW8-3: OFF, 0/ESC_LEDRUN/SS0#/CTS0#/RTS...
  • Page 29 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-5 List of RZ/T2H Pin Function Selections (5) Pin Name Pin Function Description Connector Remarks DDR_DQA12 DDR_DQA12 Data DQ_A[3] of LPDDR4 DDR_DQA9 DDR_DQA9 Data DQ_A[1] of LPDDR4 DDR_DQA13 Data DQ_A[0] of LPDDR4 DDR_DQA13 P12_7/IRQ2/D23/GTIOC05_4B/CM...
  • Page 30 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions P17_7/WE3#/AH#/GTADSM01_1/C WE3# WE3 of external bus CN17-40 MTW1_TOC1/ETHSW_PTPOUT1/E ETHSW_PTPO Timer pulse output from CN20-3 SC_SYNC1/TXD0/SDA0/MOSI0/SD ETHSW 1_IOVS/DISP_DATAB0/DUEI08/HD DISP_DATAB0 Display data B0 CN15-25 SL14_CLK1 P19_6/MCLK52/HDSL15_SEL2 MCLK52 Clock of DSMIF CN18-23 P20_2/ETH0_TXD1 ETH0_TXD1 TXD1 of Ethernet port 0...
  • Page 31 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-6 List of RZ/T2H Pin Function Selections (6) Pin Name Pin Function Description Connector Remarks DDR_DQA8 DDR_DQA8 Data DQ_A[7] of LPDDR4 DDR_DQA11 Data DQ_A[2] of LPDDR4 DDR_DQA11 DDR_DQA14 Data DQ_A[4] of LPDDR4 DDR_DQA14 DDR_DQSA_C...
  • Page 32 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions P22_3/IRQ5/A22/GTETRGC/ETH0_ ETH0_CRS CRS of Ethernet port 0 CRS/SCK5/CANRXDP0/DUEI14/HD SL01_MISO1 P24_2/IRQ13/MDAT62/HDSL02_M MDAT62 Data of DSMIF CN22-4 OSI2 P25_5/ETH1_RXD1/SI03#/HDSL03 ETH1_RXD1 RXD1 of Ethernet port 1 _MOSI1 P28_0/IRQ5/GTIOC08_0B/ETHSW_ ETHSW_TDMA TDMA timer output from CN20-6 TDMAOUT1/SPI_MOSI1/TST_OUT OUT1...
  • Page 33 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-7 List of RZ/T2H Pin Function Selections (7) Pin Name Pin Function Description Connector Remarks DDR_DQA15 DDR_DQA15 Data DQ_A[5] of LPDDR4 DDR_DQA10 Data DQ_A[6] of LPDDR4 DDR_DQA10 DDR_DMIA1 DMI_A[0] of LPDDR4 DDR_DMIA1 DDR_DQSA_T1...
  • Page 34 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions P23_7/ETHSW_LPI1/MCLK61/DUEI MCLK61 Clock of DSMIF CN22-5 02/HDSL02_CLK2 P23_0/IRQ10/A17/GTIOC06_0B/ET GTIOC06_0B Input capture/output CN26-4 SW5-7: ON, H1_COL/ETHSW_TDMAOUT3/ESC compare/PWM output pin SW5-8: OFF _LINKACT1/CANTXDP1/SI15#/HDS ESC_LINKACT LINKACT1 control of LED7 SW5-7: OFF, L01_MOSI2 SW5-8: ON P22_7/IRQ9/A18/GTIOC06_0A/ETH GTIOC06_0A...
  • Page 35 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-8 List of RZ/T2H Pin Function Selections (8) Pin Name Pin Function Description Connector Remarks DDR_DQA6 DDR_DQA6 Data DQ_A[9] of LPDDR4 DDR_DQA5 DDR_DQA5 Data DQ_A[15] of LPDDR4 DDR_VDDQ VDDP_18_33 VDDP_18_6 VDDP_18_33...
  • Page 36 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-9 List of RZ/T2H Pin Function Selections (9) Pin Name Pin Function Description Connector Remarks DDR_DQA4 DDR_DQA4 Data DQ_A[14] of LPDDR4 DDR_DMIA0 DMI_A[1] of LPDDR4 DDR_DMIA0 DDR_DQA7 Data DQ_A[8] of LPDDR4 DDR_DQA7 DDR_DQSA_C0 DDR_DQSA_C0...
  • Page 37 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-10 List of RZ/T2H Pin Function Selections (10) Pin Name Pin Function Description Connector Remarks DDR_DQA2 DDR_DQA2 Data DQ_A[10] of LPDDR4 DDR_DQA0 DDR_DQA0 Data DQ_A[11] of LPDDR4 DDR_DQA1 Data DQ_A[12] of LPDDR4 DDR_DQA1 DDR_DQA3...
  • Page 38 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-11 List of RZ/T2H Pin Function Selections (11) Pin Name Pin Function Description Connector Remarks DDR_CAA1 DDR_CAA1 CA_A[0] of LPDDR4 DDR_CKEA1 DDR_CKEA1 CKE_A[1] of LPDDR4 VDD18_PLL2 VDD08_PLL2 VDD18_PLL3 VSS_PLL3 VDD08_PLL3 VDD1833_2...
  • Page 39 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-12 List of RZ/T2H Pin Function Selections (12) Pin Name Pin Function Description Connector Remarks DDR_CKA_C DDR_CKA_C CK_A_C of LPDDR4 DDR_CAA3 DDR_CAA3 CA_A[1] of LPDDR4 DDR_CAA4 CA_A[3] of LPDDR4 DDR_CAA4 DDR_CSA0 CS_A[0] of LPDDR4...
  • Page 40 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-13 List of RZ/T2H Pin Function Selections (13) Pin Name Pin Function Description Connector Remarks DDR_CKA_T DDR_CKA_T CK_A_T of LPDDR4 DDR_CAA2 CA_A[2] of LPDDR4 DDR_CAA2 DDR_CAA5 DDR_CAA5 CA_A[5] of LPDDR4 DDR_VDDQ DDR_VAA VDD08...
  • Page 41 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions P31_3/POE4#/ETH2_RXER/ETHS ETH2_RXER RXER of Ethernet port 2 SW2-7: ON W_TDMAOUT1/ESC_LEDERR/SPI MDAT80 Data of DSMIF CN22-28 SW2-7: OFF _SSL33/MDAT80/MCLK31/HSPI_IO HSPI_IO5 IO5 of SHOSTIF CN64-7 5/ENCIFOE09/DEE09/HDSL08_LIN P31_2/POE0#/ETH2_TXER/SPI_SS ETH2_TXER TXER of Ethernet port 2 SW2-7: ON L32/MCLK80/MDAT30/HSPI_IO4/E MCLK80...
  • Page 42 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-14 List of RZ/T2H Pin Function Selections (14) Pin Name Pin Function Description Connector Remarks DDR_CKEB1 DDR_CKEB1 CKE_B[1] of LPDDR4 DDR_CAB0 CA_B[2] of LPDDR4 DDR_CAB0 DDR_CAA0 CA_A[4] of LPDDR4 DDR_CAA0 DDR_VDDQ DDR_RESET_N...
  • Page 43 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-15 List of RZ/T2H Pin Function Selections (15) Pin Name Pin Function Description Connector Remarks DDR_CKB_T DDR_CKB_T CK_B_T of LPDDR4 DDR_CKEB0 DDR_CKEB0 CKE_B[0] of LPDDR4 DDR_VDDQ DDR_DTEST DDR_DTEST DDR_ZN DDR_ZN 120-Ω...
  • Page 44 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-16 List of RZ/T2H Pin Function Selections (16) Pin Name Pin Function Description Connector Remarks DDR_CKB_C DDR_CKB_C CK_B_C of LPDDR4 DDR_CAB1 DDR_CAB1 CA_B[0] of LPDDR4 DDR_VDDQ DDR_CAB2 CA_B[3] of LPDDR4 DDR_CAB2 DDR_CAB5 DDR_CAB5...
  • Page 45 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-17 List of RZ/T2H Pin Function Selections (17) Pin Name Pin Function Description Connector Remarks DDR_CAB3 DDR_CAB3 CA_B[4] of LPDDR4 DDR_CAB4 CA_B[5] of LPDDR4 DDR_CAB4 DDR_DQB0 DQ_B[12] of LPDDR4 DDR_DQB0 DDR_CSB1 DDR_CSB1...
  • Page 46 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-18 List of RZ/T2H Pin Function Selections (18) Pin Name Pin Function Description Connector Remarks DDR_DQB2 DDR_DQB2 DQ_B[11] of LPDDR4 DDR_DQB1 DDR_DQB1 DQ_B[13] of LPDDR4 DDR_DQB3 DQ_B[14] of LPDDR4 DDR_DQB3 DDR_DQSB_T0 DDR_DQSB_T0...
  • Page 47 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-19 List of RZ/T2H Pin Function Selections (19) Pin Name Pin Function Description Connector Remarks DDR_DQB4 DDR_DQB4 DQ_B[10] of LPDDR4 DDR_DQB7 DQ_B[9] of LPDDR4 DDR_DQB7 DDR_DMIB0 DMI_B[1] of LPDDR4 DDR_DMIB0 DDR_DQSB_C0 DDR_DQSB_C0...
  • Page 48 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-20 List of RZ/T2H Pin Function Selections (20) Pin Name Pin Function Description Connector Remarks DDR_DQB6 DDR_DQB6 DQ_B[15] of LPDDR4 DDR_VDDQ DDR_DQB5 DQ_B[8] of LPDDR4 DDR_DQB5 VDD33 VDD33 VDD1833_5 VDD1833_5 USB_USVDD18...
  • Page 49 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-21 List of RZ/T2H Pin Function Selections (21) Pin Name Pin Function Description Connector Remarks DDR_DQB8 DDR_DQB8 DQ_B[5] of LPDDR4 DDR_DQB15 DQ_B[4] of LPDDR4 DDR_DQB15 DDR_DQSB_T1 DDR_DQSB_T1 DQS0_B_T of LPDDR4 P06_5/IRQ11/GTETRGC/IIC_SDA1/ XSPI0_IO7 Data IO7 of XSPI0...
  • Page 50 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions AA20 PCIE_VDD18A_L1 AA21 PCIE_VDD18A_L0 AA22 AVSS_ADC0 AA23 AVDD_ADC0 AA24 AVSSIO_ADC0 AA25 AVSSIO_ADC0 Input to A/D converter AA26 AN002 AN002 CN41-6 (AN002) SW17-1: ON, AA27 AN000 AN000 Input to potentiometer SW17-2: OFF Input to A/D converter CN41-2...
  • Page 51 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-22 List of RZ/T2H Pin Function Selections (22) Pin Name Pin Function Description Connector Remarks DDR_DQB14 DDR_DQB14 DQ_B[6] of LPDDR4 DDR_DQB9 DDR_DQB9 DQ_B[1] of LPDDR4 DDR_DMIB1 DMI_B[0] of LPDDR4 DDR_DMIB1 DDR_DQB10 DQ_B[0] of LPDDR4...
  • Page 52 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions AB25 AVDDREF_ADC0 AB26 AN001 AN001 Input to A/D converter CN41-4 (AN001) AB27 AN003 AN003 Input to A/D converter CN41-8 (AN003) R20UT5405EJ0100 Rev.1.00 Page 52 of 144 Jul.01.24...
  • Page 53 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-23 List of RZ/T2H Pin Function Selections (23) Pin Name Pin Function Description Connector Remarks DDR_DQB12 DDR_DQB12 DQ_B[3] of LPDDR4 DDR_DQB13 DQ_B[2] of LPDDR4 DDR_DQB13 DDR_DQB11 DQ_B[7] of LPDDR4 DDR_DQB11 P06_1/XSPI0_IO3/SI08#/HDSL04_ XSPI0_IO3...
  • Page 54 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions AC16 AC17 USB_TXRTUNE USB_TXRTUNE 200-Ω pull-down AC18 PCIE_REFCLK Reference clock of PCIe ch1 AC19 PCIE_REFCLK_N1 AC20 PCIE_REFCLK_P0 PCIE_REFCLK Reference clock of PCIe ch0 AC21 PCIE_VDD18A_CMN AC22 AVDD_ADC2 AC23 AVDDIO_ADC2 AC24 AVDDIO_ADC1 AC25...
  • Page 55 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-24 List of RZ/T2H Pin Function Selections (24) Pin Name Pin Function Description Connector Remarks MDX setting input P08_6/SEI/CKIO/GTIOC08_3A/GTE Switch SW9 of SEI SW2-3: OFF, TRGSB/IIC_SDA1/SD1_IOVS/MDA E1: Short- T02/MCLK11/DUEI11/HDSL06_MO circuit, E7: Short-...
  • Page 56 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions AD15 P00_1/IRQ0/D1/MTIOC3D/GTIOC0 Data D1 of external bus CN17-3 SW1-5: OFF 0_0B/ETH3_RXER/USB_OVRCUR/ GTIOC00_0B Input capture/output CN24-4 TST_OUT00/HDSL00_SMPL compare/PWM output pin USB_OVRCUR OVRCUR input for USB host SW1-5: ON interface AD16 USB_VUBUSIN USB_VUBUSIN VBUSIN of USB function...
  • Page 57 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-25 List of RZ/T2H Pin Function Selections (25) Pin Name Pin Function Description Connector Remarks P09_0/IIC_SDA2/MCLK12/SI11#/H P09_0 GPIO for use with PMOD2 CN49-9 DSL07_SMPL MCLK12 Clock of DSMIF CN21-13 P09_2/MCLK20/TST_OUT12/HDSL MCLK20...
  • Page 58 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions AE15 P00_0/SEI/D0/MTIOC3B/GTIOC00_ Data D0 of external bus CN17-1 SW1-5: OFF 0A/ETH3_TXER/USB_VBUSEN/DU GTIOC00_0A Input capture/output CN24-3 EI00/HDSL00_LINK compare/PWM output pin USB_VBUSEN VBUS control for USB host SW1-5: ON, interface SW7-9: OFF, SW7-10: ON AE16 AE17...
  • Page 59 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-26 List of RZ/T2H Pin Function Selections (26) Pin Name Pin Function Description Connector Remarks P09_3/MDAT20/SI12#/HDSL07_MI MDAT20 Data of DSMIF CN21-28 P08_7/IRQ0/A0/GTIOC08_3B/IIC_S P08_7 RESET for use with PMOD2 CN49-8 CL2/IIC_SCL1/MDAT11/TST_OUT1 IRQ0...
  • Page 60 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions AF19 PCIE_RXDN_L1 PCIE_RXDN_L Receive data of PCIe ch1 (x1) CN8-A17 SW15-2: ON Receive data of PCIe ch1 CN32-A22 SW15-2: OFF (x4) AF20 PCIE_RXDN_L0 PCIE_RXDN_L Receive data of PCIe ch0 CN32-A17 (x4) AF21...
  • Page 61 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions Table 5-27 List of RZ/T2H Pin Function Selections (27) Pin Name Pin Function Description Connector Remarks P09_1/MDAT12/DUEI12/HDSL07_C P09_1 GPIO for use with PMOD2 CN49-10 MDAT12 Data of DSMIF CN21-14 P08_1/TMS/DUEI10/HDSL06_MISO TMS of debugging interface CN60-2,...
  • Page 62 RZ/T2H Evaluation Board User's Manual 5. List of RZ/T2H Pin Functions AG15 P00_3/IRQ2/D3/MTIOC4C/GTIOC0 IRQ2/ADTRG1# User switch SW10/ 0_1B/ETH3_COL/ADTRG1#/DUEI0 ADTRG switch 1/HDSL00_SEL1 Data D3 of external bus CN17-7 GTIOC00_1B Input capture/output CN24-6 compare/PWM output pin AG16 USB_QDM Input/output of USB DM AG17 USB_QDM AG18...

  • Page 63: Circuitry For Configuration

    RZ/T2H Evaluation Board User's Manual 6. Circuitry for Configuration 6. Circuitry for Configuration Types of Configuration Circuits Since multiple functions are assigned to single pins and each function has to be selected for use in the RZ/T2H, the functions to be used should be selected through the following methods on this board. (1) Switches DIP switches SW1, SW2, SW4 to SW8, SW14, SW15, SW17, and SW18 are mounted for selecting functions.

  • Page 64: Configuration At Shipment

    RZ/T2H Evaluation Board User's Manual 6. Circuitry for Configuration Configuration at Shipment Figure 6-2 shows the state of switch settings and jumper block settings for the configuration at the time of shipment. VCC1833_0 to VCC1833_3 Power Selection Debugging Fuction VCC1833_7, VCC1833_6 VCC_ETH2_MDIO CN37 Selection...

  • Page 65: Configuration By Switches

    RZ/T2H Evaluation Board User's Manual 6. Circuitry for Configuration Configuration by Switches This board is equipped with DIP switches SW1, SW2, SW4 to SW8, SW14, SW15, SW17, and SW18 for selecting functions. The functions set by individual switches are explained below. 6.3.1 Mode Setting Switch SW14 SW14 is used to set the mode pins of the RZ/T2H.

  • Page 66: Signal Function Selection Switches Sw1, Sw2, Sw4 To Sw8, Sw15, Sw17, And Sw18

    RZ/T2H Evaluation Board User's Manual 6. Circuitry for Configuration 6.3.2 Signal Function Selection Switches SW1, SW2, SW4 to SW8, SW15, SW17, and SW18 SW1, SW2, SW4 to SW8, SW15, SW17, and SW18 are used to select the functions of the signal lines. Table 6-3 to Table 6-12 list the settings of SW1, SW2, SW4 to SW8, SW15, SW17, and SW18.
  • Page 67 RZ/T2H Evaluation Board User's Manual 6. Circuitry for Configuration Table 6-4 Signal Function Selection Switch SW2 Setting Function SW2-1, SW2-2 Setting prohibited P12_0 to P12_5, P22_5, and P22_6 are connected to the SD card slot (CN31). P02_5 and P02_6 are used for controlling the power supply of the SD card. P12_0 to P12_7, P13_0 to P13_2, P22_5, P22_6, P02_5, and P02_6 are connected to BSC2 (CN17), ENCIF0 (CN2), GPT1 (CN25), and the pin header (CN12) of the off-board RS485.
  • Page 68 RZ/T2H Evaluation Board User's Manual 6. Circuitry for Configuration Table 6-6 Signal Function Selection Switch SW5 Setting Function SW5-1, SW5-2 P32_2 is used as SD1_IOVS (SW5-3 needs to be set to ON). P32_2 is used as USER_LED1. SW5-3, SW5-4 P32_2 is used as SD1_IOVS (SW5-1 needs to be set to ON). When SW2-3=ON, P08_6 is used as SD1_IOVS.
  • Page 69 RZ/T2H Evaluation Board User's Manual 6. Circuitry for Configuration Table 6-8 Signal Function Selection Switch SW7 Setting Function SW7-1, SW7-2 P24_4 is used as MDAT70 of DSMIF2 (CN22). P24_4 is used as CAN_TX. SW7-3, SW7-4 P24_3 is used as MCLK70 of DSMIF2 (CN22). P24_3 is used as CAN_RX.
  • Page 70 RZ/T2H Evaluation Board User's Manual 6. Circuitry for Configuration Table 6-10 Signal Function Selection Switch SW15 Setting Function SW15-1 PCIe L0 is used as an endpoint. PCIe L0 is used as a root complex. SW15-2 PCIe L1 is used as an endpoint. PCIe L1 is used as a root complex.

  • Page 71: Configuration By Jumper Blocks

    RZ/T2H Evaluation Board User's Manual 6. Circuitry for Configuration Configuration by Jumper Blocks This board is equipped with jumper blocks CN9, CN29, CN30, CN35 to CN40, CN56, CN57, CN62, CN73, CN77, CN78, and CN81 to CN87 for selecting functions. The functions set by individual jumper blocks are explained below.

  • Page 72: Debugging Function Selection Jumper Block Cn62

    RZ/T2H Evaluation Board User's Manual 6. Circuitry for Configuration 6.4.2 Debugging Function Selection Jumper Block CN62 CN62 is used to enable or disable the on-board debugging function J-Link™ OB. Table 6-14 Debugging Function Selection Jumper Block CN62 Setting Function CN62 Open-circuit The on-board debugging function J-Link™...

  • Page 73: Current Measurement Jumper Blocks Cn29, Cn30, Cn35, Cn36, And Cn81 To Cn87

    RZ/T2H Evaluation Board User's Manual 6. Circuitry for Configuration 6.4.5 Current Measurement Jumper Blocks CN29, CN30, CN35, CN36, and CN81 to CN87 CN29, CN30, CN35, CN36, and CN81 to CN87 are jumper blocks for measuring the current drawn by the target device (RZ/T2H).

  • Page 74: Configuration By Option Links

    RZ/T2H Evaluation Board User's Manual 6. Circuitry for Configuration Configuration by Option Links 6.5.1 Settings by Solder Bridges and Trace Cuts This board is equipped with solder bridges E4 and E5, and trace cuts E1 to E3, E6, E7, E10, and E20 for selecting functions.

  • Page 75: Settings By 0-Ω And Other Resistors

    RZ/T2H Evaluation Board User's Manual 6. Circuitry for Configuration 6.5.2 Settings by 0-Ω and Other Resistors The following 0-Ω and other resistors are or can be placed on this board, and the function to be used can be selected by changing the Fit/DNF state from the state as shipped. Table 6-19 lists the settings of 0-Ω and other resistors.

  • Page 76: User Circuits

    RZ/T2H Evaluation Board User's Manual 7. User Circuits 7. User Circuits This chapter describes the circuits on the board for each of its functions. The initial state of this board at the time of shipment is indicated by the text in bold blue type in the "Settings of Configuration Circuits"...

  • Page 77: Switches

    RZ/T2H Evaluation Board User's Manual 7. User Circuits Switches This board is equipped with four push switches and 12 DIP switches in addition to the power switch described in section 2.2. Table 7-2 lists the functions and signal connections of the four push switches. Table 7-3 lists the functions and signal connections of user DIP switch SW12.

  • Page 78: Leds

    RZ/T2H Evaluation Board User's Manual 7. User Circuits LEDs This board is equipped with 20 LEDs. Table 7-4 lists the functions, colors, and signal connections of LEDs. Table 7-4 Signal Connections of LEDs Settings of Configuration Color Function or Intended Use Port Circuits P15V (LED12)

  • Page 79: Potentiometer

    RZ/T2H Evaluation Board User's Manual 7. User Circuits Potentiometer On this board, a 10-kΩ single-rotation potentiometer for evaluating the ADC is connected to AN000 (pin AA27) of the RZ/T2H. Figure 7-3 shows the configuration of the potentiometer circuit. VCC18_AVDDIO_ADC0 10 kΩ SW17-1 AN000_V18ADC0 SW17-2...

  • Page 80: Pmod

    RZ/T2H Evaluation Board User's Manual 7. User Circuits Pmod™ This board is equipped with two connectors for Digilent Pmod™ interfaces so that compatible Pmod™ modules can be connected and evaluated. PMOD1 (CN50) supports the type 2A and 6A Pmod™ interfaces and PMOD2 (CN49) supports type 3A.
  • Page 81 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-5 Signal Connections of PMOD1 Connector (CN50) Settings of Configuration Signal Name Port Circuits P31_7_HEADER_PMOD1_SSL P31_7  P31_5_HEADER_PMOD1_MOSI P31_5* SW2-7: OFF E2: Short-circuit, P31_6_HEADER_PMOD1_MISO P31_6 E4: Open-circuit P04_7_HEADER_I2C_SCL1_C P04_7* AC11 E2: Open-circuit, E4: Short-circuit P31_4_HEADER_PMOD1_SCK P31_4*...
  • Page 82 RZ/T2H Evaluation Board User's Manual 7. User Circuits 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 : Initial setting : Changed from the initial setting Figure 7-5 Switch Settings When Using PMOD1 and PMOD2 Note that the pin assignment for a Digilent Pmod™...

  • Page 83: Grove

    RZ/T2H Evaluation Board User's Manual 7. User Circuits 7.7 Grove This board is equipped with two connectors for Grove interfaces so that compatible Grove modules can be connected and evaluated. Figure 7-7 shows the configuration of the Grove interface circuits. Figure 7-8 shows the pin assignment for a Grove connector.
  • Page 84 RZ/T2H Evaluation Board User's Manual 7. User Circuits Pin 1 Figure 7-8 Pin Assignment for a Grove Connector (Viewed from the Direction of Insertion) R20UT5405EJ0100 Rev.1.00 Page 84 of 144 Jul.01.24...

  • Page 85: Qwiic

    RZ/T2H Evaluation Board User's Manual 7. User Circuits QWIIC This board is equipped with a connector for the QWIIC interface so that a compatible QWIIC module can be connected and evaluated. Figure 7-9 shows the pin assignment for a QWIIC connector. Table 7-9 lists the signal connections.

  • Page 86: Mikrobus

    RZ/T2H Evaluation Board User's Manual 7. User Circuits mikroBUS™ This board is equipped with two connectors for mikroBUS™ interfaces so that compatible mikroBUS™ modules can be connected and evaluated. Figure 7-10 shows the configuration of the mikroBUS™ interface circuits. Table 7-10 and Table 7-11 list the signal connections. Figure 7-11 shows the switch settings when using mikroBUS™.
  • Page 87 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-11 Signal Connections of mikroBUS™ Connector (CN54) Settings of Signal Name Port Configuration Circuits P04_2_HEADER_MikroBUS_PWM P04_2 AA12  P15_6_HEADER_IRQ1_G P15_6  P16_3_MikroBUS_RXD5_IRQ10_D_PCIex1_WAKE P16_3* SW8-5: OFF, SW8-6: ON _GPIO P16_4_MikroBUS_TXD5 P16_4* SW8-7: OFF, SW8-8: ON P04_7_HEADER_I2C_SCL1_C P04_7* AC11...

  • Page 88: Usb-To-Serial Conversion

    RZ/T2H Evaluation Board User's Manual 7. User Circuits 7.10 USB-to-Serial Conversion This board is equipped with a USB connector (CN34) for terminal output and an FT2232 for USB-to-serial conversion. Figure 7-12 shows the configuration of the USB-to-serial conversion circuit. Table 7-12 lists the signal connections.

  • Page 89: Spi Memory

    RZ/T2H Evaluation Board User's Manual 7. User Circuits 7.11 SPI Memory This board has OctaFlash, Quad SPI flash memory, and EEPROM as SPI memory. An SPI expansion connector (CN63) is also connected to SPI1. Figure 7-13 shows the configuration of the SPI memory circuits, and Table 7-13 lists the SPI memories. Table 7-14, Table 7-15, and Table 7-16 list the signal connections for each memory.
  • Page 90 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-14 Signal Connections of OctaFlash Settings of Function or Configuration Signal Name Intended Use Port Circuits P06_6_V1833_4_XSPI0_RESET0#_MDD Reset for CS0 P06_6  P05_3_V1833_4_XSPI0_CS0# CS0# P05_3  P05_5_V1833_4_XSPI0_DS P05_5  SW5-5: OFF, P07_5_V1833_4_XSPI0_ECS# ECS# P07_5*...
  • Page 91 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-17 Signal Connections of SPI Expansion Connector (CN63) Settings of Signal Name Port Configuration Circuits GROUND    P22_5_HEADER_IRQ7_E_PCIEx4_WAKE_GPIO P22_5* SW2-1: ON, SW2-2: OFF SW1-6: ON P01_0_V1833_5_XSPI1_CKP P01_0* AF13 P01_2_V1833_5_XSPI1_CS1# P01_2* AD14 SW1-6: ON...

  • Page 92: Lpddr4

    RZ/T2H Evaluation Board User's Manual 7. User Circuits 7.12 LPDDR4 This board is equipped with LPDDR4. Figure 7-15 shows the signal connections of LPDDR4. RZ/T2H (IC1) LPDDR4 (IC5) DDR_CAA[5:0] DDR_CAA5 DDR_CAA5 DDR_CAA5 CAA5 DDR_CAA3 DDR_CAA4 DDR_CAA4 CAA4 DDR_CAA1 DDR_CAA3 DDR_CAA3 CAA3 DDR_CAA2 DDR_CAA2...

  • Page 93: Sd And Emmc

    RZ/T2H Evaluation Board User's Manual 7. User Circuits 7.13 SD and eMMC This board is equipped with an SD card slot (CN31), a microSD card slot (CN16), and eMMC (IC49). Figure 7-16 shows the configuration of the SD and eMMC circuit. Table 7-18, Table 7-19, and Table 7-20 list the signal connections.
  • Page 94 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-18 Signal Connections of eMMC Function or Settings of Configuration Signal Name Intended Use Port Circuits P13_2_P1V8_eMMC_RST# Reset P13_2* SW2-1: ON, SW2-2: ON SW2-1: ON, SW2-2: ON P12_1_P1V8_eMMC_CMD Command P12_1* SW2-1: ON, SW2-2: ON P12_0_P1V8_eMMC_CLK Clock P12_0*...
  • Page 95 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-20 Signal Connections of MicroSD Card Slot Function or Settings of Configuration Signal Name Intended Use Port Circuits P16_6_V1833_7_SD1_CMD Command P16_6  P16_5_V1833_7_SD1_CLK Clock P16_5  P16_7_V1833_7_SD1_DAT0 Data 0 P16_7  P17_0_V1833_7_SD1_DAT1 Data 1 P17_0...

  • Page 96: Can

    RZ/T2H Evaluation Board User's Manual 7. User Circuits 7.14 This board is equipped with a CAN transceiver (IC84) and a CAN interface connector (CN55) so that the CAN module of the RZ/T2H can be evaluated. Figure 7-18 shows the configuration of the CAN interface circuit, and Table 7-21 lists the signal connections.

  • Page 97: Rs485 Interface

    RZ/T2H Evaluation Board User's Manual 7. User Circuits 7.15 RS485 Interface This board is equipped with an RS485 transceiver (IC88), an RS485 interface connector (CN58), and an RS485 external expansion connector (CN12). Figure 7-19 shows the configuration of the RS485 interface circuits, Table 7-22 lists the signal connections of the connector, and Table 7-23 lists the ports to be used.

  • Page 98: Usb

    RZ/T2H Evaluation Board User's Manual 7. User Circuits 7.16 USB This board is equipped with a USB type-A connector (CN80) and a mini-B connector (CN79). The USB function of the RZ/T2H can be used for either a USB host interface or a USB function interface (both cannot be used at the same time).

  • Page 99: Ethernet System

    When running any Ethernet software, do so with the use of a unique MAC address. A sticker indicating the unique MAC address that was assigned by Renesas is affixed to this board (top side) to ensure full compatibility in the case of connection to other Renesas hardware modules.
  • Page 100 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-25 Signal Connections of Ethernet Port 0 (ETH0) Settings of Function or Intended Configuration Signal Name Port Circuits P20_0_V1833_0_ETH0_TXCLK Transmit clock P20_0  P20_1_V1833_0_ETH0_TXD0_MDV Transmit data 0 P20_1  P20_2_V1833_0_ETH0_TXD1 Transmit data 1 P20_2 ...
  • Page 101 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-26 Signal Connections of Ethernet Port 1 (ETH1) Settings of Function or Intended Configuration Signal Name Port Circuits P24_5_V1833_1_ETH1_TXCLK Transmit clock P24_5  P24_6_V1833_1_ETH1_TXD0_MD0 Transmit data 0 P24_6  P24_7_V1833_1_ETH1_TXD1_MD1 Transmit data 1 P24_7 ...
  • Page 102 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-27 Signal Connections of Ethernet Port 2 (ETH2) Settings of Configuration Signal Name Function or Intended Use Port Circuits P29_1_V1833_2_ETH2_TXCLK Transmit clock P29_1* SW2-7: ON P29_2_V1833_2_ETH2_TXD0 Transmit data 0 P29_2* SW2-7: ON P29_3_V1833_2_ETH2_TXD1 Transmit data 1 P29_3*...
  • Page 103 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-28 Signal Connections of Ethernet Port 3 (ETH3) Settings of Configuration Signal Name Function or Intended Use Port Circuits P33_2_V1833_3_ETH3_TXCLK Transmit clock P33_2* SW2-8: ON P33_3_V1833_3_ETH3_TXD0 Transmit data 0 P33_3* SW2-8: ON P33_4_V1833_3_ETH3_TXD1 Transmit data 1 P33_4*...
  • Page 104 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-29 Initial Settings by Hardware Strapping of the PHY Devices Items of PHY Initial Settings Contents of PHY Initial Settings CLKOUT Disabled Managed or unmanaged Unmanaged mode CLK delay 2.0 ns Link advertisement Default operating mode, 10, 100, or 1000 FDX/HDX, auto-nego is ON MAC interface...

  • Page 105: Pcie

    RZ/T2H Evaluation Board User's Manual 7. User Circuits 7.18 PCIe This board is equipped with a clock driver, power-supply IC, and connectors (CN8 and CN32) for the PCIe so that the PCIe function of the RZ/T2H can be evaluated. Figure 7-22 shows the configuration of the PCIe circuit.
  • Page 106 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-30 PCIe Configurations and Associated Switch Settings (Excluding Signal Function Selection Switches) Configuration Description of Configuration Settings of Switches Root complex and 2 lanes × 1 port (CN32) SW15-1 and SW15-2: ON, SW15-3: OFF, SW15-5 and SW15-6: ON,...
  • Page 107 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-31 Signal Connections of PCIe x4 Connector (CN32) Settings of Function Configuration Pin* Name Connection Port Circuits PRSNT1# For a root complex: Fixed to the low level    For an endpoint: Connected to PRSNT2#, PRSNT3# ...
  • Page 108 RZ/T2H Evaluation Board User's Manual 7. User Circuits PRSNT2# For a root complex: Connected to P17_3 of the RZ/T2H P17_3 SW15-1: ON (same as B31) For an endpoint: Connected to PRSNT1#    HSOP1 For 1 port: Connected to PCIE_TXDP_L1 of the ...
  • Page 109 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-32 Signal Connections of PCIe x1 Connector (CN8) (Only for a Configuration of 1 Lane × 2 Ports) Settings of Function Configuration Pin* Name Connection Port Circuits PRSNT1# For a root complex: Fixed to the low level ...
  • Page 110 RZ/T2H Evaluation Board User's Manual 7. User Circuits 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 CN73 SW15 Configuration 1 Configuration 2 Configuration 3 Root complex, 2-lane/1-port Root complex, 1-lane/2-port Endpoint, 2-lane/1-port SW15 SW15...

  • Page 111: Lcd Interface

    RZ/T2H Evaluation Board User's Manual 7. User Circuits 7.19 LCD Interface This board is equipped with an LCD interface connector (CN15). Figure 7-24 shows the configuration of the LCD interface circuit. Table 7-33 lists the signal connections. Figure 7-25 shows the switch settings when using the LCD interface.
  • Page 112 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-33 Signal Connections of LCD Interface Connector (CN15) Settings of Signal Name Port Configuration Circuits P05_0_HEADER_I2C_SDA1_C P05_0 AA10  P04_7_HEADER_I2C_SCL1_C P04_7 AC11  p5v0    P22_6_HEADER_IRQ8_E P22_6* SW2-1: ON, SW2-2: OFF GROUND ...
  • Page 113 RZ/T2H Evaluation Board User's Manual 7. User Circuits P10_3_HEADER_BSC_RD#_LCDC_DATR3 P10_3  P10_2_HEADER_BSC_CS0#_LCDC_DATR2 P10_2  P10_1_HEADER_BSC_WAIT#_LCDC_DATR1 P10_1  P10_0_HEADER_BSC_WE1#_LCDC_DATR0 P10_0  p3v3    p3v3    GROUND    GROUND    Notes: 1. Connected via the level shifter IC with an enable function. 2.

  • Page 114: Serial Host Interface

    RZ/T2H Evaluation Board User's Manual 7. User Circuits 7.20 Serial Host Interface This board is equipped with a connector (CN64) for the serial host interface, and the serial host interface of the RZ/T2H can be evaluated by connecting the connector to an external host CPU. Table 7-34 lists the signal connections of the serial host interface connector (CN64).

  • Page 115: Pin Headers

    RZ/T2H Evaluation Board User's Manual 7. User Circuits 7.21 Pin Headers This board is equipped with the 2.54-mm pitch pin headers listed in Table 7-35. Table 7-36 to Table 7-52 list the signal connections of the pin headers. Figure 7-27 to Figure 7-32 show the switch settings when using the pin headers.
  • Page 116 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-36 Signal Connections of ENCIF0 (CN2) Settings of Function Configuration Name Signal Name Port Circuits GROUND GROUND    ENCIFCK01 P33_2_V1833_3_HEADER_BSC_A16 P33_2* SW2-8: OFF ENCIFCK00 P14_2_HEADER_BSC_BS#_LCDC_DATG2_RS48 P14_2  5_RXD4 P33_3_V1833_3_HEADER_BSC_A17_PCIe_RST ENCIFOE01 P33_3* SW2-8: OFF...
  • Page 117 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-37 Signal Connections of ENCIF1 (CN3) Settings of Function Configuration Name Signal Name Port Circuits GROUND GROUND    ENCIFCK07 P34_2_V1833_3_HEADER_BSC_A24 P34_2* SW2-8: OFF ENCIFCK06 P33_6_V1833_3_HEADER_BSC_A20 P33_6* SW2-8: OFF ENCIFOE07 P34_3_V1833_3_HEADER_BSC_A25 P34_3* SW2-8: OFF...
  • Page 118 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-38 Signal Connections of ENCIF2 (CN10) Settings of Function Configuration Name Signal Name Port Circuits GROUND GROUND    ENCIFCK13 P13_4_HEADER_BSC_D28_RS485_RXD3 P13_4* SW1-4: ON ENCIFCK12 P13_0_HEADER_BSC_D24_RS485_DE2 P13_0* SW2-1: ON, SW2-2: OFF ENCIFOE13 P13_5_HEADER_BSC_D29_RS485_TXD3 P13_5...
  • Page 119 RZ/T2H Evaluation Board User's Manual 7. User Circuits 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 : Initial setting : Changed from the initial setting Figure 7-27 Switch Settings When Using ENCIF0 (CN2), ENCIF1 (CN3), and ENCIF2 (CN10) R20UT5405EJ0100 Rev.1.00 Page 119 of 144 Jul.01.24...
  • Page 120 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-39 Signal Connections of DSMIF0 (CN21) Settings of Function Configuration Name Signal Name Port Circuits p5v0 p5v0    p3v3 p3v3    MCLK02 P07_5_V1833_4_HEADER P07_5* SW5-5: ON, SW5-6: OFF MDAT02 P07_6_V1833_4_HEADER P07_6...
  • Page 121 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-40 Signal Connections of DSMIF1 (CN18) Settings of Function Configuration Name Signal Name Port Circuits p5v0 p5v0    p3v3 p3v3    MCLK32 P14_7_HEADER P14_7  MDAT32 P15_0_HEADER P15_0 ...
  • Page 122 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-41 Signal Connections of DSMIF2 (CN22) Settings of Function Configuration Name Signal Name Port Circuits p5v0 p5v0    p3v3 p3v3    MCLK62 P24_1_HEADER P24_1  MDAT62 P24_2_HEADER P24_2 ...
  • Page 123 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-42 Signal Connections of DSMIF3 (CN19) Settings of Function Configuration Name Signal Name Port Circuits p5v0 p5v0    p3v3 p3v3    MCLK92 P35_5_HEADER P35_5* SW1-3: OFF, MDAT92 P35_6_HEADER P35_6* SW1-3: OFF,...
  • Page 124 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-43 Signal Connections of GPT0 (CN24) Settings of Function Configuration Name Signal Name Port Circuits GROUND GROUND    GROUND GROUND    GTIOC00_0A P00_0_HEADER_BSC_D0 P00_0* AE15 SW1-5: OFF GTIOC00_0B P00_1_HEADER_BSC_D1 P00_1*...
  • Page 125 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-44 Signal Connections of GPT1 (CN25) Settings of Function Configuration Name Signal Name Port Circuits GROUND GROUND    GROUND GROUND    GTIOC03_0A P03_7_HEADER P03_7 AB12  GTIOC03_0B P04_0_HEADER_BSC_IRQOUT# P04_0 AE11...
  • Page 126 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-45 Signal Connections of GPT2 (CN26) Settings of Function Configuration Name Signal Name Port Circuits GROUND GROUND    GROUND GROUND    GTIOC06_0A P22_7_HEADER P22_7* SW5-9: ON, SW5-10: OFF GTIOC06_0B P23_0_HEADER P23_0*...
  • Page 127 RZ/T2H Evaluation Board User's Manual 7. User Circuits 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 : Initial setting : Changed from the initial setting...
  • Page 128 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-46 Signal Connections of ETHSW (CN20) Settings of Configuration Function Name Signal Name Port Circuits ETHSW_PTPOUT0 P17_6_HEADER_LCDC_DATG7 P17_6  GROUND GROUND    ETHSW_PTPOUT1 P17_7_HEADER_BSC_WE3#_AH_LCDC P17_7  _DATB0 ETHSW_TDMAOUT0 P27_7_HEADER P27_7 ...
  • Page 129 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-48 Signal Connections of BSC1 (CN13) Settings of Signal Name Port Configuration Circuits P14_0_HEADER_BSC_A0_RS485_DE3 P14_0  p3v3    P10_4_HEADER_BSC_A1_LCDC_DATR4 P10_4  P33_2_V1833_3_HEADER_BSC_A16 P33_2* SW2-8: OFF P10_5_HEADER_BSC_A2_LCDC_DATR5 P10_5  P33_3_V1833_3_HEADER_BSC_A17_PCIe_RSTOUT0B P33_3* SW2-8: OFF P10_6_HEADER_BSC_A3_LCDC_DATR6...
  • Page 130 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-49 Signal Connections of BSC2 (CN17) Settings of Configuration Signal Name Port Circuits P00_0_HEADER_BSC_D0 P00_0* AE15 SW1-5: OFF P08_6_HEADER_SW_SEI_BSC_CKIO P08_6* SW2-3: OFF P00_1_HEADER_BSC_D1 P00_1* AD15 SW1-5: OFF P12_2_HEADER_BSC_D18 P12_2* SW2-1: ON, SW2-2: OFF P00_2_HEADER_BSC_D2 P00_2* AC15...
  • Page 131 RZ/T2H Evaluation Board User's Manual 7. User Circuits 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 : Initial setting : Changed from the initial setting...
  • Page 132 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-50 Signal Connections of ADC0 (CN41) Settings of Configuration Signal Name Port Circuits VCC08_AVDD_ADC0    AN000_V18ADC0_AD_HEADER AA27* SW17-1: OFF, SW17-2: ON  AVSS_ADC0    AN001_V18ADC0_AD_HEADER  AB26 ...
  • Page 133 RZ/T2H Evaluation Board User's Manual 7. User Circuits Table 7-52 Signal Connections of ADC2 (CN43) Settings of Configuration Signal Name Port Circuits AN200_V18ADC2_AD_HEADER AF27   VCC08_AVDD_ADC2    AN201_V18ADC2_AD_HEADER  AE27  AVSS_ADC2    AN202_V18ADC2_AD_HEADER AE26 ...

  • Page 134: Test Pins

    RZ/T2H Evaluation Board User's Manual 7. User Circuits 7.22 Test Pins This board is equipped with the test pins listed in Table 7-53 and Figure 7-33. Table 7-53 List of Test Pins Reference Description Reference Description For monitoring EXTCLKIN (DNF) TP21 For monitoring the p0v8 power supply GROUND (DNF)
  • Page 135 RZ/T2H Evaluation Board User's Manual 7. User Circuits TP15 TP14 TP22 TP19 TP25 TP10 TP24 TP21 TP26 TP30 TP29 TP34 TP31 TP32 TP35 TP27 TP28 TP33 TP23 TP18 TP20 TP11 TP36 TP17 TP16 Figure 7-33 Arrangement of Test Pins R20UT5405EJ0100 Rev.1.00 Page 135 of 144 Jul.01.24...

  • Page 136: Developing Code

    RZ/T2H Evaluation Board User's Manual 8. Developing Code 8. Developing Code Overview The following methods for debugging code for this device are available. Connect this board to a PC via J-Link™ OB, which is a development tool from Segger and mounted on this •...

  • Page 137: Usage Notes

    RZ/T2H Evaluation Board User's Manual 9. Usage Notes 9. Usage Notes Handling of the XTALSEL Pin Though the circuitry of this board is configured so that XTALSEL does not pass through any resistor when it is at the low level because it is to be switched by a switch during evaluation, operation with this circuit configuration is not guaranteed.

  • Page 138: Support

    Europe: https://www.renesas.com/en-eu/support/contact.html Global & Japan: https://www.renesas.com/support/contact.html General information on Renesas microprocessors can be found on the Renesas website at: https://www.renesas.com/. Design and Manufacturing Information The design and manufacturing information on this board “RZ/T2H Evaluation Board Design Package” can be obtained from: https://www.renesas.com/rzt2h-evkit.

  • Page 139: Appendix

    RZ/T2H Evaluation Board User's Manual 11. Appendix 11. Appendix The arrangements of individual components on this board are shown in this appendix. R20UT5405EJ0100 Rev.1.00 Page 139 of 144 Jul.01.24...
  • Page 140 CN14 R325 CN34 6.35x3.18 C430 R236 R230 R235 C432 R328 R229 IC92 R577 R228 2.5x2.5 R394 R393 R304 R303 6 . 3 5 x 3 . 1 8 C547 LED0 LED1 R330 R331 IC103 LED2 C555 TP10 2.5x2.5 2.5x2.5 LED3 C460 1.6x0.8 LED4...
  • Page 141 C553 C434 C433 R261 C435 C548 C302 R442 R441 C549 R207 R221 R163 R199 R259 R222 R164 R200 R260 IC78 IC76 C236 IC90 C268 C143 C193 C237 R256 R392 CN16 R206 IC110 R219 R161 R197 IC79 IC77 IC91 R159 R218 R160 R196 C272...

  • Page 142: Revision History

    RZ/T2H Group Revision History RZ/T2H Evaluation Board User’s Manual Description Rev. Date Page Summary 1.00 Jul.01.24 First edition issued ...
  • Page 143 RZ/T2H Group RZ/T2H Evaluation Board User’s Manual Publication Date: Rev.1.00 Jul.01.24 Published by: Renesas Electronics Corporation...
  • Page 144 RZ/T2H Group R20UT5405EJ0100...
