BLITZBARFX

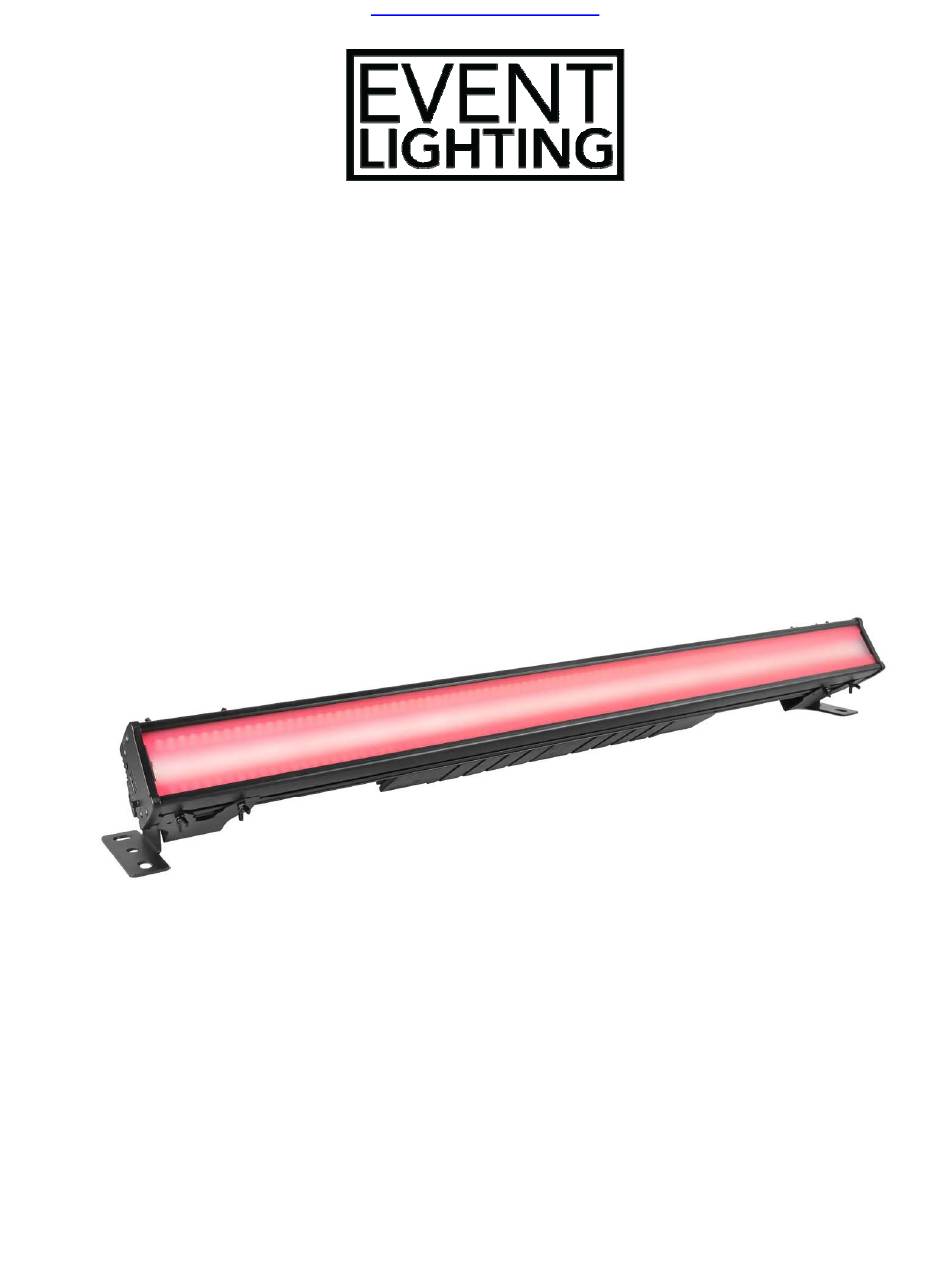

Indoor LED FX Bar
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors
or omissions. Please consult Event Lighting for any clarification or information regarding this item.
Version 1.0 (06/05/2025)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting BLITZBARFX
Summary of Contents for Event Lighting BLITZBARFX
- Page 1 For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
- Page 2 www.event-lighting.com.au CONTENTS Safety information....................3 Installation Guidelines....................4 Technical Specification .................... 4 Control Panel Operation ..................5 Main Functions ......................6 DMX Protocols....................7-11 Troubleshooting Guide ..................12 Warranty ........................ 12...
- Page 3 www.event-lighting.com.au 1. Safety information Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this user manual for future reference. If you sell or transfer the unit to another user, ensure they receive the manual and understand the instructions. Important: Damage resulting from failure to follow this manual is not covered under warranty.
- Page 4 www.event-lighting.com.au Operational Safety: 1. To reduce the risk of electric shock or fire, do not expose this unit to rain or moisture. 2. The housing and lenses must be replaced if they show any visible signs of damage. Installation Guidelines: ...
- Page 5 www.event-lighting.com.au 3. Control panel 1 Display: Shows the various menus and selected functions 2 Buttons： MODE To select the programming of functions Enter To go forward the selected functions To the previous functions DOWN To the next functions DMX Addressing To set the DMX address: Press the MODE button until DMX ADDRESS appears on the display.
- Page 6 www.event-lighting.com.au Main Functions Mode Programming Menu item Description Address A001-A512 Channel 7CH/18CH/21CH/22CH/256CH/269CH CH001-006/CH001-017/ CH001-020/ DMX Monitor CH001-021/CH001-256/CH001-268 Speed ( 000-255) Auto00 ........Auto Speed (000-255) Auto36 Value (000-255) Dimmer Effect on Auto Speed (000-255) Strobe Mas mode YES/NO Dimmer 000-255 Manual White...
- Page 7 www.event-lighting.com.au 4. DMX Protocol 7 Channel Mode Function Value Description Strobe 000- 255 0%~ 100% From slow to fast Master dimmer 000- 255 0%~ 100% From dark to bright 000- 255 0%~ 100% From dark to bright Green 000- 255 0%~ 100% From dark to bright Blue 000- 255 0%~ 100%...
- Page 8 www.event-lighting.com.au 21 Channel Mode 21CH Function Value Description Master dimmer 000- 255 0%~ 100% Dimmer,0-100% Color fine 000- 255 0%~ 100% Color dimming fine Yellow 000- 255 0%~ 100% Yellow,0-100% 000- 255 0%~ 100% Red,0-100% Green 000- 255 0%~ 100% Green,0-100% Blue 000- 255 0%~ 100%...
- Page 9 www.event-lighting.com.au 22 Channel Mode 22CH Function Value Description Master dimmer 000- 255 0%~ 100% Dimmer,0-100% Dimmer RGB 000- 255 0%~ 100% Dimmer for RGB 16 bit dimmer 000- 255 0%~ 100% Fine dimmer Yellow 000- 255 0%~ 100% Yellow,0-100% 000- 255 0%~ 100% Red,0-100% Green 000- 255 0%~ 100%...
- Page 10 www.event-lighting.com.au 256 Channel Mode 256CH Function Value Description Red 1 000- 255 0%~ 100% From dark to bright Green 1 000- 255 0%~ 100% From dark to bright Blue 1 000- 255 0%~ 100% From dark to bright Red 2 000- 255 0%~ 100% From dark to bright Green 2...
- Page 11 www.event-lighting.com.au 269 Channel Mode 269CH Function Value Description Dimmer 000- 255 0%~ 100% From dark to bright Duration(White) 000- 255 0%~ 100% From dark to bright Frequency(white) 000- 255 0%~ 100% From slow to fast Flashing effect(W) 000- 255 0%~ 100% Effect changing Flashing(RGB) 000- 255 0%~ 100%...
- Page 12 C. One DMX channel is not functioning properly: 1. The issue may be due to a faulty stepper motor or a damaged/broken cable connected to the PCB. Warranty Please refer to your local dealer or contact Event Lighting. www.event-lighting.com.au - 12 -...
