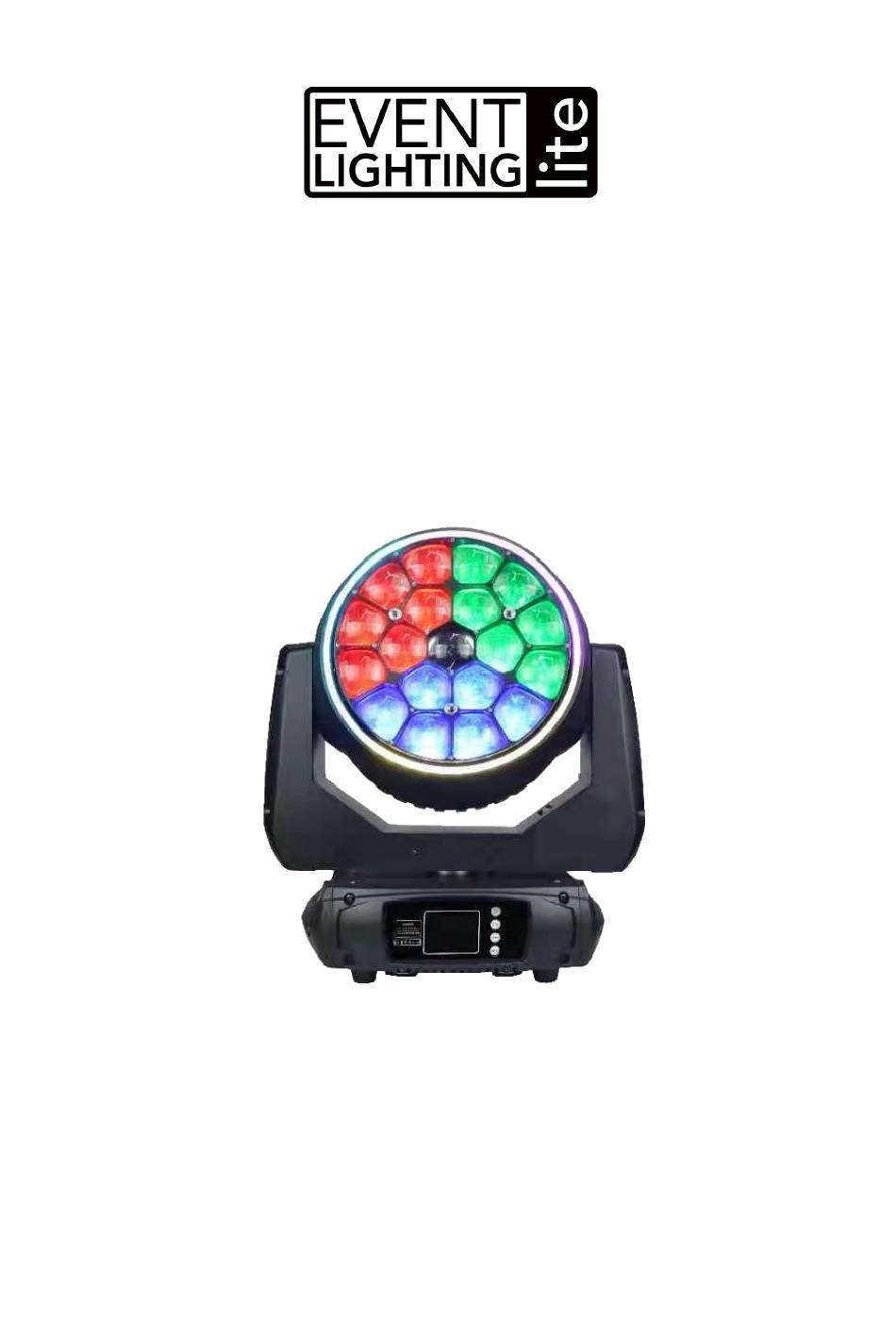

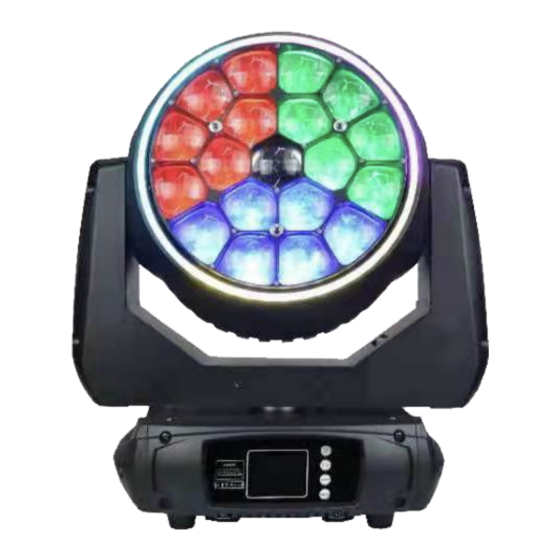

LM19X20BER
19 x 20W RGBW Zoom Wash Head w/
Pixel Control & Ring Light
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version: 1.0
Advertisement
Related Manuals for Event Lighting LM19X20BER
Summary of Contents for Event Lighting LM19X20BER
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
- Page 2 Safety Instructions Warning • Do not open this device, there are no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source from close range when the device is on. Caution: This unit's housing may be hot during and after operation. •...
- Page 3 Product Installation • This device can be mounted in many orientations provided each individual device is secured by the use of correct mounting bracket. • Use a safety chain when mounting this device overhead. www.event-lighting.com.au...
- Page 4 Dimensions Lux Chart Menu Operation Menu – Move up a level. Up – Move selection up one item. Down – Move selection down one item. Enter – Select / Move down a level. www.event-lighting.com.au...
- Page 5 Menu Level 1 Level 2 Value Description Function A001-A512 Set DMX Address. Mode Address Channel Ch26 26 Channel Mode. Mode CH38 38 Channel Mode. CH102 102 Channel Mode. CH114 114 Channel Mode. Auto Run Internal Program 1-8 | Select Auto Run Program Master/Alone Music Internal Program 1-8 |...
- Page 6 This fixture is controlled by the universal DMX 512 protocol. The DMX address is the first channel used to receive instructions from the external controller. For independent control, each fixture must be assigned a unique address for each of its control channels. For example, this device has four channel modes: 26,38,102,114, if it’s set to 26 channel mode, and there are several fixtures need to be independently controlled, we just simply address first fixture at 1, and second fixture at 27, third one at 53, etc.
- Page 7 Blue 0..255 Blue 0..100% White 0..255 White 0..100% Zoom 0..255 In (near) to Out (far) Zoom rotation 0..15 Zoom rotation stop 16..63 Shake slow to fast (width by Zoom Angle) 64..156 Forwards rotation, fast to slow 157..162 Zoom rotation stop 163..255 Backwards rotation, slow to fast Zoom angle...
- Page 8 46..75 3200k - 3500k 76..105 3500k - 5000k 106..135 5000k - 5500k 136..165 5500k - 6000k 166..195 6000k - 6500k 196..225 6500k - 7000k 226..255 7000k - 8000k Visual tungsten lamp 0..15 None 16..255 Tungsten lamp effect is gradually enhanced Foreground colour for patterns Choose Foreground colour for Dynamic/Static Scene, TBD for Multicolour Scene...
- Page 9 0..0 None 1..13 14..27 Green 28..41 Blue 42..55 White 56..69 Red+white 70..83 Green+white 84..97 Blue+white 98..111 Green+blue 112..125 Red+blue 126..139 Red+green 140..153 Green+blue+white 154..167 Red+blue+white 168..181 Red+green+white 182..195 Red+blue+green+white 196..202 2700k 203..209 3200k 210..216 3500k 217..223 5000k 224..230 5500k 231..237 6000k 238..244 6500k...
- Page 10 097..101 Dynamic scene 14 102.106 Dynamic scene 15 107..111 Dynamic scene 16 112..116 Dynamic scene 17 117..121 Dynamic scene 18 122..126 Dynamic scene 19 127..131 Dynamic scene 20 132..136 Dynamic scene 21 137..141 Dynamic scene 22 142..146 Dynamic scene 23 147..151 Dynamic scene 24 152..156...
- Page 11 042..047 Static scene 8 048..053 Static scene 9 054..059 Static scene 10 060..065 Static scene 11 066..071 Static scene 12 072..075 Static scene 13 078..083 Static scene 14 084..089 Static scene 15 090..095 Static scene 16 096..101 Static scene 17 102..107 Static scene 18 108..113...
- Page 12 Pix dimmer 0..255 Pix dimmer 0%...100% Pix strobe 0..255 Pix strobe speed 0%...100% Pix red 0..255 0-100% Pix Red dimmer Pix green 0..255 0-100% Pix Green dimmer Pix blue 0..255 0-100% Pix Blue dimmer Pix colour 0..0 None 1..15 16..31 Green 32..47 Blue...
- Page 13 184..197 Pix dynamic scene 13 198..211 Pix dynamic scene 14 212..225 Pix dynamic scene 15 226..239 Pix dynamic scene 16 240..255 Pix dynamic scene 17 Pix macro speed 0..255 Slow to Fast Expand patterns 0..15 None 16..29 Pix dynamic scene 1 30..43 Pix dynamic scene 2 44..57...
- Page 14 Blue in Pixel 1 0..255 Blue in pixel 1 saturation control (0-100%) White in pixel 1 0..255 White in pixel 1 saturation control (0-100%) Red in pixel 2 0..255 Red in pixel 2 saturation control (0-100%) Green in pixel 2 0..255 Green in pixel 2 saturation control (0-100%) Blue in pixel 2...
- Page 15 White in pixel 6 0..255 White in pixel 6 saturation control (0-100%) Red in Pixel 7 0..255 White in pixel 7 saturation control (0-100%) Green in pixel 7 0..255 Green in pixel 7 saturation control (0-100%) Blue in pixel 7 0..255 Blue in pixel 7 saturation control (0-100%) White in pixel 7...
- Page 16 Red in pixel 12 0..255 Red in pixel 12 saturation control (0-100%) Green in pixel 12 0..255 Green in pixel 12 saturation control (0-100%) Blue in pixel 12 0..255 Blue in pixel 12 saturation control (0-100%) White in pixel 12 0..255 White in pixel 12 saturation control (0-100%) Red in Pixel 13...
- Page 17 Green in pixel 17 0..255 Green in pixel 17 saturation control (0-100%) Blue in pixel 17 0..255 Blue in pixel 17 saturation control (0-100%) White in pixel 17 0..255 White in pixel 17 saturation control (0-100%) Red in Pixel 18 0..255 Red in pixel 18 saturation control (0-100%) Green in Pixel 18...
- Page 18 Finishing: Matte black • IP rating: IP20 • Net Weight: 15kg • Gross Weight 17kg • Rigging: 2x omega bracket with ¼ turn quick locks. Warranty Please refer to your local dealer or please contact Event Lighting Pty Ltd. www.event-lighting.com.au www.event-lighting.com.au...
