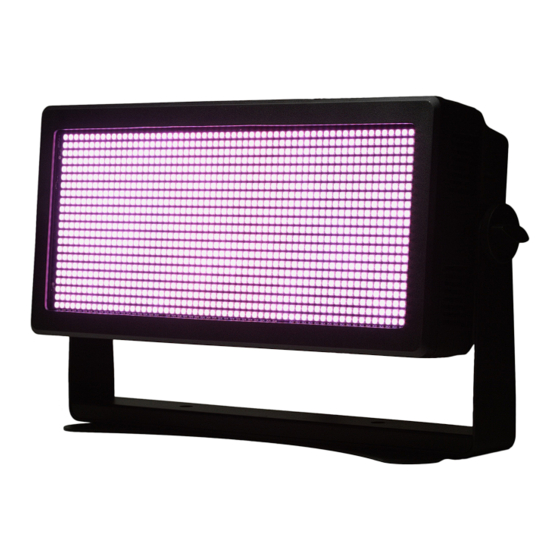

Model No. WIP1320
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting WIP1320
Summary of Contents for Event Lighting WIP1320
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Table Of Contents
www.event-lighting.com.au CONTENTS Safety Instructions Product Installation Diagrams Control Board Operation DMX chart Technical specifications Warranty... -
Page 3: Safety Instructions
www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... - Page 4 www.event-lighting.com.au Lux Chart Dimensions...
- Page 5 www.event-lighting.com.au Menu Map Display Options / Values Function Address <001> to <512> Select DMX address Channel 4, 5, 7, 13, 15, 31 Select DMX channel modes Channel 4 Mode CH:01 to CH:04 Select DMX channel mode first, set up each channel values to manual control according to Channel 5 Mode CH:01 to CH:05...
-
Page 6: Dmx Chart
www.event-lighting.com.au Set up DMX channel from control panel. When fixture is in 4 DMX channel mode, you will only able to set up from Ch1 to Ch4. When fixture is in 31 DMX channel mode, you will only able to set up from Ch1 to Ch31. Use “Up”... - Page 7 www.event-lighting.com.au 251-255 Green full on 000-005 No function 006-250 Strobe speed from slow to fast at blue full on 251-255 Blue full on 000-005 No function 006-250 Strobe speed from slow to fast at white full on 251-255 White full on 7 channels Mode Channel Value...
- Page 8 www.event-lighting.com.au 000-255 Strobe with effect 000-255 Speed of effect from low to fast 000-255 Macro 000-255 Red at background: 0% to 100% 000-255 Green at background: 0% to 100% 000-255 Blue at background: 0% to 100% 000-255 White at background: 0% to 100% 31 channels Mode Channel Value...
-
Page 9: Technical Specifications
-Cooling: Sensor Thermostat Controlled Fan -Dimension: 490 x 285 x 205 mm -Net Weight: 8.7 kg -Rigging: 2pcs Omega Brackets with 1/4-turn Quick Locks WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au...
