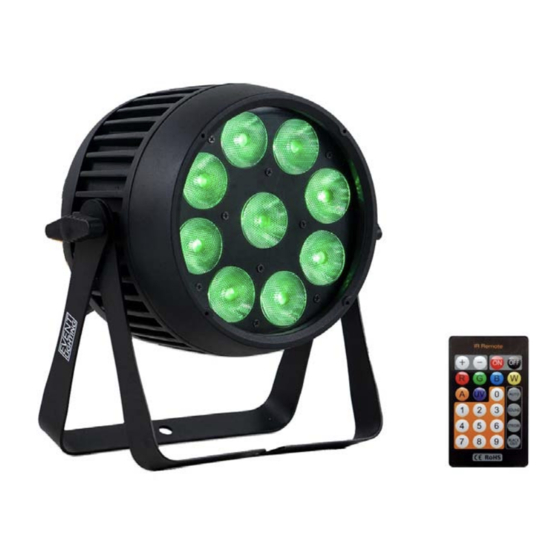

Event Lighting PAR9X12BH-IP User Manual

Outdoor battery parcan with wireless dmx
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
www.event‐lighting.com.au
PAR9X12BH-IP
Outdoor Battery Parcan with Wireless DMX

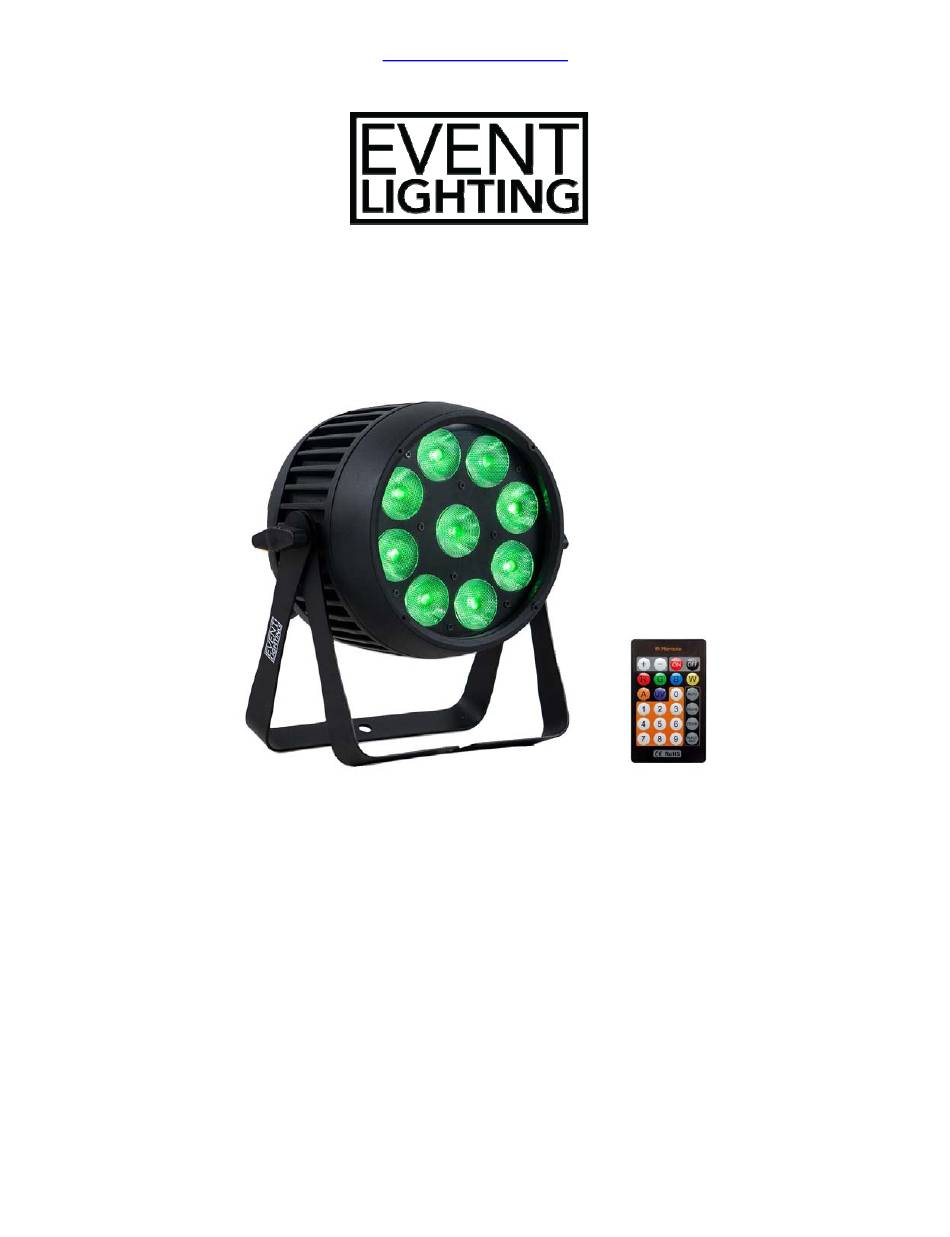

USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and
specifications within this manual are subject to change without notice. Event
Lighting assumes no liability or responsibility for any errors or omissions. Please
consult Event Lighting for any clarification or information regarding this item.
Version 1.0 (February 2024)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PAR9X12BH-IP and is the answer not in the manual?

Questions and answers

Related Manuals for Event Lighting PAR9X12BH-IP

Summary of Contents for Event Lighting PAR9X12BH-IP

  • Page 1 USER MANUAL For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
  • Page 2 Use of other cables will cause the cable to become stuck in the port, requiring the unit to be repaired. Product Installation PAR9X12BH-IP can be mounted in many orientations, provided each individual device is secured by the use of the correct mounting bracket. Use a safety chain when mounting PAR9X12BH-IP overhead.

  • Page 3: Control Operation

    www.event‐lighting.com.au Dimensions Control Operation Button Operation Menu: Return to the previous screen. Up: Move selection up. Down: Move selection down. Enter: Confirm the selection. Menu Set DMX Address Code 1. Press Menu until “Address Set” is highlighted then press Enter. 2.

  • Page 4: Menu Description

    www.event‐lighting.com.au Menu Description Level 1 Level 2 Level 3 Description 6 channel DMX mode Channel 10ch 10 channel DMX mode DMX address 000-512 DMX Address Setting W-DMX On/Off Turn Wireless DMX on or off W-DMX Receiver Delete Connection DMX Setting Mode W-DMX Delete Connection...

  • Page 5: Dmx Chart

    www.event‐lighting.com.au DMX Chart 6-Channel Mode Channel Value Function Description 0-255 Red Intensity Red 0-100% 0-255 Green Intensity Green 0-100% 0-255 Blue Intensity Blue 0-100% 0-255 White Intensity White 0-100% 0-255 Amber Intensity Amber 0-100% 0-255 UV Intensity UV 0-100% 10-Channel Mode Channel Value Function...

  • Page 6: Technical Specifications

    www.event‐lighting.com.au Technical Specifications Power  Input Voltage: 100~240V AC, 50/60 Hz.  MAX Power Consumption: 72W.  Connection: Seetronic True1 Outdoor Power in/out.  Battery: 16000 mAh, 12V Photometrics  Light Source: 9x 12W RGBWA UV LEDs.  Beam Angle: 25°.

  • Page 7: Warranty

    IR Remote In order to use the IR Remote, PAR9X12BH-IP must be in DMX mode without an active DMX connection. If a DMX signal is received, PAR9X12BH-IP will prioritise the DMX signal and ignore the IR Remote. Use On/Off to turn PAR9X12BH-IP on or off. The current IR settings will be saved automatically when PAR9X12BH-IP is powered off and reloaded when it is turned on again.
