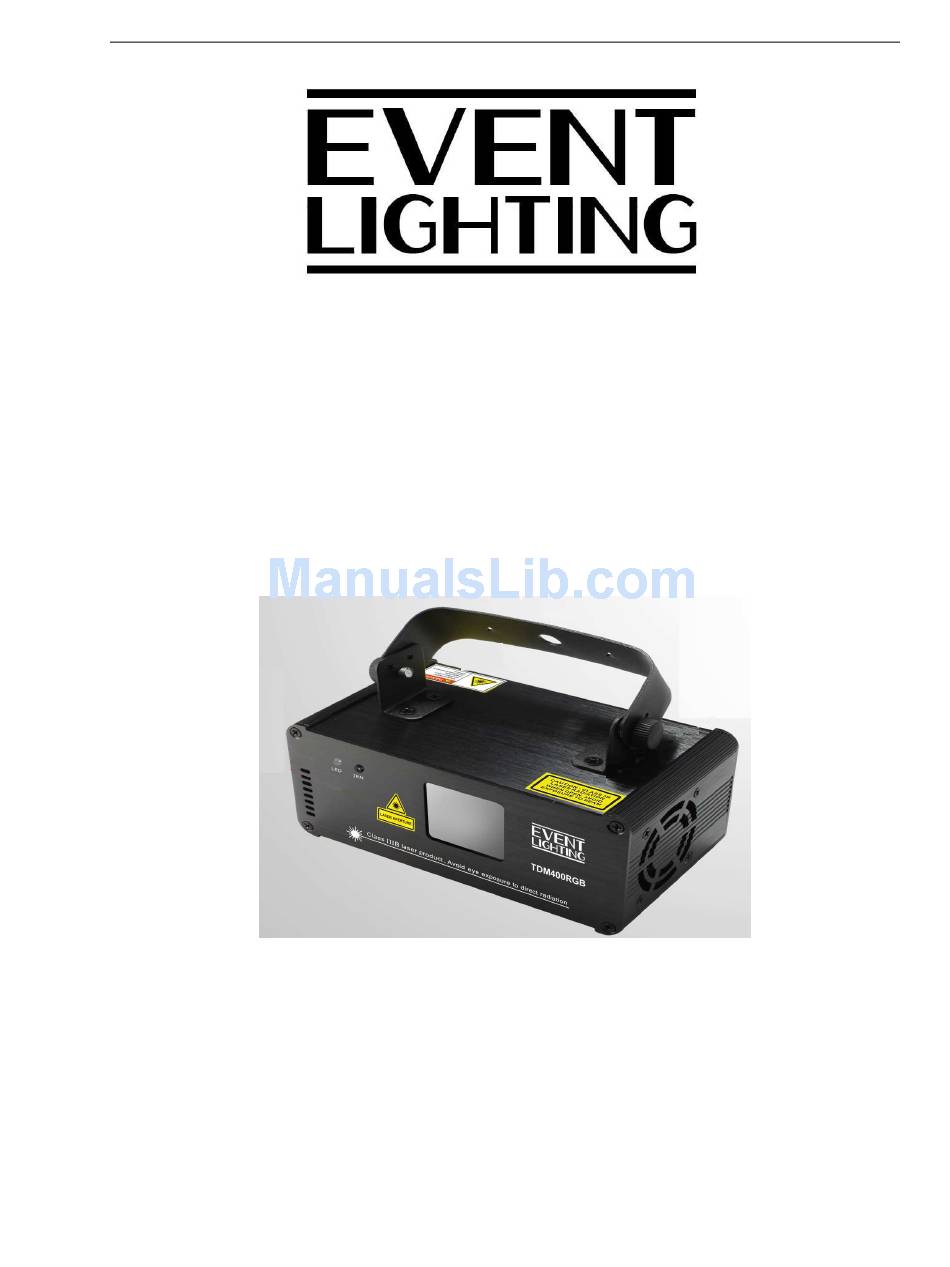

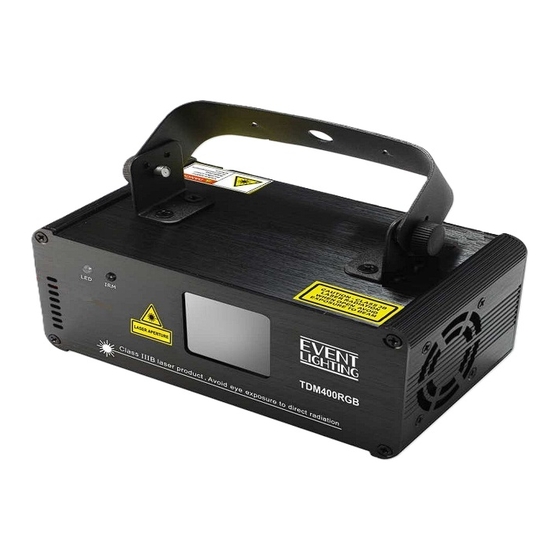

TDM and DM Laser
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
V1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting TDM400RGB
Summary of Contents for Event Lighting TDM400RGB
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Table Of Contents
CONTENTS Safety Instructions Product Installation Control Board Operation Standalone Mode DMX Modes DMX Values IR Remote control Warranty Laser Emission Data Specifications... -
Page 3: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... -
Page 4: Control Board Operation
CONTROL BOARD OPERATION Press "MODE " button, you can select "Auto ", " Sound ", " d*** ", " SLAV ", or" tESt ", one of five kinds of mode. In the“d***”work mode，Press“UP”or“DOWN”to set DMX address. Press“ENTER”to save the current work mode or DMX address. MODE DOWN ENTER WORK MODE DESCRIPTION:... - Page 5 RBP MODEL Display Work Mode Description Auto Run Mode Auto Auto Run Mode Sound Active Mode Soud Sound Active Mode DMX-512 Control Mode d*** Press“UP or “DOWN” to Set the DMX address Slave Mode SLAV Slave Mode Test Mode Press“UP or “DOWN” to Select the single tESt pattern Set Color Mode...
- Page 6 DMX CHANNELS DESCRIPTION: 0-063 Blackout Work Mode Selection 64-127 Auto mode 128-191 Sound mode 192-255 Manual mode Pattern Selection（ Manual Mode） 0-255 Select the Pattern 0-127 Manually adjust the size Zoom（ Manual Mode） 128-255 Loop zoom in or out 0-127 Manual rotation adjustment X-axis rotation （...
-
Page 7: Ir Remote Control
IR REMOTE CONTROL DESCRIPTION: POWER: Power on or standby Mode AUTO: Auto Run Mode SOUND: Sound Active Mode WARRANTY Please refer to your local dealer or please contact Event Lighting. -
Page 8: Laser Emission Data
LASER EMISSION DATA * As measured under IEC measurement conditions for classification. Laser Classification： Class 3B Beam Diameter：r <5mm at aperture Diverg3ence(each beam)： <12 mrad Divergence(total light) ：<90 degrees Transverse Beam Mode： TEM00 Cooling ： Fan Cooling DM450B Blue Laser Medium LD： InGaN 450nm, typical Laser Power:450mW 450nm Blue CW DM100G Green Laser Medium DPSS：... - Page 9 SPECIFICTAIONS Mains Input:AC100~240V, 50/60Hz Total Power:14W Laser Safety Standard:EN60825-1 2007 Condition Temperature:10~40℃ Measurement: 159mm x 90mm x 71mm DM450B Net Weight:0.84Kg DM100G Net Weight:0.85Kg DM400RGB Net Weight:0.91Kg DM200RGY Net Weight:0.85Kg DM300RBP Net Weight:0.85Kg TDM400RGB Net Weight:0.92Kg...
