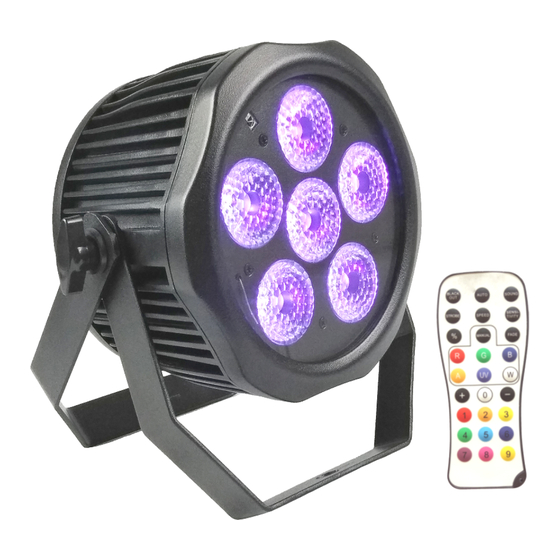

6x 12w rgbwau 6-in-1 outdoor battery led par
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual

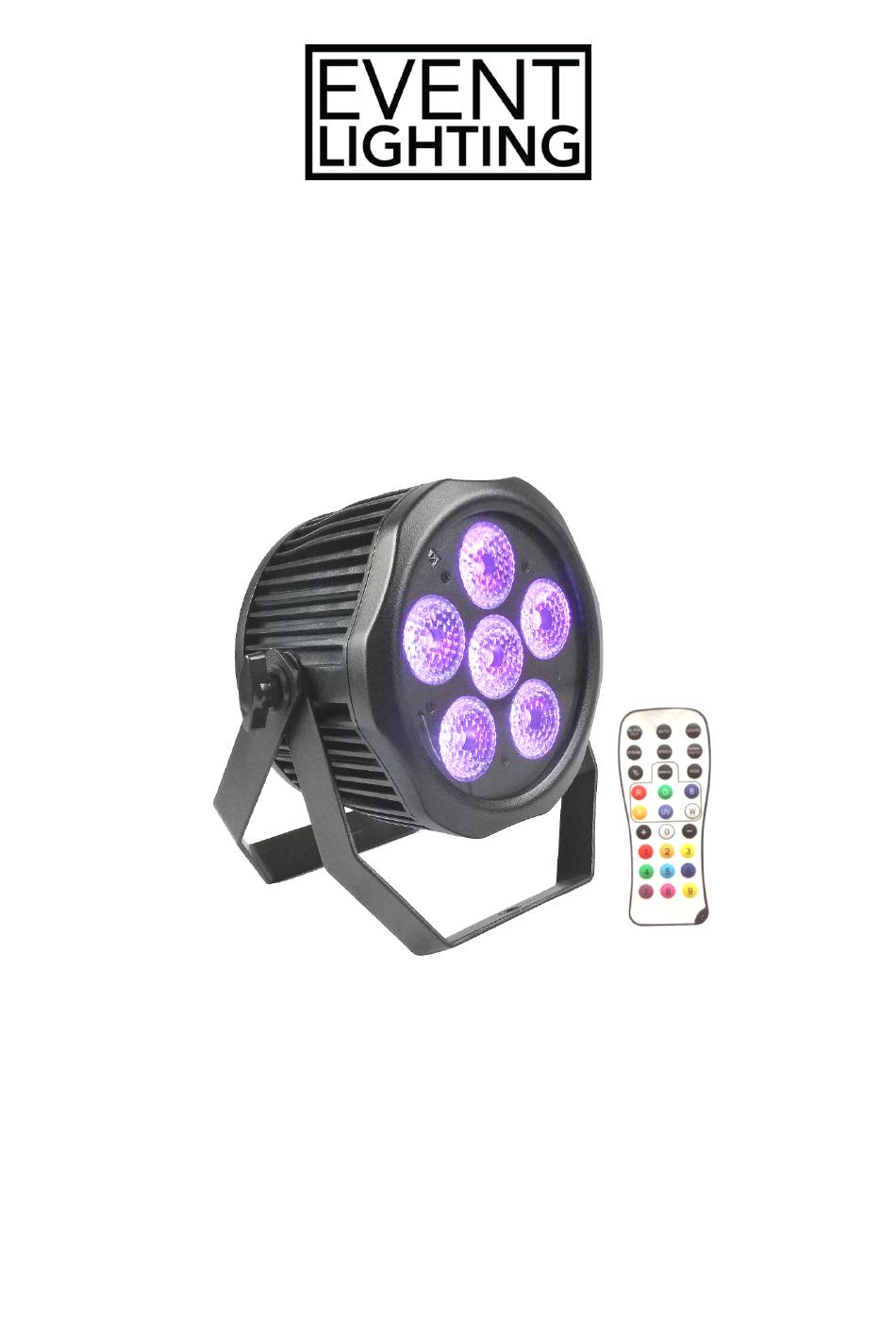

PAR6X12OB2
6x 12W RGBWAU 6-in-1 Outdoor Battery LED PAR
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAR6X12OB2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Event Lighting PAR6X12OB2

Summary of Contents for Event Lighting PAR6X12OB2

  • Page 1 For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.

  • Page 2: Safety Instructions

    www.event-lighting.com.au Safety Instructions Warning • Do not open this fixture, there are no user serviceable parts inside. Risk of electric shock. • Do not look directly at the light source from close range. • Avoid contact with the unit during operation, as the housing may become hot. Allow the fixture to cool for at least 15 minutes after turning off before touching.
  • Page 3 www.event-lighting.com.au Dimensions Lux Chart...

  • Page 4: Control Operation

    Setting > Wireless > Wireless EN > ON. To turn on the wireless indicator, go to Settings > Display > Wireless LED > ON. 3. Set PAR6X12OB2 to Slave mode from the control panel: Setting > DMX Setting > Slave mode.
  • Page 5 www.event-lighting.com.au Menu Level 1 Level 2 Level 3 Level 4 Level 5 Function/Description Preset Select static colour mode, 0-39. Master Master dimmer, 0-100% Red, 0-255 Green Green, 0-255 Blue Blue, 0-255 White White, 0-255 Amber Amber, 0-255 UV, 0-255 Colour Select static colour mode, 0-63.
  • Page 6 www.event-lighting.com.au When no DMX Behaviour when DMX signal lost, OFF/ Hold/ Power up/ Last action Wireless Wireless En Wireless DMX, Off/On Display Screen Mode Status/ On/ Off/ Logo Screen Time Inactivity time for screen off, 0-255 sec Wireless LED Wireless indicator light, On/Off General Power- Preset...

  • Page 7: Dmx Chart

    www.event-lighting.com.au DMX Chart Mode/Channel Function 6 ch 12 ch Master dimmer, 0-100% Red, 0-100% Green, 0-100% Blue, 0-100% White, 0-100% Amber, 0-100% UV, 0-100% Strobe, slow to fast No function 40 preset colours 63 factory colours No function 18 chases Custom chases 63 colour fade 63 colour jump...
  • Page 8 www.event-lighting.com.au IR Remote BLACK OUT Press <Blackout> once to turn off the fixture, press any of 0-9 button to turn on the fixture. AUTO Automatic mode will enable you to run the chase programs on the fixture. 1. Press <AUTO> on the remote controller to turn on the Jump mode. 2.

  • Page 9: Technical Specifications

    Materials: Die-cast aluminium, matte black finish • Cooling: Fanless • IP rating: IP65 • Net Weight: 3 kg • Overall Size: 240 x 165 x 210 mm Accessories • Charging Road Case: PAR6CASEWC Warranty Please refer to your local dealer or contact Event Lighting.
