Event Lighting PANX44 User Manual

Led pix panel
Hide thumbs

Advertisement

Quick Links

Download this manual

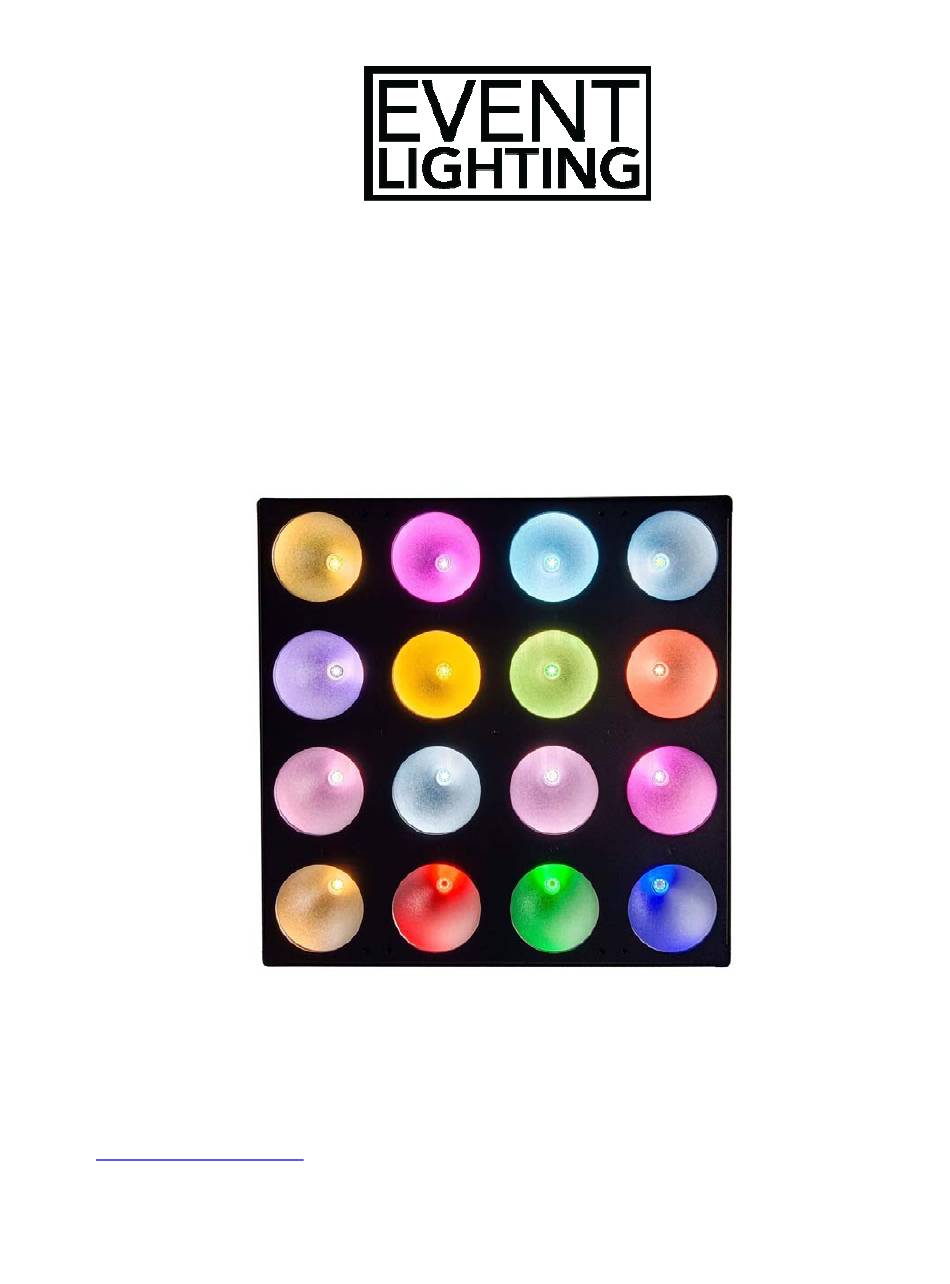

LED Pix Panel
PANX44
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 1.0 (21.11.2024)

Advertisement

loading
Need help?

Need help?

Do you have a question about the PANX44 and is the answer not in the manual?

Questions and answers

Related Manuals for Event Lighting PANX44

Summary of Contents for Event Lighting PANX44

  • Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.

  • Page 2: Table Of Contents

    www.event-lighting.com.au CONTENTS Safety Instructions......................2 Product Installation......................2 Lux Chart........................3 Dimensions ........................4 Control Board Operation .....................5-7 DMX Chart ........................8-11 Technical Specifications ....................12 Warranty........................12...

  • Page 3: Safety Instructions

    www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •...

  • Page 4: Lux Chart

    www.event-lighting.com.au LUX CHART...

  • Page 5: Dimensions

    www.event-lighting.com.au DIMENSIONS...

  • Page 6: Control Board Operation

    www.event-lighting.com.au CONTROL BOARD OPERATION Display Options / Values Function 1.DMX Address <001> - <512> Set DMX address 2.DMX Channel <01> <02> <03> <4CW> <4WW> Select DMX channel mode <08> <11> <12> 3.Dim Mode <01> <02> <03> <04> <05> Select dimmer curve 4.Static Color R, G, B,C,W, RG, GB, RB, RGB…...
  • Page 7 www.event-lighting.com.au Set Static Colours Mode: Value: Function: Static color <R> Static color <G> Green Static color <B> Blue Static color <C> White Static Color Static color <W> Warm White Static color <RG> Red + Green Static color <BG> Green + Blue Static color <RB>...
  • Page 8 www.event-lighting.com.au Set auto run Pr01 - Pr18 Entered "Auto Program" mode, use “Up” and “Down” button to select the built-in programs. Press “Enter" and use “Up” and “Down” button to select auto run speed from <Sp000> to <Sp100>. Press “Enter" and use “Up” and “Down” button to select dimmer of “Auto Program”...

  • Page 9: Dmx Chart

    www.event-lighting.com.au DMX CHART 1 channels mode Channel Value Function 000-255 dimmer 0% ~ 100% (dim the preset color selected in Menu) 2 channels mode Channel Value Function 000-255 Warm white to cool white 000-255 Dimmer 0% ~ 100% 3 channels mode Channel Value Function...
  • Page 10 www.event-lighting.com.au Channel Value Function 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 Cool White: 0% ~ 100% 000-255 Warm White: 0% ~ 100% 000-255 Dimmer Coarse 000-255 Dimmer Fine 000-015 No function (Shutter On) 016-119 Strobe Slow ->...
  • Page 11 www.event-lighting.com.au 205-209 Color Temperature 2 Warm 210-214 Color Temperature 3 215-219 Color Temperature 4 220-224 Color Temperature 5 225-229 Color Temperature 6 230-234 Color Temperature 7 235-239 Color Temperature 8 Cool 240-244 Color Temperature 9 245-249 Color Temperature 10 250-255 Color Temperature 11 000-009 No Function...
  • Page 12 www.event-lighting.com.au 22 channels mode Channel Value Function 000-255 LED 1 Red: 0% ~ 100% 000-255 LED 1 Green: 0% ~ 100% 000-255 LED 1 Blue: 0% ~ 100% 000-255 LED 1 Cool White: 0% ~ 100% 000-255 LED 1 Warm White: 0% ~ 100% 000-255 LED 2 Red: 0% ~ 100% 000-255...

  • Page 13: Technical Specifications

    -Software Upgrade via DMX: Yes Housing -Housing Materials: Aluminium Housing -Housing finish: Matte Black -Cooling: 4 Fans -Dimension: 425 x 425 x 141mm -Net Weight: 10.7 kg WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au...
