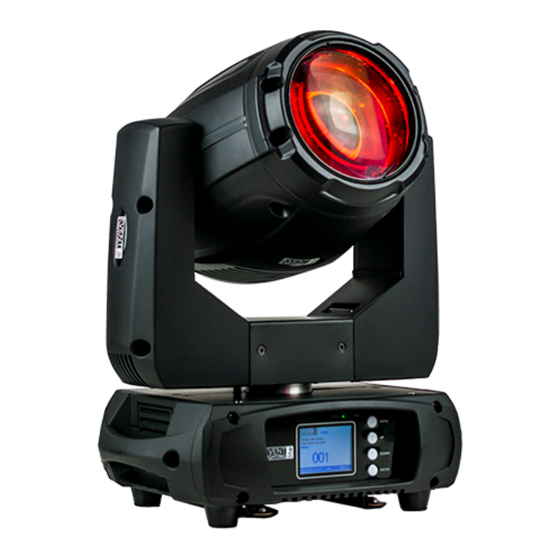

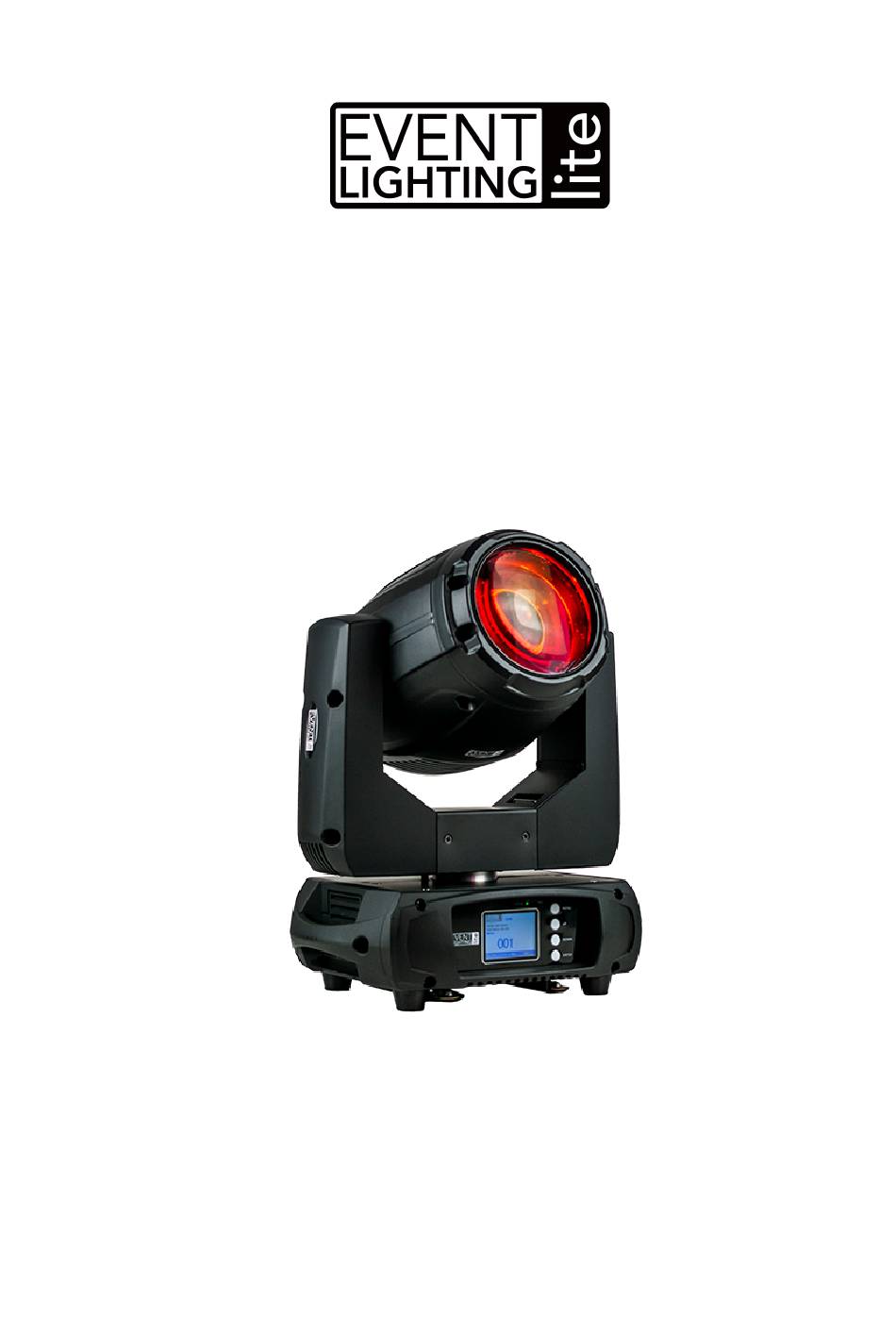

150W LED Beam Moving Head
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
Version: 1.0 (revised 05/11/2020)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM150B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Event Lighting LM150B

  • Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
  • Page 2: Safety Instructions

    Safety Instructions Warning • Do not open this device, there are no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. Caution: This unit's housing may be hot during and after operation. •...
  • Page 3: Product Installation

    Product Installation • This device can be mounted in many orientations provided each individual device is secured by the use of correct mounting bracket. • Use a safety chain when mounting this device overhead. www.event-lighting.com.au...
  • Page 4 Dimensions Lux Chart www.event-lighting.com.au...
  • Page 5: Colour Wheel

    Colour Wheel Light Green Blue Magenta Green Light Yellow Yellow Light Blue Purple Light Orange Light Blue Pink Indigo Open Orange Static Gobo Wheel Position 1 Position 10 Position 2 Position 11 Position 3 Position 12 Position 4 Position 13 Position 5 Position 14 Position 6...
  • Page 6: Menu Operation

    Position 7 Position 16 Position 8 Position 17 Position 9 Open Menu Operation Menu – Move up a level. Up – Move selection up one item. Down – Move selection down one item. Enter – Select/Move down a level. www.event-lighting.com.au...
  • Page 7 Menu MENU DESCRIPTION DMX Address A001~AXXX DMX Address Setting CH13 13 Channel Mode Channel Mode CH15 15 Channel Mode Internal Program1~8 Internal Program Function Auto Run State: Master/Alone Auto Run State Mode Auto Run (On/Off) Toggle Auto Run Internal Program1~8 Internal Program State: Master/Alone Sound Control State...
  • Page 8: Dmx Chart

    DMX Chart Value Function Mode/Channel 0..255 Pan movement Pan Fine 0..255 Fine control of pan movement Tilt 0..255 Tilt movement Tilt Fine 0..255 Fine control of tilt movement Colour 0..7 Open / white 8..15 16..23 Blue 24..31 Green 32..39 Yellow 40..47 Purple 48..55...
  • Page 9 40..44 Gobo 8 45..49 Gobo 9 50..54 Gobo 10 55..59 Gobo 11 60..64 Gobo 12 65..69 Gobo 13 70..74 Gobo 14 75..79 Gobo 15 80..84 Gobo 16 85..89 Gobo 17 90..97 Gobo 1 shake slow to fast 98..105 Gobo 2 shake slow to fast 106..113 Gobo 3 shake slow to fast 114..121...
  • Page 10 Rotating prism, Prism 0..5 6..127 128..189 Forward rotation, fast to slow 190..193 Prism rotation stop 194..255 Reverse rotation, slow to fast Frost 0..199 Frost swing out 200..255 Frost swing in Speed pan/tilt 0..225 Pan/tilt speed, fast to slow 226..235 Blackout during pan/tilt functions 236..245 Blackout when colour and gobo switching 246..255...
  • Page 11: More Functions

    Vector Function Value Mode Colour Time 0..255 Colour speed, fast to slow Gobo Time 0..255 Gobo speed, fast to slow The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive instructions from the external controller. For independent control, each fixture must be assigned its unique address control channels.
  • Page 12: Warranty

    Materials: Metal & flame retardant ABS • Finishing: Matte black • IP rating: IP20 • Cooling: Fan • Net Weight: 11.5kg • Rigging: 2x omega brackets with 1/4-turn quick locks Warranty Please refer to your local dealer or contact Event Lighting Pty Ltd. www.event-lighting.com.au...
