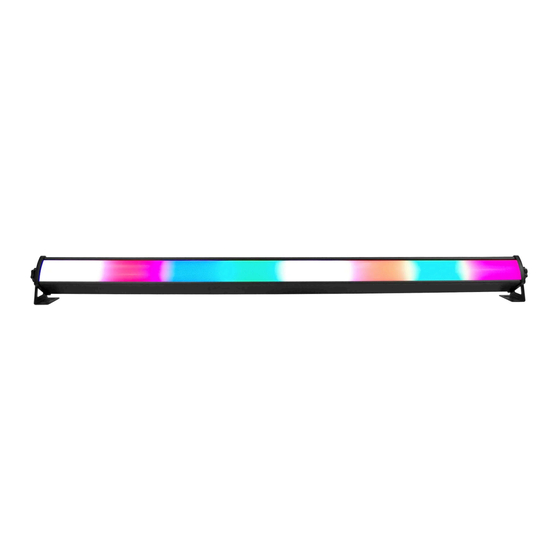

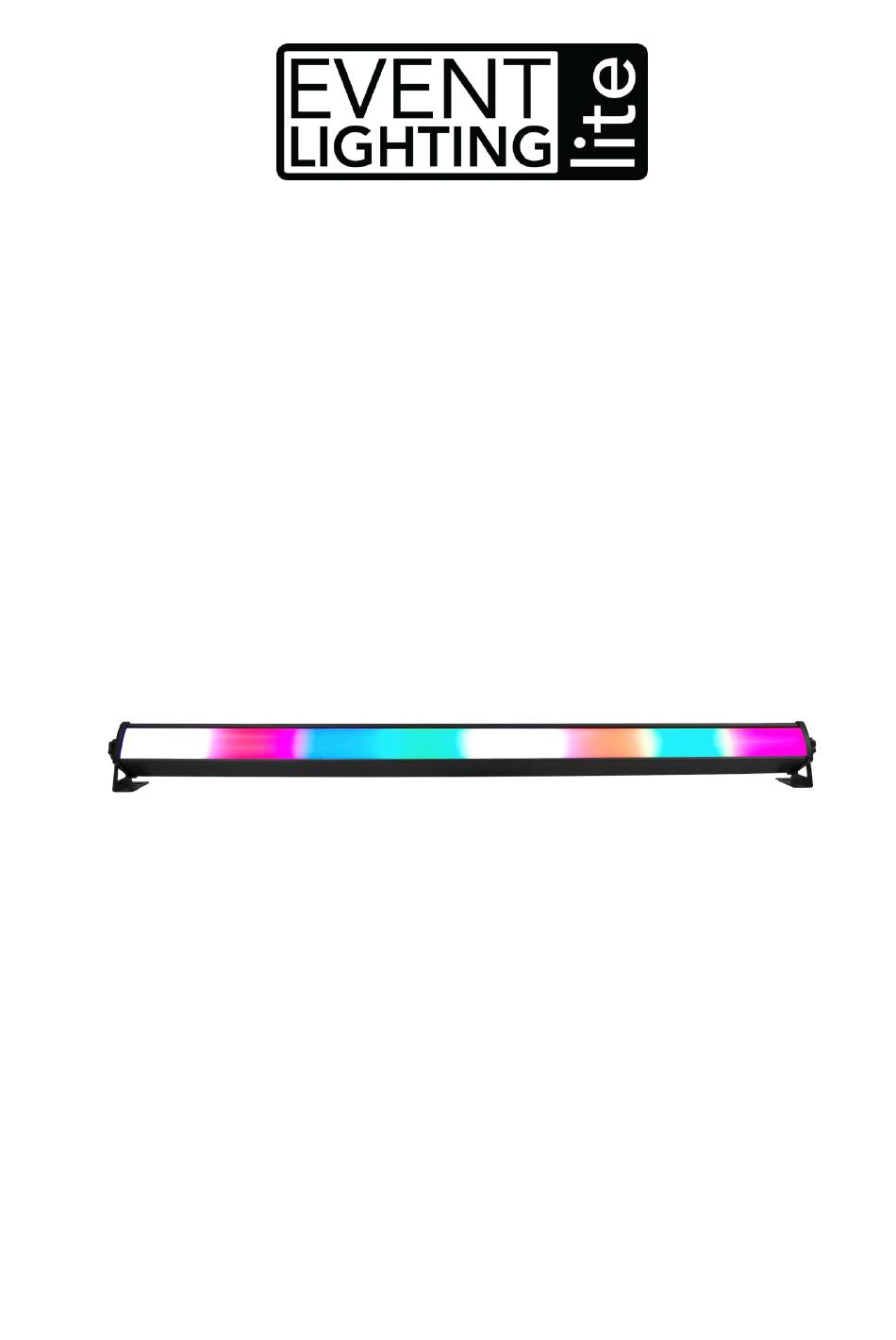

BAR224FXL
24x 4W RGBW Bar with Segment Control
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version: 1 (30 October 2023)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the lite BAR224FXL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Event Lighting lite BAR224FXL

Summary of Contents for Event Lighting lite BAR224FXL

  • Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.

  • Page 2: Safety Instructions

    www.event-lighting.com.au Safety Instructions Warning • Do not open this fixture, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. Caution: This unit’s housing may become hot during and after operation. •...
  • Page 3 www.event-lighting.com.au Table 1 Mode Programming Description Auto mode Auto Mode Auto-run mode A001-A510 The selected channel A001-A508 mode will limit the available DMX addresses. A001-A505 DMX Mode Addr The fixture will 24CH A001-A489 automatically enter DMX mode when a controller is 48CH A001-A465 connected.

  • Page 4: Dmx Chart

    www.event-lighting.com.au DMX Chart This fixture is controlled by the universal DMX 512 protocol. The DMX address is the first channel used to receive instructions from the external controller. For independent control, each fixture must be assigned a unique address for each of its control channels. For example, this device has five channel modes: 3/5/8/24/48/53, if it’s set to 3 channel mode, and there are several fixtures need to be independently controlled, we just simply address first fixture at 1, and second fixture at 4, third one at 7, etc.
  • Page 5 www.event-lighting.com.au 73 Internal effect 15 77 Internal effect 16 81 Internal effect 17 85 Internal effect 18 89 Internal effect 19 93 Internal effect 20 97 Internal effect 21 101 Internal effect 22 105 Internal effect 23 109 Internal effect 24 113 Internal effect 25 117 Internal effect 26 121 Internal effect 27...
  • Page 6 www.event-lighting.com.au 209 Internal effect 49 213 Internal effect 50 217 Internal effect 51 221 Internal effect 52 225 Internal effect 53 229 Internal effect 54 233 Auto run (cycle effects 1-54) 237 DMX sound mode 1 241 DMX sound mode 2 255 DMX sound mode 3 6 (b) 9 No function (Ch 5 applies)
  • Page 7 www.event-lighting.com.au 75 11th LED segment on, Ch 2-4 controls colour. Remaining segments are off when Ch 7 > 100 81 12th LED segment on, Ch 2-4 controls colour. Remaining segments are off when Ch 7 > 100 87 13th LED segment on, Ch 2-4 controls colour.
  • Page 8 www.event-lighting.com.au 237 Patten effect 22 (Ch 2-4 control colour) 243 Patten effect 23 (Ch 2-4 control colour) 255 Patten effect 24 (Ch 2-4 control colour) 9 No function (Ch 5 applies) 19 Patten effect 1 (Ch 2-4 control colour) 29 Patten effect 2 (Ch 2-4 control colour) 39 Patten effect 3 (Ch 2-4 control colour) 49 Patten effect 4 (Ch 2-4 control colour) 59 Patten effect 5 (Ch 2-4 control colour)
  • Page 9 www.event-lighting.com.au Segment 16 Red, 0-100% Segment 16 Green, 0-100% Segment 16 Blue, 0-100% 50 (c) 9 No function (Ch 2-49 applies) 13 Static colour (Ch 52 selection) 17 Internal effect 1 21 Internal effect 2 25 Internal effect 3 29 Internal effect 4 33 Internal effect 5 37 Internal effect 6 41 Internal effect 7...
  • Page 10 www.event-lighting.com.au 129 Internal effect 29 133 Internal effect 30 137 Internal effect 31 141 Internal effect 32 145 Internal effect 33 149 Internal effect 34 153 Internal effect 35 157 Internal effect 36 161 Internal effect 37 165 Internal effect 38 169 Internal effect 39 173 Internal effect 40 177 Internal effect 41...
  • Page 11 www.event-lighting.com.au 49 Patten effect 4 (Ch 2-4 control colour) 59 Patten effect 5 (Ch 2-4 control colour) 69 Patten effect 6 (Ch 2-4 control colour) 79 Patten effect 7 (Ch 2-4 control colour) 89 Patten effect 8 (Ch 2-4 control colour) 99 Patten effect 9 (Ch 2-4 control colour) 109 Patten effect 10 (Ch 2-4 control colour) 119 Patten effect 11 (Ch 2-4 control colour)
  • Page 12 www.event-lighting.com.au 139 Static colour 13 149 Static colour 14 159 Static colour 15 169 Static colour 16 179 Static colour 17 189 Static colour 18 199 Static colour 19 209 Static colour 20 219 Static colour 21 229 Static colour 22 239 Static colour 23 249 Static colour 24 255 Static colour 25...

  • Page 13: Technical Specifications

    Control Interface: 3-pin XLR in/out • DMX Channels: 3/5/8/24/4/53 • Input Voltage: 110-240V AC, 50/60 Hz • Dimensions: 1100x60x60 mm • Weight: 3.5 kg Optional Accessories XSTANDM8 - Vertical Mount Stand Warranty Please contact your local dealer or contact Event Lighting. www.event-lighting.com.au...
