Event Lighting FOLLOW1K User Manual

1,000w led followspot

Advertisement

Quick Links

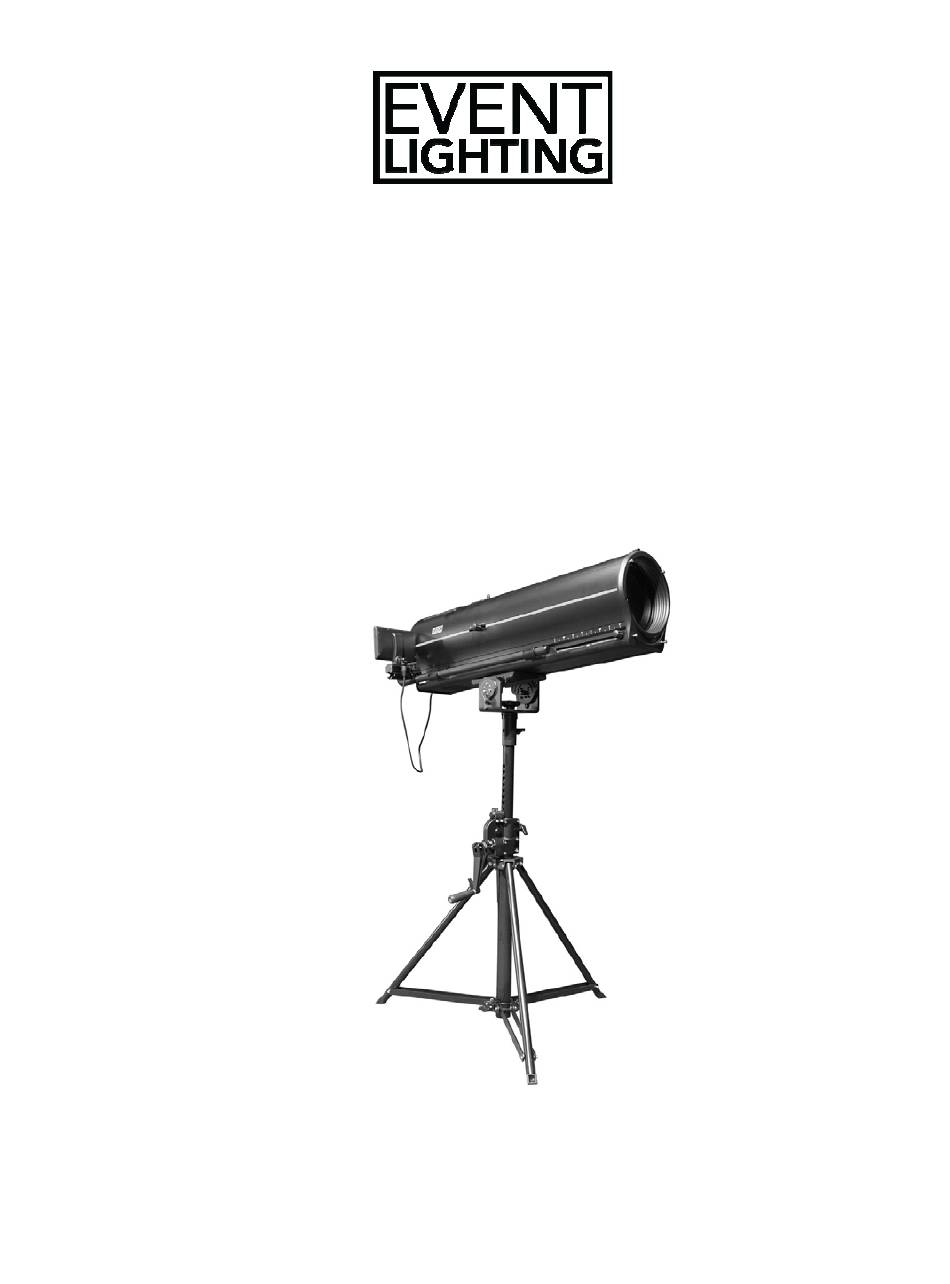

FOLLOW1K
1,000W LED Followspot
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors
or omissions. Please consult Event Lighting for any clarification or information regarding this item.
Ver 1.0 (15.04.2025)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FOLLOW1K and is the answer not in the manual?

Questions and answers

Summary of Contents for Event Lighting FOLLOW1K

  • Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
  • Page 2: Table Of Contents

    www.eventec.com.au CONTENTS Safety Instructions..................2 LUX Chart ..................... 3 Dimensions ......................3 Installation ....................4-5 Control Board Operation ................6 DMX Chart..................... 7 Colour Wheel....................8 Mounting the Colour Changer ............... 8 Specifications .....................9 Warranty......................9...
  • Page 3: Safety Instructions

    www.eventec.com.au Safety Instructions WARNING  Only qualified personnel should handle the installation, operation, and maintenance of this device.  Users must strictly adhere to the instructions provided in this manual.  Unqualified individuals are not permitted to open the housing cover or operate the device. Failure to comply with this requirement will void any liability for defects or issues on the part of the dealer.
  • Page 4: Lux Chart

    www.eventec.com.au Lux Chart Dimensions – 2awqeewqewq...
  • Page 5: Installation

    www.eventec.com.au 1. Installation  During installation, ensure the device is kept away from heat-sensitive and explosive objects. Maintain a minimum clearance of 50 cm of free space around the device.  First, secure the mounting bracket to the device.  Place the device on a sturdy stand, ensuring the stand is stable and level on the ground.
  • Page 6: Replacing The Fuse

    www.eventec.com.au 3. Replacing the Fuse Before replacing the fuse, disconnect the device from the mains. Follow these steps:  Unscrew the fuse holder on the rear panel with a suitable screwdriver (turn counterclockwise).  Remove the old fuse from the fuse holder. ...
  • Page 7: Control Board Operation

    www.eventec.com.au CONTROL BOARD OPERATION...
  • Page 8: Dmx Chart

    www.eventec.com.au DMX Chart DMX CH DMX Value Function 000←→255 Dimmer 000←→255 Strobe 000←→063 Cold White 064←→127 5600K 128←→191 4500K 192←→255 3200K 000←→016 White 017←→033 White + Red 034←→050 051←→067 Red + Green 068←→084 Green 085←→101 Green + Rose Red 102←→118 Rose Red 119←→135 Rose Red +Yellow...
  • Page 9: Colour Wheel

    Colour 7 Violet MOUNTING THE COLOUR CHANGER (included) The FOLLOW1K includes a 6-colour colour changer unit, which is packed separately in the flight case. If required, this unit can be mounted onto the lens tube of the followspot. Installation Steps: •...
  • Page 10: Specifications

    www.eventec.com.au CONTROLS TECHNICAL SPECIFICATIONS  Lamp: 1000W high-brightness LED module  Color Temperature: 7500K  LED Lifetime: Over 50,000 hours  Luminous Flux: 59,000–62,000 lumens  Power Supply: AC 100V–240V, 50Hz/60Hz  Power Consumption: 1280W  Color Wheel: 7 colors + open white ...
