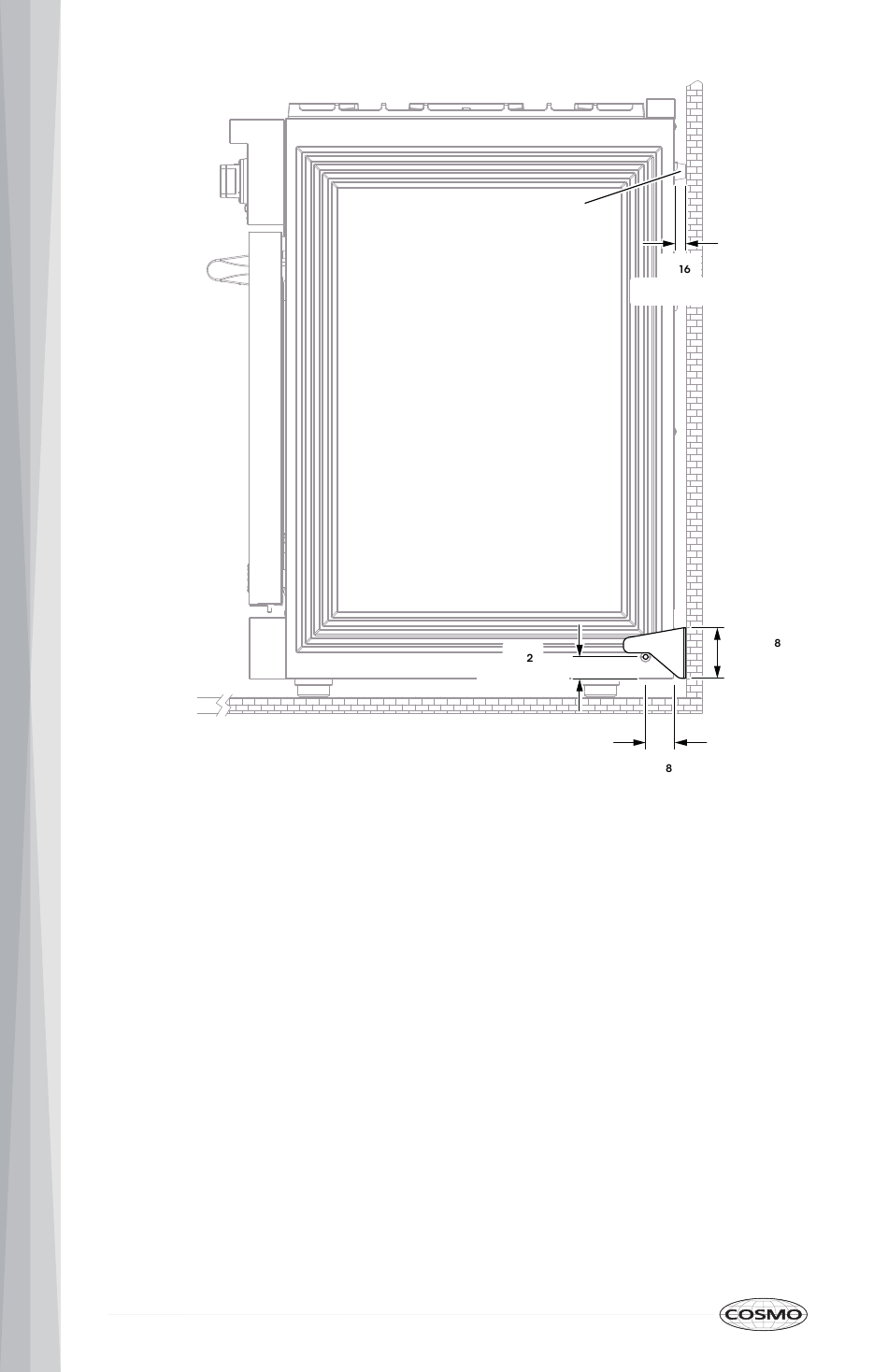

Rear Rubber Pad
¹³⁄ "
(20.0 mm)
3 ¹⁄ "
1 ¹⁄ "
(80 mm)
(38.1 mm)
2 ¹⁄ "
(53.8 mm)
4. Mark the location of the anti-tip bracket screw holes on the wall.
5. Drill an appropriate hole where screws are to be located. Screw mus t
enter wood.
6. Secure anti-tip bracket to wall with the screws provided.
34
