Cosmo COS-965AGC User Manual

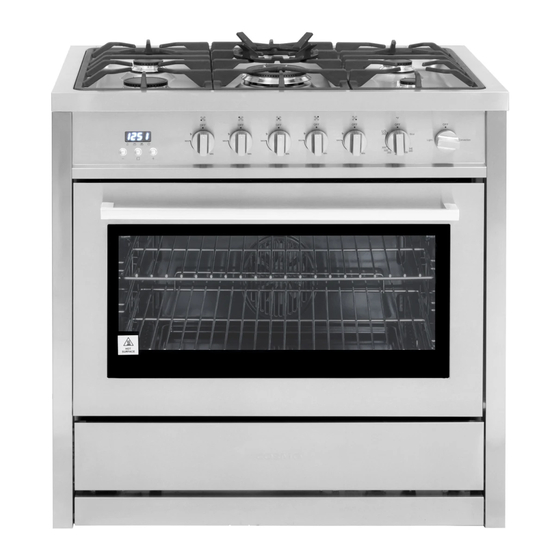

36 in. professional style range
Hide thumbs Also See for COS-965AGC:
Table of Contents

Advertisement

Quick Links

GAS RANGE
COS-965AGC
COS-965AGFC
36 in. Professional Style Range
User Manual
IMPORTANT: Read and save these instructions.
NOTICE:
Installer: Leave this guide with the homeowner
Homeowner: Keep this guide for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COS-965AGC and is the answer not in the manual?

Questions and answers

Related Manuals for Cosmo COS-965AGC

Summary of Contents for Cosmo COS-965AGC

  • Page 1 GAS RANGE COS-965AGC COS-965AGFC 36 in. Professional Style Range User Manual IMPORTANT: Read and save these instructions. NOTICE: Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference...
  • Page 2 COSMO Appliances are designed according to the strictest safety and performance standard for the North American market. We follow the most advanced manufacturing philosophy.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS RANGE SAFETY .................4 The Anti-tip Bracket ..............6 PARTS AND FEATURES ............11 ELECTRONIC CONTROL ............13 Setting the Clock and Timer ...........14 COOKTOP USE ..............15 Ignition and Operation of the Burners ........15 Cookware ................16 OVEN USE ................17 Cooking with the Gas Oven ............17 Oven Tips and Techniques .............18 RANGE CARE .................21 Cleaning ..................21...

  • Page 4: Range Safety

    RANGE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
  • Page 5 WARNING Fire Hazard If the information in this manual is not followed exactly, a re or explosion may result causing property damage, personal injury or death. - Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other appliance.

  • Page 6: The Anti-Tip Bracket

    (for COS-965AGC only)
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS WARNING: or damage when using the range, follow basic precautions, including the following: • • WARNING: TO REDUCE Wear Proper Apparel – Loose- THE RISK OF TIPPING OF THE RANGE, THE RANGE should never be worn while MUST BE SECURED BY using the range.
  • Page 8 WARNING NEVER use this appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the oven. WARNING NEVER cover any slots, holes or passages in the oven bottom or cover an entire rack with materials such as aluminum foil.
  • Page 9 IMPORTANT SAFETY INSTRUCTIONS • • DO NOT TOUCH SURFACE Clean Cooktop With Caution – UNITS OR AREAS NEAR If a wet sponge or cloth is used UNITS – Surface units may to wipe spills on a hot cooking be hot even though they area, be careful to avoid are dark in color.
  • Page 10 IMPORTANT SAFETY INSTRUCTIONS • For self-cleaning ranges – Proper Installation – The range, when installed, must • Do Not Clean Door Gasket – be electrically grounded in The door gasket is essential accordance with local codes for a good seal. Care should or, in the absence of local be taken not to rub, damage, codes, with the National...

  • Page 11: Parts And Features

    PARTS AND FEATURES This manual covers several different models. The range you have purchased may have some or all of the items listed. The locations and appearances of the features shown here may not match those of your model. Inside of Oven Left Rear Surface Burner Right Front Surface Burner Left Front Surface Burner...
  • Page 12 BURNER PARTS Control Knob Off Position Electrode Burner Cap Flame Detector (On Some Models) Burner Head...

  • Page 13: Electronic Control

    CONTROL PANEL 36" MODELS Burner Controller Clock and Timer Oven Controller Function Buttons ON FIRST USE: press the center function button to put the oven in manual mode before using. CLOCK AND TIMER Your model has a digital display, 12-hour clock with three Control buttons. IMPORTANT: In the event of a power failure, all settings including the time display will be lost.

  • Page 14: Setting The Clock And Timer

    For instructions on how to use your range, scan QR Code: SETTING THE CLOCK AND TIMER Oven Timed Cooking To start cooking time, set the TIMER to desired amount of time. This can be done before or during the middle of Display the oven heating.

  • Page 15: Cooktop Use

    COOKTOP USE Read the instructions before installing or using this appliance. 1. This appliance shall be installed in accordance with the regulations in force and only used in a well-ventilated space. 2. The use of a gas-cooking appliance results in the production of heat and moisture in the room in which it is installed.

  • Page 16: Cookware

    COOKWARE MATCH PAN DIAMETER TO FLAME SIZE The flame should be the same size as the bottom of the pan or smaller. Do not use small pans with high flame settings as the flames can lick up the sides of the pan. Oversized pans that span two burners are placed front to rear, not side to side.

  • Page 17: Oven Use

    OVEN USE CONTAINER TABLE Burner Min Saucepan Max Saucepan Auxiliary 3.5” (9.0 cm) 6.3” (16 cm) Semi-rapid 5.1” (13 cm) 7.1” (18 cm) Rapid 5.9” (15 cm) 10.2” (26 cm) Triple ring 8.3” (21 cm) 10.2” (26 cm) COOKING WITH THE GAS OVEN BAKING AND ROASTING This oven features a gas burner located under the oven cavity which provides evenly distributed heat from the bottom of the oven.

  • Page 18: Oven Tips And Techniques

    OVEN USE FEATURES CONTROL Light The oven cavity light turns ON when the Light or Conv. Fan knob function is selected. Conv (Convection) Fan During convection cooking, the fan provides heated air circulation throughout the oven. The movement of heated air around the food can help to speed up cooking by penetrating the cooler outer surfaces.
  • Page 19 BAKE CHART RACK TEMP. °F (°C) FOOD ITEM TIME (MIN) POSITION (PREHEATED OVEN) Cake Cupcakes 350 (175) 19-22 350 (175) 40-45 Bundt Cake 350 (175) 35-39 Angel Food 2 crust, fresh, 9” 400 (205) 45-50 Cookies 350 (175) 8-10 Sugar 350 (175) 8-13 Chocolate Chip...
  • Page 20 TIME WEIGHT OVEN TEMP. RACK INTERNAL MEATS (min. per (lb) TEMP. °F (°C) POSITION °F (°C) Pork Loin Roast 350 (175) 16-20 160 (71) (boneless or bone- medium Shoulder 350 (175) 20-25 160 (71) medium Poultry Chicken whole 400 (205) 18-21 180 (82) 12-15...

  • Page 21: Range Care

    RANGE CARE CLEANING IMPORTANT: Before cleaning, make sure all controls are off and the oven and cooktop are cool. Always follow label instructions on cleaning products. Soap, water and a soft cloth or sponge are suggested first unless otherwise noted. Do not use abrasive cleaning products.
  • Page 22 RANGE CARE BURNER SPREADER Wash the burner spreader frequently with boiling water and detergent to remove any deposits which could block the flame outlet. Before reinstalling, dry the burner spreader thoroughly so the burner will ignite properly. COOKTOP CONTROL KNOBS •...

  • Page 23: Troubleshooting

    TROUBLESHOOTING First try the solutions suggested here to possibly avoid the need of a service call. BAKING AND ROASTING PROBLEMS With any oven setting poor results can occur for many reasons other than a malfunctioning oven. Check the chart below for causes of the most common problems.

  • Page 24: Cooktop

    TROUBLESHOOTING • Cakes high in middle with crack Oven temperature too high on top • Baking time too long • Pans touching each other or oven walls • Incorrect rack position • Pan size too small • Pie crust edges too brown Oven temperature too high •...

  • Page 25: Oven

    TROUBLESHOOTING Using incorrect See the “Cookware” section. Cooking results are cookware not what The control knob is See the “Controls” section. expected not set to the proper heat level. OVEN PROBLEM POSSIBLE CAUSE SOLUTION Oven is not No power to the Reset the circuit breaker or replace the heating oven...
  • Page 26 WARRANTY AND SERVICE For full warranty details on this product please visit: http://www.cosmoappliances.com/warranty TO RECEIVE WARRANTY SERVICE, YOUR PRODUCT MUST BE REGISTERED. TO REGISTER, VISIT: WWW.COSMOAPPLIANCES.COM/WARRANTY SCAN TO REGISTER...
  • Page 27 REQUIRED FOR WARRANTY SERVICE IMPORTANT Ne pas Réexpédier ce Produit au Magasin Pour tout problème concernant ce produit, veuillez contacter le service des consommateurs Cosmo Customer Support au +1(888) 784-3108 UNE PREUVE D’ A CHAT DATEE EST REQUISE POUR BENEFICIER DE LA GARANTIE.
  • Page 28 NOTE:...
  • Page 29 Cosmo is constantly making efforts to improve the quality and performance of our products, so we may make changes to our appliances without updating this manual. Electronic version of this manual is available at: www.cosmoappliances.com...
