Cosmo COS-GRP304 Install, Use, & Care Manual

Hide thumbs Also See for COS-GRP304:

Advertisement

Quick Links

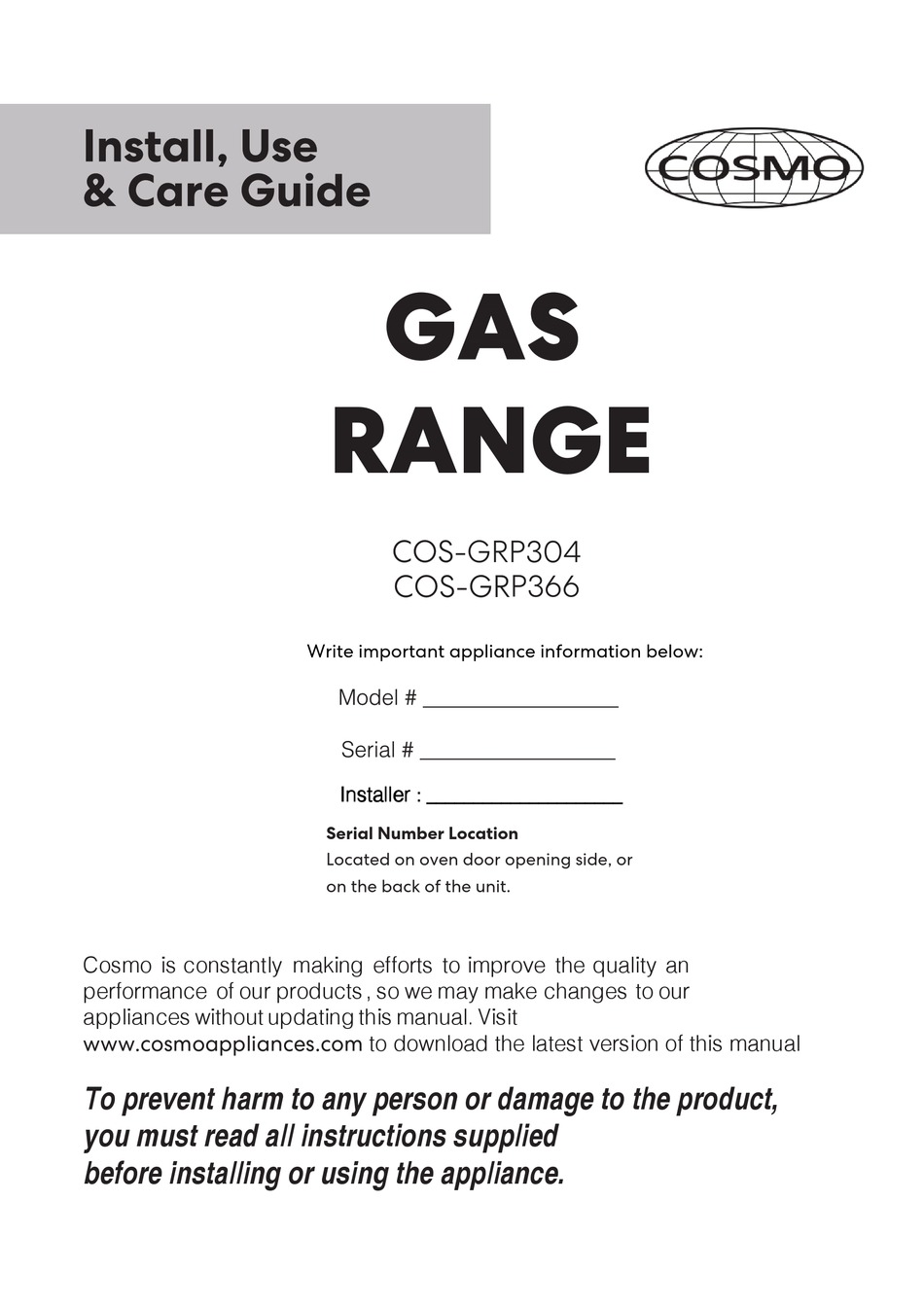

www.cosmoappliances.com to download the latest version of this manual
Cosmo is constantly making efforts to improve the quality an
performance of our products , so we may make changes to our
appliances without updating this manual. Visit
To prevent harm to any person or damage to the product,
you must read all instructions supplied
before installing or using the appliance.
RANGE
GRP304
Write important appliance information below:
Installer
: _____________________
Serial Number Location
Located on oven door opening side, or
on the back of the unit.
P366

Advertisement

loading
Need help?

Need help?

Do you have a question about the COS-GRP304 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cosmo COS-GRP304

Summary of Contents for Cosmo COS-GRP304

  • Page 1 Located on oven door opening side, or on the back of the unit. Cosmo is constantly making efforts to improve the quality an performance of our products , so we may make changes to our appliances without updating this manual. Visit...
  • Page 3 dealer from whom you 1-888-784-3108. Thank You! Thank you for your purchase. We We hope that this manual will know that you have many brands help you learn to use the product and products to choose from and in the safest and most effective we are honored to know that you manner and care for it so that it may give you the highes...

  • Page 4: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS ......4 SPECIFICATIONS ............5 INSTALL GUIDE .............. 12 USE GUIDE ..............28 CARE GUIDE ..............36 TROUBLESHOOTING GUIDE ........38 WARRANTY AND SERVICE ..........41 TABLE OF CONTENTS...

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING • A child or adult can tip the range and be killed. Re-engage the anti-tip device if the range is moved . Do not operate the range without the anti-tip device in place and engaged. See installation instructions for details. Failure to do so can result in death or serious burns to children or adults.

  • Page 6: Specifications

    SPECIFICATIONS...
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS WARNING If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or death.Dealer cannot be held liable for damage occurring as a result of non-compliance with the instructions. -Do not store or use gasoline or other flammable substances in the vicinity of this or any other appliance.
  • Page 8 IMPORTANT SAFETY INSTRUCTIONS When using the appliance, follow basic safety precautions, including the following: Read all instructions before installation and use of the range to prevent accidents and machine damage. WARNING This appliance complies with current safety requirements. Improper use of the appliance can lead to personal injury and material damage.
  • Page 9 IN CANADA: Installation must be in accordance with the current IMPORTANT SAFETY INSTRUCTIONS WARNING Installation of any gas-fired equipment should be made by a licensed plumber. A manual gas shut-off valve must be installed in the gas supply line ahead of the oven in the gas flow for safety and ease of service.
  • Page 10 IMPORTANT SAFETY INSTRUCTIONS • A manual gas shut-off valve must be Verify the type of gas being used at installed external to the appliance, in an the installation site . As shipped from accessible location from the front, for the the factory , units are configured for purpose of shutting off the gas supply.
  • Page 11 IMPORTANT SAFETY INSTRUCTIONS Do not carry or lift the range by the WARNING oven door handle or the control panel! WARNING Heating elements may be hot even though they are not glowing. Interior surfaces of an oven become hot enough to cause burns.
  • Page 12 IMPORTANT SAFETY INSTRUCTIONS WARNING for Children - As with any appliance, close supervision is necessary when the oven is used by children. - Do not leave children unattended: Children should not be alone or unsupervised in the area where the appliance is installed. Do not allow them to sit or stand on the appliance.

  • Page 13: Install Guide

    INSTALL GUIDE INSTALLING THE LEGS The ranges must be used only with the legs properly installed. Four height- adjustable legs are shipped with the range in the polystyrene container situated over the appliance. Before installing the legs, position the appliance near its final location as the legs are not suitable for moving the appliance over long distances.
  • Page 14 INSTALL GUIDE INSTALLING THE ANTI-TIP STABILITY DEVICE 1) The anti-tip bracket shipped with the range must be properly secured to the rear wall as shown in the picture below.The height of the bracket from the floor must be determined after the range legs have been adjusted to the desired height and after the range has been levelled.
  • Page 15 INSTALL GUIDE CABINETS This range may be installed directly adjacent to existing countertop high cabinets (36" or 91.5 cm from the floor).For the best look, the cooktop should be level with the cabinet countertop . This can be accomplished by raising the unit using the adjustment spindles on the legs.
  • Page 16 INSTALL GUIDE ELECTRICAL REQUIREMENTS To reduce the risk of fire, electric shock, or personal injury: WARNING • Do not use an extension cord or adapter plug with this range. • This range must be properly grounded. • Check with a qualified electrician if you are in doubt as to whether your range is properly grounded.
  • Page 17 EXHAUST HOOD INSTALLATION INSTALL GUIDE • Do not use a damaged power plug or loose wall outlet. • Do not use an extension cord or adapter with this appliance. • Do not, under any circumstances, cut, modify, remove, or otherwise defeat the grounding (third) prong from the power cord.
  • Page 18 INSTALL GUIDE WIRING DIAGRAM 36 INCH MODEL CAUTION Label all wires prior to disconnecting when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing...
  • Page 19 INSTALL GUIDE WIRING DIAGRAM 30 INCH MODEL CAUTION Label all wires prior to disconnecting when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing...
  • Page 20 INSTALL GUIDE GAS CONNECTION All gas connections must comply with national and local codes. The gas supply line (service) must be the same size or greater than the inlet line of the appliance. This range uses a 1/2" NPT inlet (see drawing below for details of gas connection).
  • Page 21 INSTALL GUIDE MANUAL SHUT-OFF VALVE THIS VALVE IS NOT SHIPPED WITH THE APPLIANCE AND MUST BE SUPPLIED BY THE INSTALLER . The manual shut-off valve must be installed in the gas service line between the gas hook-up on the wall and the appliance inlet, in a position where it can be reached quickly in the event of an emergency .
  • Page 22 INSTALL GUIDE PRESSURE REGULATOR Since service pressure may fluctuate with local demand, every gas cooking appliance must be equipped with a pressure regulator on the incoming service line for safe and efficient operation. The pressure regulator shipped with the appliance has two female threads 3/4"...
  • Page 23 INSTALL GUIDE APPLIANCE SERVICING Before carrying any servicing operation disconnect the appliance from gas and electric supply and extra appliance from final installation place in order to have access to the appliance for proper servicing intervention. GAS CONVERSION WARNING: Before carrying out this operation, disconnect the appliance from gas and electricity.
  • Page 24 INSTALL GUIDE STEP 1: PRESSURE REGULATOR CONFIGURATION The pressure regulator supplied with the appliance is a convertible type pressure regulator for use with Natural Gas at a nominal outlet pressure of 4" w.c. or LP gas at a nominal outlet pressure of 10" w.c. and it is pre-arranged from the factory to operate with Natural Gas.
  • Page 25 INSTALL GUIDE STEP 2: BURNER NOZZLE REPLACEMENT To replace the nozzles of the surface burners : lift up the burners and unscrew the nozzles shipped with the range using a 7 mm (socket wrench). Replace nozzles using the conversion set. Each nozzle has a number indicating its flow diameter printed on the body.
  • Page 26 INSTALL GUIDE STEP 3: MINIMUM FLAME ADJUSTMENT These adjustments should be made only for use of the appliance with natural gas. For use with liquid propane gas, the choke screw must be fully turned in a clockwise direction. a. Light one burner at a time and set the knob to the MINIMUM position (small flame).
  • Page 27 INSTALL GUIDE PLACEMENT OF COOKTOP BURNERS AND GRATES Do not operate the surface burners without all burner parts in place. CAUTION Position surface burner heads on top of the surface burner bases as shown at right. The electrodes will fit into the slot in the bottom of the heads.
  • Page 28 INSTALL GUIDE INSTALLATION Checklist 1. Is the range mounted on its legs? 2. Is the back guard securely connected? 3. Has the anti-tip device been properly installed? 4. Does the clearance from the side cabinets comply with the manufacturers directions? 5.

  • Page 29: Use Guide

    USE GUIDE This product is intended for the cooking of food and must not be used for other purposes. Unstable or deformed pans should not be placed on the burners or hot plates in order to avoid accidents caused by spill over. Particular care should be taken when cooking with oil or fat.
  • Page 30 NOTE : On first use, it will be required to hold onto the knob at MAX position for 20-30 seconds to allow the gases to completely fill the operating system's inner piping. USE GUIDE NEVER cover any slots, holes or passages in the oven bottom or cover an entire rack with materials such as aluminum foil.
  • Page 31 3. Check that the flame is regular. If you suspect that the flame is irregular, ensure burner caps are installed correctly (See instructions below.) Burner cap Burner cap lip Correct burner cap placement Incorrect burner cap placement TIPS FOR USING PANS CORRECTLY ATTENTION! Always ensure that bottom and handles of pans do not protrude from the worktop.
  • Page 32 USE GUIDE WHEN BOILING LIQUIDS: Turn the knob to the MINIMUM position once boiling is reached to avoid overflow. Always use pots with matching lid. Dry the bottom of pans beforoperation. Use pots with a flat, thick bottom (except for wok cooking). WOK COOKING: Always use the wok adapter supplied with the range.
  • Page 33 USE GUIDE USING THE GAS OVEN Our oven functions allow the user to have flexibility in the method of cooking and provide heating alternatives to suit a wide variety of dishes. HEATING INDICATOR LIGHT TIMER TEMPERATURE SETTING To PRE-HEAT: Set TIMER to ON. Set TEMPERATURE SETTING knob to desired pre- heat temperature.
  • Page 34 USE GUIDE CONVECTION BAKE Heat comes from bottom elements combined with convection fan air circulation for faster, more even, cooking. Suitable for dish temperature from 0 to 500°F. To use: Turn the temperature setting knob to desired bake temperature. Turn the Convection Fan switch on. If bake time is required, set the timer to desired baking duration.
  • Page 35 USE GUIDE USING THE OVEN LIGHT The light can be switced on/off using the switch on the left side of the control panel. COOKING TIMES Cooking times can vary according to the type of food, its density and its size.
  • Page 36 USE GUIDE...

  • Page 37: Care Guide

    CARE GUIDE REPLACING THE OVEN LIGHT BULBS WARNING! Disconnect power before servicing unit. To replace the oven light bulb, unscrew the protection glass cover that projects out inside the oven. NOTE: Touching the bulb with fingers may cause burns to the skin. Always use protective glove or use a cloth to remove the bulb.
  • Page 38 CARE GUIDE Cleaning the cooktop: periodically clean the burner heads, the cast iron pan supports and the burner caps using warm water. Remove burned food and fat residues with a rubber spatula . If food residue prevent the smooth operation of the control knobs, call the customer service hotline to schedule service by a factory-trained professional.

  • Page 39: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Baking Problem Cause • Food browns unevenly Oven not preheated • Aluminum foil on oven rack or oven bottom • Baking utensil too large for recipe • Pans touching each other or oven walls • Food too brown on bottom Oven not preheated •...
  • Page 40 TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Burner will There is no power to Plug into a grounded 3 prong outlet. Replace not ignite the cooktop fuse or reset circuit breaker. Burner First time use. Air Turn on any one of the surface burner knobs will not still in the gas line.
  • Page 41 TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Oven is not No power to the Reset the circuit breaker or replace the heating oven fuse in the electrical box to your oven. Oven control not Make sure the oven temperature has turned on been selected and timer is not "OFF".

  • Page 42: Warranty And Service

    WARRANTY AND SERVICE TO RECEIVE WARRANTY SERVICE, YOUR PRODUCT MUST BE REGISTERED. TO REGISTER, VISIT: WWW.COSMOAPPLIANCES.COM/WARRANTY FOR FULL WARRANTY DETAILS ON THIS PRODUCT PLEASE VISIT : WWW.COSMOAPPLIANCES.COM/WARRANTY WWW.COSMOAPPLIANCES.COM...
