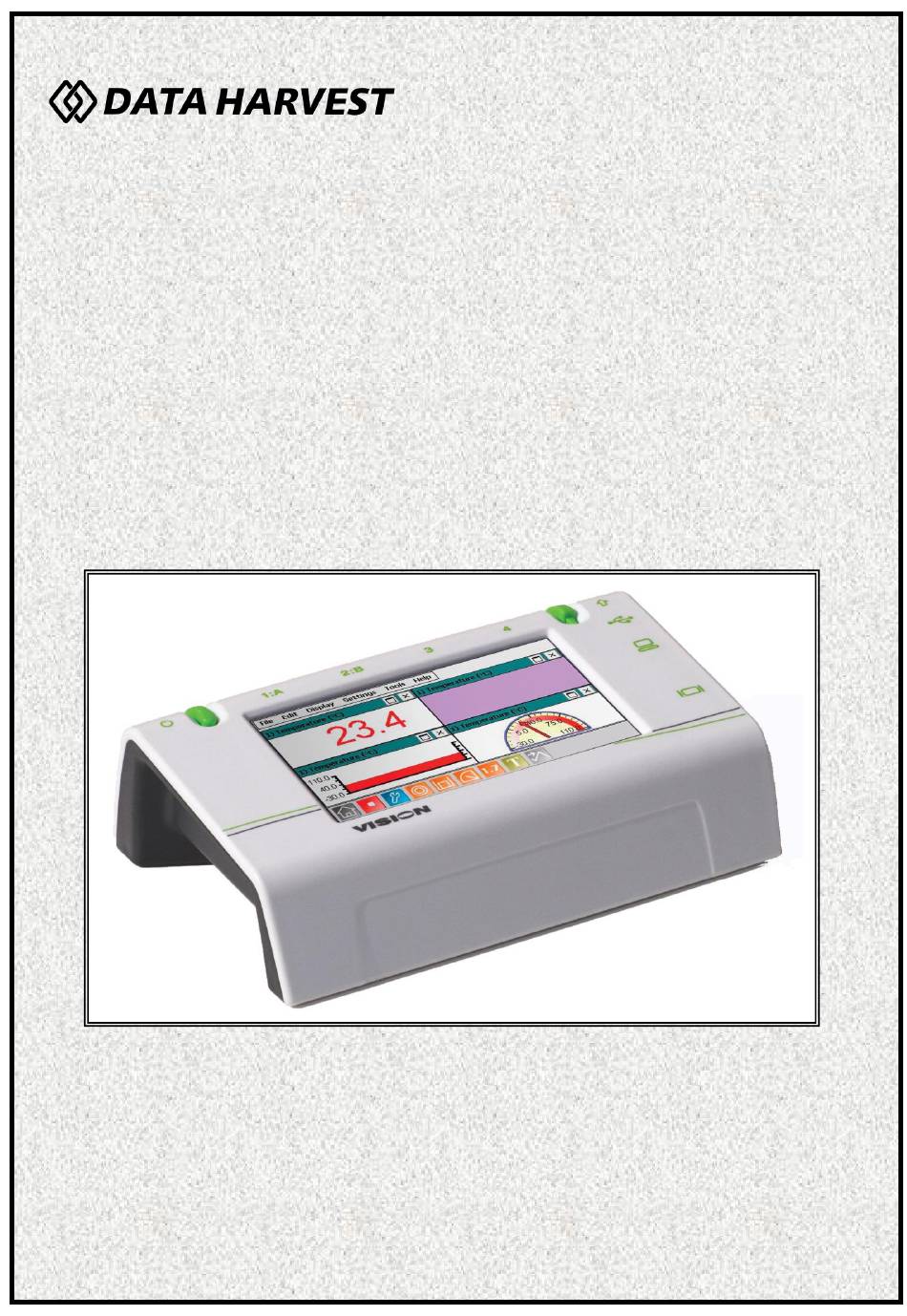

- Page 1 EASYSENSE VISION user guide Data Harvest Group Ltd., 1 Eden Court, Leighton Buzzard, Bedfordshire LU7 4FY. Tel: +44 (0)1525 373666, Fax: +44 (0)1525 851638 Website: www.data-harvest.co.uk...
- Page 2 Licensee's premises. Data Harvest's policy is to continually improve products and services, so we reserve the right to make changes without notice. It is acknowledged that there may be errors or omissions in this publication for which responsibility cannot be assumed.
- Page 3 If screen taps are not accurate recalibrate the stylus control by using VISION’s screen calibration utility (see page 8). Items included with VISION A power supply EASYSENSE VISION fitted with a stylus A USB cable Two long Smart Q sensor leads Two short Smart Q sensor leads...
- Page 4 EASYSENSE VISION User guide D0233 (7) The VISION data logger Stylus in its storage slot 4 Smart Q sensor inputs USB Host USB Client Power On/Off VGA port Touch screen (high resolution colour graphic display) USB Host: Use to connect a USB...
- Page 5 The Home screen (Level 2 & 3) Automatic standby (sleep mode) If EASYSENSE VISION is battery powered and left user idle (no screen taps, button press or mouse movement) for more than 60 seconds its screen will automatically dim. Touch or tap the screen to return to full brightness.
- Page 6 If the interval between samples is 10 seconds or more VISION will automatically use sleep mode and will wake each time it needs to take a reading. The EasySense software overview Detailed information is available in the EASYSENSE VISION software guide (DO234) available on from the Resources tab at www.data-harvest.co.uk.
- Page 7 EASYSENSE VISION User guide D0233 (7) Note: If you want to stop a recording before it has run the full term, click on the Stop icon. Logging rates can be set from 50,000 samples per second (20 s interval) for capturing fast moving data) to 1 sample an hour (for long term experiments).
- Page 8 2. Digital switch-type sensors for measuring ON/OFF conditions e.g. Light gates and Timing mats to calculate time, speed and acceleration. Please contact your supplier or the Data Harvest website (www.data-harvest.co.uk) for up-to-date information on Smart Q sensors. Calibrating the screen If screen taps are not accurate recalibrate the screen using VISION’s screen calibration utility.
- Page 9 The first time VISION is connected allow the USB device drivers to install. Open the EasySense software on your PC computer e.g. Start ► Programs ► Data Harvest ► and double click on EasySense Software. Select a new experiment mode from the Home screen i.e.
- Page 10 EASYSENSE VISION User guide D0233 (7) The text at the top right of the EasySense window will indicate that a Local Interface connection has been established. Transferring files between VISION and a PC computer Saved data files can either be transferred from VISION to your PC by using VISION in ‘disc drive’...
- Page 11 EASYSENSE VISION User guide D0233 (7) Opening and Saving files Opening If you are opening a file saved on a memory stick connect the USB memory stick to the USB host port on VISION before selecting Open. Select Open either from the Home screen or from the File menu.
- Page 12 A fully charged battery that loses its charge quickly will demonstrate the need for replacement. When this happens contact Data Harvest and request a battery replacement pack for VISION – Product No. 2036. (Full instructions on how to replace the battery will be supplied with the replacement battery).
- Page 13 EASYSENSE VISION User guide D0233 (7) 2. Connect VISION to the PC in Disc Drive mode (see page 10). VISION will appear as a removable storage device on the PC; use Windows Explorer to delete files from VISION’s file storage area.
- Page 14 EASYSENSE VISION User guide D0233 (7) Care & maintenance VISION is designed to be operated on a desk or hand held. Wipe clean with a lint-free soft dry cloth e.g. a microfiber cloth that is specifically designed to clean glass.
- Page 15 EASYSENSE VISION User guide D0233 (7) Battery replacement When replacing the battery, only use a replacement battery pack supplied by Data Harvest (Product No. 2036). (Full instructions on how to replace the battery will be supplied with the replacement battery pack).
- Page 16 * If auto install fails, download and unzip the drivers for the Bluetooth USB adaptor (Product 2070 or 2071) from the Data Harvest website. Open Device Manager, right click on the entry for the dongle (typically listed under Other devices) and select Update drivers. Select to ‘Browse my computer’ (install manually), locate and select the BLED112 directory.
- Page 17 EASYSENSE VISION User guide D0233 (7) Connecting VISION WiFi to a network VISION WiFi can operate in two different modes: Connected to its own local network (Access Point) VISION WiFi is set to Access point by default. In this mode the iPad connects to a network created by VISION.
- Page 18 EASYSENSE VISION User guide D0233 (7) On the Android select the connect icon , top right of the screen. Select the VISION’s name from the list. The status will change to show that it is ‘Controlling VISION xx or Viewing VISION xx’.
- Page 19 EASYSENSE VISION User guide D0233 (7) 3. On an iPad tap on the ‘Not Connected’ text bottom right of the screen. On the Android select the connect icon , top right of the screen. 4. Select the VISION’s name from the list.
- Page 20 Channels supported: 1 to 11 *VISION WiFi will automatically detect and use the required security protocol. Hereby, Data Harvest Group Ltd., declares that this 2021 VISION WiFi is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
