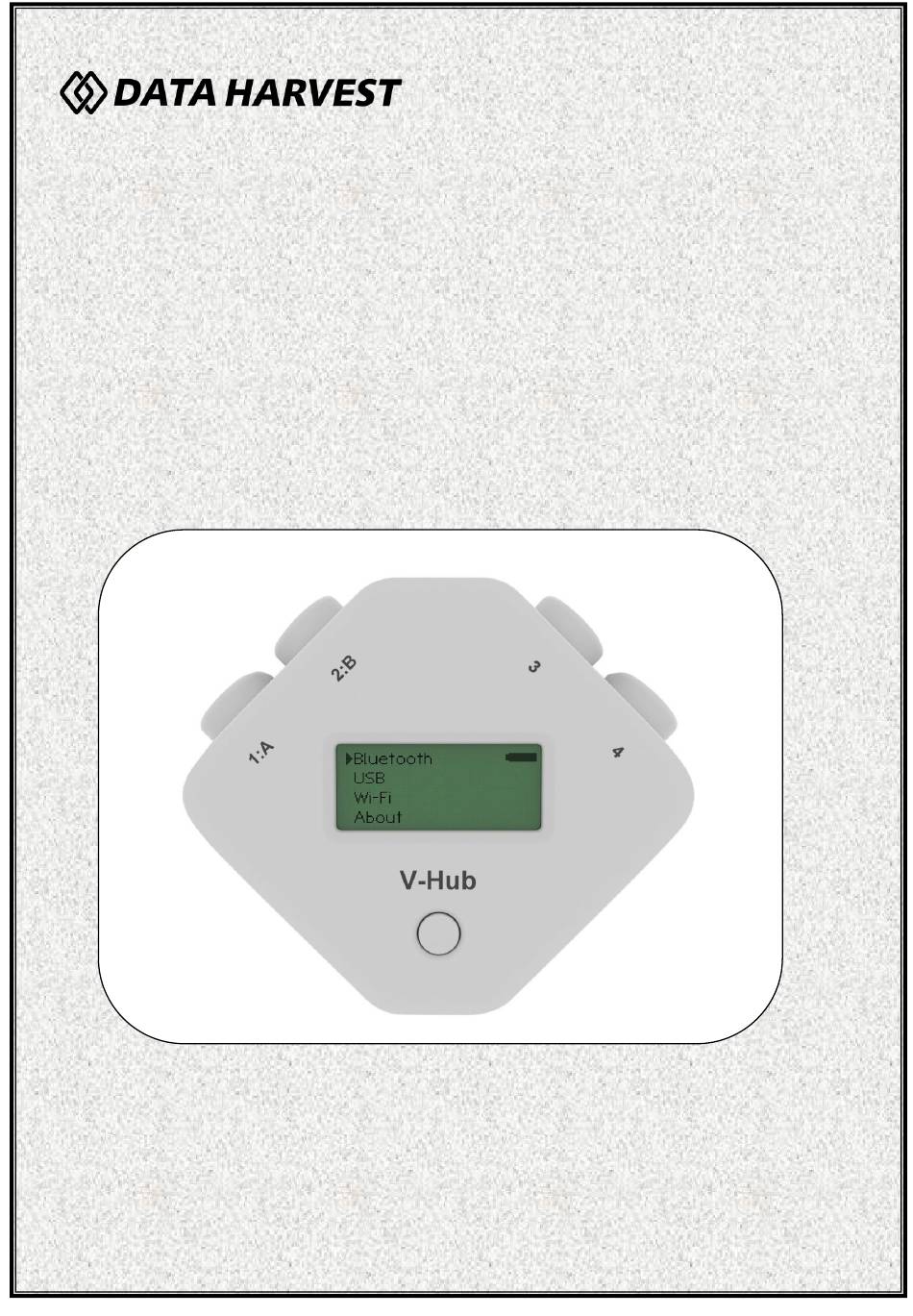

- Page 1 EASYSENSE V-Hub Reference Manual...
-
Page 2: Table Of Contents
Licensee's premises. Data Harvest's policy is to continually improve products and services, so we reserve the right to make changes without notice. It is acknowledged that there may be errors or omissions in this publication for which responsibility cannot be assumed. -
Page 3: What's Supplied
(3021) Getting to know your V-Hub interface Charge EASYSENSE V-Hub fully before first use Connect V-Hub directly to a USB port on your computer* (or a powered USB hub) using the USB cable supplied with it. A full charge can take up to 4 hours. -
Page 4: The V-Hub Interface
Note: V-Hub does not display data direct from the sensors, it needs to be connected to the EasySense software that has been installed on a computer or tablet, and data will be displayed on the computer/tablets screen. Data Harvest Group Ltd, 2017... -
Page 5: Sensors
Light gates and Timing mats to calculate time, speed and acceleration. Please contact your supplier or the Data Harvest website (www.data-harvest.co.uk) for up-to-date information on Smart Q sensors. Plug the Smart Q sensors into the shaped input sockets on the top of the logger using the leads supplied with the logger. -
Page 6: V-Hub 8'S Built-In Sensors
For altitude in meters above sea level use either the -200 to 1,000 m, -500 to 5,000 m or -500 to 10,000 m range. The average pressure exerted at sea level by the atmosphere in Britain is 101.325 kPa (1 atmosphere); the equivalent values are 29.92 in.of mercury (at 0˚C) or 1013 millibar. Data Harvest Group Ltd, 2017... -
Page 7: The Metal Rod
40ºC) and state-of-charge. Eventually the battery pack will no longer deliver the stored energy and will need to be replaced. A fully charged battery that loses its charge quickly will demonstrate the need for replacement. When this happens, contact Data Harvest. Auto switch off While battery powered and not in use V-Hub will normally auto switch after 2 minutes to reduce power consumption. -
Page 8: Hard Reset
If necessary attach V-Hub to power. Press and hold down the button for about 10 seconds until the word V-Hub is displayed then release. If V-Hub still fails to respond contact Product Support at Data Harvest. Please provide details of: ... -
Page 9: Care & Maintenance
Channels supported: 1 to 11 *V-Hub Wi-Fi will automatically detect and use the required security protocol. Hereby, Data Harvest Group Ltd., declares that V-Hub Wi-Fi is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU A full copy of the Declaration of Conformity can be obtained by writing to the following address: Data Harvest Group Ltd.,1 Eden Court, Leighton Buzzard, Bedfordshire, LU7 4FY, UK. -
Page 10: Using V-Hub Connected Via Usb To A Windows Pc For The First Time
Click on OK. The program will save the selection. The text at the top right of the EASYSENSE window will indicate that a Local Interface connection has been established. Data Harvest Group Ltd, 2017... - Page 11 EASYSENSE, so you can check the selected method of connection is correct Click on OK. The program will save the current selection. Click on the Not connected text on the top right of the EASYSENSE window. Data Harvest Group Ltd, 2017...
-
Page 12: Using V-Hub Connected Via Bluetooth To A Computer
Bluetooth. Press the button for approximately 3 Wi-Fi seconds until the option highlights then release. About Bluetooth The screen will show the name of the logger. Humboldt 15 to exit Open the EasySense software on the PC. Data Harvest Group Ltd, 2017... -
Page 13: When Connecting To A Ipad Or Android Device
* If auto install fails, download and unzip the drivers for the Bluetooth USB adaptor (Product 2070 or 2071) from the Data Harvest website. Open Device Manager, right click on the entry for the dongle (typically listed under Other devices) and select Update drivers. Select to ‘Browse my computer’ (install manually), locate and select the BLED112 directory. -
Page 14: Connecting V-Hub Wi-Fi To A Network
V-Hub’s Wi-Fi settings for connection to an existing schools network. Change the name of the logger, set an AP network password, etc. Download EasySense Logger Config from our website, www.data-harvest.co.uk (Product No 2080). Data Harvest Group Ltd, 2017... -
Page 15: Connecting A Group Of Ipads/Androids To A V-Hub
Limited warranty For information about the terms of the product warranty, see the Data Harvest website at: https://data- harvest.co.uk/warranty. Note: Data Harvest products are designed for educational use and are not intended for use...
