The display device should automatically be detected by VISION and the display will switch from the
LCD display to the VGA display device.
If VISION does not detect the VGA device, a manual switch must be made:

From the Settings menu select System Settings.

From the Display menu select Change.

VISION will now switch to the VGA display device
Note: As a safety measure, VISION will now give you 15 seconds to click on OK to stay on the VGA device;
otherwise it will automatically switch back to the LCD display.
When you have finished using the VGA display device, either go back into System Settings and click
change again or switch VISION off and on (it will always default back to LCD at power up).
Using VISION as an interface via USB
V3.0 or later of the EasySense PC software must be installed on the PC computer.

Save any data you have on screen.

Connect VISION to the PC using the USB cable supplied (connect the 'square' type B plug of the
USB cable to the USB client port
on your computer).


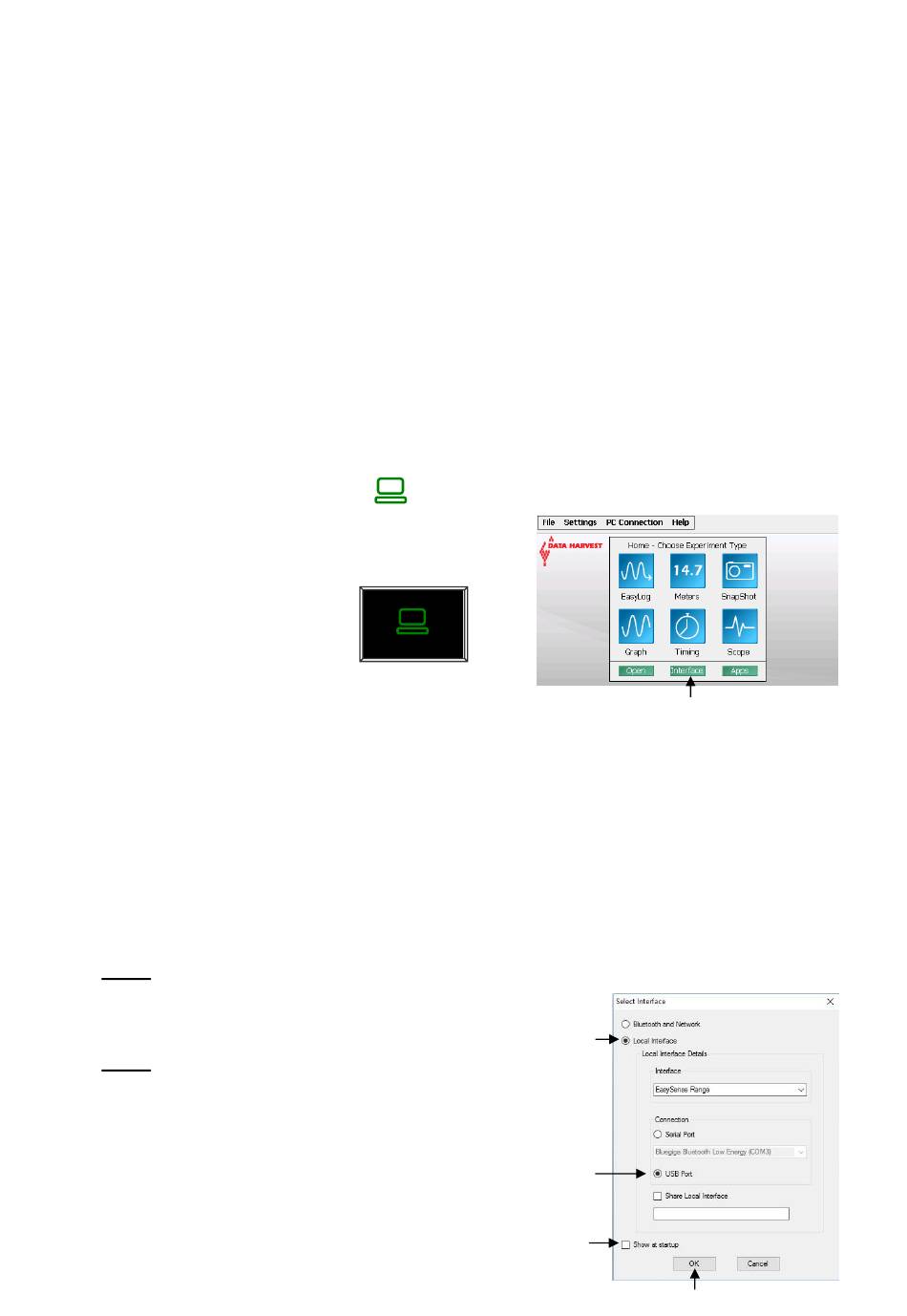

Select Interface either from VISION's Home screen
or the PC Connection menu.
VISION's screen will alter to
show its USB connected.
Note: If VISION does not find a connection with the PC
within 10 seconds VISION's EasySense software will
automatically restart.

The first time VISION is connected allow the USB device drivers to install.

Open the EasySense software on your PC computer e.g. Start ► Programs ► Data Harvest ►
and double click on EasySense Software. Select a new experiment mode from the Home screen
i.e. EasyLog, Graph, Meters, Scope, SnapShot or Timing.
Logging rates can be set from 50 samples per second (20 ms interval) for capturing real-time data.
When you've finished using VISION as an interface, disconnect VISION from the USB port and
VISION's EasySense software will restart.
The first time the EasySense PC software is opened:
Step 1 A 'Select Program Level' window will automatically open. Select a suitable user level.
Note: Level 1 is aimed at 'start' level (e.g. up to 9 years old), Level 2
at 'mid' level (e.g. 9 – 15 years old) and Level 3 at 'exam' level
(e.g.15 years plus).
Step 2
A 'Select Interface' window will automatically open to allow
the interface and connection to be selected.
(a) Select Local Interface.
(b) Select the connection as USB Port.
(c) If these settings will stay the same leave the 'Show at
startup' box unticked.
(d) Click on OK. The program will save the current selection.
