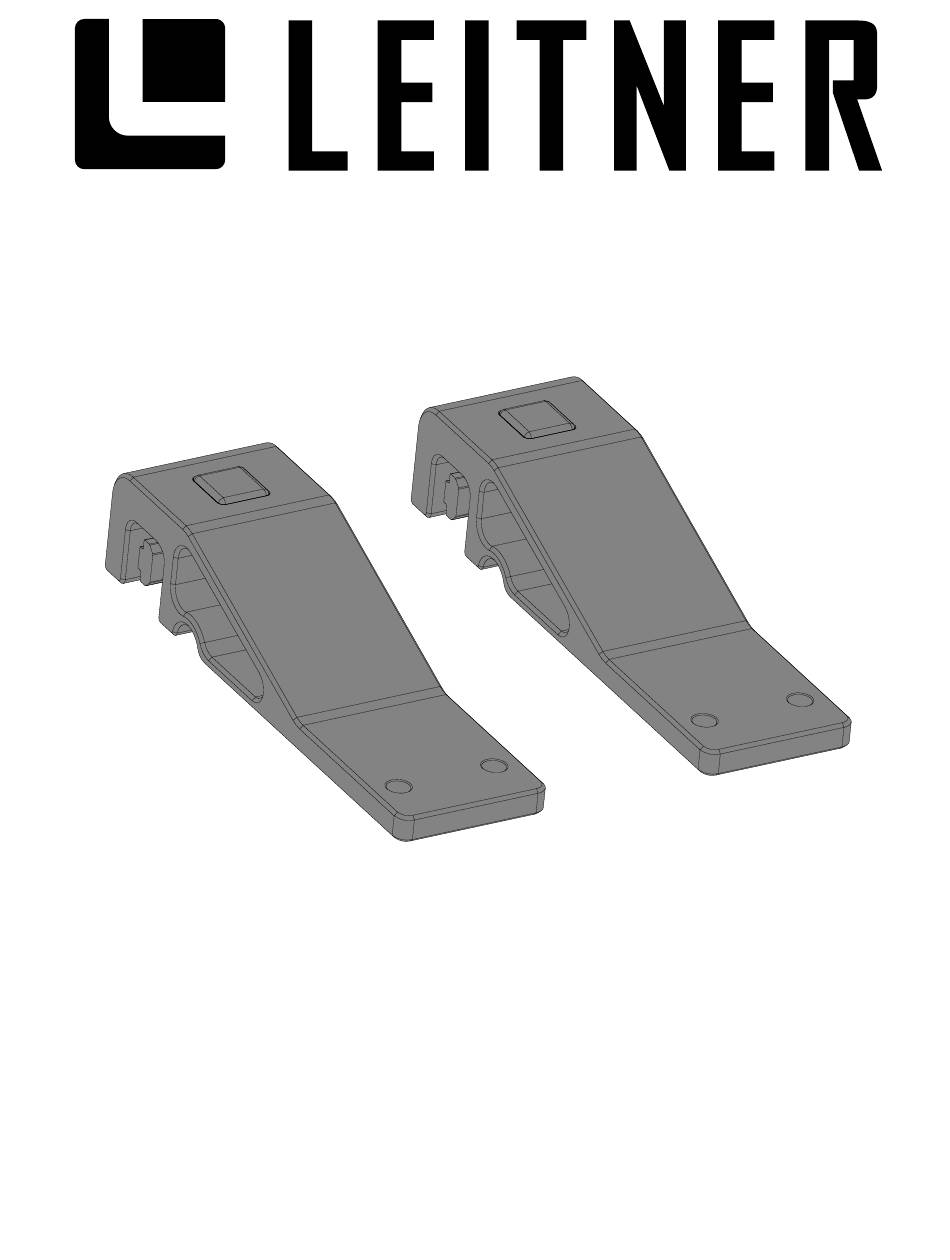

- Page 1 Forged Bike mount LEITNERDESIGNS.COM | support@LEITNERDESIGNS.COM | 949-395-3049 V1 | Page 1...
-
Page 2: Assembly / Installation Instructions
ASSEMBLY / INSTALLATION INSTRUCTIONS: PART NUMBER: 00-FBMA-1857 TOOLS REQUIRED INSTALLATION TIME 30-45 minutes Basic knowledge of hand tools required • T40 torx wrench SKILL LEVEL 1= easy ▼ Bike mount hardware ▼ m8 x 20 t-nut (x4) (x2) Pedal Strap LEITNERDESIGNS.COM | support@LEITNERDESIGNS.COM | 949-395-3049... - Page 3 Install T-NUTS • INSTALL both t-nuts as shown on the lower inside rail. (fig 1) • Install bike mount as shown and install the two M8X20 screws through bike mount and T-nut. (fig 2) • do not fully tighten at this time. (fig 1) (fig 2) V1 | Page 3...
- Page 4 SPACE BIKE MOUNT BRACKETS ON RACK • SPACE THE BRACKETS SO THEY CLEAR ANY ACcESSORIES YOU HAVE. MINIMUM DISTANCE BETWEEN THE BRACKETS IS 36” THE MAXIMUM DISTANCE WE RECOMmEND IS 50.5” MIN DISTANCE 36” MAX DISTANCE 50.5” V1 | Page 4 V1 | Page 4...
- Page 5 INSTALL KUAT PISTON SR BIKE RACK • THE KUAT PISTON XR INSTALLS WITH THE HARDWARE THAT IS SUPPLIED WITH THE kuat RACK. YOU WILL NEED the hardware pictured below. • Slide 4 of the 9.25mm T-channel nuts into the lower extrusion of the bike rack. Set the bike rack onto the brackets installed previously.
- Page 6 • After loading bicycle place pedal at a six 0’clock position and secure with included pedal strap . WARNING: Failure to secure pedal with pedal strap can cause damage to Leitner ACS and ACS accessories. V1 | Page 6...
-
Page 7: Use Guidelines
•All locks must be turned and moved periodically to ensure smooth operation. Use graphite or dry lubricant to help this. Leitner designs locks are designed to deter vandalism and theft but should not be considered theft proof. Remove valuable gear if your vehicle is unattended for an extended period. -
Page 8: Warranty
Warranty Leitner Designs warrants product to be free from defects in material and workmanship, for terms specified below, provided there has been normal use and proper maintenance. All remedies under this warranty are limited to the repair or replacement of any item found by the factory to be defective within the time period specified.
