APPLICABLE MODELS:
ALL

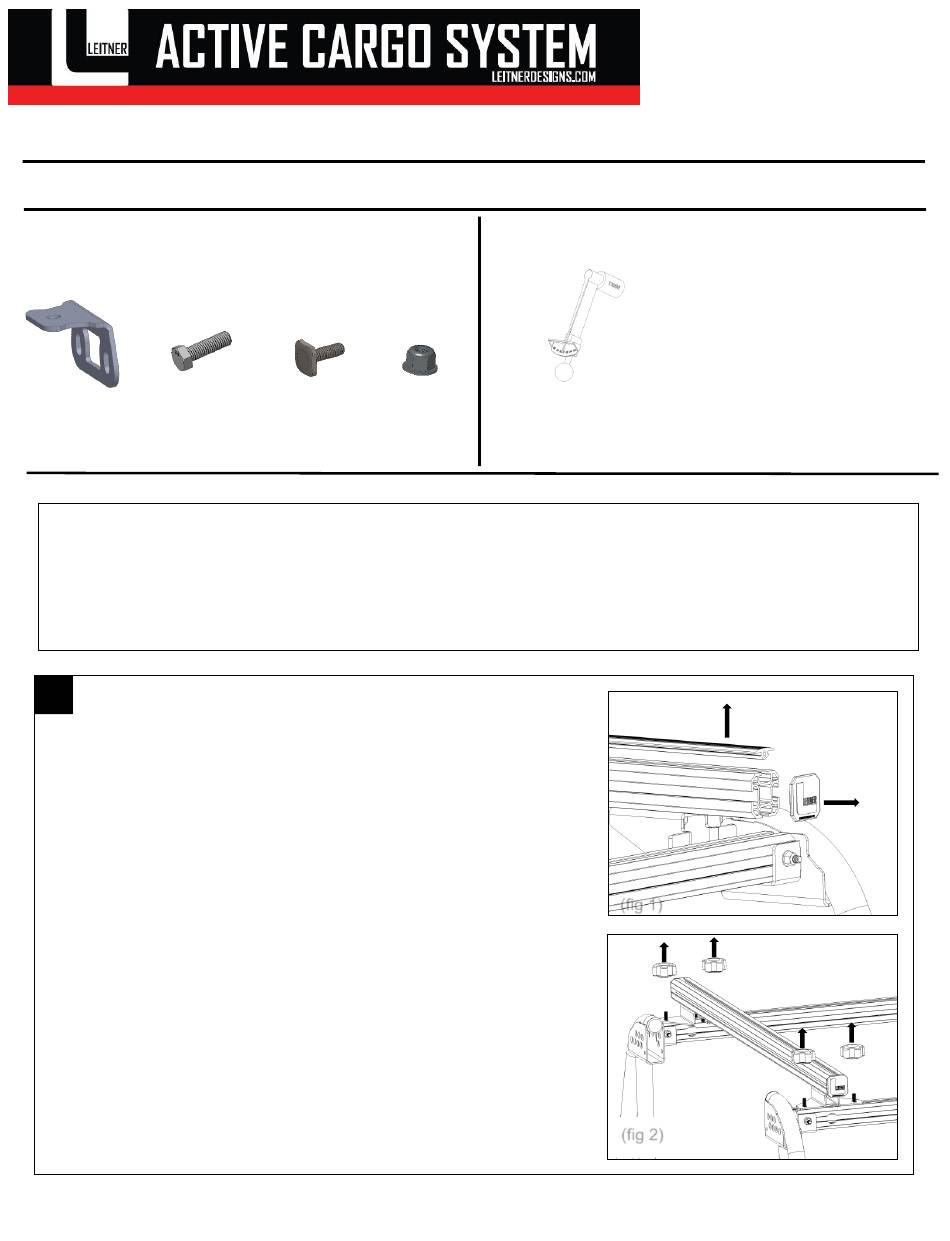

PACKAGE CONTENTS
RTT Bracket
M8 X 20 cap screw
(QTY.4)
(QTY.4)
BEFORE INSTALLATION
1) READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
2) CLEAN INSTALATION AREA
3) MAKE SURE ALL TOOLS ARE AVAILABLE FOR INSTALL.
1
REMOVE CROSS BAR PAD AND ADJUSMENT KNOBS
1)
REMOVE THE ENCAP AND RUBBER PAD FROM THE
CROSS BAR EXTRUSION. (FIG 1)
2)
REMOVE THE FOUR ADJUSTMENT KNOBS AND
REPLACE WITH THE FOUR M8 LOCKNUTS SUPPLIED
IN KIT. MAKE SURE THE CROSS BEAMS ARE AS FAR
APPART AS POSSIBLE. TIGHTEN M8 LOCK NUTS TO
16 LB-FT (FIG 2)
Rev. A 1-2-2015
ACS Roof Top Tent Bracket instructions
M8 T-Bolt
M8 locknut
(QTY.8)
(QTY.16)
25675 Taladro Circle Unit E
Mission Viejo, CA 92691
www.leitnerdesigns.com
TOOLS REQUIRED
TORQUE WRENCH
WITH 13MM DEEP
SOCKET
(fig 1)
(fig 2)
Leitner Designs
PAGE 1 OF 2
Advertisement
Table of Contents
Related Manuals for Leitner ACS
Summary of Contents for Leitner ACS
- Page 1 Leitner Designs 25675 Taladro Circle Unit E Mission Viejo, CA 92691 www.leitnerdesigns.com ACS Roof Top Tent Bracket instructions APPLICABLE MODELS: PACKAGE CONTENTS TOOLS REQUIRED RTT Bracket M8 X 20 cap screw M8 T-Bolt M8 locknut TORQUE WRENCH (QTY.4) (QTY.4) (QTY.8) (QTY.16)
- Page 2 ATTACH RTT BRACKETS ATTACHE TWO RTT BRACKETS TO THE INSIDE FRONT AND INSIDE REAR CROSS BEAMS USING 8 T-bolt T-BOLTS. LOSSLY TIGHTEN WITH M8 LOCKNUTS SO THAT THE BRACKETS CAN STILL SLIDE. (FIG ADJUST THE BRACKEST AS SHOWN. THE BRACKETS ARE STILL LOSE AND WILL BE ADJUSTED IN A FUTURE STEP.
