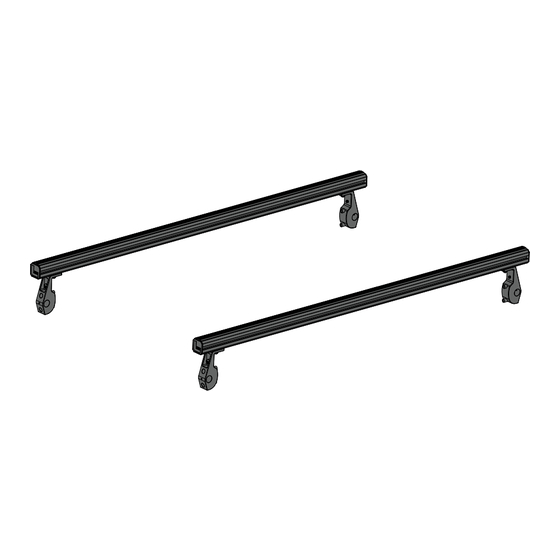

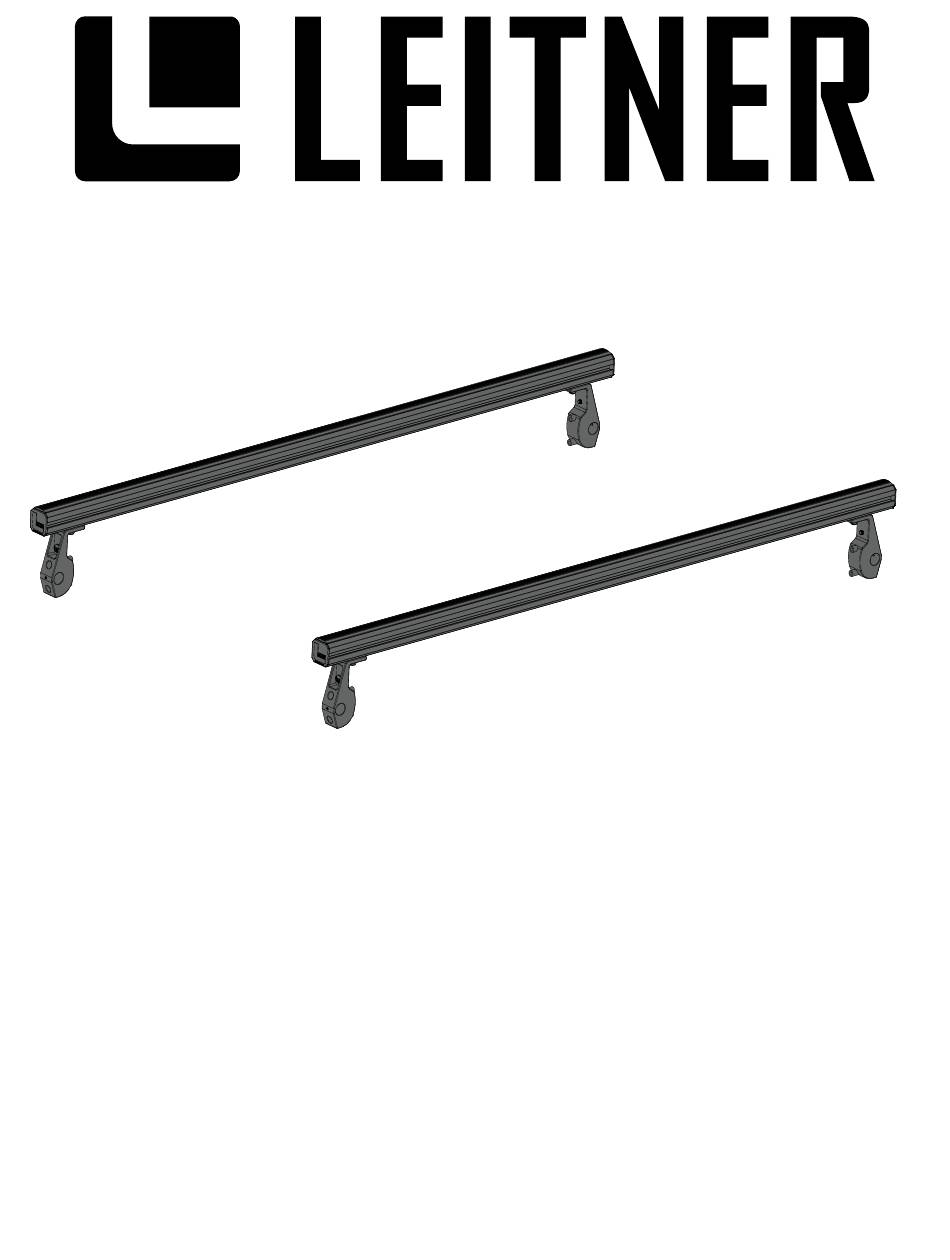

- Page 1 Ineos Grenadier load bar LEITNERDESIGNS.COM | SALES@LEITNERDESIGNS.COM | 949-395-3049 V1 | Page 1...
-
Page 2: Assembly / Installation Instructions
ASSEMBLY / INSTALLATION INSTRUCTIONS: PART NUMBERS: 00-GLB2X-1753 (2 load bar Kit) 00-GLB1X-1752 (single load bar Kit) TOOLS REQUIRED INSTALLATION TIME • Torque wrench 1 Hour • T30 Torx bit socket Basic knowledge of hand tools required • 13mm wrench SKILL LEVEL 2= novice LEITNERDESIGNS.COM | SALES@LEITNERDESIGNS.COM | 949-395-3049... -
Page 3: Assembly Overview
▼ READ BEFORE INSTALLING ACS ROOF ▼ 1. Don’t over-tighten bolts. All 8mm bolts = (16ft-lb) 2. Lay down a large area of carpet or blankets as a work area to avoid scratching parts during assembly. 3. Although the ACS load bar kit is light having a friend to help is recommended. ▼... - Page 4 ▼ ACS ROOF hardware ▼ note: the singnle load bar has 1/2 the hardware as the 2X load bar kit 00-GLB2X-1753 (2 load bar Kit) m8 locknut m8 t-bolt endcap (x4] (x4) (x4) 00-GLB1X-1752 (single load bar Kit) m8 locknut m8 t-bolt endcap (x2]...
- Page 5 REMOVE: hand rails and brackets • REMOVE all hand rail brackets using a T30 wrench. THERE IS A TOTAL OF 12 BRACKETS AND 24 SCREWS. V1 | Page 5...
-
Page 6: Install: Mounting Brackets
INStALL: MOUNTING BRACKETS • REMOVE THE factory BRACKETS AND INSTALL LEITNER MOUNTING BRACKETS AS SHOWN IN IMAGE BELLOW. • MAKE SURE TAB ON FACTORY BRACKET IS ORIENTATED DOWN. (RED ARROW) when reinstalling •depending how many load bars you purchased you can replace every factory bracket with a load bar. - Page 7 INStALL: MOUNTING BRACKETS • Install assembly from last step as shown. • MAKE SURE TAB ON CENTER FACTORY BRACKET IS ORIENTATED DOWN. Note: Please use supplied blue threadlocker on all factory m6 bolts • tighten all 6mm screws to 10 ft-lb (13nm) RED circles •...
- Page 8 Install: load bars • install 2 t-bolts into one rail per load bar • align the load bars so that they are centered on the vehicle. • Torque all M8 locknuts to 16 ft-lb using a 13MM wrench. V1 | Page 8...
- Page 9 Install: load bars pads and endcaps • Install the rubber tread strip into the upper cross bar channel by pushing it into the t-slot with the palm of your hand. Note: some trimming of the rubber tread strip might be necessary. using windex (glass cleaner) as a lubricant helps with installation •...
- Page 10 finished: admire your handy work •you’re all done! the finished assembly should look like this depending on how many load bars you purchased. V1 | Page 10...
-
Page 11: Use Guidelines
•All locks must be turned and moved periodically to ensure smooth operation. Use graphite or dry lubricant to help this. Leitner designs locks are designed to deter vandalism and theft but should not be considered theft proof. Remove valuable gear if your vehicle is unattended for an extended period. -
Page 12: Warranty
Warranty Leitner Designs warrants product to be free from defects in material and workmanship, for terms specified below, provided there has been normal use and proper maintenance. All remedies under this warranty are limited to the repair or replacement of any item found by the factory to be defective within the time period specified.
