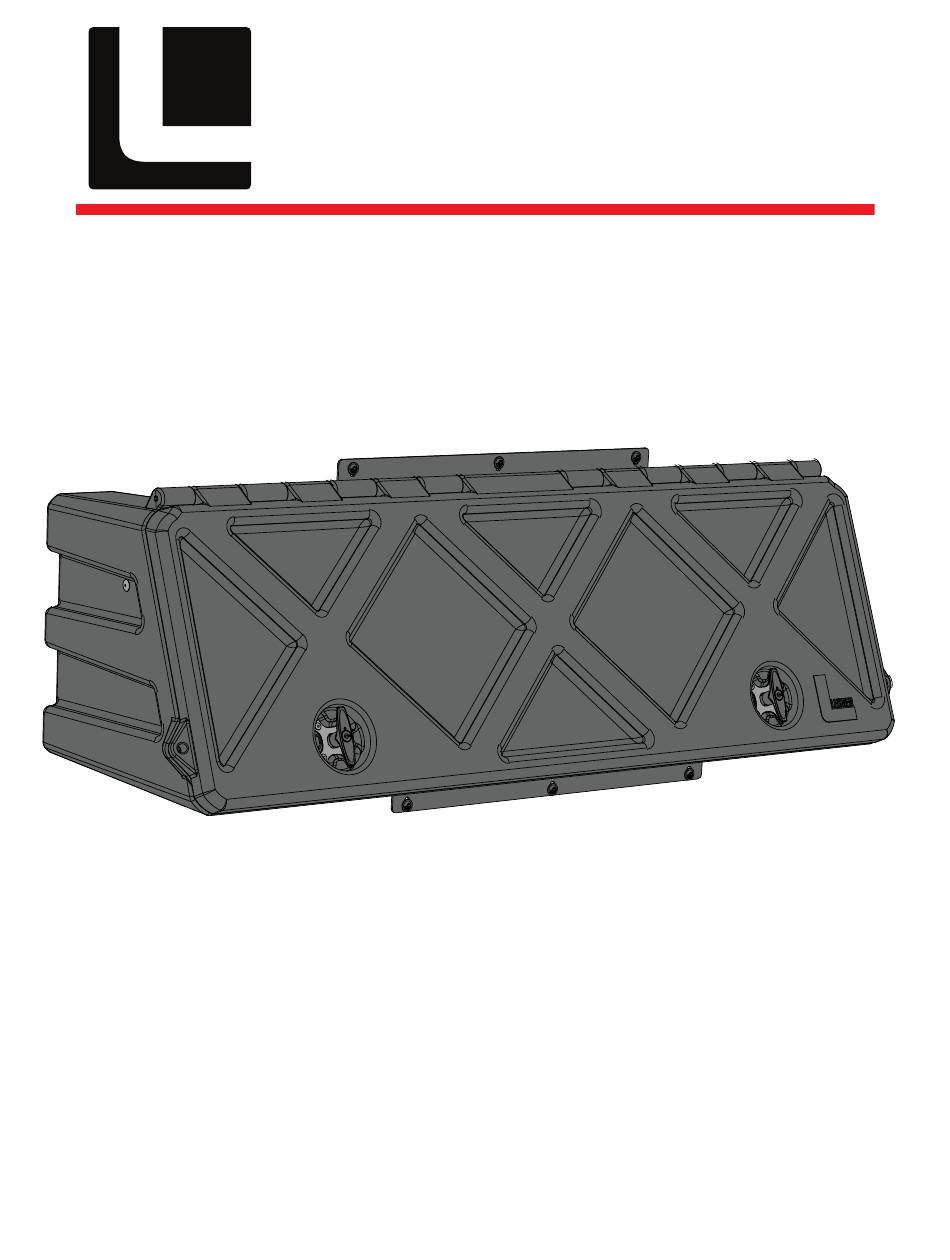

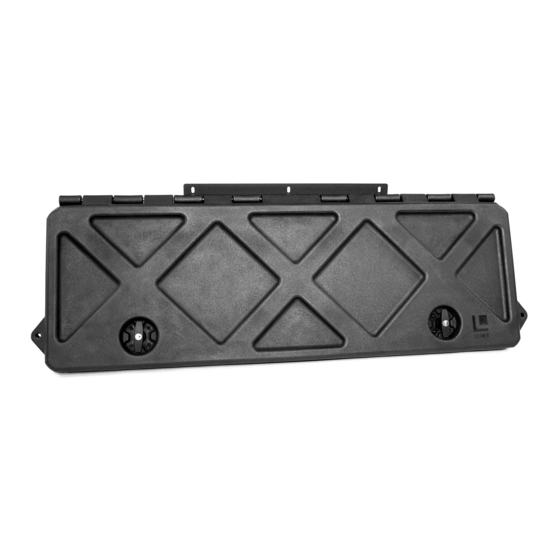

- Page 1 LEITNER TRAKLOK gear pod XL LEITNERDESIGNS.COM | SALES@LEITNERDESIGNS.COM | 949-395-3049 V1 | Page 1...
-
Page 2: Assembly / Installation Instructions
ASSEMBLY / INSTALLATION INSTRUCTIONS: PART NUMBER: 00-podxl-01-1227 TOOLS REQUIRED INSTALLATION TIME 10-15 minutes Basic knowledge of hand tools required • Torque wrench • 4mm allen wrench SKILL LEVEL • 5mm allen wrench 1= easy ▼ gear pod xl hardware ▼ m6 x 12 m8 x 14 traklok nut... -
Page 3: Assembly Overview
▼ READ BEFORE INSTALLING gear pod XL ▼ 1. Don’t over-tighten bolts. All 6mm bolts = (8 ft-lb) All 8mm bolts = (14 ft-lb) 3. Lay down a large area of carpet or blankets as a work area to avoid scratching parts during assembly. 5. - Page 4 attach upper mounting plate INSTALL m6 BOLTS • Place the upper mounting plate on top of the box. (the upper mounting plate has the longer mounting flange) • ensure the mounting flange faces the front of the box. • align the six holes in the mounting plate with the brass insert in the gear pod. •...
- Page 5 attach LOWER mounting plate INSTALL m6 BOLTS • Place the LOWER mounting plate on top of the box. (the LOWER mounting plate has the SHORTER mounting flange) • ensure the mounting flange faces the front of the box. • align the six holes in the mounting plate with the brass insert in the gear pod. •...
- Page 6 assemble fasteners to gear pod mounting plates • install one M8 X 14 bolt through each oval slot in upper and lower mounting plate and lossly thread on TrakLok nut. V1 | Page 6 V1 | Page 6...
- Page 7 install gear pod to ACS • align the Traklok nuts with the t-slots in the ACS. • using a 5mm allen wrench tighten the bolts to 14 ft-lb. NOTE: it is extremly important that the Traklok nuts rotate fully into •...
-
Page 8: Use Guidelines
•All locks must be turned and moved periodically to ensure smooth operation. Use graphite or dry lubricant to help this. Leitner designs locks are designed to deter vandalism and theft but should not be considered theft proof. Remove valuable gear if your vehicle is unattended for an extended period. -
Page 9: Warranty
Warranty Leitner Designs warrants product to be free from defects in material and workmanship, for terms specified below, provided there has been normal use and proper maintenance. All remedies under this warranty are limited to the repair or replacement of any item found by the factory to be defective within the time period specified.
