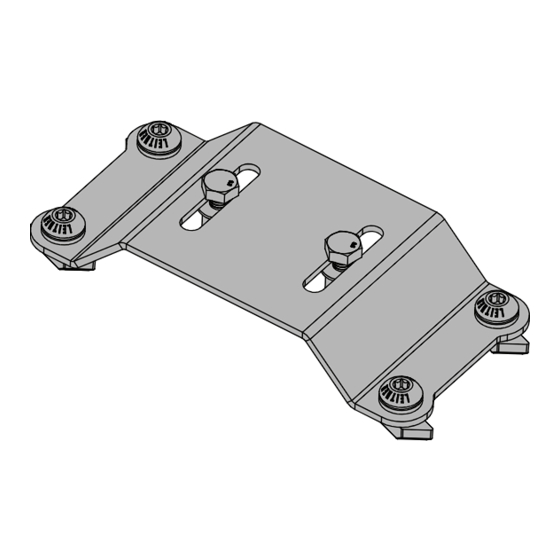

- Page 1 roof top tent brackets LEITNERDESIGNS.COM | SALES@LEITNERDESIGNS.COM | 949-395-3049 V1 | Page 1...
- Page 2 ASSEMBLY / INSTALLATION INSTRUCTIONS: PART NUMBER: 00-RRBA-1636 - Universal 00-RTBAI-1635 - IKAMPEr specific TOOLS REQUIRED INSTALLATION TIME 25-30 minutes Basic knowledge of hand tools required • t40 torx • 13mm Socket SKILL LEVEL 2= novice ▼ hardware ▼ hardware supplied with part # 00-RTBA-1634 “UNIVERSAL”...
- Page 3 ▼ READ BEFORE INSTALLING ▼ 1. Don’t over-tighten bolts. All 8mm bolts = (16ft-lb) 2. Take your time to do it right, ▼ ASSEMBLY OVERVIEW ▼ V1 | Page 3...
- Page 4 ASSEMBLE bracket INSTALL FASTENERS • INSTALL THE M8 X 14 SCREWS THROUGH THE BRACKET AND loosely ATTACH TRAKLOK NUTS. V1 | Page 4...
- Page 5 BRACKET TO ACS ROOF • align the Traklok nuts with the t-slots in the ACS ROOF. YOU WILL HAVE TO LOOSEN A LOAD BAR AND slide IT IN TO PLACE TO GET THE SLOTS TO line UP WITH THE BRACKET HARDWARE.
- Page 6 install roof top tent • Slide the correct fastener into the lower rails of the roof top tent. Please refer to the instructions that came with your tent for clarification. •Part Number “00-RRBA-1636 - Universal” is supplied with eight M8 X 20 fasteners that works with most tents on the market today.
- Page 7 •All locks must be turned and moved periodically to ensure smooth operation. Use graphite or dry lubricant to help this. Leitner designs locks are designed to deter vandalism and theft but should not be considered theft proof. Remove valuable gear if your vehicle is unattended for an extended period.
- Page 8 Warranty Leitner Designs warrants product to be free from defects in material and workmanship, for terms specified below, provided there has been normal use and proper maintenance. All remedies under this warranty are limited to the repair or replacement of any item found by the factory to be defective within the time period specified.
