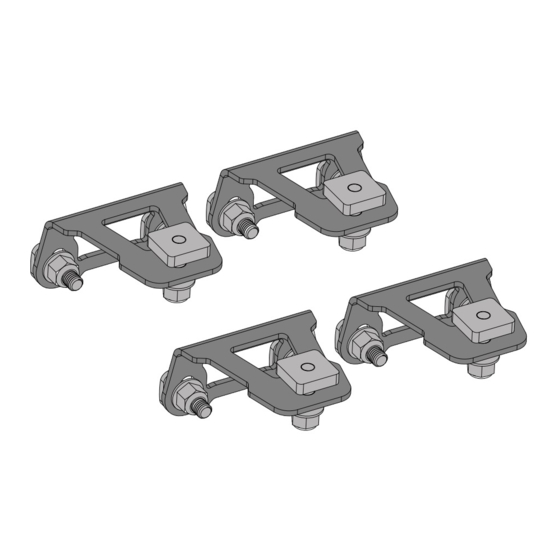

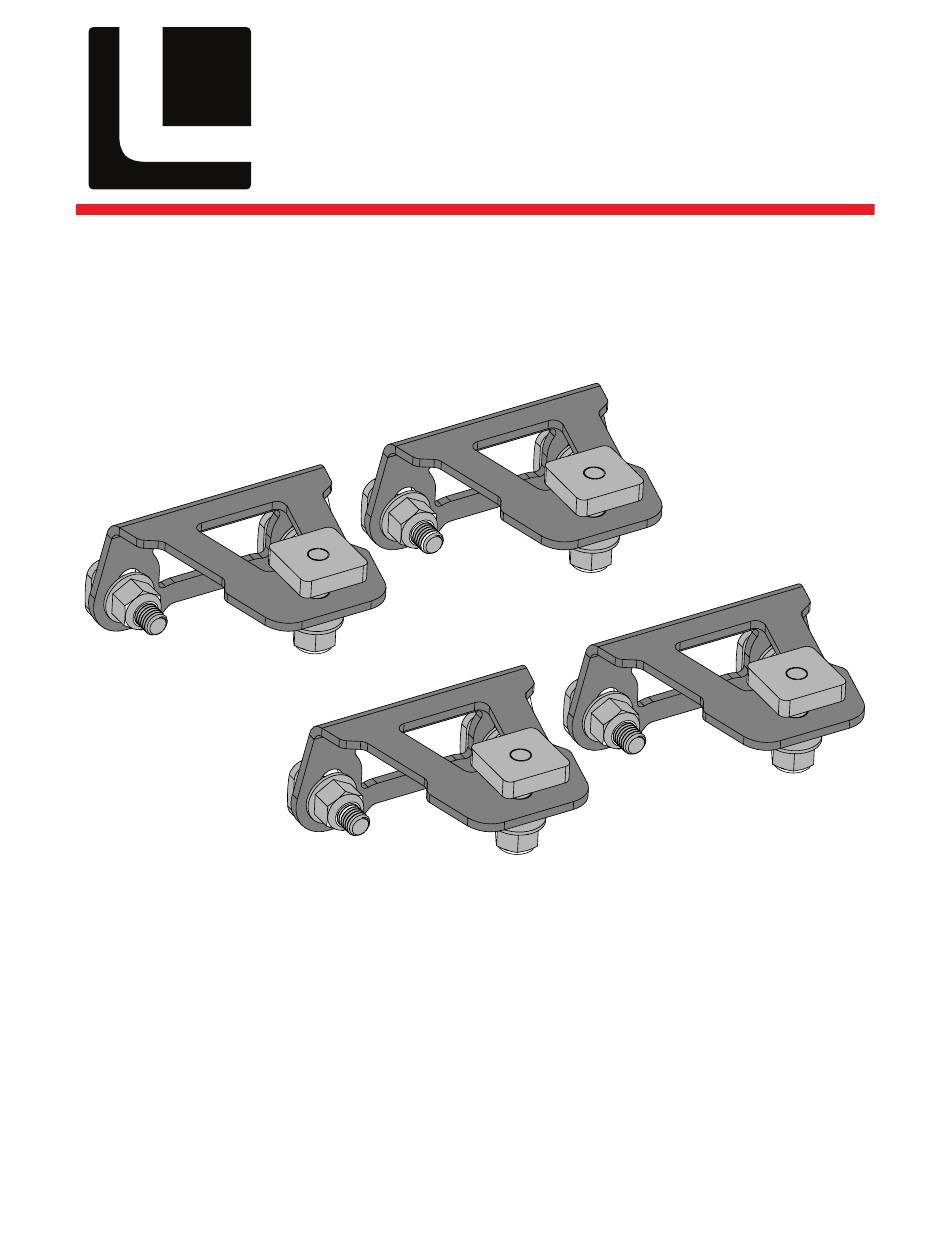

- Page 1 LEITNER James Baroud RTT brackets LEITNERDESIGNS.COM | SALES@LEITNERDESIGNS.COM | 949-395-3049 V1 | Page 1...
- Page 2 ASSEMBLY / INSTALLATION INSTRUCTIONS: PART NUMBER: 00-JBRTT-1389 TOOLS REQUIRED INSTALLATION TIME 25-30 minutes Basic knowledge of hand tools required • 13mm wrench SKILL LEVEL 2= novice ▼ hardware ▼ RAIL bOLT M8 T-bolt m8 lock nut (x4) (x8) (x16) LEITNERDESIGNS.COM | SALES@LEITNERDESIGNS.COM | 949-395-3049...
- Page 3 ▼ READ BEFORE INSTALLING ▼ 1. Don’t over-tighten bolts. All 8mm bolts = (14ft-lb) 2. Take your time to do it right, ▼ ASSEMBLY OVERVIEW ▼ rail bolt t-bolt m8 lock nut V1 | Page 3...
- Page 4 replace knobs with locknuts NOTE: we recommend you replace the knobs on the sliding load bar with the sup- plied locknuts when installing a roof top tent. • unscrew the 4 knobs securing the rear load bar. [fig a] • Slide the load bar as far back on the rack as possible and secure with the 4 M8 lock nuts provided. [fig b] fig- a fig- b V1 | Page 4...
- Page 5 install bracket to cross bars • assemble the t-bolts to the bracket as shown and attach with M8 locknuts. [Fig a] • remove an end-cap from the load bar and slide the t-bolts with bracket to the inside t-slot as shown. fig- a fig- b V1 | Page 5...
- Page 6 install tent • lift the tent onto the top of the rack. a forklift or a few of your strong friends will be required. • Lifting the tent slightly to get over the load bar slide two (2) rail bolts into both mounting rails on the underside of the tent.
- Page 7 •All locks must be turned and moved periodically to ensure smooth operation. Use graphite or dry lubricant to help this. Leitner designs locks are designed to deter vandalism and theft but should not be considered theft proof. Remove valuable gear if your vehicle is unattended for an extended period.
- Page 8 Warranty Leitner Designs warrants product to be free from defects in material and workmanship, for terms specified below, provided there has been normal use and proper maintenance. All remedies under this warranty are limited to the repair or replacement of any item found by the factory to be defective within the time period specified.
