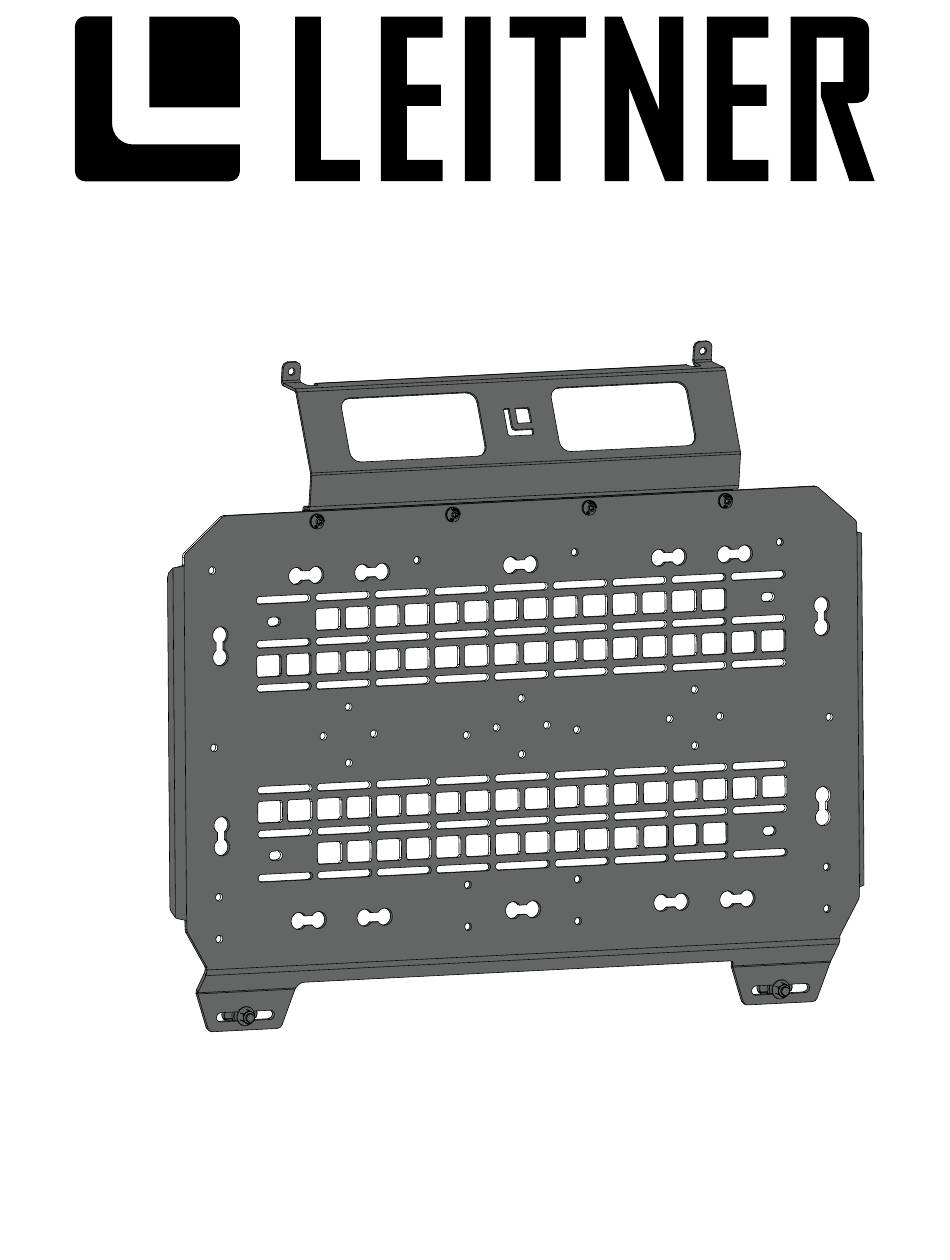

- Page 1 Ineos Grenadier side kick LEITNERDESIGNS.COM | SALES@LEITNERDESIGNS.COM | 949-395-3049 V1 | Page 1...
-
Page 2: Assembly / Installation Instructions
ASSEMBLY / INSTALLATION INSTRUCTIONS: PART NUMBERS: 00-IGSK-1812 TOOLS REQUIRED INSTALLATION TIME • Torque wrench 1 Hour • T30 Torx bit socket Basic knowledge of hand tools required • 14mm socket SKILL LEVEL 2= novice LEITNERDESIGNS.COM | SALES@LEITNERDESIGNS.COM | 949-395-3049... -
Page 3: Assembly Overview
▼ READ BEFORE INSTALLING side kick ▼ 1. Don’t over-tighten bolts. All 8mm bolts = (16ft-lb) 2. Lay down a large area of carpet or blankets as a work area to avoid scratching parts during assembly. 3. Although the side kick is light having a friend to help is recommended. ▼... - Page 4 ▼ sidekick hardware ▼ m8 locknut m8 x 20 washer l-track stud (x4] (x4) (x2] (x2] V1 | Page 4...
-
Page 5: Install: Mounting Brackets
INStALL: MOUNTING BRACKETS • using 4 M8 X 20 screws and 4 M8 locknuts attach the mounting plate to the side kick plate as shown below. • note: the mounting plate goes behind the Aluminum side kick pannel. V1 | Page 5... - Page 6 REMOVE: screws from Leitner mounting brackets • REMOVE the two M8 screws from the Leitner Designs roof mounting brackets above the rear window using a T40 wrench. these will be reused in a later step so do not discard. V1 | Page 6...
- Page 7 INStALL: Side kick assembly • Install assembly to the roof rack brackets using the bolts removed in previous step . get 2-3 threads started and do not tighten at this time. V1 | Page 7...
- Page 8 INStALL: T-track studs • install the T-Track studs into the rail and line up with the oval slots in the Side Kick panel. The panel will flex out of the way so you can install The studs. • Make sure the collar on the stud is behind the Side kick plate and that the flange line up perfectly with the hole in the L-track •...
-
Page 9: Use Guidelines
•All locks must be turned and moved periodically to ensure smooth operation. Use graphite or dry lubricant to help this. Leitner designs locks are designed to deter vandalism and theft but should not be considered theft proof. Remove valuable gear if your vehicle is unattended for an extended period. -
Page 10: Warranty
Warranty Leitner Designs warrants product to be free from defects in material and workmanship, for terms specified below, provided there has been normal use and proper maintenance. All remedies under this warranty are limited to the repair or replacement of any item found by the factory to be defective within the time period specified.
