Wilson weBoost DRIVE SLEEK OTR, 460035 Manual

NEED HELP?
support.weboost.com
866.294.1660

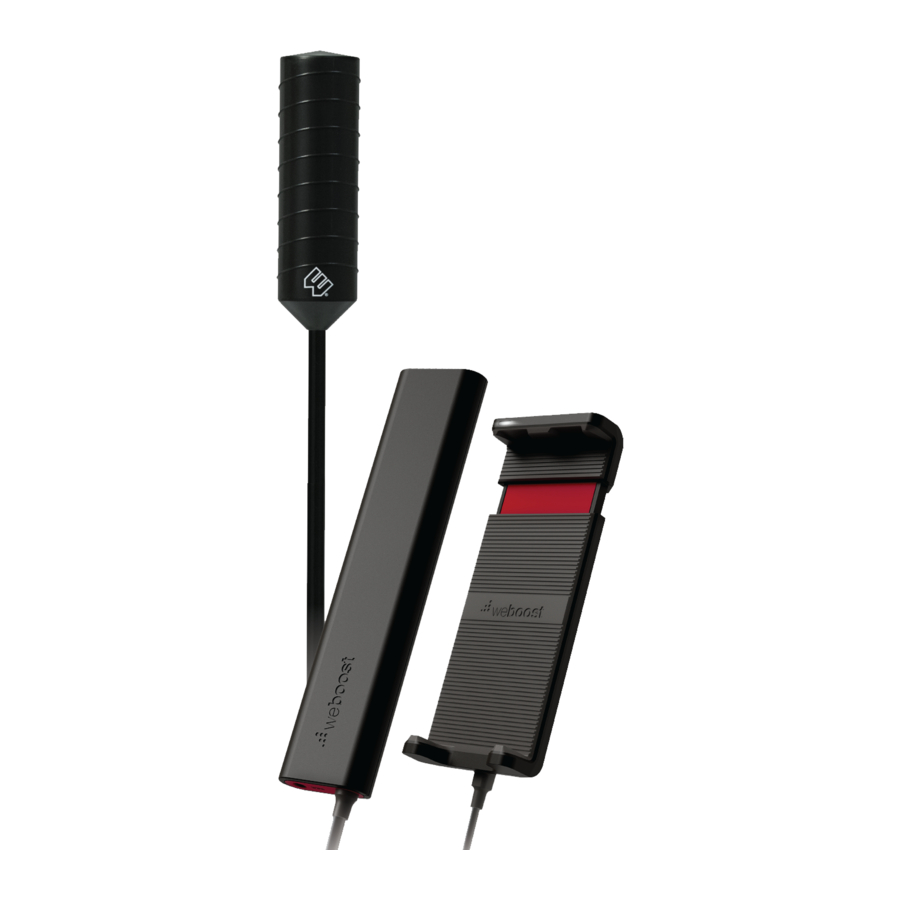

Package Contents

Step 1: Select Mounting Location & Assemble the Outside Antenna

Select mounting location on vehicle. The outside antenna can be mounted in any CB mount or antenna mounting point on the vehicle. For best performance mount the antenna above the metal cab (it does not need to be above cab wind deflector).

Depending on the type of truck, there may be built-in antenna mounting points. If the vehicle does not have built-in mounting points, the antenna includes a 3-way mount that will work on vehicles with mirror rails. The antenna will also work with third party CB antenna mounts.

information NOTE: Mount at least 12 inches from any other antennas. Free of obstructions.

information NOTE: If the vehicle is using two CB antennas with co-phase wiring, removing one antenna will cause reduced performance of the remaining CB antenna.

Select Mounting Location

Once you have determined the best location for the outside antenna and have determined if mast extensions are needed, insert cable through mast.

information NOTE: Mast extensions may not be needed depending on your mounting point.

If using mast extension(s) add thread locker (packets provided) to thread point(s). Screw into place.

information NOTE: Be sure the antenna is the correct height before applying thread locker.

Add thread locker (packets provided) to thread point and screw on the side exit adapter.

information NOTE: When adding the side exit adapter hold the antenna vertically and screw the adapter from the bottom up. This reduces cable twisting.

Assemble the Outside Antenna

Step 2: Mount The Outside Antenna

These are some typical antenna mounting points. If the vehicle does not have built-in mounting points, a 3-way mount is included that will work on vehicles with mirror rails.

Mount The Outside Antenna - Step 1

If installing with the antenna spring, disassemble and reassemble the 3-way mount as shown below.
Mount The Outside Antenna - Step 2

Step 3: Route Outside Antenna Cable & Connect Booster

Connect the cable from the outside antenna to the cable adapter then to the booster port labeled ANTENNA by simply pressing the connector in until you hear a "click".

information NOTE: Connecting cable from outside antenna to booster does not take much force.
Route Outside Antenna Cable & Connect Booster - Step 1
The included Velcro® can be used to mount the booster out-of-the way on the floor under a seat or mounted in the back of the cab. It is best to mount in a place where the cables cannot be tripped over or snagged (damaging the booster).

information NOTE: The "hook" side of the Velcro® (already on the booster) can be used to attach to the carpet of many vehicles.
Route Outside Antenna Cable & Connect Booster - Step 2

Step 4: Route Fixed Booster Cable & Connect To Cradle

Place booster behind seats or in back area of vehicle and route the 15 foot fixed cable to the front of the vehicle where the cradle will be located.
Route Fixed Booster Cable & Connect To Cradle - Step 1

Connect booster cable to sleek cradle cable.
Route Fixed Booster Cable & Connect To Cradle - Step 2

Step 5: Connect System To Power

Connect the power to the 12V* CLA port on your vehicle and route power cable back to the booster.

information NOTE: We recommend routing with the same path as the cradle/booster cable (under mats and between seats).
Connect System To Power - Step 1

Connect power cable to booster port labeled .

information NOTE: The booster will be on whenever there is power from the 12V CLA port. If your vehicle always has power going to this port, you may want to unplug this when you're not driving so the booster does not drain your battery. *Only 12V ports are supported.
Connect System To Power - Step 2

Step 6: Insert Your Phone Into Cradle

Make sure you have plenty of slack in the cable going up to the cradle (Velcro® straps included to manage excess cable). Insert your phone into sleek cradle and watch your signal increase!
Insert Your Phone Into Cradle
information NOTE: A magnetic mount is provided which provides a versatile, safe and functional smartphone solution.


The FCC requires to never use the cell phone in the cradle next to your ear.

Troubleshooting

Solid White (LED on sleek cradle)

This indicates that your booster is functioning properly and at maximum gain.

Light Off (LED on sleek cradle)

Check/secure power connections to the CLA, booster, and cradle. If light shuts off, remove from vehicle port and plug back in to reset the system. For any questions or assistance contact our weBoost Customer Support Team (1-866-294-1660).

Dropped Calls

If you are regularly experiencing dropped calls in the same areas, turn off VoLTE/HD Voice in your phone's settings.

Safety Guidelines

Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment.

Any antenna used with this device must be located at least 8 inches from all persons.

FCC requires to never use the cell phone in the cradle next to your ear.

This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.

You MUST cease operating this device immediately if requested by the FCC or licensed wireless service provider.


E911 location information may not be provided or may be inaccurate for calls served by using this device.

FOR MORE INFORMATION ON REGISTERING YOUR SIGNAL BOOSTER WITH YOUR WIRELESS PROVIDER, PLEASE SEE BELOW:

T-Mobile/Sprint/MetroPCS: https://www.t-mobile.com/support/coverage/register-a-signal-booster

Verizon Wireless: http://www.verizonwireless.com/wcms/consumer/register-signal-booster.html

AT&T: https://securec45.securewebsession.com/attsignalbooster.com/

U.S. Cellular: http://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp

Antenna Kit Options

The following accessories are certified by the FCC to be used with the Drive Sleek OTR.

This radio transmitter 4726A-460035 has been approved by innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.

BAND 12/17 BAND 13 BAND 5 BAND 4 BAND 25/2
Outside antenna maximum permissible antenna gain (dBi) 50Ω 2.9 1.2 2.5 2.8 6.1
Inside antenna maximum permissible antenna gain (dBi) 50Ω 2.1 2.6 3.2 2.1 2.7

FIXED INSIDE ANTENNA KIT OPTIONS

Kit # Coax Type Ln(ft) Antenna Type
311251 RG-174 4 Cradle Antenna 50

FIXED OUTSIDE ANTENNA KIT OPTIONS

Kit # Coax Type Ln(ft) Antenna Type
311215 LMR-100 10 Mini-Mag SMB 50
311229 RG-58 15 4G Trucker 50
311230 RG-6 25 4G RV OTR 75
314405 RG-58 14 4G NMO 50

Specifications

Drive Sleek

Product Number U470035
Model Number 460035
FCC ID: PWO460035
Frequency 698-716 MHz, 729-756 MHz, 777-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz
Power output for single cell phone (Uplink) dBm Maximum Power
700 MHz
Band 12/17
18.74
700 MHz
Band 13
21.57
800 MHz
Band 5
22.65
1700 MHz
Band 4
25.56

1900 MHz
Band 2


9.19

Power output for single cell phone (Downlink) dBm 700 MHz
Band 12/17
2.1
700 MHz
Band 13
2.1
800 MHz
Band 5
-2.5
2100 MHz
Band 4
-0.6
1900 MHz
Band 2
2.5
Noise Figure 5 dB nominal
Power Requirements 12 V 1.5 A / USB 5V 2.1 A

Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted without factory reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming and outgoing signals in order to increase coverage of authorized frequency bands only. If the Signal Booster is not in use for five minutes, it will reduce gain until a signal is detected. If a detected signal is too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster will automatically turn the power off on that band. For a detected oscillation the Signal Booster will automatically resume normal operation after a minimum of 1 minute. After 5 (five) such automatic restarts, any problematic bands are permanently shut off until the Signal Booster has been manually restarted by momentarily removing power from the Signal Booster. Noise power, gain, and linearity are maintained by the Signal Booster's microprocessor.

This device complies with Part 15 of FCC rules. Operation is subject to two conditions:

  1. This device may not cause harmful interference, and
  2. this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment.

2 YEAR WARRANTY
weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase.
