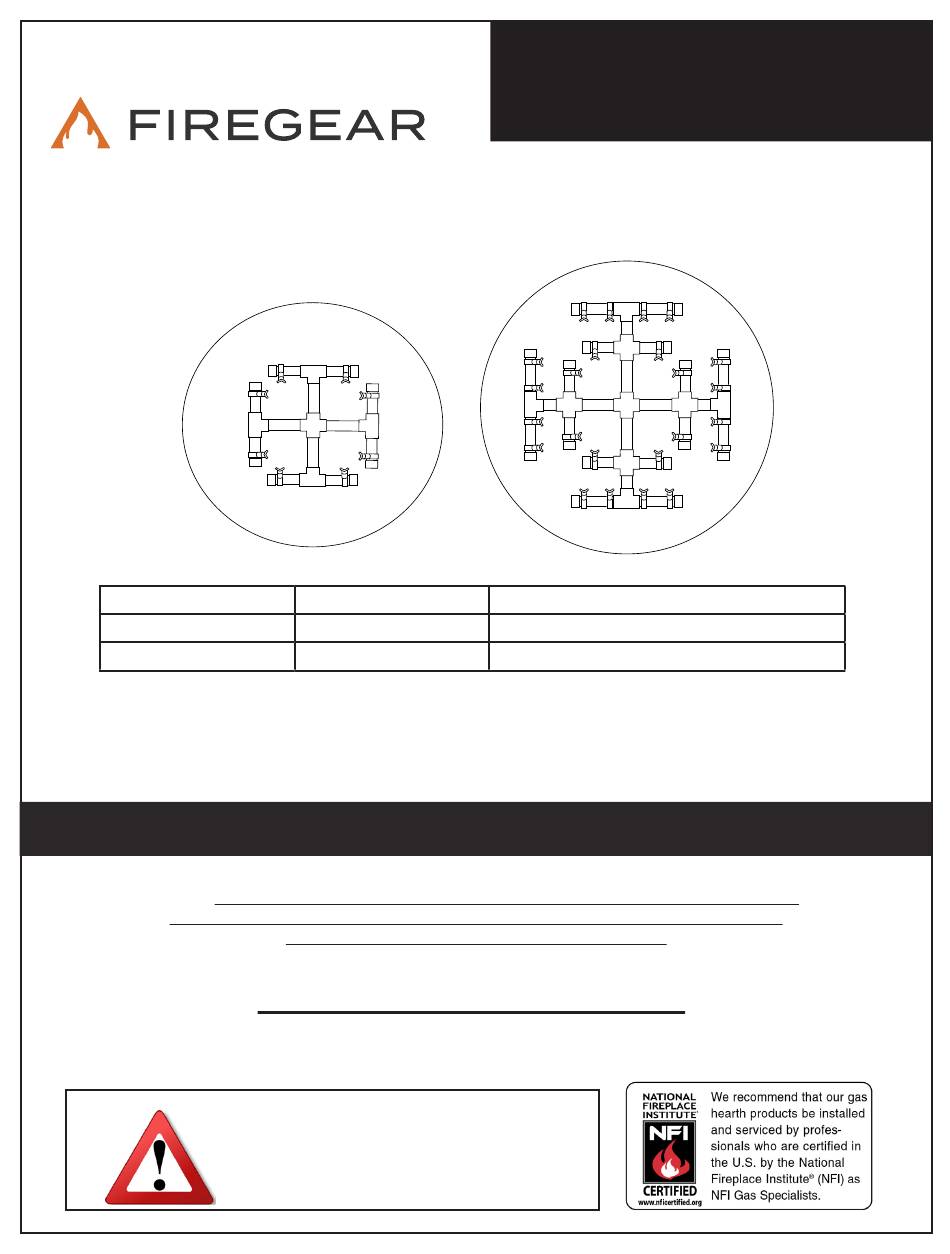

"PRO SERIES"
Natural Gas
FPB-34DPSMT-N-SAN
FPB-26DPSMT-N-SAN
Round Flat Pan Match Throw (MT) Ignition Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
NOTE: All models come shipped from the factory as Natural gas or Propane (LP) gas
models. They must be ordered specifically as Natural gas or Propane models and
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
MODELS
Propane
FPB-34DPSMT-P-SAN
FPB-26DPSMT-P-SAN
(These fire pits will fit Sanctuary 2 & 3 models)
cannot be field converted from one gas to another.
INSTALLATION PRECAUTION:
PN#90487
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Description
34" Round Burner with 18" Snowflake Burner
26" Round Burner with 11" Snowflake Burner
Advertisement
Table of Contents
Related Manuals for Firegear PRO FPB-34DPSMT-N-SAN
Summary of Contents for Firegear PRO FPB-34DPSMT-N-SAN
- Page 1 DO NOT DISCARD. THIS MANUAL HAS IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS. LEAVE WITH THE HOMEOWNER. MODEL: “PRO SERIES” SERIAL #: MODELS Natural Gas Propane Description FPB-34DPSMT-N-SAN FPB-34DPSMT-P-SAN 34” Round Burner with 18” Snowflake Burner FPB-26DPSMT-N-SAN FPB-26DPSMT-P-SAN 26” Round Burner with 11” Snowflake Burner Round Flat Pan Match Throw (MT) Ignition Fire Pits Installation and Operating Instructions (These fire pits will fit Sanctuary 2 &...
-
Page 2: Carbon Monoxide Hazard
CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or use gasoline or other... -
Page 3: Table Of Contents
Optional Accessories Warranty Congratulations! You have just purchased a Firegear Outdoors “Pro Series” Snowflake Burner. The Brass Burners are 11” and 18” diameter models. Each model incorporates individual injectors that eliminates the need for a main burner orifice. The 11” model incorporates 8 injectors the 18” incorporates 24 injectors. -
Page 4: Specifications
SANCTUARY SPECIFICATIONS MODELS BURNER MINIMUM GROUND SIDE COMBUSTIBLE COMBUSTIBLE DIAMETER SIZE OPENING LEVEL WALL CEILING FLOOR N= Natural Gas P= Propane Gas FPB-26DPSMT-N-SAN 26” 11” 24” 8” 36” 96” 18” (660mm) (279mm) (610mm) (203mm) (914mm) (2438mm) (457mm) FPB-26DPSMT-P-SAN FPB-34DPSMT-N-SAN 34” 18”... - Page 5 An injector/jet limits the amount of gas flow to the burner to ensure the flame is a safe and reasonable height to not pose a risk to people or property. Note: The Firegear Pro Series brass burners DO NOT USE a primary main burner orifice like a standard stainless steel burner.
-
Page 6: High Elevation
7. These products are designed for outdoor use only. Not approved for any indoor use. 8. This fire pit is designed to have Firegear Outdoors lava rock or glass media completely covering the burner tube, so that the burner is not visible. Do not cover more than 1” above the top of burner. Use lava rock a minimum of 1”... -
Page 7: Gas Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 8: Removing Burner From Carton
PREPARING BURNERPAN FOR INSTALLATION Pro Burner & Flat Pan Key Valve Assembly Flexible Gas Line Hardware Carton Contents Fig. 4 Removing burner pan from carton. REMOVING BURNER PAN FROM CARTON Open carton and remove contents. Inspect for any damage or missing parts. The hardware bag include mounting plate screws, and orifice. - Page 9 PREPARING BURNERPAN FOR INSTALLATION Pro Snow akeBurner Non-Combustible Fire Pit Enclousure Fire Pit Pan Key Valve Shut-O Gas Supply Fig. 5 Typical Installation Note: A 1¼” x 2” black iron or galvanized coupler/nipple (not supplied) can be used as a spacer between the manual valve and the valve flange to add additional support to hold the manual key valve in Non-...
-
Page 10: Operation
PREPARING BURNERPAN FOR INSTALLATION INSTALL LAVA ROCK/MEDIA INTO BURNER PAN Install lava rock/media into the burner pan. Ensure the media is a minimum of 1-inch diameter for proper operation. Note: Do not pour Lava Rock directly from bag. Media should be placed naturally and NOT packed in tight. Loose media is important to ensure robust a flame pattern. - Page 11 MT OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water.
-
Page 12: Replacement Parts
REPLACEMENT PARTS Drawings No to Scale REPLACEMENT PARTS LIST Qty. Item Description Part Number 34-inch round flat stainless disc (used with Sanctuary 2 model) PAN-SS34D 26-inch round flat stainless disc (used with Sanctuary 3 model) PAN-SS26D 18-inch Snowflake Burner - NG (used with Sanctuary 2 fire feature) 10902 18-inch Snowflake Burner - LP (used with Sanctuary 2 fire feature) 10903... -
Page 13: Fire Pit Maintenance
FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4. -
Page 14: Optional Accessories
Model: FG-60LHRK Model: 01-288 Model: ESTOP2-5H 2.5hr. timer ½” OD Flare x ½” OD Flare NOTE: See the Firegear Outdoors catalog for other accessories also available. FOR TECHNICAL SERVICE, CALL: (800) 966-8126 Firegear Outdoors 17322 Gothard St. Huntington Beach, CA 92647 Web Site: www.firegearoutdoors.com... - Page 15 Pro Series SF-Burner - Match Throw (MT) System Fire Pits REV. A Page 15...
-
Page 16: Warranty
COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •... - Page 17 Product to be returned should; be packed so as not to incur damages during transportation. Firegear is not responsible for damages on returned items. RMA is valid for thirty (30) days from the date issued. The RMA must be clearly marked on the outside of the package.
- Page 18 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. Firegear Outdoors 17322 Gothard St.
- Page 19 Having problems getting the fire pit to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
