"PRO SERIES"
Round Pan
Natural Gas Models
FPB-19RPSBR14TPSI-N FPB-19RPSBR14TPSI-P 19" Round Pan with 14" Pro Brass Burner
FPB-25RPSBR21TPSI-N FPB-25RPSBR21TPSI-P 25" Round Pan with 21" Pro Brass Burner
FPB-29RPSBR21TPSI-N FPB-29RPSBR21TPSI-P 29" Round Pan with 21" Pro Brass Burner
FPB-33RPSBR21TPSI-N FPB-33RPSBR21TPSI-P 33" Round Pan with 21" Pro Brass Burner
FPB-20SPSBR14TPSI-N FPB-20SPSBR14TPSI-P 20" Square Pan with 14" Pro Brass Burner
FPB-26SPSBR21TPSI-N FPB-26SPSBR21TPSI-P 26" Square Pan with 21" Pro Brass Burner
FPB-32SPSBR21TPSI-N FPB-32SPSBR21TPSI-P 32" Square Pan with 21" Pro Brass Burner
Outdoor Thermocouple Piloted
Safety Ignition (TPSI) Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This system requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation will void the warranty.
Warning: For Outdoor Use Only
Propane Gas Models
INSTALLATION PRECAUTION:
PN#90258
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
#20-025
Square Pan
Description
Advertisement
Related Manuals for Firegear Pro Series
Summary of Contents for Firegear Pro Series
- Page 1 DO NOT DISCARD. THIS MANUAL HAS IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS. LEAVE WITH THE HOMEOWNER. MODEL: “PRO SERIES” SERIAL #: #20-025 Square Pan Round Pan Natural Gas Models Propane Gas Models Description FPB-19RPSBR14TPSI-N FPB-19RPSBR14TPSI-P 19” Round Pan with 14” Pro Brass Burner FPB-25RPSBR21TPSI-N FPB-25RPSBR21TPSI-P 25”...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or use gasoline or other...
-
Page 3: Table Of Contents

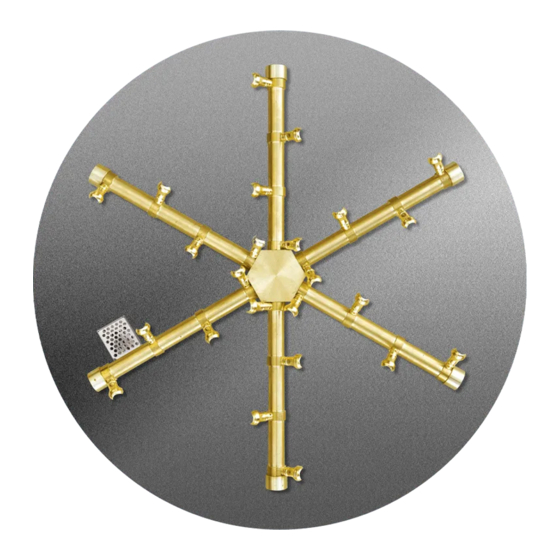

Fire Pit Maintenance/ Trouble Shooting Optional Accessories Congratulations! You have just purchased a Firegear Outdoors “Pro Series” fire pit that includes a 304 Stainless Steel burner pan with a Brass Burner. The Brass Burners come in two diameter sizes, 14-inch, and 21-inch models. Each burner leg incorporates individual injectors that take the place of a standard main burner orifice. -
Page 4: Specifications
SPECIFICATIONS Natural Gas Models: Propane Gas Models: Depth Min/Max Inside Pan Ground Side Combustible Combustible Opening Dimension Level Wall Ceiling Floor FPB-19RPSBR14TPSI-N FPB-19RPSBR14TPSI-P 2½” 19 ¼” -20” 19” Rd. 16” 36” 120” 18” FPB-25RPSBR21TPSI-N FPB-25RPSBR21TPSI-P 2½” 25 ¼”- 26” 25” Rd. 16”... -
Page 5: Gas Pipe Sizing
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... - Page 6 Installation of Natural or LP gas should be done by a qualified installer, service agency or gas supplier. This appliance must 2- Firegear 6 x12 vents be isolated from the gas supply piping system by closing its (Model # VENT-KIT-6X12)
-
Page 7: Removing Fire Pit From Carton
REMOVING FIRE PIT FROM CARTON Valve Assembly Flexible Gas Line Thermocouple Lead Piezo Wires Pilot Tubing Control Panel Hardware Carton Contents Fig. 3 Shows carton contents. Note: Round pan was illustrated for this drawing. This fire pit is comes partially assembled from the factory. The pilot tubing and thermocouple leads are 48”... -
Page 8: Requirements
Thermocouple PIEZO48WH Connection PIEZO25WH Pilot Gas Remove red button cap and install battery into Piezo ignitor module. Line Outlet To Burner Inlet Gas Mounting Plate Supply Plastic Nut Red Button Cap Piezo Ignition Control Knob Fig. 7 TPSI control panel mounting plate. Fig. - Page 9 PILOT ASSEMBLY Screen Hood Flame Spreader It is important to understand that this is a “standing pilot” system. When placing media around the pilot area ensure the top of the screen hood/cover is open to exhaust the Ignitor gases and enable the pilot to operate properly. See Fig. 9. Thermocouple INSTALLATION OF LAVA ROCK/MEDIA INTO FIRE PIT Install lava rock/media into the burner pan.
- Page 10 Pro Spur Burner Non-Combustible Enclosure Drop In Pan Pilot Tube Gas Valve Piezo Wires Thermocouple Piezo Shut-O Gas Supply Gas valve and flexible gas lines are supplied; E-Stop shut-off is not supplied, but available in accessories page. Flex lines with flared fittings do not require Teflon tape or pipe compound. Ensure not to “kink” the flex lines to allow better gas flow of gas.
-
Page 11: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 12: Replacement Parts
TPSI REPLACEMENT PARTS 3-3A / 4-4A Drawings not to scale. FPB Pro Spur Burner; Rd & Sq Drop In Pans with TPSI System REV. A Page 12... - Page 13 TPSI REPLACEMENT PARTS Qty. Item Description Part Number 19-inch Round Stainless Pan PAN-SS19R 25-inch Round Stainless Pan PAN-SS25R 29-inch Round Stainless Pan PAN-GV29R 33-inch Round Stainless Pan PAN-GV33R 20-inch Square Stainless Pan PAN-SS20S 26-inch Square Stainless Pan PAN-SS26S 32-inch Square Stainless Pan PAN-SS32S 14-inch Pro Spur Burner - Natural Gas FG-PSBR-BS14-NG...
-
Page 14: Fire Pit Maintenance/ Trouble Shooting
FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4. - Page 15 ACCESSORIES The following accessories are available from your local Firegear dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. E-STOP Paver Vents Flexframe Gas shut-off valve with mechanical Model: PAVER-VENT-4-LNTS Universal brackets to support a fire timer and emergency shut-off.
- Page 16 FIREGEAR LIMITED WARRANTY - 2022 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 17 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 18 Product to be returned should; be packed so as not to incur damages during transportation. Firegear is not responsible for damages on returned items. RMA is valid for thirty (30) days from the date issued. The RMA must be clearly marked on the outside of the package.
- Page 19 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. Firegear Outdoors 17322 Gothard St.
- Page 20 Having problems getting the fire pit to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
