Firegear Pro Series Installation And Operating Instructions Manual
Outdoor thermocouple piloted safety ignition (tpsi) fire pits
Hide thumbs
Also See for Pro Series:
- Installation and operating instructions manual (23 pages) ,
- Installation and operating instructions manual (19 pages) ,
- Installation and operating instructions manual (23 pages)
Table of Contents
Advertisement
Quick Links
"PRO SERIES"
H-Burner
Model
Model
( (
N= Natural Gas)
N= Natural Gas)
LOF-3010PS246TPSI-N
LOF-3610PS306TPSI-N
LOF-4810PS406TPSI-N
LOF-6010PS506TPSI-N
LOF-4016OPS246TPSI-N 40" X 16" Linear Flat Pan & 24" x 6" Pro H-Burner
LOF-5616OPS406TPSI-N 56" X 16" Linear Flat Pan & 40" x 6" Pro H-Burner
Outdoor Thermocouple Piloted
Safety Ignition (TPSI) Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
NOTE: All TPSI models come shipped from the factory as Natural gas or Propane (LP)
gas. They must be ordered specifically as Natural gas or Propane models and cannot be
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
MODELS
Description
Description
30" X 10" Linear Flat Pan & 24" x 6" Pro H-Burner
36" X 10" Linear Flat Pan & 30" x 6" Pro H-Burner
48" X 10" Linear Flat Pan & 40" x 6" Pro H-Burner
60" X 10" Linear Flat Pan & 50" x 6" Pro H-Burner
field converted from one gas to another.
INSTALLATION PRECAUTION:
PN#90249
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
#20-025
H-Burner
Model
Model
( (
P= Propane
P= Propane G
Gas)
LOF-3010PS246TPSI-P
LOF-3610PS306TPSI-P
LOF-4810PS406TPSI-P
LOF-6010PS506TPSI-P
LOF-4016OPS246TPSI-P
LOF-5616OPS406TPSI-P
Advertisement
Table of Contents
Related Manuals for Firegear Pro Series
Summary of Contents for Firegear Pro Series

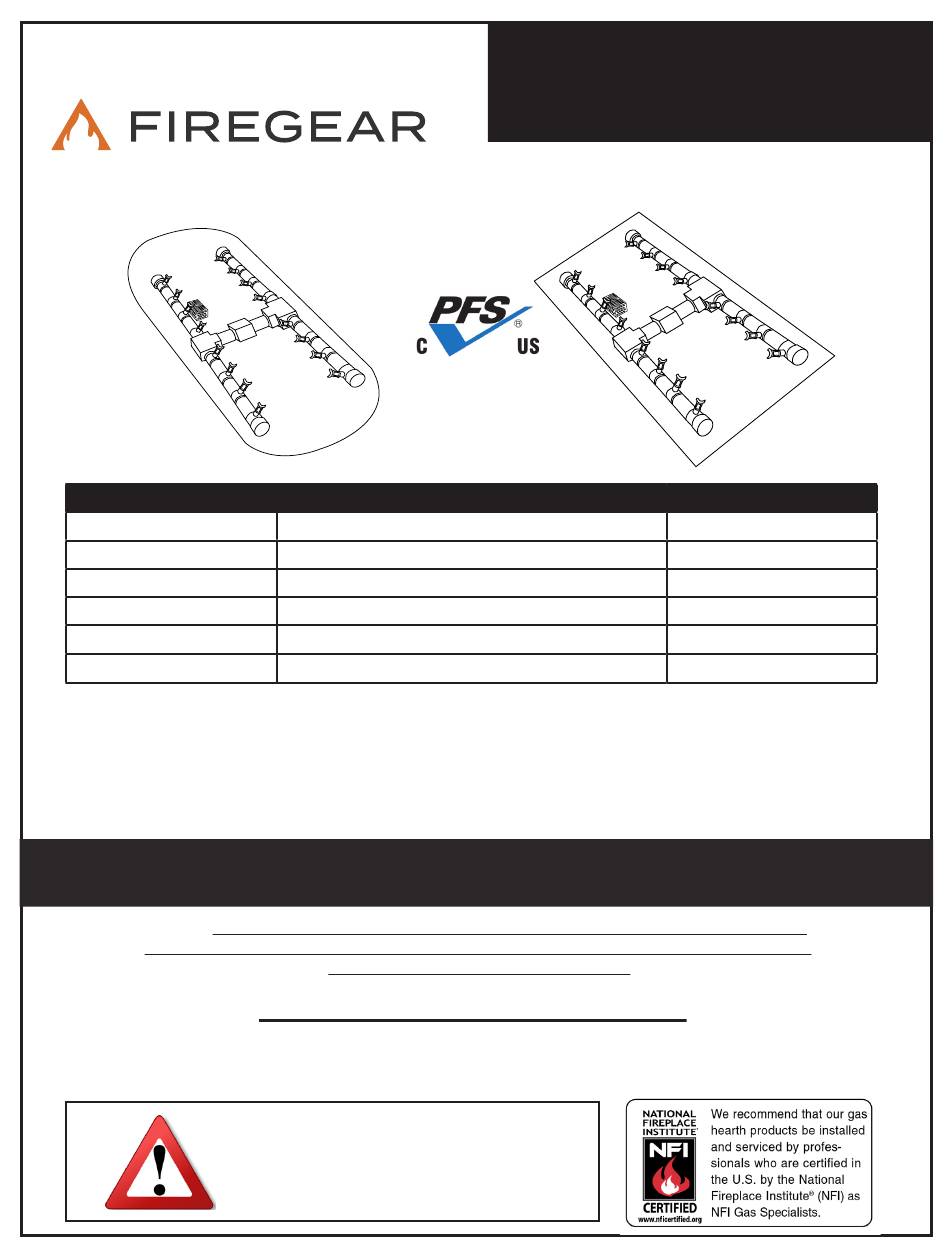

- Page 1 DO NOT DISCARD. THIS MANUAL HAS IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS. LEAVE WITH THE HOMEOWNER. MODEL: “PRO SERIES” SERIAL #: #20-025 H-Burner H-Burner MODELS Model Model Description Description Model Model N= Natural Gas) N= Natural Gas) P= Propane G P= Propane...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. DANGER WARNING FIRE OR EXPLOSION HAZARD...
-
Page 3: Table Of Contents

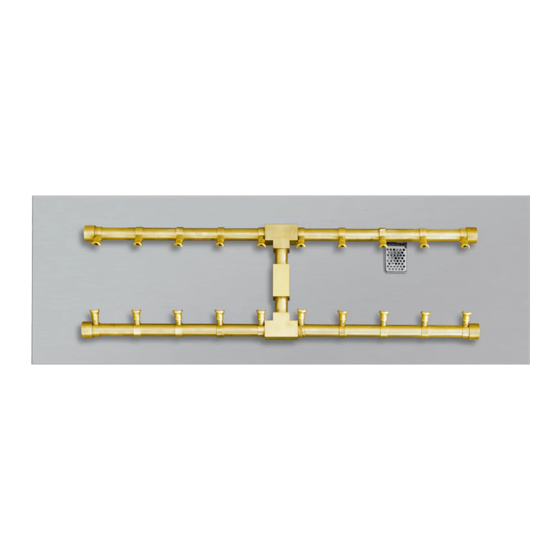

Fire Pit Maintenance/Trouble Shooting Optional Accessories Congratulations! You have just purchased a Firegear Outdoors “Pro Series” H-Burner. These are Brass Burners that come in several size models. Each burner is 6¾” wide and incorporates individual injectors that eliminate the need for a main burner orifice. -
