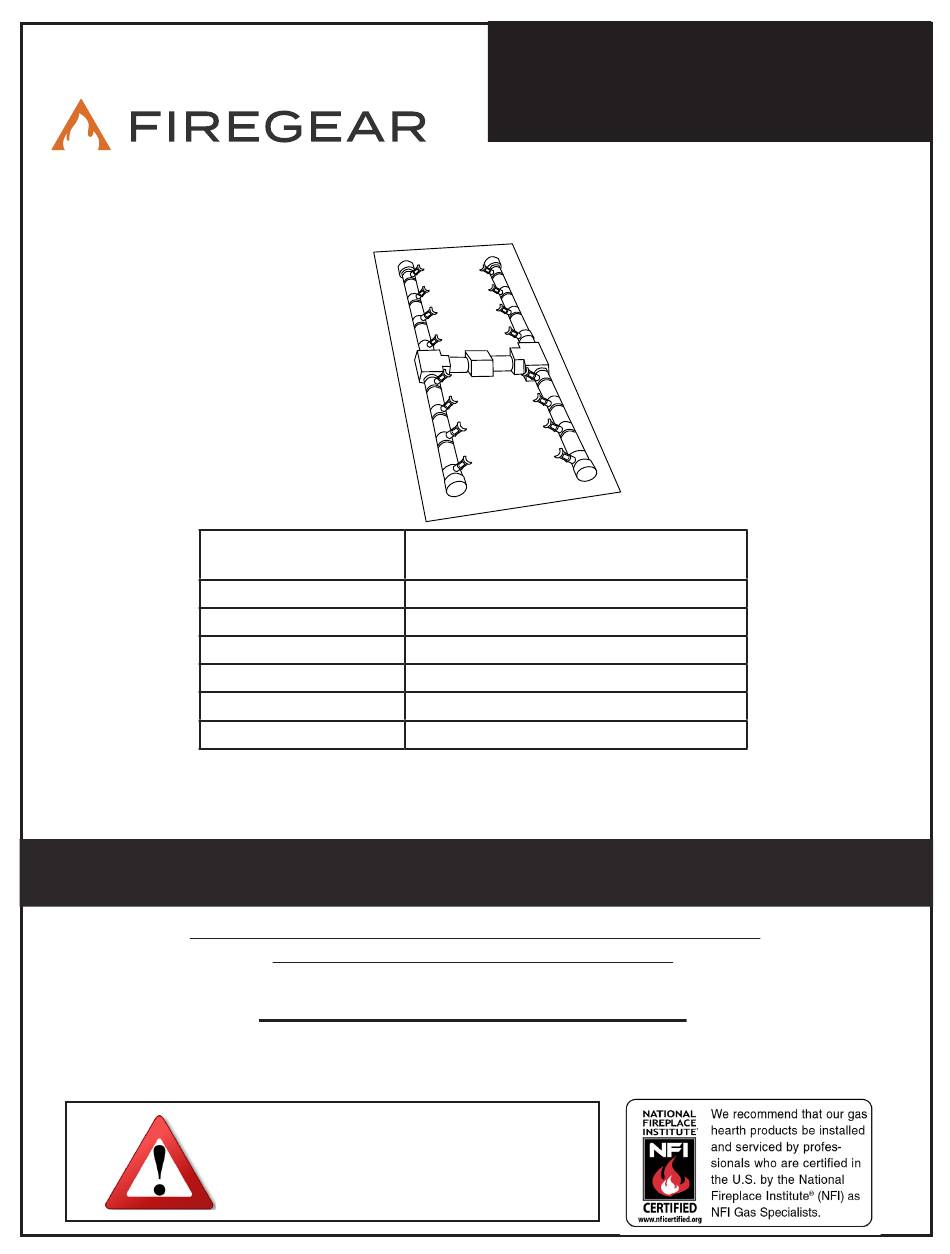

"PRO SERIES"
Model
N= Natural / P= Propane
LOF-3010PS246MT-N/P
LOF-3610PS306MT-N/P
LOF-4810PS406MT-N/P
LOF-6010PS506MT-N/P
LOF-7210PS606MT-N/P
LOF-9610PS806MT-N/P
Flat Linear Match Throw (MT) Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
These fire pits are manufactured from the factory as Natural or Propane Gas.
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only

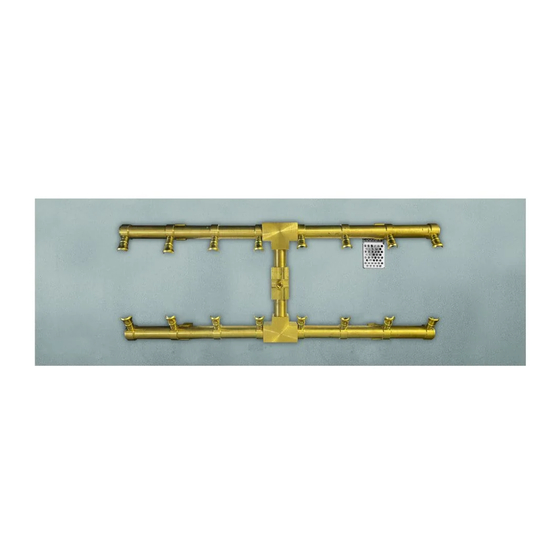

H-Burner
30"x 10" Linear Flat Pan & 24" x 6" Pro H-Burner
36"x 10" Linear Flat Pan & 30" x 6" Pro H-Burner
48"x 10" Linear Flat Pan & 48" x 6" Pro H-Burner
60"x 10" Linear Flat Pan & 60" x 6" Pro H-Burner
72"x 10" Linear Flat Pan & 72" x 6" Pro H-Burner
96"x 10" Linear Flat Pan & 80" x 6" Pro H-Burner
Ensure you order the proper gas type before installing.
INSTALLATION PRECAUTION:
PN#90197
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Description
Advertisement
Related Manuals for Firegear LOF-3010PS246MT-N
Summary of Contents for Firegear LOF-3010PS246MT-N
- Page 1 SERIAL #: H-Burner Model Description N= Natural / P= Propane LOF-3010PS246MT-N/P 30”x 10” Linear Flat Pan & 24” x 6” Pro H-Burner LOF-3610PS306MT-N/P 36”x 10” Linear Flat Pan & 30” x 6” Pro H-Burner LOF-4810PS406MT-N/P 48”x 10” Linear Flat Pan & 48” x 6” Pro H-Burner LOF-6010PS506MT-N/P 60”x 10”...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. DANGER WARNING FIRE OR EXPLOSION HAZARD...
-
Page 3: Table Of Contents
Fire Pit Maintenance/Trouble Shooting Optional Accessories Congratulations! You have just purchased a Firegear Outdoors “Pro Series” H-Burner. These are Brass Burners that come in six sizes, 24”, 30”, 40” 50” 60” and 80”models. Each model is 6¾” wide and incorporates individual injectors that eliminates the need for a main burner orifice. -
Page 4: Specifications
COMBUSTIBLE DIMENSIONS DIMENSIONS LEVEL WALL CEILING FLOOR N = Natural P = Propane 6¾” 8” 36” 96” 18” LOF-3010PS246MT-N 30” x 10” 24” x LOF-3010PS246MT-P (203mm) (914mm) (2438mm) (457mm) (762 x 254mm) (.944 x .236mm) 6¾” 8” 36” 96” 18”... -
Page 5: Hard Piping To Fire Pit
Use the specifications listed on pages 4 for proper clearance to combustibles. Firegear Outdoors fire pits are constructed and tested to follow the rigid ANSI standards for gas appliances and manufactured safely providing dependable and certified products. If these fire pits are not installed according to the installation manual (i.e. - Page 6 7. These products are designed for outdoor use only. Not approved for any indoor use. 8. This fire pit is designed to have Firegear Outdoors lava rock or glass media completely covering the burner, so that the burner is not visible. Do not cover more than 1” above the top of burner. Ensure the injectors are not blocked by any media.
-
Page 7: Gas Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 8: Preparing Burner Pan
An injector/jet limits the amount of gas flow to the burner to ensure the flame is a safe and reasonable height to not pose a risk to people or property. Note: The Firegear Pro Series brass burners DO NOT USE a primary main burner orifice like a standard stainless steel burner. - Page 9 PREPARING BURNERPAN FOR INSTALLATION Non-Combustible Fire Pit Enclousure Fire Pit Pan 3” Nipple U3-8D-S Key Valve Gas Supply Note: A 1¼” x 2” black iron or galvanized coupler/nipple (not supplied) can be used as a spacer between the manual valve and the valve flange to add additional support to hold the manual key valve in place.
-
Page 10: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. - Page 11 MT REPLACEMENT PARTS Drawings not to scale. MT REPLACEMENT PARTS LIST Qty. Item Description Part # 30” x 10” LH-Burner Pan Only (used with 24” x 6” burner) 78041 36”x 10” LH-Burner Pan Only (used with 33” x 6” burner) 78042 48”...
-
Page 12: Fire Pit Maintenance/Trouble Shooting
Firegear Outdoors 17322 Gothard St Huntington Beach, CA 92647 Web Site: www.firegearoutdoors.com Manual changes often occur, ensure to check the Firegear Outdoor website for any recent updates and warranty information. Pro Series LOF - Match Throw Fire Pits REV. B... - Page 13 FIREGEAR LIMITED WARRANTY - 2021 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 14 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 15 Product to be returned should; be packed so as not to incur damages during transportation. Firegear is not responsible for damages on returned items. RMA is valid for thirty (30) days from the date issued. The RMA must be clearly marked on the outside of the package.
- Page 16 Firegear Outdoors 17322 Gothard St. Huntington Beach, CA 92647 Web Site: www.firegearoutdoors.com Manual changes often occur, ensure to check the Firegear Outdoor website for any recent updates and warranty information. Pro Series LOF - Match Throw Fire Pits REV. B...
- Page 17 NOTES: Pro Series LOF - Match Throw Fire Pits REV. B Page 17...
- Page 18 Having problems getting the gas appliance to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
