"PRO SERIES"

Round Pan

Natural Gas Models

FPB-19RPSBR14AWS-N FPB-19RPSBR14AWS-P 19" Round Pan with 14" Pro Brass Burner

FPB-25RPSBR21AWS-N FPB-25RPSBR21AWS-P 25" Round Pan with 21" Pro Brass Burner

FPB-29RPSBR21AWS-N FPB-29RPSBR21AWS-P 29" Round Pan with 21" Pro Brass Burner

FPB-33RPSBR21AWS-N FPB-33RPSBR21AWS-P 33" Round Pan with 21" Pro Brass Burner

FPB-20SPSBR14AWS-N FPB-20SPSBR14AWS-P 20" Square Pan with 14" Pro Brass Burner

FPB-26SPSBR21AWS-N FPB-26SPSBR21AWS-P 26" Square Pan with 21" Pro Brass Burner

FPB-32SPSBR21AWS-N FPB-32SPSBR21AWS-P 32" Square Pan with 21" Pro Brass Burner

Outdoor Fire Pit Pro Spur Burners with

All Weather Electronic Ignition System (AWS)

Installation and Operating Instructions

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS

DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE

This system requires a minimum 18-square inches (per side) of cross ventilation.

Failure to provide proper ventilation will void the warranty.

Warning: For Outdoor Use Only

Propane Gas Models

INSTALLATION PRECAUTION:

PN#90188

DO NOT DISCARD. THIS MANUAL

HAS IMPORTANT OPERATING AND

MAINTENANCE INSTRUCTIONS.

LEAVE WITH THE HOMEOWNER.

MODEL:

SERIAL #:

Square Pan

Description

Table of Contents

Need help?

Do you have a question about the PRO Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Firegear PRO Series

Page 1 DO NOT DISCARD. THIS MANUAL HAS IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS. LEAVE WITH THE HOMEOWNER. MODEL: SERIAL #: “PRO SERIES” Square Pan Round Pan Natural Gas Models Propane Gas Models Description FPB-19RPSBR14AWS-N FPB-19RPSBR14AWS-P 19” Round Pan with 14” Pro Brass Burner FPB-25RPSBR21AWS-N FPB-25RPSBR21AWS-P 25”...
Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or use gasoline or other...
Page 3: Table Of Contents

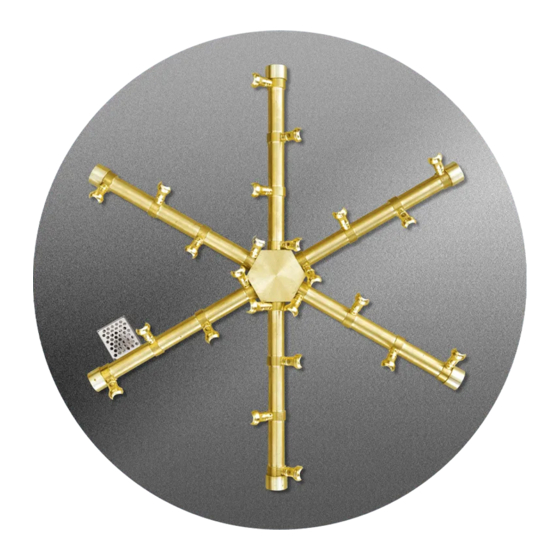

Optional Accessories Warranty Congratulations! You have just purchased a Firegear Outdoors “Pro Series” fire pit that includes a 304 Stainless Steel burner pan with a Brass Burner. The Brass Burners come in two diameter sizes, 14-inch, and 21-inch models. Each burner leg incorporates individual injectors that take the place of a standard main burner orifice.
Page 4: Specifications
SPECIFICATIONS Natural Gas Models: Propane Gas Models: Depth Min/Max Inside Pan Ground Side Combustible Combustible Opening Dimension Level Wall Ceiling Floor FPB-19RPSBR14AWS-N FPB-19RPSBR14AWS-P 2½” 19 ¼” -20” 19” Rd. 16” 36” 120” 18” FPB-25RPSBR21AWS-N FPB-25RPSBR21AWS-P 2½” 25 ¼”- 26” 25” Rd. 16”...
Page 5: Preparing A Non Combustible Structure
290,000 Btu’s. The system this manual for a Firegear burner. NOTE: Depending on features a built-in safety shut-off in case of flame loss and venting locations, do not place fire pit directly on grass, auto-relight.
Page 6: Gas Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640...
Page 7 REMOVING FIRE PIT ASSEMBLY FROM CARTON AWS Burner Pan Assembly Hardware GOE-30VDC Power Supply Carton Contents Fig. 4 Shows carton contents. Note: Round pan was illustrated for this drawing. These fire pits includes a valve and control system that is CAUTION: Use dielectric grease on all wire nut connec- certified by Lab Test for USA and Canada to meet ANSI tions and ¼”...
Page 8 - installed 10-feet or greater from a pool or spa. This power supply has a 3-foot power cord to Injectors/Jets - Fire features using a Firegear Pro Series plug into 120VAC outlet and a 3-foot leads to connect to the brass burner incorporates individual injectors/jets on each gas valve on the 30VDC side.
Page 9 PREPARING A NON-COMBUSTIBLE STRUCTURE FOR SINGLE INSTALL POWER SUPPLY LOCATION The GOE-30VDC power supply is to be installed inside the enclosure due to the wire length limitations. The power cord is 3-feet long the 30VDC leads to the valve are 3-feet long. See Fig. 5. Fig.
Page 10 INSTALLING BURNER PAN INTO ENCLOSURE Fig. 8 Show typical wiring diagram with switch. Pool Certified Applications (Fire Feature within 5-feet of pool or spa) Pool Control FG-PS-30V320 Main Burner Key Valve Low Voltage & Switch Power Supply Flat Pan Pool Timer Pilot Burner Gas Line...
Page 11 DO NOT BLOCK See Product catalog for details INJECTORS WITH MEDIA. Sold in 10LB jugs or 6 bags to a case IF USING FIREGEAR OUTDOORS GL GLASS OR GLR GRL Reflective Glass REFLECTIVE GLASS, ENSURE THE MEDIA DOES NOT ½” - ¾”...
Page 12 OPERATION & LIGHTING CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water.
Page 13 AWS REPLACEMENT PARTS GOE-30DCV Items are not to scale FPB Pro Spur Burners Fire Pits with AWS System REV. A Page 13...
Page 14: Replacement Parts List
Rocker Switch (installs into 78130) (not shown) WP-SWITCH AWS Face Plate Assembly (not shown) 78130 ½” Flare x to ½” MIP (not shown) U1-8D-S 14-inch Pro Series Brass Burner (not shown) FG-PSBR-BS14 21-inch Pro Series Brass Burner (not shown) FG-PSBR-BS21 Valve Box Reference 2-pin Igniter Connector...
Page 15: Troubleshooting
TROUBLESHOOTING Sequence of Operation Fire Feature Turned ON First Pilot with Hot Surface Igniter Heats Up and Glows (Approx. 10 seconds) Secondary Pilot Opens; “Click” is Heard; Gas is Released to Burner Fire Feature is Lit Until Turned OFF The system is designed to relight itself if blown out. It will try (3) times to relight before it goes into a “hard”...
Page 16 TROUBLESHOOTING 3. Glow Plug Glows, But Does Not Ignite the Gas • Insufficient Power - If the glow plug is not getting enough power, it will not get ignite the gas. • Thin Wire - The recommended minimum wire gauge is 12AWG . If wire is less than 12-gauge there may not be enough power to get the igniter hot enough.
Page 17 TROUBLESHOOTING 6. Fire Feature Cycles (Turns On and Off) Every Few Minutes • Gas Volume Insufficient – See symptom 5 page 21 for “Gas Volume Insufficient” for detailed explanation. • Oxygen Starvation (Pilot Burner) – See symptom 5 page 21 for “Oxygen Starvation” for detailed explanation. •...
Page 18: Optional Accessories
(sold separately). Note: See the Firegear Outdoors catalogue for a variety of fittings and flex connectors also available. FPB Pro Spur Burners Fire Pits with AWS System REV. A Page 18...
Page 19: Warranty
FIREGEAR LIMITED WARRANTY - 2021 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
Page 20 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
Page 21 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by Firegear Outdoors for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
Page 22 Firegear Outdoors 17322 Gothard St Huntington Beach, CA 92647 Web Site: www.firegearoutdoors.com Manual changes often occur, ensure to check the Firegear Outdoor website for any recent updates and warranty information. FPB Pro Spur Burners Fire Pits with AWS System REV. A...
Page 23 Having problems getting the fire pit to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
