Firegear PRO Series Installation And Operating Instructions Manual
Spur burners with match throw (mt) ignition system
Hide thumbs
Also See for PRO Series:
- Installation and operating instructions manual (23 pages) ,
- Installation and operating instructions manual (23 pages) ,
- Installation and operating instructions manual (22 pages)
Table of Contents
Advertisement
Quick Links
"PRO SERIES"
Round Pan
Natural Gas Models
FPB-19RPSBR14MT-N
FPB-25RPSBR21MT-N
FPB-29RPSBR21MT-N
FPB-33RPSBR21MT-N
FPB-20SPSBR14MT-N
FPB-26SPSBR21MT-N
FPB-32SPSBR21MT-N
Outdoor Fire Pit Pro Spur Burners with
Match Throw (MT) Ignition System
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This system requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation will void the warranty.
Warning: For Outdoor Use Only
Propane Gas Models
FPB-19RPSBR14MT-P
FPB-25RPSBR21MT-P
FPB-29RPSBR21MT-P
FPB-33RPSBR21MT-P
FPB-20SPSBR14MT-P
FPB-26SPSBR21MT-P
FPB-32SPSBR21MT-P
INSTALLATION PRECAUTION:
PN#90088
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Square Pan
Description
19" Round Pan with 14" Pro Brass Burner
25" Round Pan with 21" Pro Brass Burner
29" Round Pan with 21" Pro Brass Burner
33" Round Pan with 21" Pro Brass Burner
20" Square Pan with 14" Pro Brass Burner
26" Square Pan with 21" Pro Brass Burner
32" Square Pan with 21" Pro Brass Burner
Advertisement
Table of Contents
Related Manuals for Firegear PRO Series
Summary of Contents for Firegear PRO Series
- Page 1 DO NOT DISCARD. THIS MANUAL HAS IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS. LEAVE WITH THE HOMEOWNER. MODEL: SERIAL #: “PRO SERIES” Round Pan Square Pan Natural Gas Models Propane Gas Models Description FPB-19RPSBR14MT-N FPB-19RPSBR14MT-P 19” Round Pan with 14” Pro Brass Burner...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or use gasoline or other...
-
Page 3: Table Of Contents

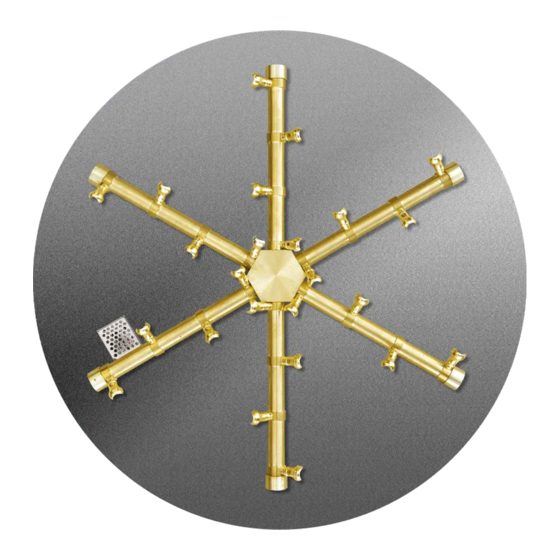

Fire Pit Maintenance/ Trouble Shooting Optional Accessories Congratulations! You have just purchased a Firegear Outdoors “Pro Series” fire pit that includes a 304 Stainless Steel burner pan with a Brass Burner. The Brass Burners come in two diameter sizes, 14-inch, and 21-inch models. Each burner leg incorporates individual injectors that take the place of a standard main burner orifice. -
Page 4: Specifications
SPECIFICATIONS Natural Gas Models: Propane Gas Models: Depth Inside Pan Burner Ground Side Combustible Combustible Dimension Size Level Wall Ceiling Floor FPB-19RPSBR14MT-N FPB-19RPSBR14MT-P 2½” 19” Rd. 14” 8” 36” 120” 18” FPB-25RPSBR21MT-N FPB-25RPSBR21MT-P 2½” 25” Rd. 21” 8” 36” 120” 18”... -
Page 5: Gas Pipe Sizing
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 6: Removing Fire Pit From Carton
REMOVING FIRE PIT FROM CARTON MT Burner Pan Assembly Carton Contents Fig. 3 Shows carton contents. Note: Round pan was illustrated for this drawing. The fire pit comes assembled and requires a gas connections after it is installed into the enclosure. Open carton and remove contents. -
Page 7: Preparation For Non-Combustible Structure
Installation of Natural or LP gas should be done by a qualified installer, service agency or gas supplier. This appliance must 2- Firegear 6 x12 vents be isolated from the gas supply piping system by closing its (Model # VENT-KIT-6X12) -
Page 8: Installation Into An Approved Enclosure
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE REQUIREMENTS 1. Only non-combustible materials should come in direct contact with any part of the fire pit. Underneath area should be non-combustible or a flat level combustible surface according to the clearances specified in this manual. 2. -
Page 9: Typical Installation Drawing
Non-Combustible Pro Spur Burner Fire Pit Pan Fire Pit Enclousure Key Valve Shut-O Gas Supply NOTE: Key valve and flexible gas lines are supplied. Gas shut-off is not supplied. Note: A 1¼” x 2” black iron or galvanized coupler/nipple (not supplied) can be used as a spacer between the manual valve and the valve flange to add additional Non-... -
Page 10: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 11: Replacement Parts
MT REPLACEMENT PARTS Drawings not to scale. FPB Pro Spur Burners Fire Pits with MT System REV. A Page 11... -
Page 12: Fire Pit Maintenance/ Trouble Shooting
MT REPLACEMENT PARTS Qty. Item Description Part Number 19-inch Round Stainless Pan PAN-SS19R 25-inch Round Stainless Pan PAN-SS25R 29-inch Round Stainless Pan PAN-SS29R 33-inch Round Stainless Pan PAN-SS33R 20-inch Square Stainless Pan PAN-SS20SF 26-inch Square Stainless Pan PAN-SS26SF 32-inch Square Stainless Pan PAN-SS32SF 14-inch Pro Spur Burner FG-PSBR-BS14... -
Page 13: Optional Accessories
ACCESSORIES The following accessories are available from your local Firegear dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. E-STOP Paver Vents Flexframe Gas shut-off valve with mechanical Model: PAVER-VENT-4-LNTS Universal brackets to support a fire timer and emergency shut-off. - Page 14 Expanded View of Match Throw (MT) Fire Pits Fire Pit Disc Pro Spur Burner Flared Fitting & Nipple Note: Use joint compound or Te on tape resistant to all gasses on all male NPT T200-9898-46 threads; not ared ttings. (Flex Connector) Ensure all connections are tight and check for gas leaks before and after assembly is...
- Page 15 FIREGEAR LIMITED WARRANTY - 2021 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 16 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 17 Product to be returned should; be packed so as not to incur damages during transportation. Firegear is not responsible for damages on returned items. RMA is valid for thirty (30) days from the date issued.
- Page 18 Having problems getting the fire pit to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
