"PRO SERIES"
Pro H-Burner Models
Models
N = Natural Gas; P = Propane Gas
LOF-3313FHPSMT-N-SAN
LOF-3313FHPSMT-P-SAN
LOF-5113FHPSMT-N-SAN
LOF-5113FHPSMT-P-SAN
Linear Flat Pan Match Throw (MT) Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
NOTE: All models come shipped from the factory as Natural gas or Propane (LP) gas
models. They must be ordered specifically as Natural gas or Propane models and
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
MODELS
33" x 13"
Linear Flat Pan &
33" x 13"
Linear Flat Pan &
51" x 13"
Linear Flat Pan &
51" x 13"
Linear Flat Pan &
cannot be field converted from one gas to another.
INSTALLATION PRECAUTION:
PN#90478
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Description
24" x 6" Pro H-Burner
24" x 6" Pro H-Burner
40" x 6" Pro H-Burner
40" x 6" Pro H-Burner
Input Rating
80,000 Btu's
110,000 Btu's
120,000 Btu's
150,000 Btu's
Advertisement
Table of Contents
Related Manuals for Firegear LOF-3313FHPSMT-N-SAN
Summary of Contents for Firegear LOF-3313FHPSMT-N-SAN

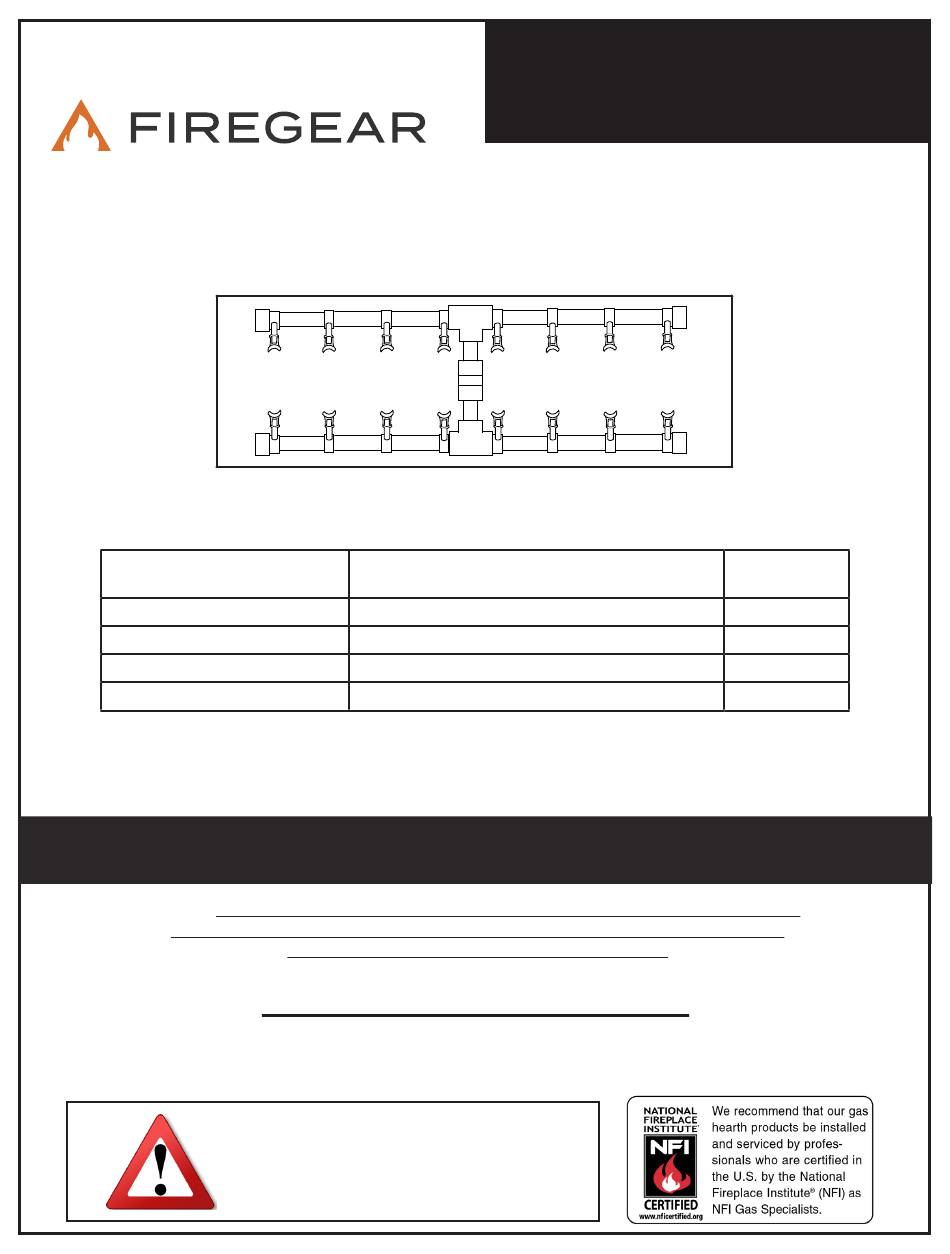

- Page 1 SERIAL #: Pro H-Burner Models MODELS Models Description Input Rating N = Natural Gas; P = Propane Gas LOF-3313FHPSMT-N-SAN 33” x 13” 24” x 6” Pro H-Burner 80,000 Btu’s Linear Flat Pan & LOF-3313FHPSMT-P-SAN 33” x 13” 24” x 6” Pro H-Burner 110,000 Btu’s...
-
Page 2: Carbon Monoxide Hazard
CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. DANGER WARNING FIRE OR EXPLOSION HAZARD... -
Page 3: Table Of Contents
Fire Pit Maintenance/Trouble Shooting Optional Accessories Congratulations! You have just purchased a Firegear Outdoors “Pro Series” H-Burner. The Brass Burners are 24” and 40” long models. Each model is 6¾” wide and incorporates individual injectors that eliminates the need for a main burner orifice. The 24” model incorporates 20 injectors the 40” incorporates 32 injectors. -
Page 4: Specifications
GROUND SIDE COMBUSTIBLE COMBUSTIBLE DIMENSIONS DIMENSIONS LEVEL WALL CEILING FLOOR N = Natural Gas P = Propane Gas 6¾” LOF-3313FHPSMT-N-SAN 32¾” x 12¾” 8” 36” 96” 18” 24” x (831 x 323mm) (203mm) (914mm) (2438mm) (457mm) (.944 x .236mm) LOF-3313FHPSMT-P-SAN 6¾”... -
Page 5: Hard Piping To Fire Pit
An injector/jet limits the amount of gas flow to the burner to ensure the flame is a safe and reasonable height to not pose a risk to people or property. Note: The Firegear Pro Series brass burners DO NOT USE a primary main burner orifice like a standard stainless steel burner. - Page 6 7. These products are designed for outdoor use only. Not approved for any indoor use. 8. This fire pit is designed to have Firegear Outdoors lava rock or glass media completely covering the burner, so that the burner is not visible. Do not cover more than 1” above the top of burner. Ensure the injectors are not blocked by any media.
-
Page 7: Natural Gas : Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 8: Preparing Burner Pan
An injector/jet limits the amount of gas flow to the burner to ensure the flame is a safe and reasonable height to not pose a risk to people or property. Note: The Firegear Pro Series brass burners DO NOT USE a primary main burner orifice like a standard stainless steel burner. -
Page 9: Gas Supply
PREPARING BURNERPAN FOR INSTALLATION Non-Combustible Fire Pit Enclousure Fire Pit Pan 3” Nipple U3-8D-S Key Valve Gas Supply Note: A 1¼” x 2” black iron or galvanized coupler/nipple (not supplied) can be used as a spacer between the manual valve and the valve flange to add additional support to hold the manual key valve in place. - Page 10 PREPARING BURNER PAN FOR INSTALLATION INSTALLATION OF LAVA ROCK/MEDIA INTO BURNER PAN Install lava rock/media into the burner pan. Ensure the media is a minimum of 1-inch diameter for proper operation. Note: Do not pour Lava Rock directly from bag. Media should be placed naturally and NOT packed in tight. Ensure media does not block the tips/ends of injectors.
-
Page 11: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 12: Replacement Parts
MT REPLACEMENT PARTS Drawings not to scale. MT REPLACEMENT PARTS LIST Qty. Item Description Part # 33” x 13” Linear Flat Pan Only (used with 24” x 6” burner) 78175 51” x 13” Linear Flat Pan Only (used with 40” x 6” burner) 78191 24”... -
Page 13: Fire Pit Maintenance/Trouble Shooting
Firegear Outdoors 17322 Gothard St Huntington Beach, CA 92647 Web Site: www.firegearoutdoors.com Manual changes often occur, ensure to check the Firegear Outdoor website for any recent updates and warranty information. Pro Series H-Burner - Match Throw Fire Pits REV. A... - Page 14 Pro Series H-Burner - Match Throw Fire Pits REV. A Page 14...
- Page 15 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 16 Product to be returned should; be packed so as not to incur damages during transportation. Firegear is not responsible for damages on returned items. RMA is valid for thirty (30) days from the date issued. The RMA must be clearly marked on the outside of the package.
- Page 17 Firegear Outdoors 17322 Gothard St. Huntington Beach, CA 92647 Web Site: www.firegearoutdoors.com Manual changes often occur, ensure to check the Firegear Outdoor website for any recent updates and warranty information. Pro Series H-Burner - Match Throw Fire Pits REV. A...
- Page 18 NOTES: Pro Series H-Burner - Match Throw Fire Pits REV. A Page 18...
- Page 19 Having problems getting the gas appliance to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
