Natural Gas
FPB-29DBS22MT-N
FPB-34DBS31MT-N
FPB-44DBS36MT-N
FPB-25SFBS22MT-N
FPB-30SFBS22MT-N
FPB-34SFBS31MT-N
FPB-40SFBS36MT-N
FPB-46SFBS36MT-N
Outdoor Round & Square Flat Pans
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
MODELS

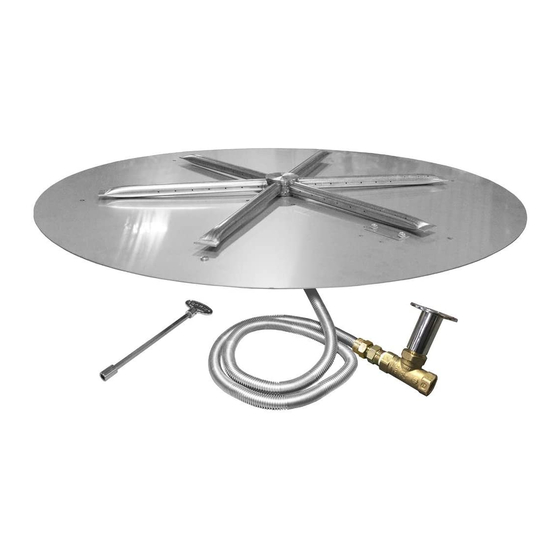

29" Round Stainless Flat Pan with 22" Burning Spur
34" Round Stainless Flat Pan with 31" Burning Spur
44" Round Stainless Flat Pan with 36" Burning Spur
25" Square Stainless Flat Pan with 22" Burning Spur
30" Square Stainless Flat Pan with 22" Burning Spur
34" Square Stainless Flat Pan with 31" Burning Spur
40" Square Stainless Flat Pan with 36" Burning Spur
46" Square Stainless Flat Pan with 36" Burning Spur
(Match Throw (MT) Fire Pits)
INSTALLATION PRECAUTION:
PN#90002
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Description
REV. A
Page 1
Advertisement
Table of Contents
Related Manuals for Firegear FPB-29DBS22MT-N
Summary of Contents for Firegear FPB-29DBS22MT-N
- Page 1 LEAVE WITH THE HOMEOWNER. MODEL: SERIAL #: MODELS Natural Gas Description FPB-29DBS22MT-N 29” Round Stainless Flat Pan with 22" Burning Spur FPB-34DBS31MT-N 34” Round Stainless Flat Pan with 31" Burning Spur FPB-44DBS36MT-N 44” Round Stainless Flat Pan with 36" Burning Spur FPB-25SFBS22MT-N 25"...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. DANGER WARNING FIRE OR EXPLOSION HAZARD...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm. -
Page 4: Specifications
NOTE: These fire pits are shipped as Natural gas products and must be converted to LP gas, if applicable. See replacement parts section or Firegear Outdoors catalog for proper parts. Fig. 2 Clearance to Combustibles (Not to be used in an enclosed space) Model: Btu’s... -
Page 5: Gas Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 6: Preparation For Non-Combustible Structure
½” psig (3.5kPa) Examples of Cross Ventilation VENTILATION FOR NON-COMBUSTIBLE ENCLOSURE 2- Firegear 6 x12 vents Fire pits are subjected to many outdoor elements such as rain, snow, wind, heat or cold. A minimum of 18 square inches of... - Page 7 INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE REQUIREMENTS 1. Only non-combustible materials should come in direct contact with any part of the fire pit. Underneath area should be non-combustible or a flat level combustible surface according to the clearances specified in this manual.. 2.
-
Page 8: Installing Key Valve And Orifice
INSTALLATION INSTALLING BURNER ORIFICE (OAS) Locate the burner nipple underneath the burner pan. Ensure the nipple from on Burner Pan the spur burner has gas rated Teflon tape Lock Nut wrapped around the threads. Thread the OAS (orifice air shutter) on to the nipple of the burning spur clockwise manner. -
Page 9: Expanded View Drawing
Spur Burner Non-Combustible Enclousure Flat Disc Key Valve Supply E-Stop PUSH TO STOP TURN TO START HOURS Key valve and flexible gas line are supplied; gas shut-off is not, but available in accessories page. Flex lines with flared fittings do not require Teflon tape or pipe compound. - Page 10 Expanded View of Match Throw (MT) Fire Pits Fire Pit Pan Spur Burner / ” Washer Brass Nut OASNG# (Burner Ori ce) U3-8D-S (Fitting) Note: Use joint compound or Te on tape resistant to all T200-9898-46 gasses on all male NPT (Flex Connector) threads;...
-
Page 11: Operation & Lighting Instructions
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 12: Replacement Parts
FLAT DISC REPLACEMENT PARTS Drawings are not to scale Round Flat Disc Fire Pit Pans REV. A Page 12... -
Page 13: Replacement Parts List
FLAT DISC REPLACEMENT LIST Item Qty. Part Number Description 29-inch Round Flate Stainless Steel Pan Pan-SS29D 34-inch Round Flat Stainless Steel Pan Pan-SS34D 44-inch Round Flat Stainless Steel Pan Pan-SS44D 25-inch Square Flat Stainless Steel Pan Pan-SS25S 30-inch Square Flat Stainless Steel Pan Pan-SS30S 34-inch Square Flat Stainless Steel Pan Pan-SS34S... -
Page 14: Trouble Shooting
TROUBLE SHOOTING Symptom Remedy Fire pit won’t light 1. Bleed gas line. 2. Ensure all gas supply lines are turned ON. 3. Ensure there is not too much media overtop of burner; it can inhibit gas from flowing. 4. Check gas pressure. Low flame 1. -
Page 15: Optional Accessories
OPTIONAL ACCESSORIES The following accessories are available from your local Firegear dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. Lava Stones: 1” to 2” size (50lbs) Lava Boulders: 6” to 12” size (30lbs) Lava Rock: 1”... - Page 16 FIREGEAR LIMITED WARRANTY - 2020 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 17 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 18 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by Firegear Outdoors for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
- Page 19 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. Firegear Outdoors 17322 Gothard Street, Huntington Beach, CA 92647 www.firegearoutdoors.com Phone: 800-966-8126 Email: order@firegearoutdoors.com...
- Page 20 Having problems getting the fireplace to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
