"PRO SERIES"
Models
N= Natural Gas
LOF-3008FPS24TMT-N LOF-3008FPS24TMT-P
LOF-3608FPS34TMT-N LOF-3608FPS34TMT-P
LOF-4808FPS42TMT-N LOF-4808FPS42TMT-P
LOF-6008FPS56TMT-N LOF-6008FPS56TMT-P
LOF-7208FPS68TMT-N LOF-7208FPS68TMT-P
Flat Linear Fire Pits with Match Throw (MT)
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
These fire pits are manufactured from the factory as Natural or Propane Gas.
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only

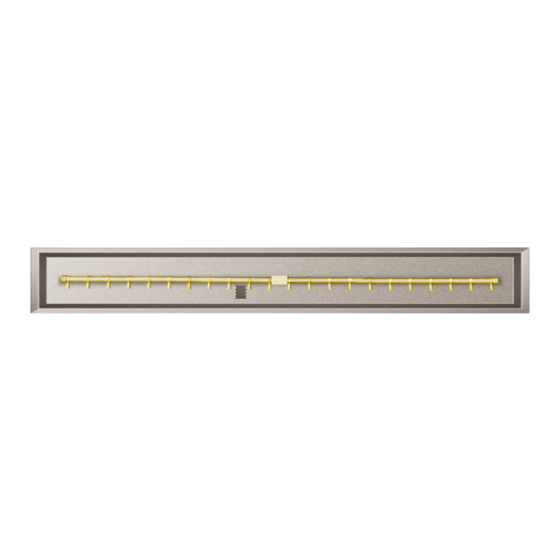

Brass T-Burner
Models
P= Propane
Ignition & Pro Brass T-Burner
Ensure you order the proper gas type before installing.
INSTALLATION PRECAUTION:
PN#90211
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Description
30" x 8" Pan & 24" Pro T-Burner
36" x 8" Pan & 34" Pro T-Burner
48" x 8" Pan & 42" Pro T-Burner
60" x 8" Pan & 56" Pro T-Burner
72" x 8" Pan & 68" Pro T-Burner
Advertisement
Table of Contents
Related Manuals for Firegear PRO Series
Summary of Contents for Firegear PRO Series
- Page 1 DO NOT DISCARD. THIS MANUAL HAS IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS. LEAVE WITH THE HOMEOWNER. MODEL: “PRO SERIES” SERIAL #: Brass T-Burner Models Models Description N= Natural Gas P= Propane LOF-3008FPS24TMT-N LOF-3008FPS24TMT-P 30” x 8” Pan & 24” Pro T-Burner LOF-3608FPS34TMT-N LOF-3608FPS34TMT-P 36”...
- Page 2 This warning is issued pursuant to the California Health & Safety Code Sec. 25249.1 LOF Flat Pan Pro Series Brass T- Burner with (MT) Ignition REV. A Page 2...
-
Page 3: Table Of Contents
Fire Pit Maintenance/Trouble Shooting Optional Accessories Congratulations! You have just purchased a Firegear Outdoors “Pro Series” H-Burner. These are Brass Burners that come in six sizes, 24”, 30”, 40” 50” 60” and 80”models. Each model is 6¾” wide and incorporates individual injectors that eliminates the need for a main burner orifice. -
Page 4: Specifications
11.0”WC for Liquid Propane (LP) at the burner orifice. Flex line size and proper gas pipe sizing will also affect BTU’s. As a result your BTU’s may vary slightly from Table 2 specifications. LOF Flat Pan Pro Series Brass T- Burner with (MT) Ignition REV. A Page 4... -
Page 5: Hard Piping To Fire Pit
Use the specifications listed on pages 4 for proper clearance to combustibles. Firegear Outdoors fire pits are constructed and tested to follow the rigid ANSI standards for gas appliances and manufactured safely providing dependable and certified products. If these fire pits are not installed according to the installation manual (i.e. - Page 6 7. These products are designed for outdoor use only. Not approved for any indoor use. 8. This fire pit is designed to have Firegear Outdoors lava rock or glass media completely covering the burner, so that the burner is not visible. Do not cover more than 1” above the top of burner. Ensure the injectors are not blocked by any media.
-
Page 7: Gas Pipe Sizing Chart
This chart is for reference only, we recommend you consult with a Licensed Plumber/Gas Fitter or NFPA54 (National Fuel Gas Code - current edition) for more details. Table 4 Gas pipe sizing. LOF Flat Pan Pro Series Brass T- Burner with (MT) Ignition REV. A Page 7... -
Page 8: Preparing Burner Pan
An injector/jet limits the amount of gas flow to the burner to ensure the flame is a safe and reasonable height to not pose a risk to people or property. Note: The Firegear Pro Series brass burners DO NOT USE a primary main burner orifice like a standard stainless steel burner. - Page 9 Nipple Wall Material Key Valve Key Valve Key Valve Flange Key Valve Flange Non- Combustible Non- Wall Material Combustible Wall Material Fig. 7 Typical Installation LOF Flat Pan Pro Series Brass T- Burner with (MT) Ignition REV. A Page 9...
-
Page 10: Operation
2. Turn key clockwise until it stops. 3. After cooling off install cover. Fig. 9 Inserting Key into Valve Fig. 10 Lighting fire pit with lighter LOF Flat Pan Pro Series Brass T- Burner with (MT) Ignition REV. A Page 10... -
Page 11: Replacement Parts
½” x Male Flared Fitting (not shown) U3-8D-S ⅜” 10858 MIP x 2” Stainless Steel Nipple (not shown) ½” ⅜” 46-86 Flare to FIP Fitting (used with all kits) (not shown) LOF Flat Pan Pro Series Brass T- Burner with (MT) Ignition REV. A Page 11... -
Page 12: Fire Pit Maintenance/Trouble Shooting
Huntington Beach, CA 92647 Web Site: www.firegearoutdoors.com Manual changes often occur, ensure to check the Firegear Outdoor website for any recent updates and warranty information. LOF Flat Pan Pro Series Brass T- Burner with (MT) Ignition REV. A Page 12... - Page 13 Provides 18 sq. in. of ventilation Model: PAVER-VENT-6X12SS 2 - 6”x12” vents and screws. Provides 18 sq. in. of ventilation See Firegear Outdoors catalog for other accessories. LOF Flat Pan Pro Series Brass T- Burner with (MT) Ignition REV. A Page 13...
- Page 14 FIREGEAR LIMITED WARRANTY - 2022 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 15 LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS • LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL COVERS) • ONE (1) YEAR WARRANTY – ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND REGULATORS LOF Flat Pan Pro Series Brass T- Burner with (MT) Ignition REV. A Page 15...
- Page 16 Product to be returned should; be packed so as not to incur damages during transportation. Firegear is not responsible for damages on returned items. RMA is valid for thirty (30) days from the date issued. The RMA must be clearly marked on the outside of the package.
- Page 17 Firegear Outdoors 17322 Gothard St. Huntington Beach, CA 92647 www.firegearoutdoors.com Phone: 800-966-8126 LOF Flat Pan Pro Series Brass T- Burner with (MT) Ignition REV. A Page 17...
- Page 18 Be prepared to send photos to us when on the phone. 10. Found missing or damaged parts? Let us know ASAP or send photos. Fire Pits FPSS 3-30-16 LOF Flat Pan Pro Series Brass T- Burner with (MT) Ignition REV. A Page 18...
