THE ROUND FLAT DISC SYSTEM FOR THE SANCTUARY 2 & 3 COMES
WITH A SEPARATE CARTON AND MANUAL. HOWEVER, USE THIS
MANUAL FOR ACTUAL INSTALLATION INTO THE SANCTUARY BOWLS
SAN2-34DBSAWSN-*
SAN3-26DBSAWSN-*
* Bowls come in a variety of colors. (i.e. SAN2-34DBSAWSN-AR) Your color will
be denoted at the end of the model number with one of the following letters:
AR = Arctic; CR = Creme; MO = Mocha; SL = Slate; RA = Raven

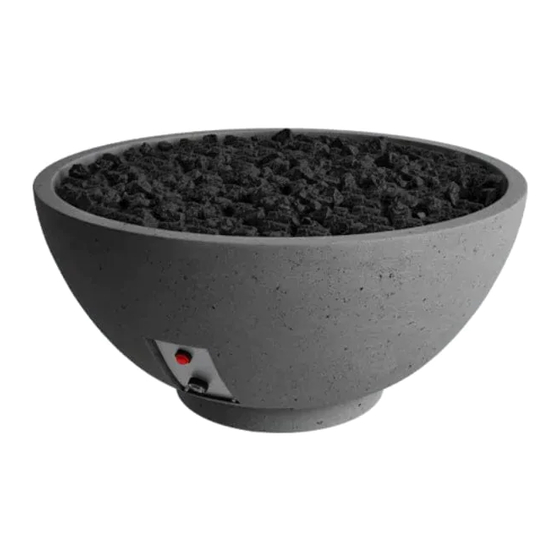

Sanctuary Series Outdoor Fire Features
(All Weather Electronic Ignition System (AWS)
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
All Sanctuary Series Fire Features have
18-square inches of ventilation designed into each bowl.
Warning: For Outdoor Use Only
Sanctuary 2
MODELS
Natural Gas
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Sanctuary 3
Description
38 ¾" x 18" Concrete Bowl
30" x 14 ½" Concrete Bowl
REV. 8-9-19 Page 1
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Firegear Sanctuary Series
Summary of Contents for Firegear Sanctuary Series
- Page 1 Installation and Operating Instructions IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE All Sanctuary Series Fire Features have 18-square inches of ventilation designed into each bowl. Warning: For Outdoor Use Only...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or use gasoline or other...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm. -
Page 4: Specifications
SANCTUARY SPECIFICATIONS Model: Uses Fire feature Model: Natural Gas (NG) Overall Inside Inside Height Side Combustible Combustible Width Width Depth Wall Ceiling Floor SAN2-34DBSAWSN- FPB-34DBSAWS-N-SAN 38¾” 35¼” 2” 18” 19” 69” ” SAN3-26DBSAWSN- FPB-26DBSAWS-N-SAN 30” 27½” 2” 14” 19” 69” 12”... -
Page 5: Hard Piping To Fire Feature
Install the fire features on any level, flat, stable, non-combustible surface. NOTE: Do not place fire features directly on grass, dirt, or rocks as this may prevent proper ventilation. Water drainage is designed into all Sanctuary Series fire features. Ensure not to block/plug the drains areas to prevent potential damage to your fire feature. -
Page 6: Gas Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... - Page 7 The AWS gas valve is fire. shipped for Natural gas (NG). To convert to Propane (LP) Power Supply - Firegear Outdoors provides one gas, the secondary pilot orifice must be changed. GOE-30VDC power supply with each Sanctuary model.
- Page 8 ½” psig (3.5kPa). DESCRIPTION The Sanctuary series features a field serviceable (30VDC) commercial grade outdoor electronic system with a maximum gas capacity of 290,000 Btu’s. The system features a built-in safety shut-off in case of flame loss and auto-relight.
- Page 9 SANCTUARY (AWS) PREPARATION KEY VALVE ASSEMBLY The figure drawing below shows the MT mounting plate parts and pieces used for the assembly. This is pre- assembled and ready to install. See Fig. 5. The Key Valve Assembly consists of (1) key valve and flange, (2) 90° elbows and (1) MT stainless steel face plate.
-
Page 10: Installing Pan Into Bowl & Wiring
INSTALLING PAN INTO BOWL & WIRING Valve Box Weather Proof GFI Box FG-1420-AOD Receiver LEARN GOE-30VDC Power Supply Fig. 8 Wiring diagram. INSTALLING BURNER PAN INTO BOWL Note: Use dielectric grease inside of all wire nut connections to protect from the outside elements. After the mounting plate is secured inside the bowl, attach a flex line to the bottom fitting of the mounting plate Plug the GOE-30VDC power supply and remote receiver... -
Page 11: Media Specifications
Firegear Outdoor lava rock. ensure proper lighting of burner (See Fig. 12). • Sanctuary 2 uses 57 LBS of Firegear Outdoor lava rock Cover the burner completely with media but do not make • Sanctuary 3 uses 24 LBS of Firegear Outdoor lava rock the depth greater than 1-inch overtop of the burner port holes. - Page 12 AWS EXPANED VIEW Note: The gas supply may be hard piped into the center of the bowl or an approved flexible gas line can be installed through one of the lower vents. AWS Burner Pan Assembly Key Valve Remote Receiver Hard Pipe (w/weather Gas Supply...
-
Page 13: Operation
AWS OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 14: Replacement Parts
SANCTUARY 2 & 3 REPLACEMENT PARTS Drawings No to Scale GOE-30DCV Weatherproof Cover/Lid Junction Box AWS Sanctuary 2 & 3 Fire Features REV. 8-9-19 Page 14... -
Page 15: Replacement Parts List
SANCTUARY 2 & 3 REPLACEMENT PARTS LIST Description Item Qty. Part Number 34-inch round flat stainless disc (used with Sanctuary 2 model) PAN-SS34D 26-inch round flat stainless disc (used with Sanctuary 3 model) PAN-SS26D 22-inch Spur Burner (used with Sanctuary 2 fire feature) B-SPUR-22 16-inch Spur Burner (used with Sanctuary 3 fire feature) B-SPUR-16... -
Page 16: Maintenance
AWS FIRE FEATURE MAINTENANCE 1. These fire features should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire feature is dangerous and voids all warranties. 4. -
Page 17: Troubleshooting
TROUBLESHOOTING Sequence of Operation Fire Feature Turned ON First Pilot with Hot Surface Igniter Heats Up and Glows (Approx. 10 seconds) Secondary Pilot Opens; “Click” is Heard; Gas is Released to Burner Fire Feature is Lit Until Turned OFF The system is designed to relight itself if blown out. It will try (3) times to relight before it goes into a “hard”... - Page 18 TROUBLESHOOTING 3. Glow Plug Glows, But Does Not Ignite the Gas • Insufficient Power - If the glow plug is not getting enough power, it will not get ignite the gas. • Thin Wire - The recommended minimum wire gauge is 12AWG . If wire is less than 12-gauge there may not be enough power to get the igniter hot enough.
-
Page 19: Troubleshooting
TROUBLESHOOTING 6. Fire Feature Cycles (Turns On and Off) Every Few Minutes • Polarity Between Fire Features in a Daisy Chain – when daisy chaining multiple features together, wire polarity BETWEEN the features MUST be the same. • Gas Volume Insufficient – See symptom 5 page 18 for “Gas Volume Insufficient” for detailed explanation. •... -
Page 20: Optional Accessories
Model: LID-29R2 (Sanctuary 2) Model: FG-EMER-STOP features within 5-feet of a pool/spa. Model: LID-19R (Sanctuary 3) Electric emergency shut-off. NOTE: See the Firegear Outdoors catalog for other accessories also available. FOR TECHNICAL SERVICE, CALL: (855) 498-8324 Firegear Outdoors 9230 Conservation Way... -
Page 21: Warranty
Lava Rock and Lava Stones are not covered by warranty For Commercial applications, the liability of Firegear Outdoors End User must provide a bill of sale, canceled check, or payment is limited to the express terms of this warranty. We expressly... -
Page 22: Technical Support
Having problems getting your Firegear Outdoors fire feature to operate? Don’t leave the job site! We want to help! Call 855.498.8324 for Technical Support between the hours of 8:00AM to 5:00PM EST. Text photos to 260.255.5750 or e-mail photos to support@skytechpg.com.
