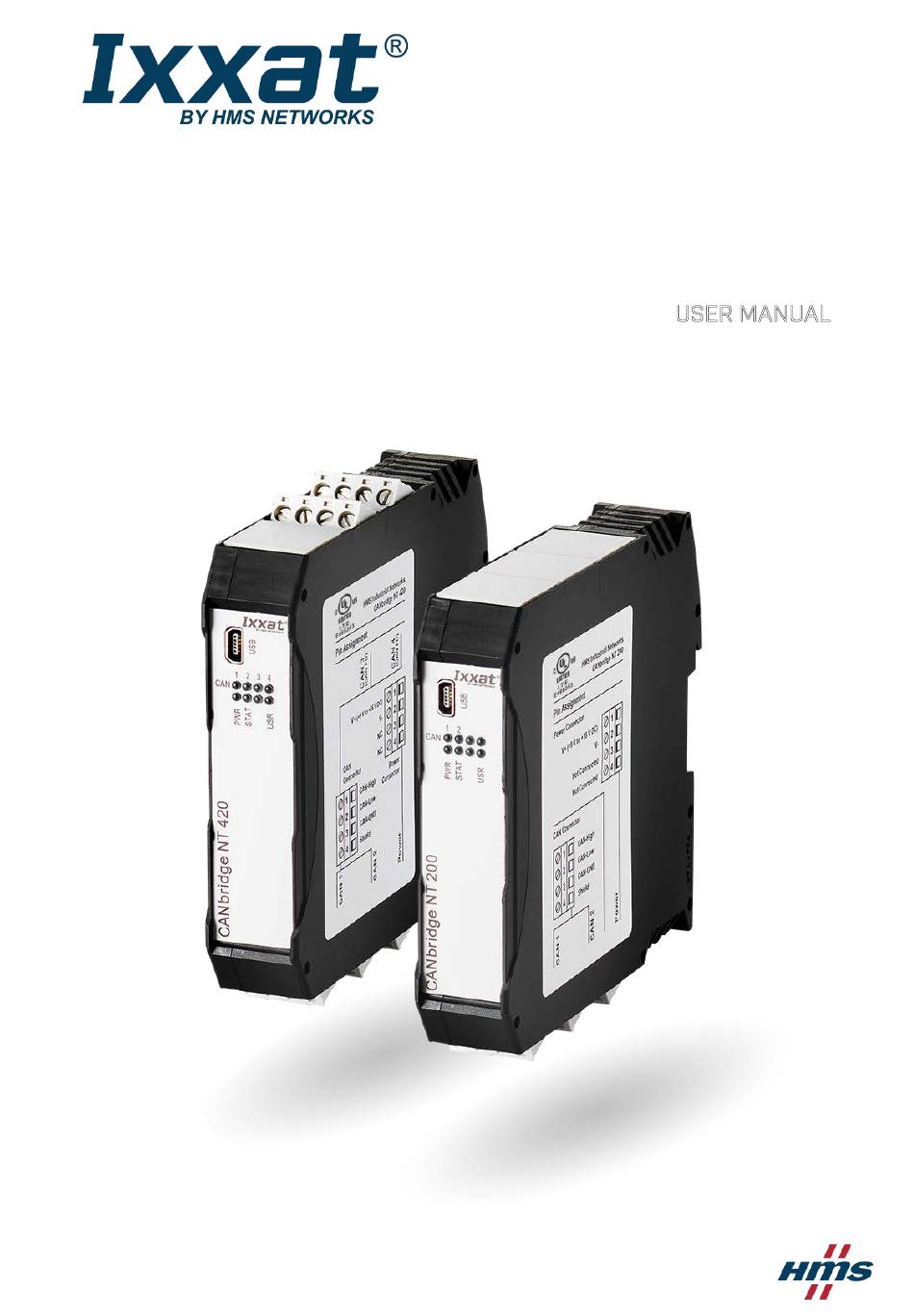

- Page 1 ENGLISH CANbridge NT 200 and 420 USER MANUAL 4.01.0331.20000 Version 2.0 Publicaon date 2023-11-27...
- Page 2 The inormaon in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without noce. HMS Networks makes no commitment to update or keep current the inormaon in this document.
- Page 3 CANbridge NT 200 and 420 Table of Contents 1. User Guide ..........................1 1.1. Target Audience ....................... 1 1.2. Related Documents ......................1 1.3. Document History ......................1 1.4. Trademark Inormaon ...................... 1 1.5. Convenons ........................1 2. Safety Insrucons ........................3 3.
- Page 4 This page is inenonally lef blank.
- Page 5 Minor correcons, adjusted UL label 1.4. Trademark Inormaon ® Ixxat is a registered trademark of HMS Industrial Networks. All other trademarks menoned in this document are the property of their respecve holders. 1.5. Convenons Insrucons, Results and Lists Insrucons and results are structured as follows: insrucon 1...
- Page 6 CANbridge NT 200 and 420 Convenons • item 1 • item 2 Code This font is used to represent program code and other types of data input and output such as conguraon scripts. Code User Ineracon Elements User ineracon elements (buons etc.) are indicated with bold text.
- Page 7 • Protect product from re. • Do not paint the product. • Do not modify or disassemble the product. Service must be carried out by HMS Industrial Networks. • Store products in dry and dust-free place. • Only use indoors (without corrosive gas, ammable gas, dust and dirt etc.).
- Page 8 Included in scope of delivery: • CANbridge NT • 1 x power connector • 2 x CAN connector (with CANbridge NT 200) 4 x CAN connector (with CANbridge NT 420) • User Manual CANbridge NT • Insallaon Guide VCI Driver •...
- Page 9 4.3. Operaonal Modes 4.3.1. Repeater/Star Coupler The CANbridge NT 200 can be congured as Repeater and the CANbridge NT 420 as Star Coupler. In the Repeater/Star Coupler mode all messages are ransmied unchanged to the other ports in Classic CAN mode.
- Page 10 CANbridge NT 200 and 420 Add-Ons for Customer Specic Expansions • Expert mode • Communicaon Error Severity • Acon Rules 4.3.2. Bridge The Bridge mode allows free conguraon of the transmission of CAN messages. With the CANbridge NT 420 NT bridging between Classic CAN and CAN FD is possible.
- Page 11 In Windows Start menu open folder Ixxat CAN-Gateway Conguraor V6 and start CAN-Gateway Conguraor V6. NOTE With the CANbridge NT 200 it is possible to open exisng conguraon les that are not congured via the CAN-Gateway Conguraor: open menu File and select Import legacy conguraon. 4.01.0331.20000 Version 2.0...
- Page 12 CANbridge NT 200 and 420 Installing the Hardware 5.2. Installing the Hardware Figure 1. Connectors CAN 1 CAN 2 Power connector CAN 3 (only with CANbridge NT 420) CAN 4 (only with CANbridge NT 420) Make sure that the cross-seconal area of the cable is larger than or equal to 0.14 mm resp.
- Page 13 Checking and Updang the Firmware CANbridge NT 200 and 420 5.2.2. CAN and CAN FD Connectors Table 2. Pin Allocaon of Terminal Adapters Pin no. Signal Connector CAN high CAN low CAN GND Shield If a D-Sub 9 connector is used, observe the following pin allocaon of the D-Sub 9 connector.
- Page 14 17. If using a V5 conguraon, open menu File and select Convert V5 to V6 to convert the conguraon to the latest version. 18. Write the saved conguraon to the device. HMS recommends to verify conguraons that are converted from V5 to V6, to make sure that all setngs are working correctly. Page 10 of 24...
- Page 15 IMPORTANT Connecon disturbance possible if extension cable or longer cable is used! HMS recommends connecng the interface directly with the included cable or via an acve USB hub to the computer according to the USB specicaon. It is possible to add inormaon about the conguraon in elds Author, Conguraon Name and Addional Info in the conguraon tree entry Info.
- Page 16 CANbridge NT 200 and 420 Conguring the Device Name Inormaon about target device (STS reecs Power LED of device) Drop-down list Select device type Drop-down list Select device version Drop-down list Select operaonal mode Buon New Buon Open Buon Save Buon Save as...
- Page 17 • Name is wrien to the device. 6.3. Repeater/Star Coupler Conguraon The CANbridge NT 200 can be congured as Repeater and the CANbridge NT 420 as Star Coupler. In the Repeater/Star Coupler mode all messages are ransmied unchanged to the other ports in Classic CAN mode.
- Page 18 CANbridge NT 200 and 420 Bridge Conguraon With CANbridge NT 420 make sure that operaonal mode Star Coupler (1) is selected. • In Repeater/Star Coupler mode the mapping table is deacvaed. • All messages are ransmied unchanged. In the conguraon tree (6) select General.
- Page 19 Downloading the Conguraon with Linux CANbridge NT 200 and 420 If checkbox Only for specied device (4) is enabled, enter the serial number of the device to which the conguraon can be wrien. If checkbox Expert Mode (5) is enabled, select the desired setngs (for more inormaon see User Manual CAN-Gateway Confguraor).
- Page 20 CANbridge NT 200 and 420 Reset 6.6. Reset Figure 6. Menu Reset to factory setngs Reset Target With Reset target (1) it is possible to restart the device without reset the conguraon • Open menu Target and select Reset target.
- Page 21 Read and erase LOG File CANbridge NT 200 and 420 6.7. Read and erase LOG File In case of an error the device writes the error in a log le. The log le can be read from the device, saved as a txt le and send to the Ixxat support if needed.
- Page 22 CANbridge NT 200 and 420 Operaon 7. Operaon Figure 7. Ports and LEDs Status LED Power LED Mini USB port CAN LEDs 1 to 4 User LED 7.1. Mini USB Port Provided to connect the device for conguraon. 7.2. Indicators 7.2.1.
- Page 23 Indicators CANbridge NT 200 and 420 LED state Descripon Comments O Device not ready No rmware, applicaon rmware not started Green ashing (1 Hz) Applicaon rmware started Device in Operatonal state Red/green ashing Conguraon le error Rewring of conguraon to device necessary...
- Page 24 CANbridge NT 200 and 420 Technical Data 8. Technical Data Dimensions 114.5 x 99 x 22.5 mm Weight Approx. 150 g Operang temperature -40 °C to +85 °C Storage temperature -40 °C to +85 °C Power supply 9 V to 36 V DC with overvoltage and polarity proecon Current consumpon...
- Page 25 CANbridge NT 200 and 420 9. Support/Return Hardware Support To contact support, go to www.ixxat.com/technical-support/contact-technical-support. Scroll down and click buon mysupport.hms.se to register a support case. Return Hardware www.ixxat.com/support/product-returns click buon Portal to access the support portal. In the support portal select Submit Product Return (RMA).
- Page 26 35 E. Wacker Dr, Suite 1700 Chicago , IL 60601 Phone +1 312 829 0601 IMPORTANT Any changes or modicaons not expressly approved by HMS Industrial Networks could void the user's authority to operate the equipment. Page 22 of 24 4.01.0331.20000 Version 2.0...
- Page 27 When this product reaches its end of life, contact local auhories to learn about disposal and recycling opons, or simply drop it o at your local HMS oce or return it to HMS.
- Page 28 CANbridge NT 200 and 420 UL Ordinary Locaons (Ord.Loc.) Intended Use The components are used to connect computer systems to CAN and CAN FD networks and to connect the networks with each other. They are intended for insallaon on standard DIN rail.
