6.13.4.2 O/C (open/close)
This option sets the input to be an O/C input.
Signal Event Type
2 New opening
4 New closing
5 Premises closed
6 Premises open

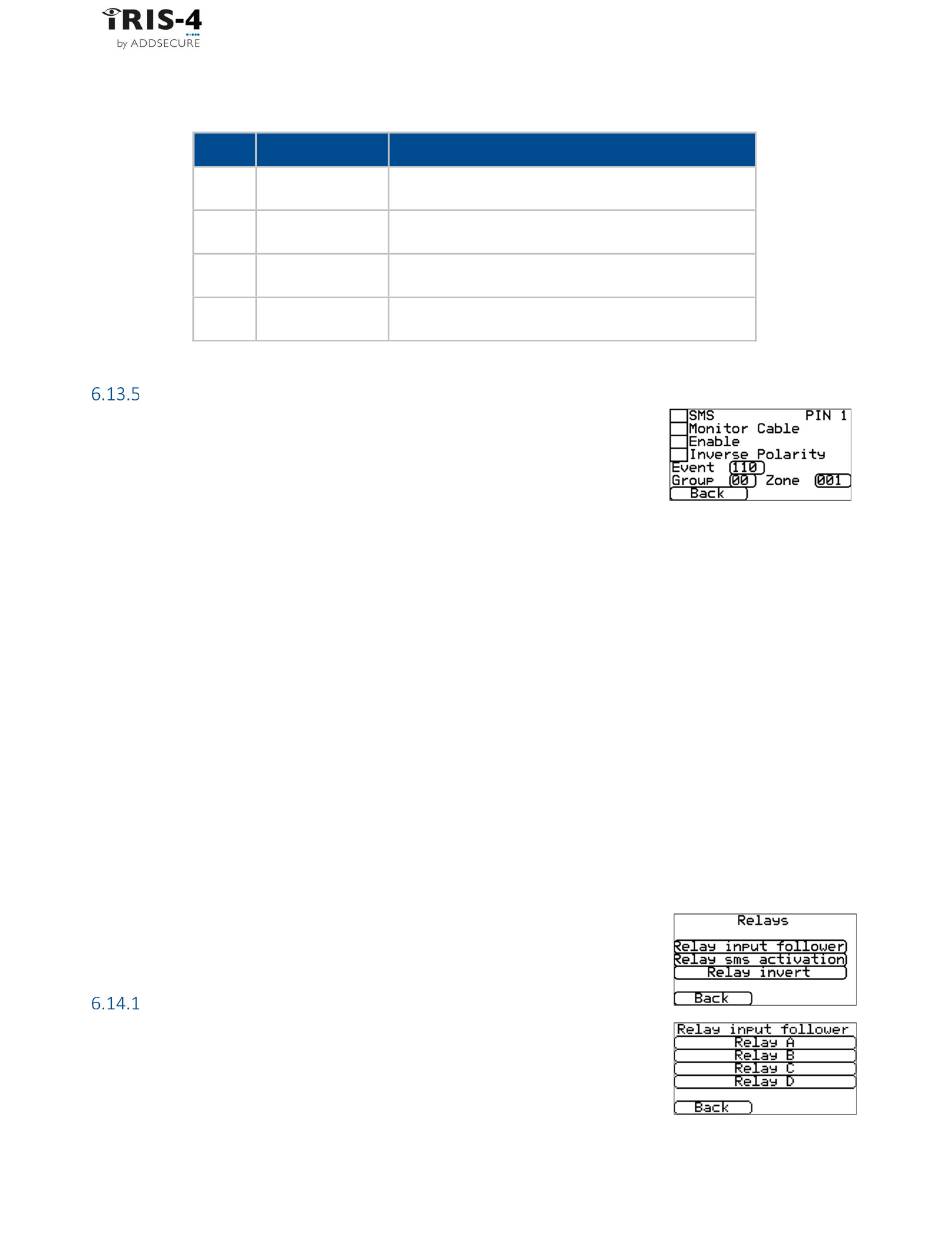

Alarm format CID
This setting means that the pin inputs will cause a specific Ademco® Contact ID
format alarm protocol message to be sent. This message includes an event
code, a zone number and a group number.
6.13.5.1 Event
Here you can input the 3-digit event code for this input, e.g., 110 = Fire.
To determine which event code is to be used, refer to the digital communication standard "Ademco®
Contact ID Protocol - for Alarm System Communications SIA DC-05-1999.09"
6.13.5.2 Group
Here you can input your pre-defined 2-digit group or partition number.
Use the value 00 if no specific group or partition information applies.
6.13.5.3 Zone
Here you can input your pre-defined 3-digit zone number (event reports) or user number (Open / Close
reports). Use the value 000 if no specific zone or user information applies.
6.13.5.4 Default CID Set/Restore event codes
These alarms are pre-coded as shown in the Default Alarm Message appendix.
6.14 Relays
This option lets you configure the relays.
Relay input follower
This feature lets the terminal relay outputs be set to follow a pin input, with a
delay if required. Normally a relay will open if the associated input goes open
circuit, and vice-versa, but this can be inverted if required.
Note: Do not use this feature for a relay with another purpose, e.g., communications path trouble reporting.
page 46
Description
The alarm triggering input is active, the intruder alarm
system has been unset.
The alarm triggering input is quiescent, the intruder
alarm system has been set.
The alarm triggering input is quiescent, and it has been
reported.
The alarm triggering input is active, and it has been
reported.
